GMS-250 Centrifugal pump & Spare parts list

GMS-250 Centrifugal Pump Can Replace Pump Parts from US Brands Halco Supreme 2500, Magnum Supreme 2500, Russian Brands-ISHNS, GShN, AGShN, INS-220

Send Inquiry

Download

Product Description

GMS 250 Centrifugal Pump Parts list

GMS 250 Centrifugal pump can 100% replace standard pumps from brands: MISSION MANUGM, MCM, HALCO, MUG HOG, TSC, DOUBLE LIFE, etc.

product-1-1

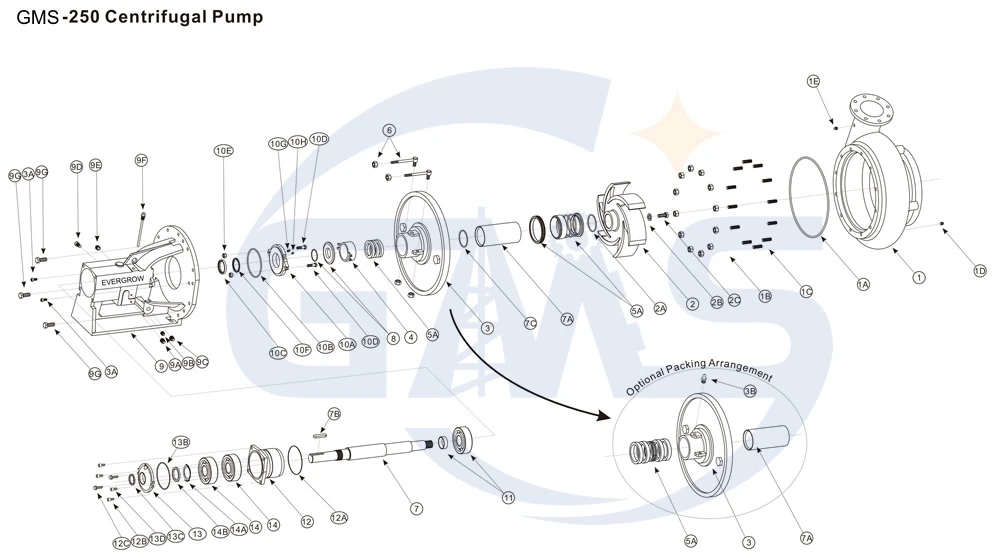

Parts list as below:

ITEM	QTY	GMS No.	Mission No.	MISSION Part #	MCM No.	DESCRIPTION	MATERAIL	WEIGHT/kg
1*	1	See below	See below			Casing
1A	1	GMS2501A	10399-46-1	648403012	P25HG	Gasket,casing	Vellumoid	0.01
1B	12	GMS2501B	3932-61	648402014	-	Nut,casing	Stl	0.05
1C	12	GMS2501C	3862-76	648401115	P25HSN	Stud,casing	Stl	0.16
1D	1	GMS2501D	8505-04-01	646400507	P25ODP	Plug,Casing Drain	Stl	0.03
1E	1	GMS2501E	8505-04-01	646400507	P25ODP	Plug,flush line	Stl	0.03
2*	1		See below			Impeller
2A	1	GMS2502A	19110-72	648405082	P25IMS	Seal,impeller	Viton	0.002
2B	1	GMS2502B	7300239	7300239	-	Washer,impeller	Stl	0.02
2C	1	GMS2502C	7415648	7415648	-	Bolt,impeler lock	Stl	0.15
3*#	1	GMS2503-1	22223-01-30	641116157	P25SB/MS	Stuffing box,mech.seal	Hard Iron	20
3*&	1	GMS2503-2	20614-01-30	643368889	P25SB/PK	Stuffing box,packed	Hard Iron	20
3A	2	GMS2503A	3861-117	648401016	P25SBB	Bolt,stuffing box	Stl	0.05
4	1	GMS2504	20622A	641103338	P25PG	Gland assy,packing	Stl 304	1
5A#	1	GMS2505A-1	22451-1	648414308	P25MS/TT	Seal,mechanical	Tung/Tung	1
5A#	1	GMS2505A-2	648402600	648402600	P25PMSG	Packing, Shaft - M.S. Backup	Graphite Acrylic	0.3
5A#	Option	GMS2505A-3	648402600	648402600	-	Packing, Shaft - M.S. Backup	Kevlar	0.3
5A	1	GMS2505A-4	25014-04M-B	661007005	P25PMSK	Packing, Shaft - w/latern ring	Graphite/Acrylic	0.5
5A	Option	GMS2505A-5	250147-04M-D	661007011	P25PMST	Packing, Shaft - w/latern ring	Teflon, White	0.5
5A#	Option	GMS2505A-6	25014-04M-C	661007006	-	Packing, Shaft - w/latern ring	Kevlar	0.5
6	2	GMS2506	B3701A	601102494	P25GABA	Bolt assy,gland	Stl 304	0.15
7	1	GMS2507	20612-02-33	646490557	P25SHFT	Shaft	42CrMo	17
7A#	1	GMS2507A-1	20943-04A	641103437	-	Sleeve,shaft	38CrMoAl	1
7A&	1	GMS2507A-2	20613-21G-7A	641102181	P25SHSLVC	Sleeve,shaft,ceramic	Ceramic	1
7B	1	GMS2507B	4371-5-21	601212392	P25CK	Key,shaft	Stl	0.11
7C	1	GMS2507C	23444-01-72	648415156	P25SSS	Seal,shaft sleeve	Viton	0.005
8	1	GMS2508	22210-1A	641116108	P25SRW	Deflector assembly	Composite	0.4
9	1	GMS2509	20618-12-1	644302499	P25PED	Frame,grease lubricated	Cast iron	80
9C	1	GMS2509C	8505-05	601474737	-	Plug, Frame Drain	Stl	0.033
9D	1	GMS2509D	8267-01	601473689	-	Breather	Stl	0.1
9G	3	GMS2509G	2538-1H		-	Bolt,casing jack	Stl	0.16
10A	1	GMS25010A	20626	641103361	P25IBBC	Cover,inboard bearing	Iron	2.6
10B	1	GMS25010B	20625	648408706	P25IBBCG	Gasket,I.B.Brg.Cover	Vegetable fiber	0.01
10C	1	GMS25010C	20619-01	648408300	P25IBBOS	Oil seal, I.B.Brg.Cover	Buna-n	0.06
10D	2	GMS25010D	3861-1	601407505	P25IBBCB	Bolt, I.B.Brg.Cover	Stl	0.03
10E	2	GMS25010E	3932-2	601408560	-	Nut, I.B.Brg.Cover	Stl	0.07
10F	1	GMS25010F	20620-01	648408409	P251BBES	Exclusion Seal, I.B. Brg. Cvr.	Buna-n	0.01
10G	1	GMS25010G	21641-01	661010033	P25ZGF	Grease fitting	Stl	0.07
10H	1	GMS25010H		648411908	P25ZGF	Grease fitting	Stl	0.07
11	1	GMS25011		661009010A	-	Bearing, Inboard & Spacer	Roller	2.1
11	1	GMS25011	20615-1	648408102	P25IBBRG	Bearing,inboard	Vendor	2.1
12	1	GMS25012	20624-01-01	644308504	P25OBBH	Housing,O.B.bearing	Iron	6
12A	1	GMS25012A	7496-253	648402295	P25OBBHS	Seal, O.B.Brg.housing	Buna-n	0.01
12B	4	GMS25012B	3861-138	648401057	P25BHB	Bolts, O.B.Brg.housing	Stl	0.05
12C	2	GMS25012C	3932-62	658404702	P25BCP	Nut, O.B.Brg.housing jam	Stl	0.016
13	1	GMS25013	20617A	20617H	P25OBBC	Cover,O.B.Bearing	Iron	1.8
13A	1	GMS25013A	19368-01	661010020	P25ZGF	Grease fitting	Brass	0.01
13B	1	GMS25013B	7496-26	72200017	P25OBBCS	O-ring, O.B.Brg.Cover	Buna-n	0.001
13C	1	GMS25013C	20619-02	648408359	P25OBBOS	Oil seal, O.B.Brg.Cover	Buna-n	0.04
13D	2	GMS25013D	3861-139	648401081	P25OBBCB	Bolt, O.B.Brg.Cover	Stl	0.025
14	2	GMS25014	20616-1	648408201S	P25OBBRG	Bearing, O.B.	Vendor	1.5
14A	1	GMS25014A	6124-4-1	648402105	-	Lockwasher,O.B.Bearing	Stl	0.01
14B	1	GMS25014B	6123-4-1	648402055	P25BLNK	Locknut, O.B.Bearing	Stl	0.22

ITEM	QTY	GMS No.	Mission No.			DESCRIPTION	MATERAIL	WEIGHT/kg
Casings-includes studs,nuts & gasket
1*	1	250C3213	19203-01-30A	641101753	P25D233H	Casing,3×2×13	Hard Iron	55
1*	1	250C4313	19205-01-30A	641101902	P25D343H	Casing,4×3×13	Hard Iron	57
1*	1	25C05414	19222-01-30A	641102058	P25D454H	Casing, 5×4×14	Hard Iron	88
1*	1	250C6511	19122-01-30A	641101456	P25D561H	Casing,6×5×11	Hard Iron	90
1*	1	250C6514	19123-01-30A	641101605	P25D564H	Casing, 6×5×14	Hard Iron	95
1*	1	250C8611	19763-01-30A	641102157	P25D681H	Casing, 8×6×11	Hard Iron	97
1*	1	250C8614	19117-01-30A	641101308	P25D684H	Casing,8×6×14	Hard Iron	125
1*	1	25C10814	20937-01-30A	641102322	-	Casing,10×8×14	Hard Iron	155
Impellers
2*	1	250IM3213	19204-XX-30	641215603	P25D233MRxxx	Impeller,3×2×13	Hard Iron	9
2*	1	250IM4313	19206-XX-30	641217005	P25D343MRxxx	Impeller,4×3×13	Hard Iron	12.5
2*	1	250IM5414	19224-XX-30	641217831	P25D454MRxxx	Impeller,5×4×14	Hard Iron	16
2*	1	250IM6511	19121-XX-30	641211602	P25D561MRxxx	Impeller,6×5×11	Hard Iron	14
2*	1	250IM6514	19121-XX-30	641211503	P25D564MRxxx	Impeller, 6×5×14	Hard Iron	18
2*	1	250IM8611	19121-XX-30	641211602	P25D561MRxxx	Impeller, 8×6×11	Hard Iron	18
2*	1	250IM8614	19116-A0-30	641209903	P25D684MRxxx	Impeller,8×6×14	Hard Iron	20
2*	1	25IM10814	21867-XX-30	641221007	-	Impeller,10×8×14	Hard Iron	20
Special parts:
Tungsten carbide impeller			TC250IM6511		641212105 TC, MISSION

Special parts for GMS-SANDMASTER PUMP

GMS-SANDMASTER PUMP PARTS
ITEM	GMS No.	Mission Catalog No.	MISSION #	DESCRIPTION	Material
1	D023939	20939-02-33	646492454	Shaft, Short pump	42CrMo
2	D021938	20938-02-1	644302622	Frame, Short pump	HT250
3	D014324	22224-01-43	644324501	Housing, Hydraulic Outboard Bearing	QT700
4	D011225	22225-01-01	644324600	Adapter, Hydraulic Drive	QT500
Parts for Short Pumps (All parts for short pumps are identical to the GMS 250 except the above)

For MISSION SUPREME 2500 PUMP

ITEM	QTY	GMS No.	MISSION No.	DESCRIPTION	MATERAIL
Casings-includes studs,nuts & gasket without wear pads
1*	1	2500C3213	H19203-01-30A	Casing,3×2×13	Hard Iron
1*	1	2500C4313	H19205-01-30A	Casing,4×3×13	Hard Iron
1*	1	2500C5414	H19222-01-30A	Casing,5×4×14	Hard Iron
1*	1	2500C6511	H19122-01-30A	Casing,6×5×11	Hard Iron
1*	1	2500C6514	H19123-01-30A	Casing, 6×5×14	Hard Iron
1*	1	2500C8611	H19763-01-30A	Casing,8×6×11	Hard Iron
1*	1	2500C8614	H19117-01-30A	Casing,8×6×14	Hard Iron
1*	1	250C10814	H20937-01-30A	Casing,10×8×14	Hard Iron
Impellers and Casing Wear Pads
2*	1	2500IM3213	H19204-XX-30	Impeller,3×2×13 Open	Hard Iron
2*	1	2500IM4313	H19206-XX-30	Impeller,4×3×13 Open	Hard Iron
2*	1	2500IM5414	H2523-XX-30	Impeller,5×4×14 Semi Open	Hard Iron
2*	1	2500IM6511	H2524-XX-30	Impeller,6×5×11 Semi Open	Hard Iron
2*	1	2500IM6514	H2524-XX-30	Impeller, 6×5×14 Semi Open	Hard Iron
2*	1	2500IM8611	H2524-XX-30	Impeller, 8×6×11 Semi Open	Hard Iron
2*	1	2500IM8614	H2525-XX-30	Impeller,8×6×14 Semi Open	Hard Iron
2*	1	250IM10814	H2526-XX-30	Impeller,10×8×14 Semi Open	Hard Iron
1E	1	2500N4313	H2501-01-30A	Wear Pad,4×3×13 Casing	Hard Iron
1E	1	2500N5414	H2502-01-30A	Wear Pad,5×4×14 Casing	Hard Iron
1E	1	2500N6511	H2503-01-30A	Wear Pad,6×5×11 Casing	Hard Iron
1E	1	2500N6514	H2504-01-30A	Wear Pad, 6×5×14 Casing	Hard Iron
1E	1	2500N8611	H2505-01-30A	Wear Pad,8×6×11 Casing	Hard Iron
1E	1	2500N8614	H2506-01-30A	Wear Pad,8×6×14 Casing	Hard Iron
1E	1	2500N8614	H2527-01-30A	Wear Pad,10×8×14 Casing	Hard Iron

And it can Replace Pump parts from Russian Brands ISHNS, GShN, AGShN, INS-220.

Pump Frame	G0006001	I005.00.000-01
Pump shaft	G0006002	I005.00.000-02
Shaft kit with bearings	G0006055	I005.00.000-02SB
Rear bearing housing	G0006003	I005.00.000-03
Oil seal bushing	G0006004	I005.00.000-04
Front bearing	G0006005	I005.00.000-05
Bearing oil deflector ring	G0006006	I005.00.000-06
Front bearing cap	G0006007	I005.00.000-07
Rear bearing	G0006008	I005.00.000-08
Rear bearing cap	G0006009	I005.00.000-09
Graphite packing	G0006010	I005.00.000-10
King Stuffing	G0006011	I005.00.000-11
Teflon packing	G0006012	I005.00.000-12
Mechanical seal	G0006013	I005.00.000-13
Oil Seal Bolt Kit	G0006014	I005.00.000-14
Shaft sleeve	G0006015	I005.00.000-15
Stuffing box with stuffing box seal	G0006016	I005.00.000-16
Stuffing box for mechanical seal	G0006017	I005.00.000-17
Impeller 3x2x13	G0006018	I005.00.000-181
Impeller 4x3x13	G0006019	I005.00.000-182
Impeller 5x4x14	G0006020	I005.00.000-183
Impeller 6x5x13	G0006021	I005.00.000-184
Impeller 6x5x14	G0006022	I005.00.000-185
Impeller 8x6x13(11)	G0006023	I005.00.000-186
Impeller 8x6x14	G0006024	I005.00.000-187
Pump body 3x2x13	G0006025	I005.00.000-191
Pump housing 4x3x13	G0006026	I005.00.000-192
Pump housing 5x4x14	G0006027	I005.00.000-193
Pump body 6x5x14 without plate	G0006028	I005.00.000-194
Pump housing 6x5x14	G0006029	I005.00.000-195
Pump body 6x5x14L		I005.00.000-195L
Pump body 8x6x14 without plate	G0006030	I005.00.000-196
Pump housing 8x6x14	G0006031	I005.00.000-197
Pump housing 8x6x14L		I005.00.000-197L
Pump body stud and nut	G0006032	I005.00.000-20
Pump body seal kit	G0006033	I005.00.000-21
Pump housing gasket	G0006034	I005.00.000-22
Impeller sealing ring	G0006035	I005.00.000-23
Shaft bushing sealing ring	G0006036	I005.00.000-24
Oil seal kit	G0006037	I005.00.000-25
Front Bearing Oil Seal	G0006038	I005.00.000-26
Front Bearing Protective Seal	G0006039	I005.00.000-27
Rear bearing oil seal	G0006040	I005.00.000-28
Set of bearing part gaskets	G0006041	I005.00.000-29
Front Bearing Cap Gasket	G0006042	I005.00.000-30
Rear Bearing Housing Sealing Ring	G0006043	I005.00.000-31
Rear Bearing Cover Sealing Ring	G0006044	I005.00.000-32
Bearing lock nut		I005.00.000-33
Rear Bearing Cap Bolt	G0006102	I005.00.000-34
Bearing housing bolt	G0006103	I005.00.000-35
Front Bearing Cap Bolt	G0006104	I005.00.000-36
Set screw (Bearing cover plug)	G0006105	I005.00.000-37
Seal housing bolt	G0006106	I005.00.000-38
Conical plug (Oil drain plug)	G0006107	I005.00.000-39
Greasepot 1.3	G0006108	I005.00.000-40
Dipstick plug (Oil filler cap with dipstick)	G0006109	I005.00.000-41
Key 12.8	G0006110	I005.00.000-42
Wear plate		I005.00.000-43
Wear plate 4x3x13	G0006047	I005.00.000-431
Wear plate 5x4x14	G0006048	I005.00.000-432
Wear plate 6x5x11	G0006049	I005.00.000-433
Wear plate 6x5x14	G0006050	I005.00.000-434
Wear plate 8x6x11	G0006051	I005.00.000-435
Wear plate 8x6x14	G0006052	I005.00.000-436

For further details, contact us sales team!
