GMS, your trusted manufacturer and supplier of high-quality GMS 2500 Centrifugal Pumps solutions! Our Pumps not only match the performance of original units but also offer exceptional durability and reliability.
The GMS 2500 Centrifugal Pump is designed to deliver exceptional performance in demanding conditions. Renowned for its durable construction and high efficiency, this pump plays a critical role in various oil and gas industry applications, including solids control systems and cementing operations.
Consistent Reliability
The GMS 2500 Series Centrifugal Pumps are designed to deliver stable and dependable performance, even under the most demanding operating conditions.
Compliance with Global Standards
Engineered to meet international benchmarks, including ISO certifications, the GMS 250 Series ensures strict compliance with safety and quality regulations across the industry.
Feature |
Specification |
Product Name |
2500 Supreme pump-4X3X14 Centrifugal Pump-MISSION 2500 Type |
OEM Reference Nos |
Equivalent with pumps from MCM, Mission Magnum, Halco, Mattco, Harrisburg, SPD Mud Hog |
GMS Part No. |
GMS-2500-4X3X13 |
Application |
Solid Control, Cementing |
Origin |
China |
Lead Time |
Stock - 1 week |
Certificate |
ISO 9001 |
The GMS Centrifugal Pumps 2500 Series is applied in oil and gas drilling system, specifically tailored for solid control and cementing applications. Its compatibility with existing equipment makes it a preferred choice among engineering procurement companies and drilling contractors.
(3) Replace MISSION 2500 Supreme parts | ||||||
ITEM | QTY | MISSION | DESCRIPTION | MATERAIL | WEIGHT | |
PART No. | kg | |||||
1* | 1 | See below | Casing | |||
1A | 1 | 10399-46-1 | Gasket,casing | Vellumoid | 0.01 | |
1B | 12 | 3932-61 | Nut,casing | Stl | 0.05 | |
1C | 12 | H2507-3 | Stud,casing | Stl | 0.16 | |
1D* | 1 | See below | Wear pad.includes | |||
Stds,rucs&gskt | ||||||
1E | 1 | 8505-2H | Plug,Casing Drain | Stl | 0.03 | |
2* | 1 | See below | Impeller | |||
2A | 1 | H19110-72 | Seal,impeller | Viton | 0.002 | |
3*# | 1 | H22223-01-30 | Stuffing box,mech.seal | Hard Iron | 20 | |
3*& | 1 | H20614-01-30 | Stuffing box,packed | Hard Iron | 20 | |
3A | 2 | H3861-117 | Bolt,stuffing box | Stl | 0.05 | |
3B& | 1 | 19368-1H | Grease fitting | Stl | 0.01 | |
4 | 2 | H20622AH | Gland assy,packing | Stl 304 | 1 | |
5A# | 1 | H22451-1A | Seal,mechanical | Tung/Tung | 1 | |
5B~ | 1 | 8264-24-0B | Packing, Shaft | 0.7 | ||
6 | 2 | 20629 | Bolt assy,gland | Stl 304 | 0.15 | |
7 | 1 | H20612-02-33 | Shaft | 42CrMo | 17 | |
7A# | 1 | H20613-21A | Sleeve,Shaft | 1 | ||
7A& | 1 | H20613-21G-7A | Sleeve,Shaft(Ceramic) | 1 | ||
7B | 1 | H4372-5-21 | Key,Shaft | Stl | 0.11 | |
7C | 1 | 23444-01-72 | Seal,Shaft Sleeve | Viton | 0.005 | |
8 | 1 | 22210-1A | Deflector,Assembly | Composite | 0.4 | |
9 | 1 | H17444 | Frame,Grease Lubricated | Cast iron | 80 | |
9C | 1 | Plug,Frame Drain | Stl | 0.033 | ||
9D | 1 | H8267-1 | Breather | Stl | ||
9G | 2 | H2538-1 | Bolt,Casing Jack | Stl | ||
10A | 1 | H17950 | Cover,Inboard Bearing | Iron | 2.6 | |
10B | 1 | H20625 | Gasket, Inboard Bearing Cover | Vegetable fiber | 0.01 | |
10C | 1 | H2564-4 | Labyrinth Seal,IB Brg Cvr | Buna-n | 0.06 | |
10D | 2 | H3861-1 | Bolt,I.B.Brg.Cover | Stl | 0.03 | |
10E | 1 | Grease Fitting | Stl | |||
11 | 1 | N/A | Bearing,Inboard | Vendor | 2.1 | |
12 | 1 | H20624-01-01 | Housing,O.B.Bearing | Iron | 6 | |
12A | 1 | H7496-253 | Seal,O.B.Brg Housing | Buna-n | 0.01 | |
12B | 4 | H3861-138 | Bolts,O.B.Brg.Housing | Stl | 0.05 | |
12C | 2 | H3932-62 | Nut,O.B.Brg.Housing | Stl | 0.016 | |
13 | 1 | 20617A | Cover,O.B.Bearing | Iron | 1.8 | |
13A | 1 | Grease Zerk,O.B.Brg.Cvr. | Stl | 0.01 | ||
13B | 1 | H7496-26 | O-ring,O.B.Bearing Cover | Buna-n | 0.001 | |
13C | 1 | H2564-3 | Labyrinth Seal,O.B. Brg Cvr. | Buna-n | 0.04 | |
13D | 2 | H3861-139 | Bolt,O.B.Brg.Cover | Stl | 0.025 | |
14 | 2 | H20616-1S | Bearing,O.B.(2 Req’d) | Vendor | 1.5 | |
14A | 1 | H6124-4 | Lockwasher,O.B.Bearing | Stl | 0.01 | |
14B | 1 | H6123-4 | Locknut,O.B.Bearing | Stl | 0.22 | |
Casings-includes studs,nuts & gasket | ||||||
1* | H19203-01-30A | Casing,3×2×13 | ||||
1* | H19205-01-30A | Casing,4×3×13,w/ wear pad | ||||
1* | H19222-01-30A | Casing,5×4×14 w/ wear pad | ||||
1* | H19122-01-30A | Casing,6×5×11 w/ wear pad | ||||
1* | H19123-01-30A | Casing, 6×5×14 w/ wear pad | ||||
1* | H19763-01-30A | Casing, 8×6×11 w/ wear pad | ||||
1* | H19117-01-30A | Casing,8×6×14 w/ wear pad | ||||

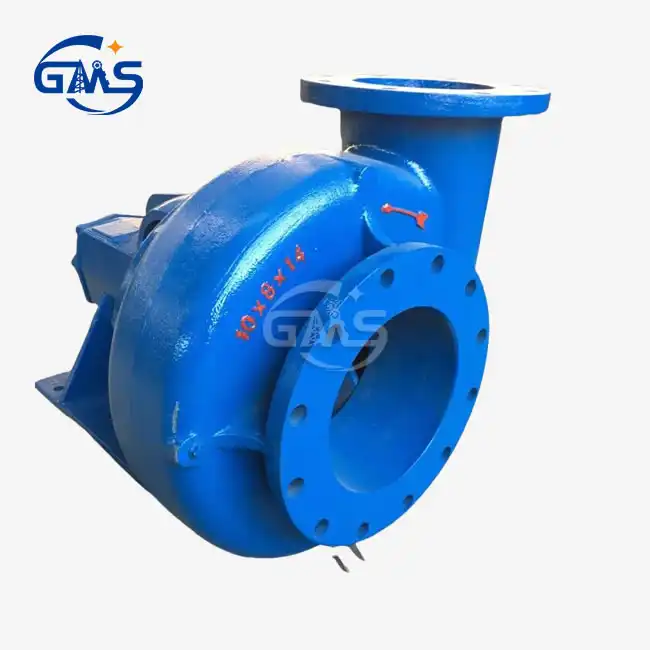

1* | H20937-01-30A | Casing,10×8×14 w/ wear pad | ||||
Impellers and Casing Wear Pads | ||||||
2* | H19204-XX-30 | Impeller,3×2×13 Open | ||||
2* | H19206-XX-30 | Impeller,4×3×13 Open | ||||
2* | H2523-XX-30 | Impeller,5×4×14 Semi Open | ||||
2* | H2523-XX-30 | Impeller,6×5×11 Semi Open | ||||
2* | H2523-XX-30 | Impeller, 6×5×14 Semi Open | ||||
2* | H2524-XX-30 | Impeller, 8×6×11 Semi Open | ||||
2* | H2524-XX-30 | Impeller,8×6×14 Semi Open | ||||
2* | H2526-XX-30 | Impeller,10×8×14 Semi Open | ||||
1E | H2501-01-30A | Wear Pad,4×3×13 Casing | ||||
1E | H2502-01-30A | Wear Pad,5×4×14 Casing | ||||
1E | H2503-01-30A | Wear Pad,6×5×11 Casing | ||||
1E | H2504-01-30A | Wear Pad, 6×5×14 Casing | ||||
1E | H2505-01-30A | Wear Pad, 8×6×11 Casing | ||||
1E | H2506-01-30A | Wear Pad,8×6×14 Casing | ||||
1E | H2507-01-30A | Wear Pad,10×8×14 Casing | ||||
(4) Replace MCM 250 Centrifugal pump parts | ||||||
Item no. | Qty | Mission Part no. | MCM Part no. | Description | ||
1 | 1 | 20618-12-1 | P25PED | 250 Pedestal | ||
2 | 1 | 20612-02-33 | P25SHFT | 250 Shaft | ||
3 | 1 | 20624-01-01 | P25OBBH | 250 Outboard Bearing Housing | ||
4 | 1 | 20622A | P25PG | 250 Packing Gland | ||
5 | 1 | 20615-1 | P25IBBRG | 250 Inboard Bearing | ||
6 | 1 | 22210-1A | P25SRW | 250 Water Slinger Ring | ||
7 | 1 | 20626A | P25IBBC | 250 Inboard Bearing Cover | ||
8 | 2 | 20616-1 | P25OBBRG | 250 Outbaord Bearing | ||
9 | 1 | 20617A | P25OBBC | 250 Outboard Bearing Cover | ||
10 | 1 | 8264-24-OBA | P25PMSG | 250 Graphite Packing | ||
1 | 8474-24-1A | P25PMSK | 250 King Packing | |||
1 | 8264-24-7A | P25PMST | 250 Teflon Packing | |||
1 | 22451 | P25MS/TT | 250 Mechanical Seal | |||
11 | 2 | 3701A | P25GABA | 250 Gland Bolt Assy | ||
12 | 1 | 20613-21G-7A | P25SHSLVC | 250 Shaft Sleeve, Ceramic | ||
13 | 1 | 20614-01-30 | P25SB/PK | 250 Stuffing Box F/Packing | ||
1 | 22223-01-30A | P25SB/MS | 250 Stuffing Box F/Mech Seal | |||
14 | 1 | 19204-XX-30 | P25D233MRxxx | 250 2x3x13 Impeller | ||
1 | 19206-XX-30 | P25D343MRxxx | 250 3x4x13 Impeller | |||
1 | 19224-XX-30 | P25D454MRxxx | 250 4x5x14 Impeller | |||
1 | 19121-XX-30 | P25D561MRxxx | 250 5x6x11 Impeller | |||
1 | 19121-XX-30 | P25D564MRxxx | 250 5x6x14 Impeller | |||
1 | 19121-XX-30 | P25D561MRxxx | 250 6x8x11 Impeller | |||
1 | 19116-XX-30 | P25D684MRxxx | 250 6x8x14 Impeller | |||
15 | 1 | 19203-01-30A | P25D233H | 250 2x3x13 Housing Assy | ||
1 | 19205-01-30A | P25D343H | 250 3x4x13 Housing Assy | |||
1 | 19222-01-30A | P25D454H | 250 4x5x14 Housing Assy | |||
1 | 19122-01-30A | P25D561H | 250 5x6x11 Housing Assy | |||
1 | 19123-01-30A | P25D564H | 250 5x6x14 Housing Assy | |||
1 | 19763-01-30A | P25D681H | 250 6x8x11 Housing Assy | |||
1 | 19117-01-30A | P25D684H | 250 6x8x14 Housing Assy | |||
16 | 12 | 3862-76/3932-61 | P25HSN | 250 Housing Stud w/nut | ||
7A | 10399-46-1A | P25FEGK | 250 Fluid End Gasket Kit | |||
17 | 1 | 10399-46-1 | P25HG | 250 Housing Gasket | ||
18 | 1 | 19110-72 | P25IMS | 250 Impeller Seal O-Ring | ||
19 | 1 | 7496-236 | P25SSS | 250 Shaft Sleever Seal O-Ring | ||
20A | 20619A | P25OSK | 250 Oil Seal Kit | |||
20 | 1 | 20619-01 | P25IBBOS | 250 Inboard Bearing Seal Kit | ||
21 | 1 | 20620-01 | P251BBES | 250 Inboard Exclusion Seal | ||
22 | 1 | 20619-02 | P25OBBOS | 250 Outboard Bearing Seal | ||
23A | 20625A | P25PEGK | 250 Power End Gasket Kit | |||
23 | 1 | 20625 | P25IBBCG | 250 Inboard Bearing Cover Gasket | ||
24 | 1 | 7496-253 | P25OBBHS | 250 Outboard Bearing Hsg Seal | ||
25 | 1 | 7496-26 | P25OBBCS | 250 Outbaord Bearing Cover Seal | ||
26 | 1 | 6123-4A | P25BLNK | 250 Bearing Lock Nut Kit |
At GMS, we pride ourselves on our:
Our ISO 9001 certification demonstrates our steadfast dedication to providing high-quality products and services through a reliable and efficient quality management system.
With over a decade of industry experience, we bring extensive knowledge and proven skills to ensure the delivery of dependable, high-performance products that consistently exceed customer expectations.
We understand the value of your time and prioritize fast communication, offering timely, clear responses to keep your projects on track and progressing smoothly.
Our comprehensive inventory ensures a broad range of products are available to meet urgent needs, delivering quick and effective solutions for any project.
We are committed to minimizing lead times by optimizing our production and delivery processes, helping you stay on schedule and avoid unnecessary delays.
Our dedicated after-sales team is always on hand to provide prompt assistance, ensuring any issues are swiftly addressed and offering ongoing support for a seamless experience post-purchase.
We offer flexible, tailored solutions designed to meet your specific needs, providing bespoke products and services to guarantee the perfect match for your unique requirements.
Q: What is the lead time for the GMS Centrifugal Pumps 250 Series?
A: We usually have stock available for small orders. Normally lead time is 1-2 weeks.
Q: Do you have any certificates for the GMS Centrifugal Pumps 250 Series?
A: Yes, we possess an ISO certificate for Centrifugal pumps and parts.
Q: How can I place an order?
A: Simply contact us at sales@gmssupply.com, and our team will assist you throughout the process.
For inquiries about our GMS 2500 Centrifugal Pumps, feel free to reach out via email at sales@gmssupply.com.
We're here to provide you with all the information you need! By focusing on the unique features and advantages of the products, we aim to attract centrifugal pump and parts overhaul, repair, maintenance, and services companies in the oil and gas drilling industry. We cater to oil and gas exploration companies, drilling contractors, equipment distributors, and engineering procurement companies and distributors.
