TDS-11SA Top Drive Spare Parts List

# Product Description OEM Part# GMS Part #
1 S-PIPE,RH,WELDMENT 117063-7500 11S00306
2 CRANK,ASSY,EXTERNAL 98898 11S00663
3 WASH PIPE ASSY 30123290 11S00011
4 PIPE,WASH-3 INCH BORE 30123289 11S00359
5 PACKING SEAL KIT(5 PER SET) 30123290-PK 11S00360-1
6 ADAPTER,S-PIPE 109523 11S00059
7 YOKE,IBOP ACTUATOR 30157225 11S00718
8 JAW ASSY,NC 50-5 1/2 FH(φ6.25-7.50) 30125052 11S00783
9 JAW ASSEMBLY 30125051 11S00795

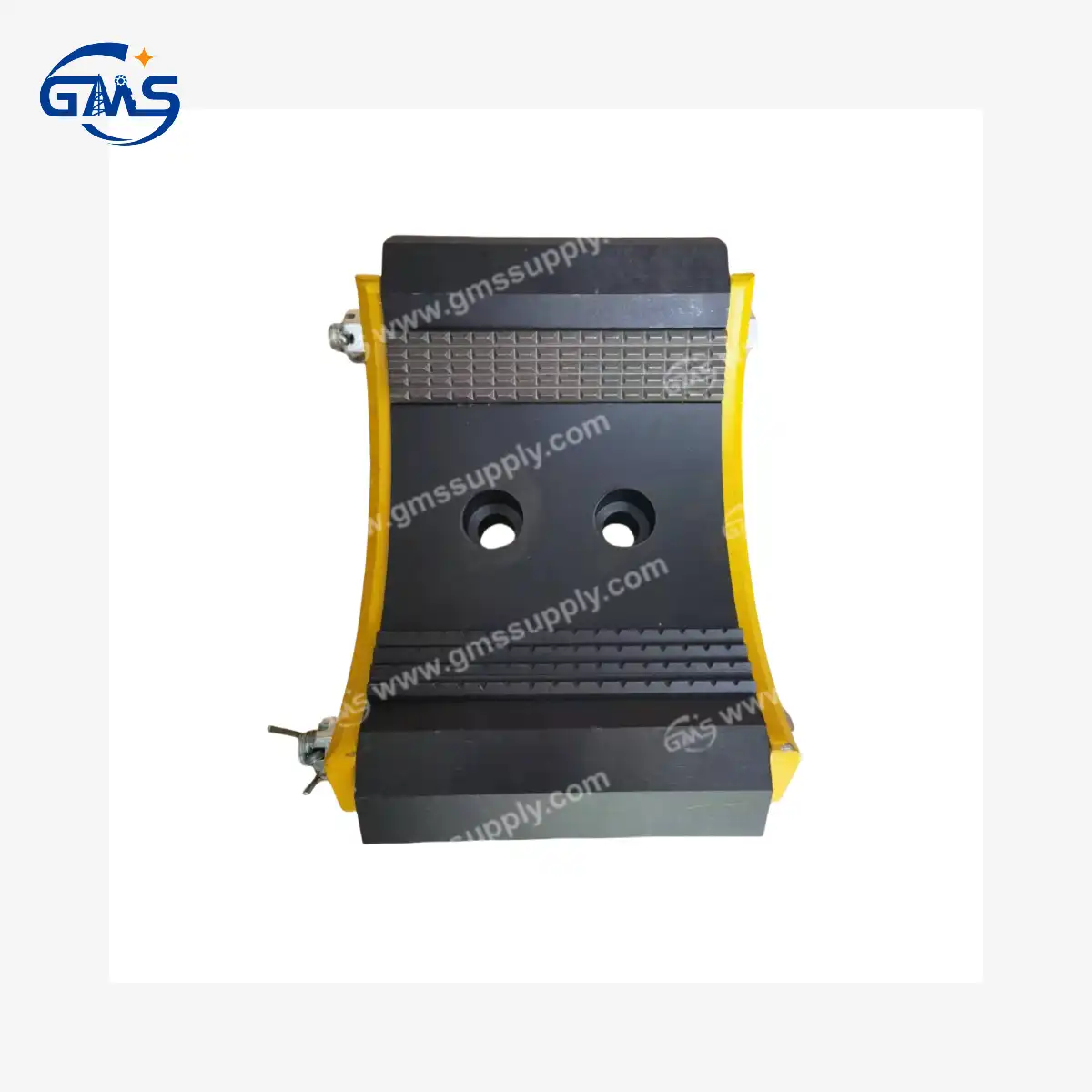

10 JAW ASSEMBLY 30125053 11S00797
11 JAW ASSEMBLY 30173233 11S00798
12 JAW ASSY,3.00-4.00 OD TOOL JOINT,NC26 118958 11S00799
13 JAW ASSY 85786 11S00800
14 JAW ASSY 122109 11S00801
15 JAW 30124925 11S00802
16 CAM FOLLOWER 6" DIA 30155438 11S00599
17 BEARING,CAM FOLLOWER 30158767-04 11S00600
18 ROLLER 71847 11S00743
19 CAM FOLLOWER 79824 11S01536
21 IBOP,UPPER 110103-500 11S00712
22 IBOP,UPPER,H2S TRIM 110103-502 11S00713
23 IBOP,LOWER 114706-500 11S00714
24 IBOP,LOWER,H2S TRIM 114706-502 11S00715
25 REPAIR KIT-COMPLETE 114859 11S01058
26 IBOP MAJOR REPAIR KIT,UPPER,H2S 114860-2 11S01060
27 REPAIR KIT-COMPLETE 99498-2 11S01019
28 IBOP MAJOR REPAIR KIT,LOWER,H2S 99503-2 11S01021
29 REPAIR KIT – SOFT SEALS 99498-1 11S01018
30 CRANK,OPER-RH 110118 11S01026
31 CRANK,OPER-LH 110128 11S01028
32 SET,SEAT/BALL 99500 11S01037
33 Set, Seat/Ball 30177892 11S02185
34 Set, Seat/Ball 30178893 11S02186
35 BALL/SEAT-SET UPPER IBOP, EXT STOP 30177204 11S02187
36 LINER,UPPER STEM 98290 11S00092
37 SLEEVE STEM 91829-1 11S00017
38 Caliper, Disc Brake 109528 11S00028
39 FRICTION PADS(REPLACEMENT)(2 REQD) 109528-1 11S01541
40 RETAINER,OIL SEAL 119359 11S00873
41 PIN,BAIL(CARRIAGE) 109506 11S00341
42 SEAL,OIL 91250-1 11S00090
43 COLLAR,LANDING(SET) 118377 11S00102
44 RETAINER,LANDING COLLAR 118378 11S00101
45 SHOT PIN 30173958 11S00441
46 SLEEVE,SHOT PIN 30151951 11S00429
47 FLG BUSHING,SHOT PIN 30151961 11S00435
48 SPACER,RING 109539 11S00094
49 ROTOR,BRAKE 109555 11S00029
50 FILTER GEAR OIL 30111013-1 11S01252-1
51 FILTER;OIL;GEAR 30111013-KIT 11S01252-K
52 FILTER 30173216-1 11S02319-1
53 FILTER 30173216-KIT 11S01253-K
54 PISTON RING 30173156 11S02188
55 LINER,STABILIZER 30158690 11S00779
56 STABILIZER,FRONT 30124898 11S00772
57 STABILIZER ASSY,REAR 30176111 11S02189
58 SHIELD,BEARING 30154362 11S02190
59 SEAL,WIPER 119547 11S00861
60 PISTON 12820 11S00759
61 SHELL,ACUTATOR,IBOP 110042 11S00662
62 BUSHING,TURCITE 119358 11S00863
63 STAB,GUIDE ASSY,NC 50-5 1/2 FH(SET) 125158 11S00784
64 STAB,GUIDE ASSY 30123114 11S02191
65 STAB,GUIDE ASSY 118250 11S02192
66 ACCUMULATOR,HYDRO-PNEUMATIC 2" 110564-1 11S01249
67 ACCUMULATOR,HYDRO-PNEUMATIC 4" 110563-1 11S01248
68 ACCUMULATOR,HYDRO-PNEUMATIC 6" 110562-1 11S01247
318 ACCUM,HYDRO 110563-11 11S02240
319 ACCUM,HYDRO 110563-1CE 11S02241
320 ACCUM,HYDRO 110564-1CE 11S02242
321 ACCUM,HYDRO 110564-1SEP 11S02243
69 CYLINDER ASSY,HYD,IBOP ACTUATOR 125594 11S00719
70 CYLINDER,DOUBLEROD 120557 11S00929
71 CYLINDER,4" INCH 110687 11S00935
72 CYLINDER ASSEMBLY,COUNTER BALANCE 110703 11S00252
73 CYLINDER ASSEMBLY,COUNTER BALANCE 110704 11S00253
74 CYLINDER,HYDRAULIC 119416 11S00918
75 CYLINDER,HYDRAULIC ASSEMBLY 30119592 11S00666
76 CRANK ASSEMBLY,LINK TILT 30158189 11S00656
77 SEAL,POLYPAK 98291 11S00091
78 BRAKE,CALIPER DISC 109528 11S00028
79 BEARING,CYLINDER ROLLER-MAIN LOWER 109521 11S00021
80 BEARING,CYLINDRICAL ROLLER-COMPOUND UPPER 109522 11S00022
81 GEAR,COMPOUND,40X25 30156250 11S00436
82 GEAR,DRIVE 30156256 11S00437
83 CYLINDER HEAD 11075 11S00760
84 RING,CYLINDER HEAD 11085 11S00762
85 PIN,RETAINER,COLLAPSIBLE LINK 30170045 11S00680
86 LINK1,COLLAPSIBLE 30170445 11S00670
87 LINK2,COLLAPSIBLE 30170446 11S00671
88 CARRIAGE, LEFT, 30'' SETBACK, DS 124535 11S00595
89 CARRIAGE, RIGHT, 30'' SETBACK, ODS 124536 11S00628
90 CARRIAGE ASSY 124538 11S00582
91 HOUSING, SHOT PIN 30151953 11S00428
92 SPACER,UPPER,3"WASH PIPE 30123285 11S00355
93 SEAL, PISTON 110061 11S00401
94 BAIL,500T,120",MACH,TDS9S 109505-3 11S00340
96 Spacer 99168 11S01535
97 PIN 51206-4-S 11S02193
98 Pin, Cotter 51435-20 11S02194
99 Pin, Clevis 30119546 11S00920
100 CLAMP, LINK TILT, 350 TON, WO# Varco TDS-9SA/11SA 119122 11S00706
101 56606-8 Varco Fitting angle 56606-8 11S01134
102 (UL) Cable entry for blower motor 86625-02 11S01123
103 PHM1 M20 Varco Cable lug 83444-01 11S01091
104 PHM-1, M20 83444-03 Varco Cable lug 83444-03 11S01171
105 Basic Tieback Kit 30154685-100 11S01507
106 PLATE,TIEBACK 117982 11S01473
107 KEY 16532 11S00785
108 FITTING,GREASE 53201 11S00344
109 FITTING,GREASE 53208 11S02195
110 FITTING,GREASE 53209 11S02196
111 CAP,PLASTIC PIPE 1-1/16 SAE 53415 11S00324
112 GASKET 71033 11S00387
113 RESERVOIR BREATHER 71613 11S00327
114 SEAL,PISTON 72219 11S00763
115 SEAL,ROD 72220 11S00764
116 RING,WIPER 72221 11S00765
117 GUIDE,ARM 76442 11S00983
118 SPRING 76443 11S00984
119 PRESSURE SWITCH,AIR 76841 11S02197
120 SEAL 77039 11S00089
121 SPRING,DIE 79179 11S00781
122 PRESSURE SWITCH,AIR 79386 11S01085
123 JAW ASSY 80492 11S02198
124 NUT,JAM,2"-12 UN-2B 80569 11S00606
125 WING NUT,4" FIG 1002 81158 11S00309
126 SEAL RING,3〞 FIG 1002 91923 11S00293
127 RUBBER,S-PIPE 92426 11S00288
128 PIN,GUIDE ARM 30172178 11S02199
129 PINION INSTALLATION SUPPLIES 115040 11S00275
130 COUPLING,PUMP,HIDRAULIC 30114016 11S02200
131 PISTON RING 30177233 11S00890
132 LOCK TAB 107052 11S00664
133 WELDMENT,S-PIPE.RH（INSIDE GUARD） 108754 11S02201
134 BUSHING,BAIL PIN 109507 11S00343
135 BEARING,TAPER ROLLER 109519 11S00019
136 RING,RETAINING 109538 11S00086
137 GLYD RING ROTARY 11.500 ROD 30119143 11S00852
138 GLYD RING ROTARY 11.000 ROD 30119319 11S00849
139 RING,THRUST 30119357 11S00850
140 HEAT EXCHANGER,OIL 30122104 11S00008
141 PUMP,HYD.PISTON,PRES.COMP 109542 11S01549
142 HUB,BRAKE 109554 11S00263
143 TUBE,UPPER BEARING LUBE 109566 11S00058
144 ADAPTER,MOTOR/PUMP 109579 11S00383
145 SLEEVE,WEAR 109591 11S00016
146 RETAINER,BEARING 109593 11S00024
147 BUSHING,FLANGED,2.75 ID 109944 11S00603
148 O-RING,MAIN BODY/COVER 110008 11S00108
149 GASKET,ACCESS COVER 110011 11S00047
150 GASKET,BLOWER 110014 11S00048
151 FLEX COUPLING 110023 11S01551
152 PIN,DOWEL 110039 11S00096
153 ROD SEAL ASSEMBLY 110056 11S00399
154 GASKET,DUCT/MOTOR 110116 11S00054
155 RETAINER,BAIL PIN(CARRIAGE) 110123 11S00342
156 GASKET 110132 11S00317
157 BUSHING,WEAR,SST 110152 11S02202
158 TUBE ASSEMBLY,BRAKE 110171 11S02203
159 TUBE ASSEMBLY,BRAKE 110172 11S00083
160 TUBE ASSEMBLY,BRAKE 110173 11S00085
161 CLEVIS,ROD END,CYLINDER,COUNTER BALANCE 111935 11S00936
162 TUBE,CYLINDER,COUNTER BALANCE 111936 11S00938
163 TOOL JOINT LOCK 112848 11S00683
164 PIN,BOGEY PIVOT 112875 11S00596
165 BRACKET,PRE-FILL VALVE 113246 11S00035
166 TUBE ASSY,PRE-FILL/BULKHEAD 113984 11S01267
167 TUBE ASSY,RESERVOIR/PRE-FILL MANIFOLD 113985 11S01268
168 TUBE ASSY PRESS.SWITCH/AIR DUCT 113988 11S01271
169 TUBE ASSY,MANIFOLD/CASE DRAIN 114083 11S01279
170 TDS-9/11 MANIFOLD ASSEMBLY(EExd) 114175 11S02204
171 FILTER,HYDRAULIC 114416 11S01253
172 SEAL RING,4" FIG 1002 114833 11S00308
173 BISHING 115176 11S00870
174 TUBE ASSY,MANIFOLD/LOAD STEM 115422 11S01260
175 TUBE ASSY,MANIFOLD/LOAD STEM 115423 11S01261
176 TUBE ASSY,MANIFOLD/LOAD STEM 115425 11S01264
177 TUBE ASSY,MANIFOLD/LOAD STEM 115426 11S02205
178 TUBE ASSY,C'BAL ACCUM/MANIFOLD 116690 11S01266
179 TUBE ASSEMBLY,BRAKE,RIGHT 117116 11S00084
180 TUBE ASSY,MANIFOLD/LOAD STEM 117570 11S01263
181 PIN,JOINT 117782 11S01410
182 PIN,RETAINER 117783 11S01411
183 PISTON RING 117826 11S00851
184 PINION GEAR,HELICAL(MACHINING) 117939 11S00262
185 BEARING,SPHERICAL ROLLER-COMPOUND LOWER 117987 11S00018
186 SCREW,HEX HD,DRILLED SHANK 117989 11S00773
187 STABILIZER ASSY,FRONT 118368 11S02206
188 GLYD RING ROTARY 10.000 ROD 118375 11S00853
189 TUBE ASSY,ACCUMULATOR/LOAD STEM 118410 11S01262
190 BEARING ISOLATOR 118456 11S00074
191 MANIFOLD ASSEMBLY,CLAMP CYLINDER 118511 11S00769
192 SLEEVE,SHOT PIN 118563 11S00404
193 BAR,RETAINING 118947 11S00668
194 TUBE ASSY,HEAT EXCHANGER/FILTER 119028 11S01258
195 TUBE ASSY,OIL-FILTER/PRE-FILL VALVE 119029 11S01269
196 U-BOLT,350 TON 119139 11S00709
197 PIN,PIPE HANDLER 119387 11S00660
198 CLEVIS 119732 11S00919
199 MANIFOLD 114174 11S02207
200 SHAFT ADAPTER 120116 11S00196
201 BELT,TIMING 120117 11S00203
202 BEARING,THRUST-TAPER ROLLER 120556 11S00020
204 MAIN SHAFT W/LANDING COLLAR 121131 11S00002
205 TUBE ASSEMBLY 121511 11S02208
206 TUBE ASSY，QD/MANIFOLD(3/4") 121512 11S01307
207 TUBE ASSEMBLY 121726 11S01296
208 TRUNNING BUSHING,CYLMOUNT 121979 11S00722
209 FASTENING BLOCK 122248 11S00027
210 NUT,3" WASH PIPE 123284 11S00354
211 SPACER,UPPER,3" WASH PIPE 123285 11S00355
213 VALVE,RELIEF 141304 11S00073
214 FILTER,ASSY,60 MICRON,GEAR OIL 30111013 11S01252
215 BEARING,SHOT PIN 30112626 11S00405
216 VALVE,RELIEF-POPOFF 30113165 11S00330
217 TUBE ASSY,LUBE MOTOR/MANIFOLD 30113974 11S01257
218 TUBE ASSY,MANIFOLD/LOAD STEM 30115421 11S01259
219 ADAPTER,PUMP INLET/DRAIN 30115918 11S01359
220 TUBE ASSY,MANIFOLD/LOAD STEM 30118405 11S01256
221 RETIANER,DIE 30122112 11S00898
222 SPACER,MIDDLE,3" WASH PIPE 30123286 11S00356
223 SPACER,LOWER,3" WASH PIPE 30123287 11S00357
224 RING,HOLDING,3" WASH PIPE 30123288 11S00358
225 RING,SNAP 30123562 11S00362
226 BOX,PACKING ASSY,3" WASH PIPE 30123563 11S00353
227 SCREW,SOCKET HD-DOG NOSE 30123564 11S00364
228 HOSE,ASSY 30124191 11S01300
229 SEAL KIT: 6 IN ACCUMULATOR 30124575 11S02209
230 SEAL KIT: 2 IN ACCUMULATOR 30124576 11S02210
231 RETIANER,DIE 30124935 11S00897
232 TUBE ASSEMBLY 30125094 11S02211
233 TUBE ASSEMBLY 30125096 11S02212
234 TUBE ASSEMBLY 30125097 11S02213
235 TUBE ASSY,MANIF0LD/SH0T PIN 30125099 11S02214
236 TUBE ASSY,LINK ADAPTER LIFT 30125100 11S02215
237 TUBE ASSY,LUBE PUMP/FILTER 30125103 11S01290
238 TUBE ASSY,LUBE PUMP MANIFOLD/FILTER 30125104 11S01273
239 ASSEMBLY,SHOT PIN 30151875 11S00010
240 BEARING,RADIAL,LIGHT 30151954 11S00430
241 RETAINER,BEARING 30151955 11S00431
242 HYD MOTOR,LOW SPEED HIGH TORQUE 30151957 11S02216
243 SHAFT,COMPOUND GEAR 30151960 11S00434
244 VALVE, GAS FILL 30152608 11S02217
245 PIN 30152845 11S00613
246 POST,SPRING 30157292 11S00723
247 PIN,LINCH φ.188 30157306 11S00604
248 SPRING 30157308 11S00720
249 SCREW,DRILLED SHANK 30157426 11S00750
250 HYD MOTOR,LOW SPEED HIGH TORQUE 30158011 11S00432
251 PIN，CRANK 30158164 11S00657
252 GEAR,COMPOUND,HELICAL 30158573 11S00013
253 GEAR,BULL,HELICAL 30158574 11S00012
254 REWORK MANUAL VALVE,3-POS 30171921 11S00472
255 TUBE ASSEMBLY,BRAKE,BOTTOM 30171956 11S00097
256 TUBE ASSEMBLY,BRAKE,TOP 30171957 11S00098
257 KIT, TUBE ASSY 30171993 11S01353
258 TUBE ASSEMBLY 30172005 11S02218
259 TUBE ASSY，IBOP PRESS SW/MANIFOLD(1/4") 30172006 11S02219
260 NUT,HEX,MODIFIED,PH60/85 30172060 11S02220
261 PIN,CYLINDER MOUNTING 30172154 11S00724
262 SCREW,CAP,HEX-HEAD,MODIFIED 30172172 11S00105
263 PIN,PIVOT 30172825 11S00736
264 FILTER,HYDRAULIC 30173216 11S02319
265 VALVE,COUNTER BALANCE 30173386 11S00905
266 BEARING ISOLATOR 30173521 11S02221
267 TUBE ASSY,MANIFOLD/SHOTPIN 30175750 11S02222
268 RETAINER,BEARING-UPPER STEM 30176112 11S02223
269 PIN,HINGE 30178847 11S02224
270 RETAINER,HINGE PIN 30178859 11S02225
271 BOLT SHOULDER SOCKET 30179918 11S02226
272 CLEVIS 103141-7 11S02227
273 CLEVIS,RODFE MALE 103141-8 11S02228
274 DIFFERENTIAL UNLOADING VALVE 107028-1ANB 11S00481
275 PILOT-TO-OPEN CHECK VALVE 107029-175N 11S00482
276 PUMP,HYD.VANE,1.0.,CU.IN./MIN. 107783-5C11R 11S02229
277 STRAINER,SUMP 107865-16 11S00322
278 SIGHT GAGE 108119-16B 11S00328
279 BALL VALVE 108216-12 11S00055
280 SEAL KIT 108894-B25 11S02230
281 BODY SEALS 108894-B32 11S02231
282 CYLBODY SEAL KIT 108894-B40 11S02232
283 ROD SEALS WITH GLAND 108894-G13 11S00931
284 SEAL,ROD 108894-G20 11S02233
285 PISTON SEALS 108894-P25 11S02234
286 PISTON SEALS 108894-P32 11S02235
287 PISTON SEALS 108894-P40 11S02236
288 VALVE 109302-130NA 11S00546-1
289 FIXED-FLOW CONTROL VALVE 109302-130NC 11S00546
290 SEAL KIT 109528-2 11S01542
291 HEAVY DUTY SPRING(4 REQD) 109528-3 11S01543
292 SCREW,RETURN SPRING(4 REQD) 109528-4 11S01544
293 PIN,GUIDE(4 REQD) 109528-5 11S01545
294 BLEEDER VALVE 109528-6 11S01546
295 MANILOLD,TDS-9 109547-2 11S00469
296 IMPELLER,BLOWER 109561-1 11S02238
297 P50 PUMP(ROLLER BEARING) 109567-B 11S00376
298 P50 PUMP(GEAR SET) 109567-G20 11S00375
299 P50 PUMP(BODY SEAL) 109567-S 11S00378
300 P50 PUMP(THRUST PLATE) 109567-T 11S00379
301 P50 PUMP(GEAR HOUSING) 109567-H203 11S00374
302 SHIM,BEARING RETAINER 109586-1 11S00061
303 SHIM,BEARING RETAINER 109586-2 11S00062
304 SHIM,BEARING RETAINER 109586-3 11S00063
305 SHIM,BEARING RETAINER 109586-4 11S00064
306 SHIM,BEARING RETAINER 109586-5 11S00065
307 REDUCING/RELIEVING VALVE 109858-1AN 11S00485
308 SLEEVE,MAIN SHAFT 110040-1 11S00015
309 ROD SEAL ASSEMBLY 110061-326 11S00401
310 SHIM,RESERVOIR MOUNTING(.002) 110147-1 11S00066
311 SHIM,RESERVOIR MOUNTING(.005) 110147-2 11S00067
312 SHIM,RESERVOIR MOUNTING(.010) 110147-3 11S00068
313 SHIM,RESERVOIR MOUNTING(.031) 110147-4 11S00069
314 MOTOR,HYDRAULIC,LOW-SPEED/HIGH-TORQUE 110161-49S 11S02239
315 BLADDER,RESERVOIR(4 GALLONS) 110191-500 11S00314
316 BLADDER,RESERVOIR(5 GALLONS) 110191-501 11S00315
322 MANIFOLD,RELIEF COUNTER BALANCE 110716-2 11S00937
323 RELIEF VALVE,LOW FLOW 111664-1EN 11S00486
324 SOLENOID VALVE,2-POS.,24 VDC 112554-D2 11S00533
325 SOLENOID VALVE,2-POS,24VDC 112554-D2-BT 11S00533-2
326 SOLENOID VALVE,3-POS.,24 VDC 112554-J2 11S00532
327 SOLENOID VALVE,3-POS.,24 VDC 112554-J2-BT 11S00532-2
328 BUSHING,FLANGED 112754-116 11S00878
329 BEARING, SINTER BRONZE, FLANGED 112754-130 11S00440
330 VALVE 112802-10 11S02244
331 TUBE ASSY,ACCUMULATOR/C'BAL BULKHEAD 114090-502 11S02245
332 FILTER,HYDRAULIC 114416-1 11S01253-1
333 VALVE 117068-1REN 11S02246
334 TUBE ASSY,RESERVOIR/VANE PUMP 117091-500 11S01272
335 PIN,LYNCH 117496-1 11S01412
336 PUMP ASSEMBLY,LUBE(ALUM) 117603-1 11S00005
337 GEAR 117829 11S00846
338 TUBE ASSY,MANIFOLD/BRAKE 118408-500 11S01254
339 TUBE ASSY,LUBE/HEAT EXCHANGER 118409-500 11S01283
340 MANIFOLD,LINK TILT CYLINDER 118463-2 11S00676
342 BEARING,SELF LUB 118844-16-8 11S00729
343 BEARING,SELF LUB 118844-16-12 11S00730
344 BEARING,SELF LUB 118844-16-16 11S02247
345 BEARING,SELF LUB 118844-16-20 11S02248
346 BEARING,SELF LUB 118844-16-24 11S00894
347 BEARING,SELF LUB 118844-22-22 11S00732
348 BELT,TIMING 120117-3 11S00222
349 PULLEY,TIMING 120119-1 11S00199
350 PULLEY,TIMING 120119-2 11S00200
351 GEAR 30173157 11S02249
352 SHIM, GEAR, COMPOUND 120262-1 11S02250
353 SHIM, GEAR, COMPOUND 120262-2 11S02251
354 SHIM, GEAR, COMPOUND 120262-3 11S02252
355 SHIM, GEAR, COMPOUND 120262-4 11S02253
356 SHIM, GEAR, COMPOUND 120262-5 11S02254
357 TUBE ASSEMBLY,BREATHER 121272-1 11S00103
358 TUBE ASSEMBLY,BREATHER 121272-2 11S00104
359 TUBE ASSY,OIL FILTER/MANIFOLD 121511-500 11S01270
360 TUBE,HEAT EXCHANGER-1/2'' 122247-1 11S00081
361 TUBE,HEAT EXCHANGER-1/2'' 122247-2 11S00082
362 PACKING SEAL KIT(5 PER SET) 123292-2 11S00360
363 Wear Pad 124669-5 11S02255
364 PLATE 125727-1 11S00614
365 FERRULE BAR 125727-3 11S00644
366 SOLENOID VALVE,2-POS,24 VDC 127908-D2 11S00471
367 SOLENOID VALVE,3-POS,24 VDC 127908-J2 11S00470
368 DIE,TONG 16401-2 11S00895
369 DIRT ALARM 30111013-3 11S01252-3
370 O-RING 30111013-4 11S01252-4
371 TUBE ASSY,CASE DRAIN/RESERVOIR 30113982-500 11S02256-1
372 TUBE ASSY,PRE-FILL BULKHD/MANIFOLD 30114085-500 11S02257-1
373 TUBE ASSY,PISTON PUMP/RESERVOIR 30114086-500 11S02258-1
374 RETAINER RING 30117775-2 11S00862-2
375 PIPE,WASH-3" BORE,C-88 30123289-C88 11S00370
376 PIPE,WASH-3 IN.BORE(HARD) 30123289-TC 11S00367
377 WASHPIPE NUT 30123431 11S02259
378 PACKING BOX 30123626 11S02260
379 HOSE,ASSY 30124191-500 11S01300-1
380 ACCUMULAOR RECHARGE KIT 30150901-1 11S02261
381 MOTOR,HYDRAULIC,LOW-SPEED/HIGH-TORQUE 30156326-36S 11S00373
382 FILTER 30156633-1 11S02262
383 BEARING,CAM FOLLOWER 30157224-04 11S02263
384 PIN,PIVOT,YOKE 30158766-1 11S00725
385 FILTER 30170016-E 11S02264-4
386 PIN,CLEVIS,CYLINDER COUNTER BALANCE 30172176-502 11S00949
387 PIN,CLEVIS,CYLINDER COUNTER BALANCE 30172176-BSC 11S00940
388 SHOT PIN 30173958-LT 11S00466
389 MODIFIED,SHOULDER,BOLT 30177109-04 11S02265
390 STEM 30177594-500 11S02266
391 SPLIT RING,SS 30178854-05 11S02267
392 BUSHING 30184320-502 11S02268
393 SCREW,CAP-HEX HEAD(UNC-2A) 50004-10-SD 11S02269
394 SCREW,HEX HEAD CAP 50004-14-C5D 11S02270
395 SCREW,CAP-HEX HEAD(UNC-2A) 50004-5-SD 11S00320
396 SCREW,CAP-HEX HEAD 50004-8-C5D 11S00922
397 SCREW,HEX HEAD CAP 50005-8-C5D 11S00174
398 SCREW,HEX HEAD CAP 50005-10-C5D 11S00177
399 SCREW,HEX HEAD CAP 50005-12-C5D 11S00175
400 SCREW,HEX HD 50005-20-C5D 11S00411
401 SCREW,HEX HEAD CAP 50005-28-C5D 11S02271
402 SCREW,HEX HEAD CAP 50006-06-C5D 11S02272
403 SCREW,HEX HEAD CAP 50006-08-C5D 11S02273
404 SCREW,HEX HEAD CAP 50006-10-C5D 11S00179
405 SCREW,HEX HEAD CAP 50006-20-C5D 11S00191
406 SCREW,HEX HEAD CAP 50006-24-C5D 11S02274
407 SCREW,CAP-HEX HEAD 50006-28-C5D 11S01315
408 SCREW,HEX HEAD CAP 50008-7-C5D 11S00184
409 SCREW,HEX HEAD CAP 50008-8-C5D 11S00180
410 SCREW,HEX HEAD CAP 50008-10-C5D 11S00181
411 SCREW,HEX HEAD CAP 50008-11-C5D 11S00182
412 SCREW,HEX HEAD CAP 50008-12-C5D 11S00183
413 SCREW,CAP-HEX HEAD 50008-13-C5D 11S00986
414 SCREW,HEX HEAD CAP 50008-14-C5D 11S00185
415 SCREW,CAP-HEX HEAD 50008-30-C5D 11S00279
416 SCREW,HEX HEAD CAP 50010-18-C5D 11S00142
417 SCREW,HEX HEAD CAP 50012-16-C5D 11S00144
418 SCREW,HEX HEAD CAP 50012-20-C5D 11S00146
419 SCREW,HEX HEAD CAP 50012-24-C5D 11S00147
420 SCREW,HEX HEAD CAP 50012-26-C5D 11S00148
421 SCREW,HEX HEAD CAP 50016-18-C5D 11S00151
422 SCREW,CAP-HEX HEAD 50016-20-C5D 11S00584
423 SCREW,HEX HEAD CAP 50016-28-C5D 11S00152
424 SCREW,CAP-HEX HEAD 50016-64-C5D 11S01485
425 SCREW,HEX.HD.,M10x1.5x25mm 50070-025F06 11S01553
426 SOCKET CAP SCREW 10-24×2.00 50103-16-B 11S00507
427 SCREW,SOCKET HEAD CAP 50103-16-C 11S02275
428 SCREW,SOCKET HEAD CAP 50108-10-C 11S02276
429 SCREW,SOCKET HEAD CAP-1/2-13 UNC×1.50 LG 50108-12-C 11S00838
430 SCREW,CAP,SOC HEAD 50108-14-C 11S00786
431 SCREW,SOCKET HEAD CAP-1/2-13 UNC×2.00 LG 50108-16-C 11S00837
432 SCREW,SOCKET HEAD CAP 50108-18-C 11S02277
433 SCREW,SOCKET HEAD CAP-1/2-13 UNC×2.50 LG 50108-20-C 11S00836
434 SCREW,SOCKET HEAD CAP-1/2-13 UNC×3.00 LG 50108-24-C 11S00839
435 SCREW,SOCKET HEAD CAP-1/2-13 UNC×3.50 LG 50108-28-C 11S00840
436 NUT,HEX-HEAVY 50412-C 11S00674
437 NUT,HEX 50416-C 11S01476
438 NUT,HEX,SLOTTED 50505-C 11S00155
439 NUT,HEX-SLOTTED 50508-C 11S00790
440 NUT,HEX SLOTTED 50512-C 11S00605
441 NUT,HEX-SLOTTED 50514-C 11S00689
442 NUT,HEX,SLOTTED 50516-C 11S00774
443 NUT,HEX-SLOTTED 50516-S 11S00754
444 NUT,HEX-SLOTTED 50520-C 11S00699
445 SCREW,SOCKET HEAD CAP 50606-08-C 11S02278
446 SCREW,SOCKET HEAD CAP 50616-20-C 11S02279
447 WASHER,FLAT 50806-N-C 11S00945
448 WASHER, FLAT 50810-N-S 11S02280
449 WASHER,FLAT,NARROW 50810-N-C 11S00987
450 WASHER,FLAT 50812-N-C 11S00621
451 WASHER,FLAT 50814-N-C 11S00681
452 WASHER 50816-N-C 11S00775
453 WASHER,LOCK-REGULAR 50904-C 11S00159
454 GROWER WASHER-REGULAR 50904-S 11S02281
455 WASHER,LOCK-REGULAR 50905-C 11S00160
456 WASHER,LOCK-REGULAR 50906-C 11S00161
457 WASHER,LOCK-REGULAR 50908-C 11S00162
458 WASHER,LOCK-REGULAR 50910-C 11S00163
459 WASHER,LOCK-REGULAR 50912-C 11S00164
460 WASHER,LOCK,REG 50914-C 11S00738
461 WASHER,LOCK-REGULAR 50916-C 11S00165
462 WASHER,LOCK,HEAVY,7/16" 51007-C 11S01555
463 WASHER,LOCK-HEAVY 51008-C 11S00672
464 WASHER,LOCK-HEAVY 51012-C 11S00675
465 WASHER,LOCK - 1.5" 51024-C 11S00598
466 WASHER,LOCK,HI COLLAR 51108-C 11S00787
467 WASHER,LOCK,HI-COLLAR,2"DIA 51132-C 11S00602
468 PIN,DOWEL 51208-14 11S00261
469 PIN,DOWEL 51216-12 11S00845
470 PIN,DOWEL 51216-24 11S00106
471 LOCKWASHER,BEARING 51217-18 11S00157
472 LOCKNUT,INTERNAL RETAINER 51218-18 11S00156
473 LOCK WASHER 51218-20 11S02282
474 FERRULE,CABLE 51219-2 11S00625
475 CABLE RETAINING φ.063 72"LONG 51220-2 11S00612
476 PIN,SPIRAL 51222-05-12 11S00875
477 O-RING,OIL LUBE TUBE 51300-016-B 11S00109
478 O-RING 51300-038-B 11S00318
479 O-RING 51300-152-B 11S01561
480 O-RING,MAIN BODY/OIL GALLERY 51300-223-F 11S00110
481 O-RING 51300-226-B 11S00414
482 O-RING,MAIN BODY/BEARING COVER 51300-258-B 11S00111
483 O-RING 51300-273-B 11S00847
484 O-RING,COVER/BEARING RETAINER 51300-277-B 11S00112
485 O-RING,MAIN BODY/OIL PUMP ADAPTER 51300-279-B 11S00113
486 O-RING 51300-348-F 11S00361
487 O-RING 51300-381-B 11S00848
488 O-RING,MAIN BODY/STEM 51300-385-F 11S00114
489 O-RING,MOTOR/COVER 51300-387-F 11S00115
490 O'RING 51300-425-B 11S00088
491 PIN,COTTER 51401-8 11S02283
492 PIN,COTTER 51402-10-S 11S00406
493 COTTER PIN(1/8 NOM) 51402-12 11S00744
494 PIN,COTTER 51402-12-S 11S00624
495 PIN,COTTER 51403-20 11S00698
496 PIN,COTTER 51423-12 11S02284
497 PIN,COTTED 51435-16 11S00927
498 PIN，COTTER 51435-20-S 11S02285
499 PIN,COTTER 51437-16-S 11S00946
500 PIN,COTTER 51437-20-S 11S00882
501 PIN,ROLL,φ.250×.75LG 51604-6-C 11S00747
502 NUT 51810-C 11S02286
503 NUT,SELF-LOCKING HEX HEAD,3/4-10 51812-C 11S01929
504 PLUG,EXT PIPE-COUNTERSUNK HEX 53000-2-C 11S00122
505 PLUG,EXT PIPE-COUNTERSUNK HEX 53000-4-C 11S00123
506 PLUG,EXT PIPE-COUNTERSUNK HEX 53000-6-C 11S00124
507 PLUG,PIPE-SQUARE HEAD 53002-2-C 11S01338
508 PLUG,MAGNETIC 53003-16 11S00129
509 COMPOUND,LOCKING(BLUE) 53200-242 11S00166
510 FITTING,GREASE-STRAIGHT EXT. 53219-1 11S00363
511 FITTING,GREASE-STRAIGHT EXTENDED .125-27NPT 53219-2 11S00117
512 RELIEF VALVE 53250-5 11S02287
513 RING,RETAINING-INTERNAL 53500-225 11S00450
514 NIPPLE,CLOSE 53912-B 11S02288
515 NUT,HEX,MODIFIED,PH60/85 55214-C 11S00739
516 NUT,HEX-JAM﹙1.50-12UNF-28﹚ 55324-C 11S00601
517 PIN DOWEL 56405-16-C 11S02289
518 Pin,CLEVIS 56405-20-C 11S02290
519 ELBOW,45' EXT PIPE/37° 56502-2-4-S 11S00137
520 ELBOW,90°EXT/37° 56506-12-12S 11S00331
521 ELBOW,90°EXE PIPE/37° 56506-16-16S 11S02291
522 ELBOW,90°EXT/37° 56506-8-6-S 11S00332
523 REDUCER,INT 37°/37° 56516-12-6-S 11S01387
524 ELBOW 56519-16-12S 11S02292
525 ELBOW 56519-4-4-S 11S00522
526 ELBOW 56519-6-4-S 11S00523
527 ELBOW,O-RING BOSS/37° 56519-6-6-S 11S00423
528 ELBOW,O-RING BOSS/37° 56519-8-6-S 11S00746
529 ELBOW,O-RING BOSS/37°,-8 56519-8-8-S 11S00912
530 TEE,SWIVEL INT 37°/37°/37° 56525-4-4-S 11S00136
531 FITTING,TEE,37°/37°/SWIVEL INT.37° 56526-4-4-S 11S00190
532 CONNECTOR,EXT PIPE/37° 56529-10-8-S 11S00133
533 CONN.,O-RING BOSS/37° 56529-12-12S 11S01530
534 CONNECTOR,O-RING BOSS/37° 56529-16-16S 11S02293
535 CONNECTOR,O-RING BOSS/37° 56529-4-4-S 11S00134
536 CONNECTOR,O-RING BOSS/37° 56529-8-4-S 11S00884
537 CONNECTOR,O-RING BOSS/37° 56529-8-8-S 11S00135
538 PLUG,O-RING BOSS(WITH O-RING) 56531-8-S 11S00131
539 REDUCER 56556-16-12S 11S02294
540 REDUCER,O-RING,BOSS 56556-16-8-S 11S01352
541 BUSHING,REDUCING,ELECTRICAL 56600-12-8 11S01100
542 BUSHING,REDUCING,ELECTRICAL 56600-16-12 11S01101
543 REDUCER,PIPE-INT/EXT 56710-4-2-S 11S00072
544 HOSE ASSY 59024P080032 11S01348
545 HOSE ASSEMBLY,IBOP CYLINDER 59024P170021 11S00684
546 HOSE ASSEMBLY,IBOP CYLINDER 59024P170025 11S00685
547 HOSE ASSY 59024P230030 11S02295
548 HOSE ASSY 59024P230046 11S02296
549 HOSE ASSY 59025P170021 11S02297
550 HOSE ASSY 59025P23G028 11S02298
551 HOSE ASSY 59043P170038 11S02299
552 HOSE ASSY 59043P230031 11S02300
553 HOSE ASSY 59043P230042 11S02301
554 HOSE ASSY 59044P170042 11S02302
555 HOSE ASSY 59044P230073 11S02303
556 HOSE，ASSY 59044P230074 11S02304
557 HOSE ASSY 59046P08X036 11S01349
558 HOSE ASSY 59124P290093 11S00257
559 HOSE ASSY 59143P290086 11S00256
560 HOSE ASSY 59144P290099 11S00258
561 PRESSURE SWITCH,IBOP 83095-1 11S01083
562 EARTHING BAR ASSY 118866 11S01164
563 GLAND,25mm,ARMORED 83444-05 11S01092
564 GLAND,EExe ARMOURED CABLE 83444-06 11S01082
565 SAE J514-2 HEX SOCKET PLUG 87196-2-S 11S00493
566 SAE J514-4 HEX SOCKET PLUG 87196-4-S 11S00494
567 SAE J514-6 HEX SOCKET PLUG 87196-6-S 11S00495
568 SAE J514-8 HEX SOCKET PLUG 87196-8-S 11S00496
569 PRESSURE SWITCH,OIL 87541-1 11S01084
570 PRESSURE SWITCH,OIL 87542-1 11S02305
571 SEAL KIT: 4 IN ACCUMULATOR 87605-1 11S02306
572 NOZZLE, SPRAY-FLAT PATTERN 88990-10 11S00057
573 NOZZLE, SPRAY-FLAT PATTERN 88990-9 11S00056
574 ORIFICE PLUG,10-32 X .031 93018-08 11S00490
575 ORIFICE PLUG,10-32*.039 93018-10 11S00551
576 VALVE 93018-12 11S02307
577 ORIFICE PLUG,10-32X .055 93018-14 11S00491
578 ORIFICE PLUG,10-32x.071 93018-18 11S00528
579 FITTING,TEST 93024-4SAE 11S00424
580 TEST FITTING 93024-6JIC 11S00427
581 TEST FITTING,SAE-6 93024-6SAE 11S00489
582 CHECK VALVE,PILOT TO OPEN 93547-1B30N 11S00904
583 CAVITY PLUG,T-11A SHORT 93667-M11 11S00473
584 CAVITY PLUG,T-13A SHORT 93667-M13 11S00484
585 VALVE 94518-13HN 11S02308
586 VALVE,RELIEF 94520-1AN 11S00418
587 RELIEF VALVE 94520-1NN 11S00474
588 VALVE 94522-1AN 11S02309
589 VALVE,RELIEF 94522-1EN 11S00394
590 VALVE CARTRIDGE,PRESSURE RELIEF,DIRECT ACTING 94522-21N 11S00939
591 LOGIC CARTRIDGE 94534-1CXN 11S00475
592 VALVE 94536-130N 11S02310
593 CHECK VALVE 94536-14N 11S00476
594 CHECK VALVE,T-13A,75 PSID 94536-175N 11S01519
595 CHECK VALVE 94536-230N 11S00477
596 VALVE 94536-275N 11S02311
597 PILOT-TO-CLOSE CHECK VALVE 94537-130N 11S00478
598 RING,RETAINING 96648-1 11S00087
599 FLOW CONTROL VALVE 98402-800D 11S00479
600 REDUCING/RELIEVING VALVE 99353-1AN 11S00480
601 BOLT,STAND-OFF M614004316 11S02312
602 PUMP,HYD.PISTON,PRES.COMP P611004347 11S02313
603 RELIEF VALVE,VENTABLE P614000063-1AN 11S02314
604 LOCKWIRE,.051 Z6001 11S00167
605 LOCKWIRE φ.051 Z6001-CAN 11S02315
606 LOCK WIRE,.031 Z6000.8 11S00178
607 LOCK WIRE,.031 Z6000.8-CAN 11S02316
608 LOCKWIRE,.047φ Z6000.9-CAN 11S02317
609 COUPLING,PRESSURE TEST 93024-4JIC 11S02318
610 RELIEF VALVE,VENTABLE 107031-1AN 11S00483
YOU MAY LIKE

Online Message

Learn about our latest products and discounts through SMS or email
