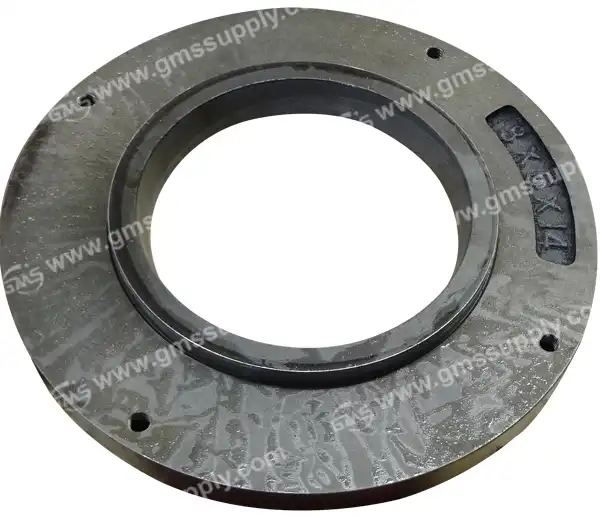

250 Series Centrifugal Pump Replaceable Wear Plate 3 x 4 x 13 H2501-01-30A

The 250 Series Centrifugal Pump Replaceable Wear Plate 3 x 4 x 13  H2501-01-30A represents a critical component in modern industrial pumping systems, particularly in demanding applications such as oil and gas drilling operations. This essential replacement part serves as a protective barrier between moving pump components, significantly extending equipment lifespan while maintaining operational efficiency. These wear plates are engineered to withstand extreme conditions, providing reliable performance in abrasive fluid handling applications where traditional components would fail prematurely.

​

Understanding the Design and Function of 250 Series Wear Plates

The 250 Series Centrifugal Pump Replaceable Wear Plate 3 x 4 x 13 H2501-01-30A is meticulously engineered to address the specific challenges encountered in high-performance centrifugal pumping applications. This critical component, which includes the Wear Pad, 4×3×13 Casing variant, features a semi-open impeller design architecture that incorporates wide-tipped vanes and a strategically positioned tangential circumference at the suction inlet. This innovative design creates a smoother flow pattern when handling abrasive fluids, reducing turbulence and minimizing wear on pump internals. The wear plate serves as a sacrificial component, protecting the more expensive pump casing from erosive damage while maintaining precise clearances necessary for optimal hydraulic performance. The dimensional specifications of 3 x 4 x 13 are precisely calculated to ensure proper fit within the pump housing while providing adequate surface area for effective wear protection. Additionally, these wear plates accommodate various configurations including the Wear Pad, 5×4×14 Casing and Wear Pad, 6×5×11 Casing options, allowing for versatile application across different pump models and operating conditions.

Material Engineering and Manufacturing Standards

The manufacturing process for the 250 Series Centrifugal Pump Replaceable Wear Plate 3 x 4 x 13 H2501-01-30A adheres to stringent quality control protocols that ensure consistent performance across diverse operating environments. These wear plates, including the Wear Pad, 4×3×13 Casing configuration, are manufactured using premium materials such as hard iron, supreme hard iron, and aluminum bronze, each selected based on specific application requirements and fluid compatibility considerations. The material selection process takes into account factors such as corrosion resistance, abrasion tolerance, and thermal stability to ensure optimal performance in demanding operational conditions. Manufacturing facilities maintain ISO 9001 certification, guaranteeing that every production step, from raw material procurement to final quality inspection, meets international standards for quality management systems. The precision machining processes employed ensure that dimensional tolerances are maintained within strict parameters, enabling proper fit and function within the pump assembly. Advanced metallurgical techniques are utilized to achieve the desired hardness and grain structure, while specialized heat treatment processes optimize the material properties for enhanced wear resistance. Quality assurance protocols include comprehensive testing procedures that verify dimensional accuracy, material composition, and surface finish characteristics to ensure each wear plate meets or exceeds OEM specifications.

Installation and Maintenance Considerations

Proper installation and maintenance of the 250 Series Centrifugal Pump Replaceable Wear Plate 3 x 4 x 13 H2501-01-30A is crucial for achieving optimal pump performance and maximizing component lifespan. The installation process for these wear plates, including the Wear Pad, 4×3×13 Casing H2501-01-30A and related variants such as Wear Pad, 5×4×14 Casing configurations, requires careful attention to alignment and clearance specifications to ensure proper hydraulic function. Maintenance personnel should verify that the pump housing is thoroughly cleaned and free from debris before installing new wear plates, as contamination can lead to premature failure and reduced performance. The replaceable nature of these components allows for cost-effective maintenance strategies, where wear plates can be replaced during scheduled maintenance intervals without requiring extensive pump disassembly or expensive casing replacement. Regular inspection protocols should be established to monitor wear plate condition, with particular attention to edge wear patterns and surface degradation that may indicate impending replacement needs. Proper torque specifications must be followed when securing wear plates to prevent over-tightening that could cause distortion or under-tightening that might allow movement during operation. Documentation of installation dates and operating hours helps establish replacement intervals and optimize maintenance scheduling to minimize unplanned downtime.

Performance Benefits and Cost Advantages

The implementation of quality replacement wear plates for 250 Series Centrifugal Pumps offers significant performance benefits and cost advantages compared to OEM alternatives. These replacement components, particularly the Wear Pad, 4×3×13 Casing series, provide identical functionality to original equipment manufacturer parts while offering substantial cost savings that make them particularly attractive for budget-conscious operations or non-critical component replacements. The cost-effectiveness of these replacement parts allows operators to maintain adequate spare parts inventory without excessive capital investment, ensuring rapid response to maintenance needs and minimizing production disruptions. Performance benefits include maintained hydraulic efficiency, reduced internal leakage, and protection of expensive pump casings from erosive damage. The availability of multiple size configurations, including Wear Pad, 5×4×14 Casing and Wear Pad, 6×5×11 Casing options, provides flexibility in pump optimization and allows for performance tuning based on specific application requirements. Extended component life is achieved through proper material selection and manufacturing processes that ensure these replacement parts can withstand the demanding conditions typically encountered in oil and gas drilling, mining, and industrial processing applications. The modular design approach allows for selective replacement of worn components without requiring complete pump overhaul, significantly reducing maintenance costs and equipment downtime.

Global Machinery Supply Co., Ltd. Quality Assurance

Global Machinery Supply Co., Ltd. has established itself as a premier manufacturer and supplier of high-quality 250 Series Centrifugal Pump replacement components, including the comprehensive range of Wear Pad, 4×3×13 Casing alternatives. With over fifteen years of specialized experience in drilling machinery supply, GMS has developed extensive expertise in TDS top drive spare parts, centrifugal pump components, and mud pump parts for various NOV series equipment. The company's commitment to quality is demonstrated through ISO 9001 certification, which ensures all manufacturing processes meet international standards for quality management systems. This certification reflects GMS's dedication to continuous improvement and customer satisfaction through consistent delivery of reliable, high-performance products. The company's comprehensive product range includes specialized wear plates with OEM reference numbers such as H2501-01-30A through H2527-01-30A, with corresponding GMS part numbers ranging from 2500W4313 to 2500W8614, ensuring compatibility across diverse pump configurations. Quality control measures encompass every aspect of production, from incoming material inspection to final product testing, guaranteeing that each wear plate meets or exceeds original equipment specifications. The company's extensive inventory management system ensures rapid availability of critical components, with most items maintained in stock for immediate shipment to minimize customer downtime.

Technical Specifications and Applications

The 250 Series Centrifugal Pump Replaceable Wear Plate 3 x 4 x 13 H2501-01-30A is specifically engineered for use in Mission 2500 Supreme Centrifugal Pumps and equivalent systems, where the Wear Pad, 4×3×13 Casing configuration provides optimal protection and performance. These wear plates are designed to operate effectively under high-temperature and high-pressure conditions commonly encountered in oil and gas exploration, mining operations, and industrial processing applications. The technical specifications include precise dimensional tolerances that ensure proper fit within pump housings while maintaining critical clearances necessary for efficient hydraulic operation. Material properties are carefully selected to provide excellent resistance to abrasive fluids, corrosive environments, and thermal cycling that occurs during normal pump operation. The wear plates feature optimized surface finishes that minimize friction and reduce the risk of cavitation damage, while their robust construction ensures reliable performance even under severe operating conditions. Application areas include oil and natural gas drilling operations, where these pumps serve as charging pumps, replenishment pumps, or clean water pumps depending on specific operational requirements. The versatility of these wear plates extends to wastewater treatment facilities, food processing operations, woodworking machinery, and engineering construction projects where reliable fluid handling is essential. Various size configurations, including Wear Pad, 5×4×14 Casing and Wear Pad, 6×5×11 Casing options, accommodate different pump models and allow for optimization based on specific flow rates and pressure requirements.

Conclusion

The 250 Series Centrifugal Pump Replaceable Wear Plate 3 x 4 x 13 H2501-01-30A represents an essential component for maintaining optimal pump performance in demanding industrial applications. These replacement parts, particularly the cost-effective Wear Pad, 4×3×13 Casing H2501-01-30A alternatives, offer significant advantages for budget-conscious operations seeking reliable performance without compromising quality. Global Machinery Supply Co., Ltd. combines over fifteen years of industry expertise with ISO 9001 certified manufacturing processes to deliver superior replacement components that meet or exceed OEM specifications.

Ready to optimize your centrifugal pump performance while reducing maintenance costs? As a leading China Wear Plate 3 x 4 x 13 factory and trusted supplier, GMS offers competitive pricing and reliable quality that industry professionals depend on. Our position as an established ChinaWear Plate 3 x 4 x 13 H2501-01-30A manufacturer ensures consistent supply and technical support for your operations. Whether you're seeking China Wear Plate 3 x 4 x 13 wholesale opportunities or individual Wear Plate 3 x 4 x 13 for sale, our extensive inventory and short lead times guarantee rapid delivery when you need it most. Contact our expert team today for competitive Wear Plate 3 x 4 x 13 price quotes and discover why leading companies choose GMS for their critical pump component needs. Send your inquiry to sales@gmssupply.com and experience the difference that quality, reliability, and professional service can make for your operations.
