30151951 Shot Pin: Function in TDS Top Drive Gear Systems

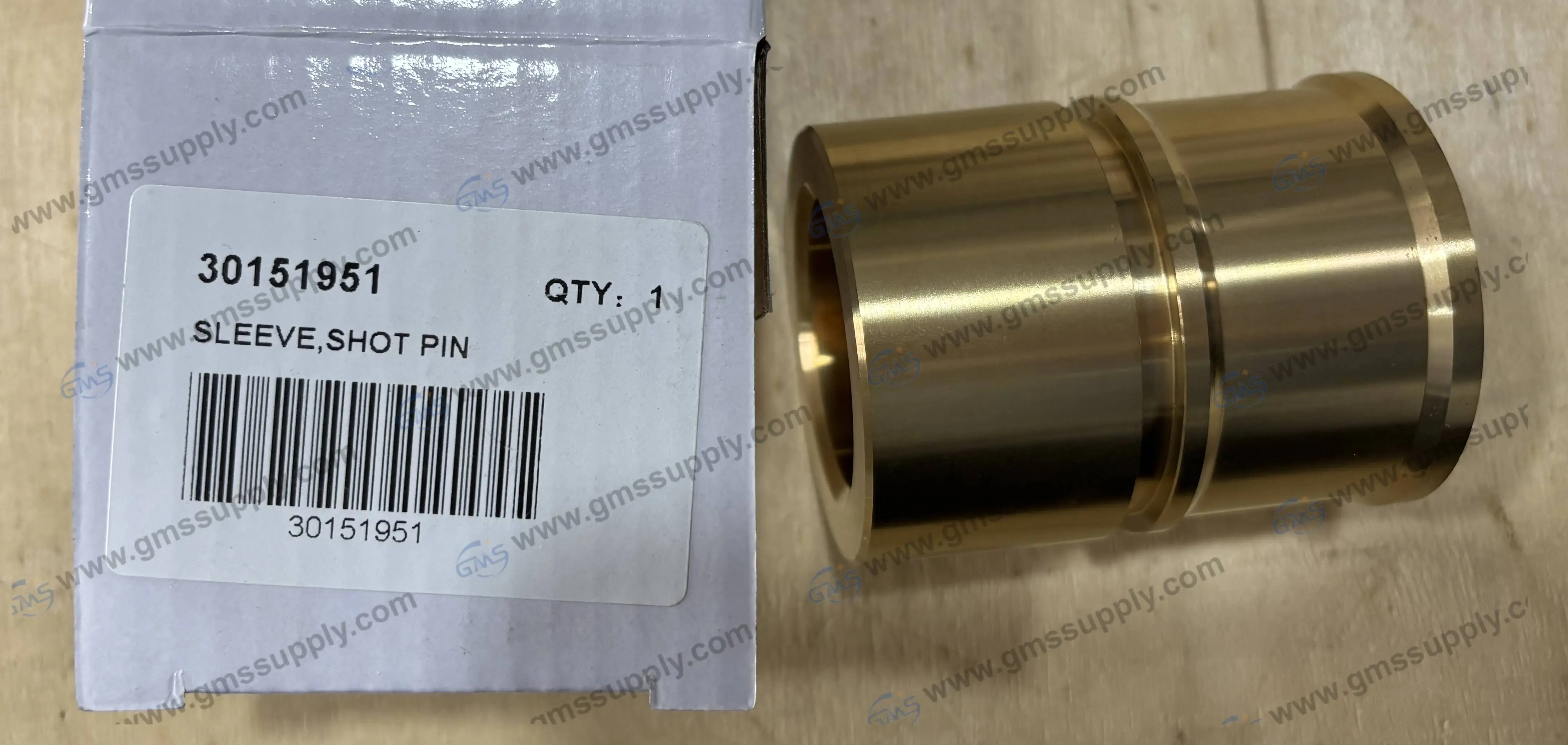

The 30151951 Shot Pin (GMS P/N 11S00429) is an important mechanical link in shot pin assemblies. Its purpose is to keep the drive motor case and gearbox system precisely aligned and to lock securely. This 30151951 Shot Pin part is an important part of the HYD DRIVE SHOT PIN ASSY 30151875 for TDS-11 and TDS-9SA models because it makes sure that power transfers smoothly during tough oil and gas drilling jobs. Because it keeps the machinery from getting out of alignment and spreads out the workload, it is essential for keeping drilling efficient and reducing costly downtime both onshore and offshore.

Understanding the 30151951 Shot Pin in TDS Top Drive Gear Systems

Understanding how the 30151951 Shot Pin works mechanically is important for procurement managers who are looking at parts for Varco top drive systems, so that mistakes in compatibility and operational failures don't happen. This part works inside the 30151875 Shot Pin assembly as a directed actuator that keeps rotating parts in the right place during drilling cycles.

The 30151951 Shot Pin does several things inside the gear case at the same time. It keeps the positional accuracy of moving and still parts, absorbs the horizontal forces that are created during the torque gearbox, and saves more expensive housing parts with a wear surface that can be replaced. During drilling, the 30151951 Shot Pin is loaded and unloaded repeatedly as the top drive moves between rotating and still placement. This requires the material to be very durable and the geometry to be very accurate.

Through controlled metallurgy and precise machining, the 30151951 Shot Pin is made from high-grade bronze and meets strict mechanical requirements. To make sure it fits right in the HYD DRIVE SHOT PIN ASSY 30151875, the part has tight dimensional tolerances of within 0.005mm. This accuracy stops the "blow-by" leakage problems that happen with badly made options, where hydraulic fluid leaks past 30151951 Shot Pins that are worn out or the wrong size.

This part is useful for operations that need to manage fleets of different types of equipment because it works with both the TDS-11 and TDS-9SA top drive models. Technical buyers like this cross-model feature because it makes managing inventory easier and cuts down on the number of unique part numbers that repair facilities need for the NOV TDS11SA shot pin. The design of the 30151951 Shot Pin takes into account the thermal expansion of the steel parts around it. This keeps the 30151951 Shot Pin from seizing up even during long drilling operations.

The 30151951 Shot Pin part goes through certain heat treatment steps to get its surface hardness to between 58 and 62 HRC while keeping its core toughness. Generic options often don't have this dual-property engineering, which means they either break easily under shock loads or wear out faster, which causes the system to fail before it's supposed to. At GMS, we've worked with drilling companies that had three-week delays after using 30151951 Shot Pins that weren't up to code. This ended up costing a lot more than they saved in the beginning.

Advantages and Material Insights of the 30151951 Shot Pin

Choosing the right type of 30151951 Shot Pin has a direct effect on the total cost of ownership for top drive systems. As a company that supplies drilling operations all over North America, we know that the quality of the materials used and the accuracy with which they are manufactured determine whether a part is a reliable asset or a constant source of maintenance problems.

The best thing about the 30151951 Shot Pin is that it is designed to be strong enough to withstand the wear and tear that comes with cutting.  This makes it very resistant to surface galling and cutting. This hardened layer keeps the 30151951 Shot Pin safe during the stick-slip movement that happens when the hydraulic pressure changes while the drilling string is being moved.

When performance is stable, the risk of downtime goes down directly. Drilling contractors in the Permian Basin say that 30151951 Shot Pins that are properly specified last 250,000 operational cycles before they need to be replaced. This is compared to 80,000 to 120,000 operational cycles for cheaper alternatives. This longer service life means that the top drive doesn't have to be taken apart as often, which can take 12 to 18 hours of rig time and specialised technicians.

This material design meets ISO 9001 standards for making, which ensures that all batches of products are the same. Every 30151951 Shot Pin at GMS goes through spectrographic analysis to make sure it is made of the right material. This way, there are no risks of material substitutions, like there are when you buy from an overseas company that doesn't have good quality control procedures in place. With every order, technical buyers can ask for material certifications, which can be used for equipment records and compliance audits.

When you follow the right upkeep steps, 30151951 Shot Pin systems last a lot longer. During routine top drive checks, maintenance teams should look for scoring marks on the 30151951 Shot Pin surface, use micrometres to measure dimensional wear, and look for discolouration that could mean the 30151951 Shot Pin has been exposed to too much heat. Surface roughness measurements (aiming for Ra values below 0.4µm) help find wear in its early stages, before it causes problems with how things work.

The quality of lubrication also affects how long 30151951 Shot Pins last. When operations use dirty hydraulic fluid, they introduce rough bits that wear down precision-machined surfaces more quickly. We suggest replacing the 30151951 Shot Pins at the same time as changing the fluid in the hydraulic system so that the new parts last as long as possible. By making parts last longer, this synchronised maintenance method has helped drilling contractors cut the amount of money they spend on top drive parts every year by 20 to 30 percent.

Procurement Guide for 30151951 Shot Pin: Buying and Supplier Insights

To get around in the supply chain for industrial parts, you need to know how specifications, wait times, and supplier skills fit with your business's needs. Choosing a vendor is one of the most important decisions procurement managers have to make because they have to balance keeping costs low with the risk of equipment breakdown.

According to GMS, the 30151951 Shot Pin (GMS P/N 11S00429) is always in stock and can be shipped right away. Larger orders can be filled within 10 weeks, depending on the quantity needed. This stocking method takes into account the fact that drilling operations can't always accurately guess when a part will break. When you can get important wear parts right away, you don't have to wait the weeks it takes for parts to be made from raw materials after an order has been placed.

When you order in bulk, you can save money and make sure that parts will be available during planned maintenance campaigns. When drilling contractors get ready for the yearly top drive overhaul, they often order complete 30151951 Shot Pin assembly kits along with wear parts like hydraulic cartridges, seals, and bearings. This centralised purchasing method lowers the cost per unit and ensures that all parts that work together come from production batches that are coordinated.

The final cost of buying 30151951 Shot Pins depends on a number of factors. The main thing that determines price is the type of material used. Parts made from premium alloy steel with advanced surface treatments cost more than traditional carbon steel alternatives, but they last a lot longer. Order number changes unit pricing by making production more efficient. Usually, there are quantity breaks every 10 units, 25 units, and 50 units.

Warranty policies show how confident the supplier is in the quality of the parts. At GMS, our guarantee coverage covers buyers against flaws in the manufacturing process and material failures, and is based on our ISO 9001 certification for top drive repair maintenance spares. This guarantee is especially important for parts that are placed on offshore drilling sites, where getting to the equipment for warranty repair is very hard and costs a lot. A supplier who stands behind their products will have clear warranty terms that cover both the part itself and the labour costs for reinstalling it.

There are many operational factors besides the original price that need to be considered when choosing a trusted source. When people have questions about compatibility, installation, or fixing performance problems, technical support is very important. Suppliers with engineers who know about top drive systems can help you install it correctly and save you a lot of money by not making mistakes.

For long-term buying plans, supply chain transparency is also important. GMS has direct connections with factories, which lets us give you accurate wait time estimates and let you know right away if production plans change. This makes it easier for procurement managers to match up available parts with planned maintenance windows. This way, drilling rigs don't have to sit idle while waiting for parts.

Another thing that sets sellers apart is the quality of their documentation. Full material certificates, dimensional inspection reports, and tracking records help make sure that equipment meets standards and make it easier to find the root cause of problems with components. Businesses that have to follow rules really appreciate suppliers who give them all the paperwork they need without having to make special requests for each order.

Installation and Troubleshooting for 30151951 Shot Pins in TDS Systems

Even parts that were made perfectly can fail to work as expected if they are installed incorrectly or damaged. Maintenance teams working on TDS-11 and TDS-9SA top drives need clear instructions to make sure the 30151951 Shot Pins are installed correctly and work reliably for a long time.

Cleaning the housing hole and the parts around it is the first step to a successful 30151951 Shot Pin fitting. Any dirt, old lubricant residue, or corrosion layers can stop the 30151951 Shot Pins from fitting properly and cause stress spots. To clean metal surfaces, use lint-free cloths and approved solvents. Next, look inside the housing bore for any scoring or dimensional wear that could affect how well the 30151951 Shot Pin fits.

Before pressing the 30151951 Shot Pin into place, make sure the dimensions are compatible. Even though the 30151951 Shot Pin part is manufactured with very tight specs, thermal cycling can make the housing hole bigger after a long time of use. Using accurate measuring tools to find the diameter of the housing bore helps figure out whether the standard 30151951 Shot Pin or an oversize version (+0.010mm increments) fits properly. When you force a standard-size 30151951 Shot Pin into a worn case, you make too much space between them, which causes problems with how they work.

Stick-slip movement during operation means that the geometry tolerance has been lost or that there isn't enough lubricant. This symptom shows up as jerky movement instead of smooth changes in position, often accompanied by a strange noise. Take the 30151951 Shot Pin assembly apart to look for scoring marks that show metal-to-metal contact or damage from contamination. If the 30151951 Shot Pin surface has a lot of wear patterns, replacing it stops it from failing completely.

Setting up regular inspection times based on operating hours instead of calendar times makes planning maintenance more accurate. If you're drilling a lot of holes, you should check the 30151951 Shot Pin kits every 1,500 to 2,000 hours of use. If your equipment isn't being used as much, you could wait up to 3,000 hours. By keeping written records of inspections, you can see how things have worn down over time, which helps you make better repair plans.

Regular maintenance on the filtration system and regular fluid analysis will help you keep the quality of the hydraulic fluid stable. Since contamination is the main reason why 30151951 Shot Pins wear out too quickly, keeping the fluid clean should be a top priority.

Conclusion

The 30151951 Shot Pin is an important wear part whose design, purchase, and care have a direct effect on the reliability of the TDS top drive system. To get the most out of your equipment, you should know how it works mechanically within the HYD DRIVE SHOT PIN ASSY 30151875, be aware of changes in material quality, and follow the right fitting steps. Purchasing managers who work with oil and gas drilling operations should work with suppliers who have technical know-how, quality certifications, and quick logistics. Drilling workers can get the most out of their top drive systems while keeping long-term costs low by paying close attention to component specs and doing regular preventative maintenance.

FAQ

1. What is the expected service life for the 30151951 Shot Pin?

Service life depends on how often it is used, but in normal situations. Intervals may be shorter in drilling operations that start and stop a lot or have big changes in load, but they can be longer in steady-state operations. Instead of replacing things every hour, it's more accurate to check for scoring marks, changes in size, and poor pressure performance.

2. Can the standard 30151951 Shot Pin part work with housings that are worn?

Oversized pin variants keep the right fit even when housing bores show signs of dimensional wear from long-term use. These oversized versions usually go up by 0.010 mm, which lets repair teams get clearances back to normal without having to buy new housings, which can be expensive. By accurately measuring the existing dimensions of the housing, you can tell if standard or oversize parts will fit properly and work reliably.

Get Reliable 30151951 Shot Pin Supply from GMS

GMS keeps a ready supply of the 30151951 Shot Pin (P/N 11S00429) to help with drilling operations that need parts right away. Our buying is ISO 9001-certified, which means that every part meets the strict TDS-11 and TDS-9SA standards for size accuracy, material quality, and uniformity of surface treatment. We've worked in the oil and gas drilling industry for more than ten years, so we know how hard it is for procurement managers to keep costs down while also avoiding downtime. For more information on specifics, bulk pricing, or application advice that fits your top drive maintenance needs, please email our technical sales team at sales@gmssupply.com. As a 30151951 Shot Pin provider with a lot of knowledge, we provide the paperwork, quick responses, and reliable products that keep important drilling equipment running.
