30156835 S Pipe Package for TDS-11SA & TDS-9SA Top Drives

Reliability of equipment has a direct effect on productivity and operational costs in the tough world of oil and gas drilling. The 30156835 S PIPE PACKAGE (GMS Part No.: 11S02321) is an important part combination for NOV Varco TDS-11SA and TDS-9SA top drive systems. It includes everything you need to connect mud pipes and wash pipes. This complete gooseneck pipe package makes sure that drilling fluid flows smoothly, so activities can go on without stopping and downtime risks are kept to a minimum. For more than ten years, GMS has been providing high-quality replacement parts. We know exactly what procurement professionals need when they need to find mission-critical parts.

Understanding the 30156835 S Pipe Package – Components and Technical Standards

It's very important to know exactly what you're ordering when you're in charge of buying drilling tools. There is a fully integrated assembly called the 30156835 S PIPE PACKAGE that is made to work with TDS-11SA and TDS-9SA top drive models. You're not just getting one pipe; you're getting a complete package with several designed parts that work together to keep the system intact under high pressure.

The S-pipe weldment (P/N 117063-7500), which can handle 7500 psi of pressure, is at the center of the package. This gooseneck-style design lets you change the position of the structure while keeping its strength during rotational drilling operations. Important closing parts in the system include the 3" FIG 1002 seal ring (P/N 91923) and the 4" FIG 1002 seal ring (P/N 114833), which keep fluid from leaking at connection points. Each mounting bracket—including the top mount (P/N 108870-2) and right-hand mount (P/N 117061)—positions the pipe assembly securely within the top drive frame, absorbing vibration while allowing necessary movement.

The materials used in the whole package meet standard requirements for mechanical strength and resistance to corrosion. The rubber isolator (P/N 92426) reduces harmonic shaking, which makes parts last longer. Cap head screws (P/N 50008-30-C5D and P/N 50010-18-C5D) and lock nuts (P/N 50908-C and P/N 50910-C) are used for fastening. Lockwire (P/N Z6001) is used for safety-critical links. The 4" API LPT female elbow (P/N 81153) fits into the wash pipe system (P/N 30123290), making a full flow path from the mud pump to the drill string.

Our ISO 9001 certification controls every step of the production process, making sure that measurements are correct and materials are checked. We follow strict quality control procedures that are the same as international standards for drilling equipment. This way, you can be sure that every part meets the high standards needed for safe, effective operations.

Why the S-Pipe Configuration Delivers Superior Performance

The S-shaped design, which is also known as a gooseneck configuration, solves one of the most important problems in top drive systems: how to get drilling mud from a stationary source to a rotating drill string while allowing the whole assembly to move up and down? Unlike rigid straight pipe configurations, the curved geometry can handle thermal expansion and minor misalignments during installation. This makes the joints much more flexible, which greatly reduces the risk of fatigue cracking during long drilling campaigns.

The S-pipe architecture has clear operational benefits that directly lead to lower maintenance costs for the NOV TDS11 gooseneck. The swept elbow design maintains smooth fluid flow with minimal turbulence, which reduces erosion at bend points where abrasive drilling mud changes direction. This is especially helpful when circulating mud that is full of cuttings from formations that contain hard rock particles. The 7500 psi pressure rating gives enough safety margin for standard drilling applications while keeping wall thickness—and therefore weight—within reasonable limits for top drive load capacity.

Another practical benefit is that installation is easy. With the complete package approach, your maintenance team only has to deal with one shipment, instead of having to find individual seals, fasteners, and mounting brackets from different sources. Component compatibility is guaranteed because everything is sent as a matched set, which also cuts down on assembly mistakes that could damage the system. The bolt-together design lets installation happen in the field without the need for specialized welding equipment, enabling faster turnaround during rig maintenance windows.

Benefits and Practical Applications in Drilling Operations

Operating at full capacity is essential for contract drilling to make money, so it's important that parts are reliable. The 30156835 S PIPE PACKAGE meets this need with a strong design that can handle the harsh conditions of drilling environments, such as changing temperatures, vibration, abrasive fluids, and corrosive additives. Procurement managers always tell us that knowing how long parts will last helps them plan maintenance better, which prevents costly unplanned shutdowns.

The package improves performance in a number of ways that can be measured:

• Enhanced System Reliability: A complete seal stops mud loss and contamination, keeping hydraulic performance constant. The multiple sealing points, such as the FIG 1002 connections and O-ring interfaces (P/N 51300-425-B), create extra barriers against leakage. This extra protection is very useful when working in remote areas where parts aren't always available right away.
• Simplified Maintenance Protocols: If parts need to be replaced, the bolted-together design lets your crew do it during a regular maintenance period without any special tools. The lock washers and safety wire provisions built into the design follow best practices for keeping parts safe in high-vibration environments. Part numbering makes it easier to keep track of inventory and makes sure the right way to put the parts back together.
• Optimized Mud Flow Characteristics: The engineered bend radius and consistent internal bore diameter keep the pressure drop low through the gooseneck section. This means that more hydraulic horsepower is delivered to the bit, which is especially helpful when drilling difficult formations that need the best cleaning power.

Many drilling contractors who use TDS-11SA and TDS-9SA top drives in North American shale plays and conventional drilling programs have found that keeping spare 30156835 S PIPE PACKAGES in stock cuts down on downtime by a large amount. This is because they can quickly replace a damaged or worn assembly instead of trying to fix it in the field, which keeps rigs on schedule. These operational realities make the complete package approach more cost-effective than buying individual parts.

Procurement Insights – Sourcing Quality Replacement Components

Finding drilling equipment parts in the global supply chain means weighing the costs of quality control and on-time delivery. For example, when procurement teams are looking for the 30156835 S PIPE PACKAGE, they have to make a number of strategic decisions that affect both short-term costs and long-term operational outcomes.

The replacement parts market offers alternatives to brand-new components at various price points. Quality suppliers like GMS manufacture components to meet or exceed design specifications, providing cost-effective alternatives backed by ISO 9001 quality systems. This approach delivers substantial savings—while maintaining the dimensional accuracy and material properties required for safe operation. The key lies in selecting suppliers who invest in proper manufacturing controls rather than simply offering the lowest price.

When planning maintenance schedules or responding to unexpected failures, lead times become very important for Varco TDS11SA's pipe assy. We keep common packages in stock, including the 30156835 S PIPE PACKAGE configuration, so we can quickly meet urgent needs. This eliminates the 8–12 week manufacturing lead times that you usually face when ordering custom assemblies, which helps you avoid costly rig downtime penalties.

For drilling contractors who have a lot of rigs with similar top drive configurations, buying in bulk makes sense. When you buy in bulk, you can usually get better prices and make sure that the quality of the parts is the same across your whole fleet. This makes it easier for maintenance crews to learn how to fix things and makes it easier to keep track of all the different parts that come in different variations.

Verification of quality systems should be a must when evaluating suppliers. Ask for proof of ISO 9001 certification and details on how critical dimensions and material specifications are inspected. Reliable suppliers will give you material certificates and dimensional reports upon request, which you can use for your own quality records.

Shipping costs and delivery times are both affected by where the goods are being sent. Suppliers with well-established logistics networks can easily handle international shipping rules, making delivery times clear. We've built reliable shipping partnerships that cut down on transit times to major drilling regions across the US, so you can get parts when you need them.

Why GMS Stands Out as Your Trusted S Pipe Package Supplier

It's not enough to just compare prices when looking for a partner to help you with your top drive component needs. At Global Machinery Supply Co., Ltd., we've been in the business for ten years and know what procurement professionals really value: consistent quality, quick communication, and reliable delivery. We've built our reputation by knowing that the parts we supply directly affect the reliability of your equipment.

Our approach to quality assurance starts with checking the materials and continues through every step of production. The ISO 9001 framework that guides our business isn't just a certificate on the wall; it's the basis of daily production practices that guarantee accurate measurements and material integrity. We use inspection protocols at key stages of production to find problems before they ship. This proactive quality mindset has earned us long-term relationships with drilling contractors who depend on our parts for their toughest jobs.

Our technical support is another thing that sets our service model apart. When you email sales@gmssupply.com, you'll be connected to knowledgeable experts who know about top drive systems and can answer application-specific questions. Whether you need help with component compatibility, installation, or troubleshooting, we offer quick support that makes your operations run smoothly. This knowledge is especially useful when you're deciding if the 30156835 S PIPE PACKAGE fits a certain rig configuration or operational need.

Inventory management is what sets reliable suppliers apart from those who just take orders for China's top drive overhaul parts. Our stocking program for high-demand parts like the 30156835 S PIPE PACKAGE means you don't have to wait months for production runs to finish. When unexpected failures happen, which they always do in drilling operations, our ready availability can mean the difference between a short maintenance delay and days of downtime.

Flexibility in order fulfillment accommodates the varying needs of different customers. Whether you need a single emergency replacement package or want to establish blanket purchase agreements for ongoing requirements across multiple rigs, we structure arrangements that align with your procurement processes. Our experience serving distributors, drilling contractors, and maintenance service providers means we understand the different operational models in the industry.

With competitive prices, guaranteed quality, quick availability, and knowledgeable support, GMS offers a value proposition that keeps customers coming back. We know that equipment failures in drilling operations can have big financial consequences, so we're committed to giving you parts you can trust and service that makes your procurement process smooth and predictable.

Conclusion

The 30156835 S PIPE PACKAGE is an important part of the fluid circulation system for TDS-11SA and TDS-9SA top drives. It has a direct effect on how well drilling goes and how long operations last. When buying these parts, people have to weigh the short-term costs of the parts against the long-term effects of quality, dependability, and supplier dependability. The complete package method, which includes all several parts in a single assembly, makes it easier to find what you need while also making sure they work together and reducing installation mistakes.

GMS has been supplying replacement parts for drilling equipment to the oil and gas industry for more than ten years. Our ISO 9001-certified manufacturing, well-kept inventory, and quick technical support all work together to give demanding drilling operations the reliability they need. When equipment downtime directly impacts your bottom line, it makes good business sense to work with a supplier who understands these operational realities.

FAQ

1. Does the 30156835 S PIPE PACKAGE work with both the TDS-11SA and the TDS-9SA top drives?

The mounting arrangements, connection ports, and size needs of this assembly are all exactly the same as those on the NOV Varco TDS-11SA and TDS-9SA top drive types. This means that you can put it directly without having to make any changes.

2. What exactly does the whole package come with?

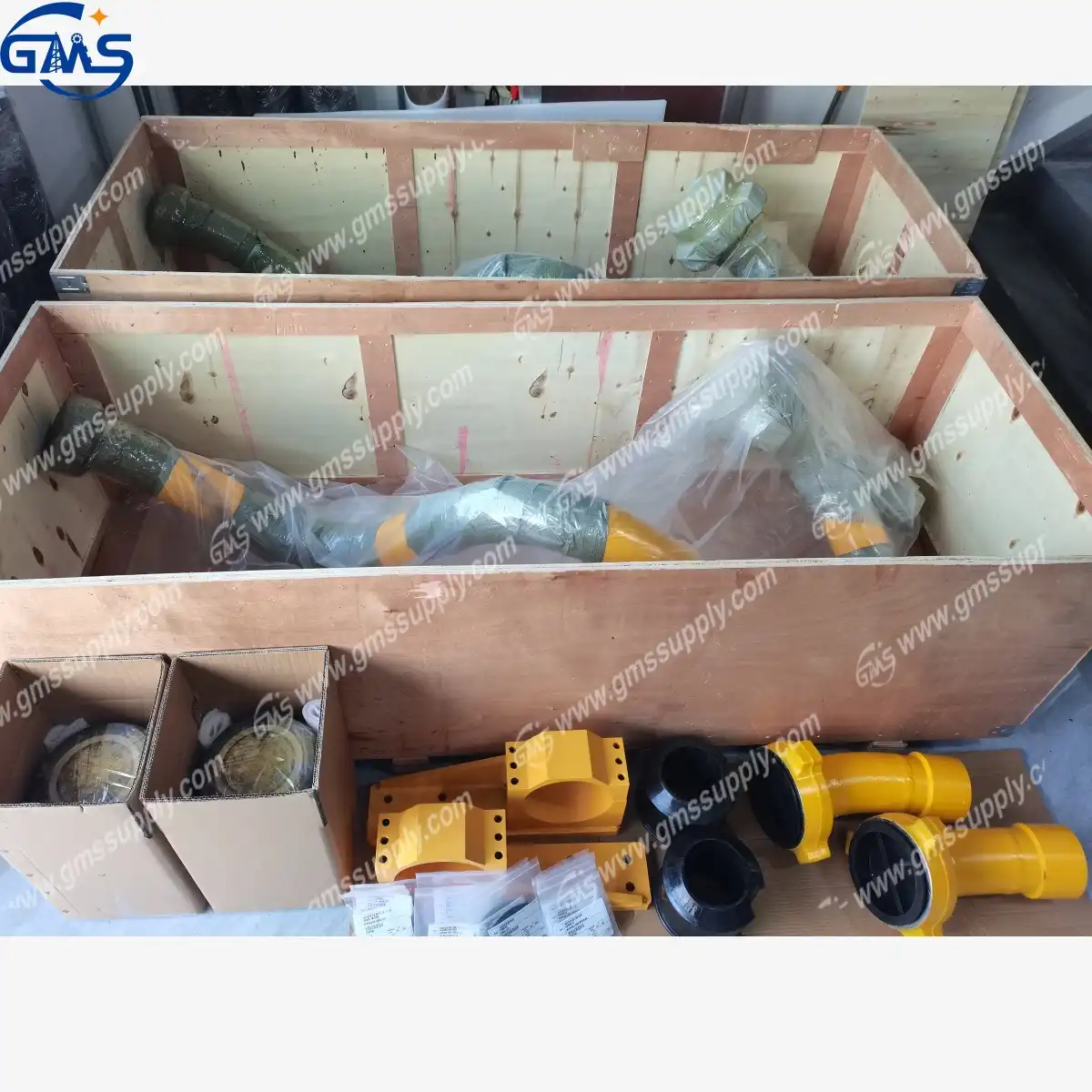

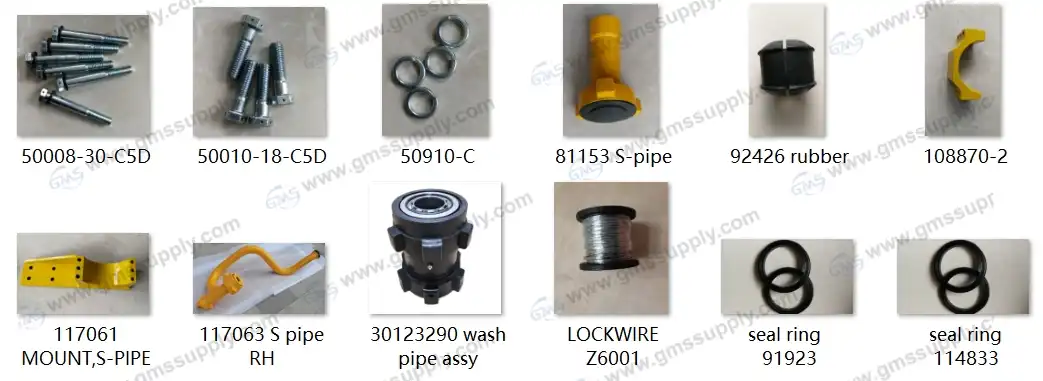

The assembly is made up of several different parts, such as the main 7500 psi S-pipe weldment, mounting brackets, seal rings for 3" and 4" FIG 1002 connections, wash pipe assembly, elbow, rubber isolator, fastening hardware with lock washers, lockwire, and O-rings. This full kit comes with everything you need to install it except for standard tools.
