30177594-500 Stem Machine: Applications and Buying Tips

When procurement managers look for important parts for top drive systems in oil and gas drilling operations, they know that each one must be completely reliable. The 30177594-500 Stem Machine is an important part of rotating link adapter assemblies that transfers torque. It is made to work with the rotating link adapter assembly 121341 and 30173277 designs. This carefully designed 30177594-500 Stem Machine part supports the structure and transfers spinning force in tough drilling conditions, making sure that your TDS-11 and TDS-9SA top drive models keep working properly. As drilling companies try to keep downtime to a minimum and upkeep costs low, choosing the right stem component from a reliable source becomes a strategic choice that has a direct effect on their bottom line.

Understanding the 30177594-500 Stem Machine and Its Role in Rotating Link Adapter Systems

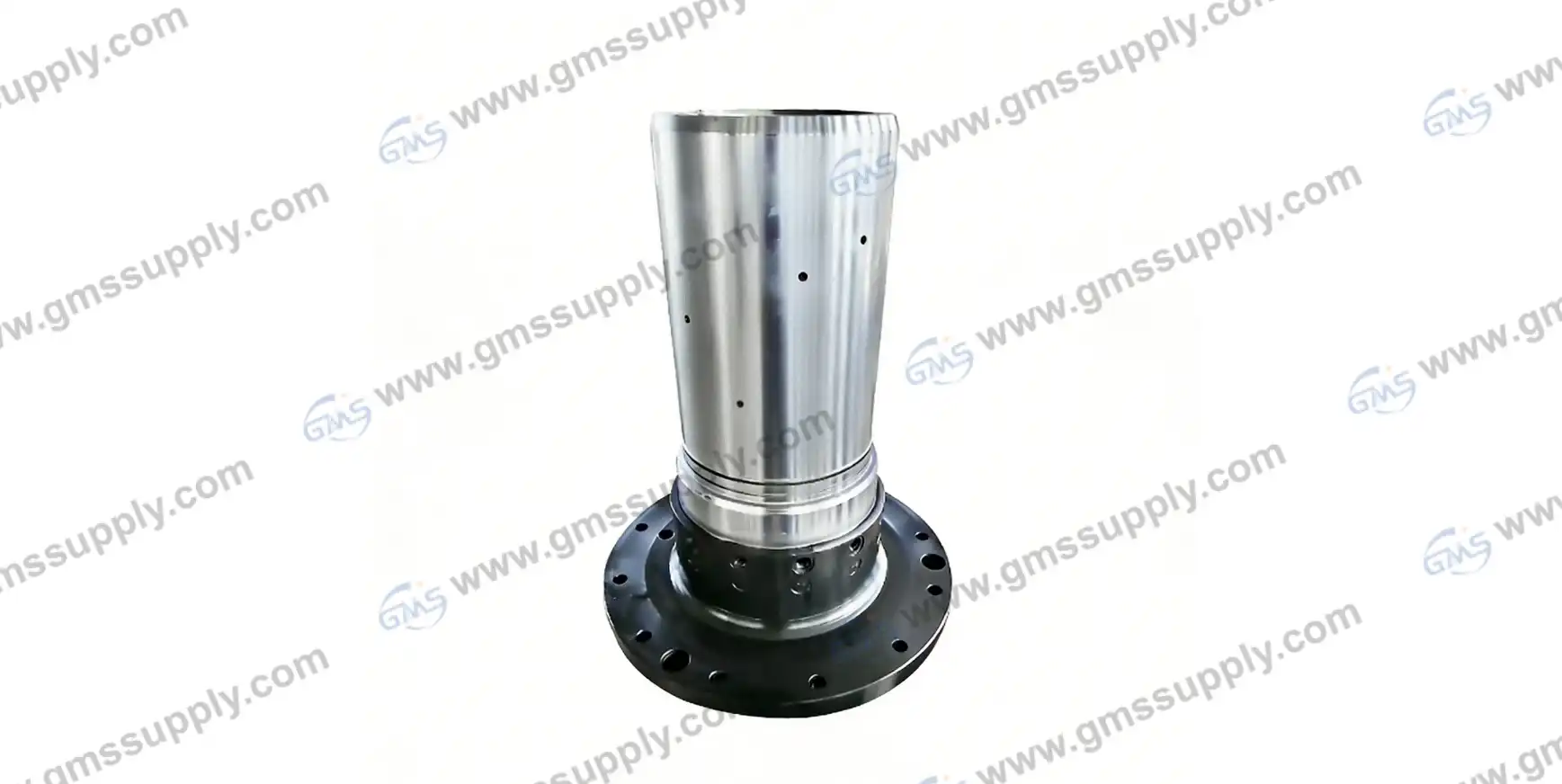

The 30177594-500 Stem Machine is the main piece of machinery that holds up spinning link adapter units, which are used in oil drilling top drive systems. PN 117833-500 is another name for this part. It is the main part that holds loads and transfers torque between spinning parts while keeping them perfectly lined up, even when under a lot of stress. The stem machine is the center joint point of the Stem for rotating link adapter assy 121341 (30173277). It allows controlled rotation and transfers large rotational forces from the drive system to the drill string below.

At GMS, we make this stem part out of high-tensile alloy steel that goes through heat treatment to make it as hard and resistant to wear as possible. Our 30177594-500 Stem Machine's dimensions perfectly match the needs of drilling equipment, so it can be easily combined with current adapter kits without any changes. The part has precisely machined bearing surfaces that reduce friction while it rotates, and the thread profiles have been carefully designed to ensure safe, vibration-resistant links that can handle the repeated loading patterns that are common in drilling operations.

To work mechanically, this stem inside the adapter assembly moves rotating energy through a carefully balanced interface that spreads load stresses evenly across contact surfaces. During drilling, the stem has to handle axial thrust loads and twisting forces at the same time. This makes choosing the right material and manufacturing it very important. Our manufacturing method uses strict tolerance controls all the way through, from checking the raw materials to doing the final measurement inspection. This makes sure that every stem component meets the exact requirements needed for reliable performance in the field.

When you combine the stem machine with spinning link adapter kits, you get a mechanical system that can handle the rough conditions of drilling sites. Every part has to deal with drilling fluids, abrasive particles, changing temperatures, and constant operating cycles, which puts a lot of stress on them all. Our design includes surface treatments that make it more resistant to rust. This means that the product will last longer, even in harsh chemical conditions like those found in oil fields.

Practical Applications and Industry Use Cases

Top drive methods have become the standard for rotary drilling in the oil and gas business, which is where the 30177594-500 Stem Machine is mostly used. In these situations, the 30177594-500 Stem Machine provides the necessary flexibility for drill strings to move through directional changes while drilling in both vertical and horizontal directions. The fact that this part can keep transmitting force while allowing for angular movement makes it essential in current drilling techniques.

Drilling workers who work in a variety of geological areas depend on stem components to keep drilling as efficient as possible. When digging through rocks with different densities, the spinning link adapter system is put under changing loads that could damage less important parts. Our stem machines keep their structural integrity during these changes, so they don't have to go through the expensive downtime that happens when important parts of the drive system break. When stems are made correctly, they have steady performance qualities that directly lead to faster drilling rates and less time spent not working.

Another important thing for managers of drilling activities to think about is planning for maintenance. As part of routine top drive repair, the spinning link adapter assembly that includes the 30177594-500 Stem Machine needs to be checked every so often. At regular repair times, experts look at how the bearing surfaces are wearing down, make sure the threads are still solid, and measure changes in size that show the end of the service life. Setting up predictive maintenance plans based on working hours and load cycle counts lets operations teams change stem components before they break. This keeps costs from going through the roof for repairs that need to be done quickly and without warning.

For problems with the stem, sound analysis and eye inspection are usually used to figure out what's wrong. Unusual vibration patterns during spinning are often a sign of worn-out bearing surfaces or alignment problems in the adapter unit. Taking care of these signs right away by replacing worn stem parts stops damage to nearby parts and keeps the system's general reliability. Our technical support team helps maintenance workers find signs of wear and figure out how often to change things based on the specific conditions of the job.

Quality stem components have practical benefits that go beyond their instant mechanical function. Drilling operations that keep their spinning link adapters in good shape get better hole quality, less shaking in the drill string, and better control over the drilling direction. These improvements in performance lead to more accurate wellbore placement and less time spent digging each well. This saves money and makes it worth buying new parts of good quality from well-known brands.

Procurement Insights: Buying Tips and Supplier Evaluation

When looking for the 30177594-500 Stem Machine, you need to carefully evaluate the suppliers to make sure you get parts that meet the strict requirements needed for drilling uses. As a B2B buyer, the provider you choose has a direct effect on how reliable your equipment is, how much it costs to maintain, and how safe it is to use. When examining possible suppliers, there are a few important things that should be kept in mind in order to lower buying risks and build trusting supply relationships.

Quality assurance is what the seller rating is based on. Our ISO 9001 certification at GMS shows that we are dedicated to upholding consistent manufacturing standards throughout all stages of production. With this approval, procurement managers can be sure that our quality control systems meet standards that are known around the world. In addition to licensing, you should find out if the providers you're considering follow strict quality control procedures that include checking the raw materials, inspecting the work in progress, and testing the finished product. Suppliers who can give you material approvals and measurement inspection reports are honest, which makes you trust the quality of the Stem for rotating link adapter assy 121341 (30173277) products you buy.

Lead time has a big effect on procurement planning, especially when it comes to handling maintenance plans or fixing parts that break down without warning. GMS keeps a large stock of the 30177594-500 Stem Machine, which lets them quickly fill both regular orders for more parts and urgent repair needs. Our normal wait time for stocked things lets drilling operations keep their spare parts inventory as low as possible while still being sure they can get what they need. When comparing providers, make sure you know if the lead times they give you are based on real stock availability or manufacturing lead times that could cause delivery dates to slip.

How well suppliers communicate and respond has a direct effect on how efficiently purchases are made. A lot of the time, drilling operations need quick answers to technical questions or quick handling of orders for pressing needs. Potential providers should be judged on how well they communicate, how much they know about technology, and how willing they are to support your business needs. GMS has built its name on quick response times to customer questions and having experienced expert staff on hand to answer questions about applications, compatibility, and purchasing.

By checking the legitimacy of the seller, procurement organizations can avoid getting fake parts that could be unsafe or not work properly. Ask for proof of the company's business qualifications, quality licenses, and ability to make things. Independent customer reviews and industry references are two more ways to make sure that a supplier is reliable. Serving the oil and gas business for ten years and having built relationships with drilling contractors around the world, makes us a reliable provider that cares about customer success.

Payment terms, guarantee terms, and return policies are some other things to think about when buying something that can affect risk management. If parts don't work as expected, you can get your money back through warranties with clear terms that spell out how to file a claim and how long the coverage lasts. Knowing the return policies before making a purchase will protect your business in case of problems with compatibility or mistakes with the order. GMS has clear business terms that are meant to help customers build long-term relationships based on trust and fair dealings.

Conclusion

The 30177594-500 Stem Machine is an important part whose dependability has a direct effect on how well and how cheaply the drilling process works. When purchasing components, procurement professionals who put quality, source trust, and total cost of ownership at the top of their list of priorities set their companies up for efficient success. Proper fitting methods and planned upkeep plans help get the most out of high-quality parts while lowering the risks and costs that come with them breaking down without warning.

FAQ

Q1: What materials are used in manufacturing the 30177594-500 Stem Machine?

The stem component is manufactured from heat-treated high-tensile alloy steel selected for superior strength, fatigue resistance, and durability under the cyclical loading conditions experienced in drilling operations. Material specifications ensure compatibility with the demanding operational environment, including exposure to drilling fluids and temperature variations.

Q2: How do I verify compatibility with my existing top drive system?

The 30177594-500 Stem Machine is engineered for Stem for rotating link adapter assy 121341 (30173277) and 30173277 applications, specifically supporting TDS-11 and TDS-9SA top drive models. Verify your equipment model and the existing adapter assembly part number to confirm compatibility. Our technical team can assist with compatibility verification if you have questions about specific applications.

Q3: What is the expected service life for this stem component?

Service life depends on operational factors, including drilling hours, load cycles, maintenance practices, and environmental conditions. Under typical drilling operation conditions with proper maintenance, quality stem components deliver thousands of operating hours before replacement becomes necessary. Establishing routine inspection protocols allows monitoring of wear progression to optimize replacement timing.

Partner with GMS for Reliable Stem Machine Solutions

GMS stands ready to support your drilling operations with high-quality stem machine components that deliver dependable performance in demanding oil field environments. As an experienced provider of 30177594-500 Stem Machine, we meet your needs by making products that are ISO 9001-certified, keeping a lot of stock on hand for quick shipping, and providing helpful technical support. We've been helping oil and gas drilling operations around the world for ten years, which has helped us learn more about the high standards and quick service that buying professionals need.

Reach out to our team at sales@gmssupply.com to discuss your specific requirements, request detailed technical specifications, or obtain volume pricing for your upcoming projects. We provide flexible solutions tailored to your operational needs, backed by our commitment to quality products and professional service that reduce your operating costs and support your drilling success.

References

1. Johnson, M. R. (2021). Top Drive Systems: Maintenance and Component Management in Rotary Drilling Operations. Petroleum Engineering Press.

2. Anderson, K. L. & Roberts, D. P. (2020). Industrial Procurement Strategies for Oil Field Equipment: Quality, Reliability, and Supplier Evaluation. Energy Industry Publications.

3. Williams, J. T. (2022). Mechanical Components in Drilling Systems: Design, Application, and Lifecycle Management. Drilling Technology Institute.

4. Martinez, S. A. (2019). Rotating Link Adapter Systems: Engineering Principles and Operational Optimization. Oil and Gas Equipment Journal.

5. Thompson, R. E. (2023). Predictive Maintenance Strategies for Top Drive Equipment in Modern Drilling Operations. Society of Petroleum Engineers Technical Series.

6. Chen, L. & Rodriguez, A. (2021). Material Selection and Heat Treatment for High-Stress Drilling Components. International Journal of Oil Field Engineering.
