6x5x11 Centrifugal pump impeller/19122-01-30A P25D561H for Compact Drilling Rigs

When compact drilling rigs demand reliable fluid handling under extreme conditions, the 6x5x11 Centrifugal pump impeller/19122-01-30A P25D561H 6x5x11 centrifugal pump impeller (P/N: 19122-01-30A, P25D561H) becomes the critical component that keeps operations running smoothly. This 11-inch diameter impeller, designed with a 6-inch suction and 5-inch discharge configuration, is engineered specifically for 250 Series centrifugal pumps used across oil and gas drilling operations. At GMS, we've spent over a decade perfecting this component to ensure it matches the performance standards professionals expect, while offering the flexibility and support that procurement managers value when equipment downtime isn't an option.

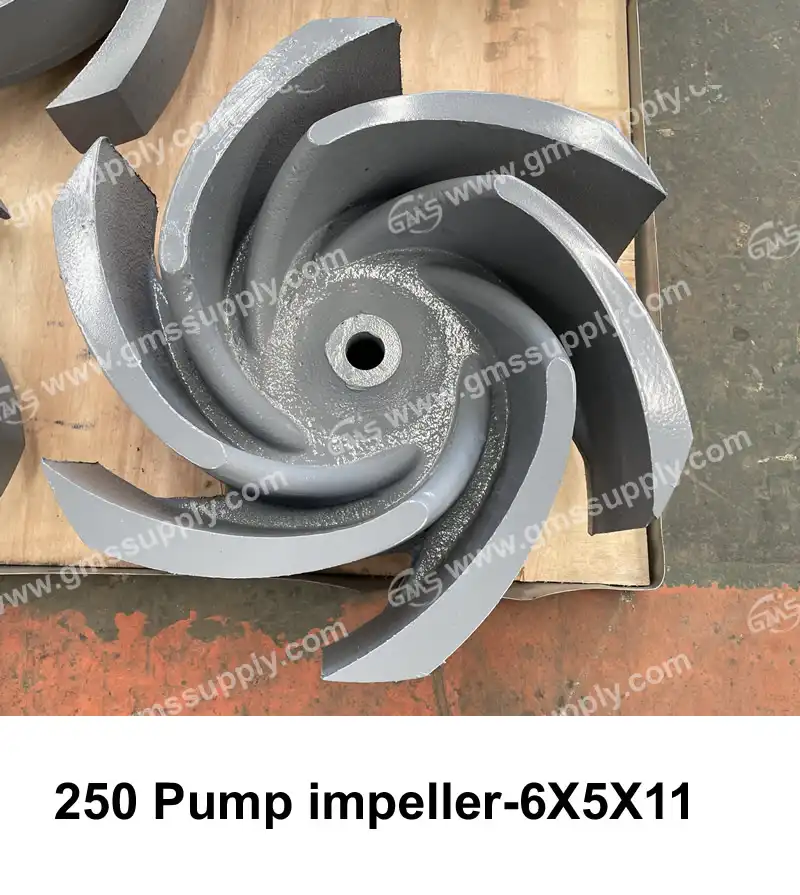

Understanding the 6x5x11 Centrifugal Pump Impeller Design

The 6x5x11 impeller is the heart of your fluid movement system; it's not just a part of your centrifugal pump that spins. Moving rough drilling muds, slurries, and fluid mixtures that would quickly damage less durable parts is what this propeller design is made to do.

For small drilling jobs, the 11-inch width strikes the best mix between flow rate and head pressure. The 6-inch suction opening can take in a lot of fluid, and the 5-inch outlet keeps the flow going without slowing it down. This shape makes a hydraulic profile that lowers the risk of cavitation and turbulence that can happen when using high-viscosity drilling fluids.

Our impellers are made from High Chrome Iron that meets the requirements of ASTM A532 Class III Type A and has a toughness level higher than 600 Brinell. The metal mix in this product is very strong against the rough bits in drilling muds, like sand, rock shavings, and mineral sands that are always wearing down pump parts. The semi-open vane design with back pump-out vanes lowers the pressure in the filling box and stops solids from recirculating. This makes the mechanical seal last longer and requires less upkeep.

The 250 Centrifugal Pump Impeller works with all 250 Series centrifugal pumps from Mission Magnum, MCM, Halco, Mattco, Harrisburg, and SPD Mud Hog systems. The GMS part number for the impeller is 250IM6511. Cross-compatibility lets buying teams keep a group of different kinds of equipment without having to worry about fitting problems or differences in performance. The standard 2.5-inch shaft hole with keyway makes it possible to fit directly into current pump housings without making any changes.

Performance Characteristics in Drilling Operations

Knowing how the 19122-01-30A turbine works in real drilling situations helps engineers and maintenance managers make smart choices about how reliable the equipment is and how much it costs to run.

The P25D561H impeller's blade shape is designed to keep flow rates between 250 and 450 GPM while producing enough head pressure to power high-pressure pump systems. This range of performance is perfect for the movement needs of tiny drilling rigs, which need smaller tools without losing capability because of limited room. Because it can handle fluids with specific gravities up to 1.8, the rotor can be used with weighted drilling muds and thick slurries that are typical in oil drilling.

There are violent substances in drilling fluids, such as chlorides from formation brines, hydrogen sulphide from sour gas environments, and silica particles from cuts. The high chrome content protects in two ways: it is very hard to wear down mechanically, and it is chemically stable, so it can't be attacked by acids. According to field data from our users who work in the Permian and Bakken areas, our impellers last 40 to 60 per cent longer than normal cast iron options.

GMS dynamically balances all of its impellers to meet ISO 1940-1 Grade G6.3 requirements. This exact balancing gets rid of the vibration-caused bearing failures and mechanical seal leaks that happen in parts that were not made well. Operators say the pumps run more smoothly, make less noise, and last longer, all of which directly lead to lower maintenance costs and fewer unexpected shutdowns during key drilling stages.

Maintenance Best Practices for Extended Service Life

Regular repair plans help you get the most out of your propeller investment and avoid costly downtime while digging.

Every 250 hours of operation or once a month, whichever comes first, there should be a visual check. Take off the pump case and look at the sides of the vanes for too much wear, especially at the tips where the fluid is moving the fastest. Look for patterns in the erosion that point to cavitation damage or wrong clearance settings. Between 0.010 and 0.020 inches should be the gap between the rotor and the wear plate. Wider gaps make the system less efficient and cause more water to be lost through flow.

Cavitation shows up as pits on the vane surfaces, most of the time near the eye where the fluid enters the system, and the pressure drops below the vapour threshold. This damage is getting worse quickly and needs to be fixed right away to prevent a major failure from happening. If the shaking numbers go above 0.3 inches per second, it means that the rotor has lost material through wear and tear or cracks. Surface scale or material loss in the hub and shroud areas is a sign of corrosion, which is caused by forceful drilling additives attacking the metal chemically.

Depending on how they are used, the 11" impeller for 250 pump should last between 2,000 and 4,000 hours before they need to be replaced. Drilling companies that work around the clock should keep at least two extra impellers for each operating pump to make sure they can keep working even when wear gets too high. GMS keeps a large supply of the 250IM6511 impeller on hand, and hold times for stock items are usually only one week. This is an advantage in operations that keeps equipment from being down for long periods of time while waiting for parts to arrive.

Procurement Strategies for Drilling Operations

To get the right parts at the best prices, with reliable quality and service, you need to build strong relationships with your suppliers and make smart decisions.

When looking at propeller providers, the first thing that should be checked is whether they are ISO 9001 certified. This quality control standard makes sure that manufacturing processes are always the same and that materials can be traced back to their source. These are important issues when equipment breaks down and drilling activities stop, which costs tens of thousands of dollars every day. GMS keeps its ISO certification and uses strict quality control measures, such as measurement CMM inspection, hardness testing, and non-destructive testing, to find flaws in castings before they are sent to clients.

Several different part naming methods refer to the same 6x5x11 propeller. This part is identified by Mission Magnum as P/N 19121-XX-30 (note: make sure the end matches the type of your pump). It's called P25D561MRxxx by MCM. Part number 1225561XXX is used by Harrisburg, and H19121-XX-30 is used by Halco. Having these cross-references in your purchase database keeps things clear and makes sure you buy the right part, no matter what name conventions the old equipment paperwork uses.

Standard impellers can be shipped within a week from GMS's stock, but orders with special requirements or in large quantities may need more time to be made. Setting up blanket purchase deals that ensure supply and lock in prices for 12 months is helpful for drilling companies that run more than one rig. In this way, you can plan your budget ahead of time and avoid the price changes that happen when you buy on the stock market in a situation.

Beyond getting the goods to you, the long-term success of your relationship with your provider depends on the support system that surrounds it. GMS offers expert advice to help find out why a pump isn't working right, suggest the best impeller designs for different types of drilling fluid, and help with the fitting process. This knowledge is very helpful when trying to figure out why equipment isn't working as well as it should or when changing it to new digging settings with fluids that have different qualities.

Selecting the Right Impeller Configuration

Matching impeller specifications to your operational requirements prevents both over-specification waste and under-performance failures.

The 6x5x11 Centrifugal pump impeller/19122-01-30A P25D561H, the 6x5x11 configuration suits compact drilling rigs operating with fluid circulation rates in the 250-450 GPM range. Larger rigs with higher volume demands may require stepping up to the 6x8x11 or 6x8x14 configurations (GMS P/N: 250IM6811 and 250IM6814, respectively). Conversely, smaller auxiliary pumps might benefit from the 4x5x14 impeller (P/N: 250IM4514), which offers similar pressure characteristics at reduced flow rates. Understanding your pump curve and system resistance helps identify the optimal match.

While High Chrome Iron dominates drilling applications due to superior abrasion resistance, alternative materials exist for specialised conditions. For drilling operations encountering exceptionally corrosive formation fluids with minimal solids content, specialised alloy impellers offer enhanced chemical resistance. However, these alternatives sacrifice wear resistance and cost significantly more—making them suitable only when corrosion, rather than erosion, drives component failure.

The 19122-01-30A impeller from GMS represents a value proposition that drilling contractors appreciate—matching the performance and reliability of premium brands while offering competitive pricing that improves project economics. Our decade of manufacturing experience means we've refined production processes to eliminate waste without compromising quality. This efficiency translates to cost savings we pass along to customers, particularly those establishing long-term supply relationships and consolidating their spare parts procurement.

Our customer base includes drilling contractors, equipment fleet managers, and industrial distributors who value the combination of product quality, inventory availability, and responsive service. The ISO certification provides assurance that manufacturing standards remain consistent across production runs. Our engineering team understands the operational realities of drilling environments and can provide practical guidance when specifications or performance questions arise. Most importantly, when your pump fails at 2 AM during a critical drilling phase, our inventory and logistics capabilities ensure replacement parts arrive quickly—not after days of costly downtime.

Conclusion

The 6x5x11 centrifugal pump impeller remains an essential component for compact drilling rig operations where reliable fluid handling directly impacts operational efficiency and cost control. The 19122-01-30A (P25D561H) configuration provides the hydraulic performance, material durability, and dimensional compatibility that drilling professionals demand. Through proper maintenance practices, strategic procurement relationships, and informed component selection, operators maximise equipment uptime while controlling lifecycle costs. GMS combines manufacturing expertise, quality assurance, and customer-focused service to deliver impellers that meet the demanding standards of modern drilling operations. Our commitment to maintaining inventory, providing technical support, and ensuring dimensional accuracy gives procurement managers confidence that critical components will perform as expected when drilling schedules leave no room for equipment failures.

FAQ

1. What material composition is used in the 19122-01-30A impeller?

The impeller is manufactured from High Chrome Iron conforming to ASTM A532 Class III Type A specifications, achieving minimum hardness levels of 600 Brinell (60+ HRC). This metallurgical composition provides exceptional resistance to abrasive wear from drilling mud solids while maintaining structural integrity under hydraulic loads. The semi-open vane design incorporates back pump-out vanes that reduce mechanical seal pressure and extend seal life.

2. Can I use this impeller in my Mission Magnum pump?

Yes, the GMS 250IM6511 impeller is designed for complete interchangeability with 250 Series centrifugal pumps, including Mission Magnum, MCM, Halco, Mattco, Harrisburg, and SPD Mud Hog models. The standard 2.5-inch shaft bore with keyway ensures proper fitment. Verify your pump's shaft diameter before ordering, as variations exist in some older or modified units.

3. What are typical lead times for bulk orders?

Standard 6x5x11 impellers ship from stock within one week for quantities up to 10 units. Larger bulk orders or custom specifications require additional production time, typically 3-4 weeks, depending on order volume and manufacturing queue. Establishing a blanket purchase agreement with scheduled deliveries helps ensure continuous availability for operations managing multiple drilling rigs.

4. How do I verify impeller clearance settings?

Optimal clearance between the impeller and casing wear plate measures 0.010-0.020 inches. This gap is adjusted using the pump bearing housing adjustment mechanism. Excessive clearance reduces efficiency and increases power consumption, while insufficient clearance risks metal-to-metal contact during operation. Use feeler gauges during installation and maintenance to verify proper settings.

Partner with a Trusted 6x5x11 Centrifugal Pump Impeller Supplier

GMS delivers the quality components and responsive service that drilling operations depend on. As an experienced 6x5x11 Centrifugal pump impeller/19122-01-30A P25D561H manufacturer, we maintain an extensive inventory of the 250IM6511 impeller (cross-referenced as 19122-01-30A / P25D561H) with one-week delivery for stock items. Our ISO 9001 certification guarantees consistent manufacturing standards, while our decade of industry experience means we understand the technical requirements and operational pressures you face daily. Whether you need a single replacement impeller or want to establish a comprehensive spare parts program for your drilling fleet, our team provides expert guidance on component selection, application troubleshooting, and inventory management strategies. Contact our sales team at sales@gmssupply.com to discuss your 6x5x11 centrifugal pump impeller requirements, request technical specifications, or obtain competitive pricing for your next project. We're committed to supporting your operations with reliable products, short lead times, and the technical expertise that keeps your drilling equipment running efficiently.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.

References

1. American Petroleum Institute, "Centrifugal Pumps for Petroleum, Petrochemical and Natural Gas Industries," API Standard 610, Eleventh Edition, 2010.

2. Hydraulic Institute, "Centrifugal Pump Design and Application," Hydraulic Institute Engineering Data Book, Third Edition, 2019.

3. Karassik, Igor J., et al., "Pump Handbook: Centrifugal Pumps for Solids-Laden Fluids," Fourth Edition, McGraw-Hill Professional, 2008.

4. National Association of Corrosion Engineers, "Materials Selection for Oil and Gas Production Equipment," NACE Publication 34101, 2016.

5. Society of Petroleum Engineers, "Drilling Fluids Processing Handbook: Centrifugal Pump Applications in Mud Systems," SPE Technical Series, 2015.

6. Wilson, K.C., et al., "Slurry Transport Using Centrifugal Pumps: Wear and Hydraulic Performance," Springer Series in Industrial Engineering, Third Edition, 2018.
