Best 30151951 Shot Pin Uses in TDS-11SA and TDS-9SA Systems

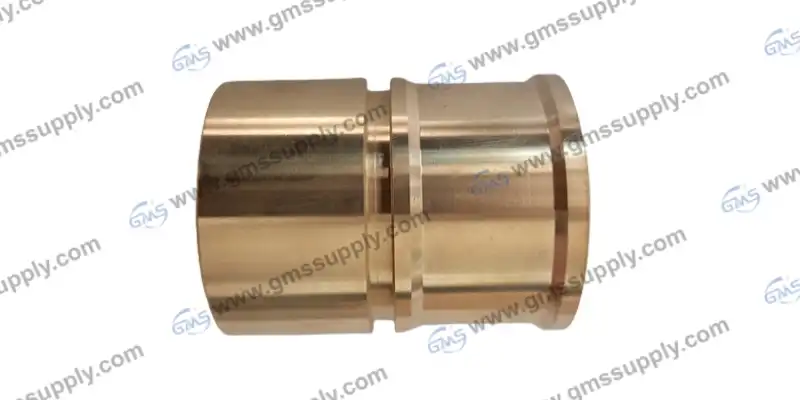

The 30151951 Shot Pin serves as a critical component in NOV TDS-11SA and TDS-9SA top drive systems, enabling hydraulic locking mechanisms during make-up and break-out operations. This sleeve component works within the shot pin assembly to engage with rotating gear holes, allowing the rotating link adapter to lock into correct positions during drilling operations. Understanding its optimal applications ensures enhanced drilling efficiency, reduced downtime, and improved operational safety in both onshore and offshore drilling environments.

​

Understanding the Role of the 30151951 Shot Pin in Top Drive Operations

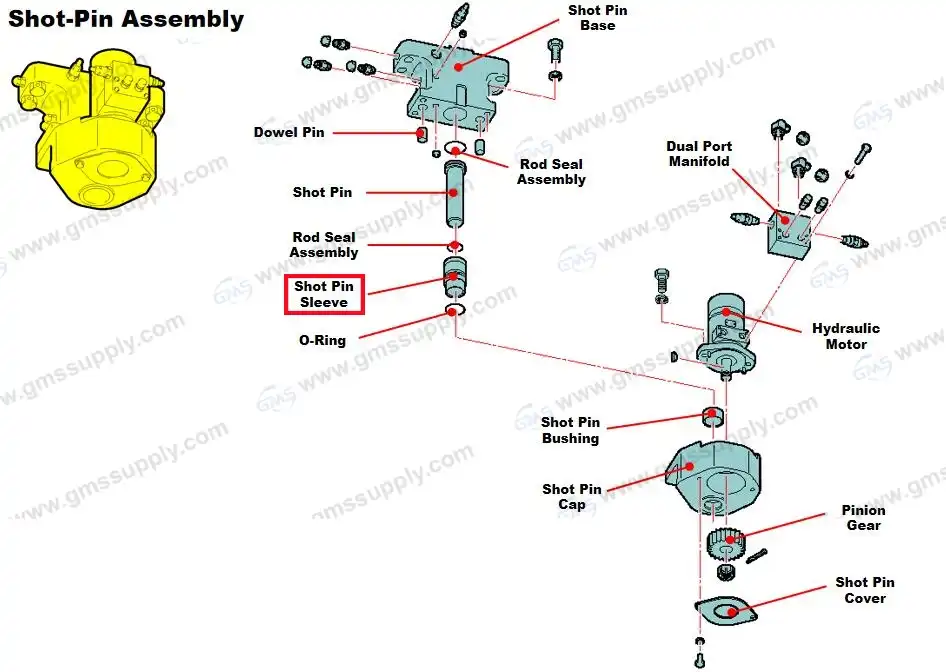

The 30151951 Shot Pin functions as an integral part of the hydraulic shot pin assembly that controls the positioning and movement of the rotating link adapter in TDS top drive systems. During make-up or break-out operations, the rotating link adapter can be locked into one of the 24 index positions by a hydraulic shot pin, providing precise control over drill string operations. This component enables the system to drive the rotating link adapter in either direction freely while maintaining the ability to lock the position when needed for connection operations. The sleeve design of the 30151951 Shot Pin ensures proper engagement with the shot pin assembly components, including the shot pin rod, base, bushing, and hydraulic motor assembly. This locking mechanism is essential for providing the backup torque required during makeup and breakout operations, ensuring that connections can be made or broken safely at any height in the derrick. The component's robust construction allows it to withstand the repetitive engagement and disengagement cycles that occur during normal drilling operations, making it a critical wear component that requires periodic inspection and replacement.

Key Applications of the 30151951 Shot Pin in TDS-11SA Systems

The TDS-11SA top drive system utilizes the 30151951 Shot Pin in several critical operational scenarios that demand precise positioning and locking capabilities. One primary application involves connection makeup operations where the shot pin engages to hold the rotating link adapter stationary while the torque wrench applies the necessary torque to make up drill pipe connections. This locking function prevents rotation of the link adapter during the high-torque makeup process, ensuring proper thread engagement and preventing damage to the connection. Another essential use occurs during connection breakout operations, where the shot pin locks the system in the optimal position for applying breakout torque. The ability to lock at any of the 24 available index positions provides flexibility in positioning, allowing operators to align the system optimally regardless of the drill string's rotational position when operations are initiated. During tripping operations, the 30151951 Shot Pin assembly allows the rotating link adapter to rotate freely with the traveling block, functioning similarly to a standard hook. This free-rotation capability is crucial for efficient tripping operations, as it eliminates the need to orient the drill pipe manually during trips in and out of the hole. The shot pin system automatically disengages when rotation is required and engages when locking is needed, providing seamless transitions between operational modes. In directional drilling applications, the precise positioning capability enabled by the 30151951 Shot Pin becomes particularly valuable, as it allows for accurate orientation of the drill string during slide drilling operations. The component also plays a vital role in safety operations by providing a mechanical backup during IBOP actuation, ensuring that the system remains locked in position during emergency procedures that require isolation of wellbore pressures at any height in the derrick structure.

​

Maintenance and Inspection Requirements for the 30151951 Shot Pin

Proper maintenance of the 30151951 Shot Pin ensures optimal performance and extends component life in demanding drilling environments. Regular inspection intervals should be established based on operational hours and drilling conditions, with visual inspections conducted daily during pre-operational checks. Operators should examine the shot pin assembly for signs of hydraulic leakage around the sleeve, checking for fluid seepage that indicates seal degradation or component wear. The shot pin's engagement and disengagement should be tested during pre-operational checks to verify proper hydraulic function and mechanical movement. Any hesitation, binding, or failure to fully engage or retract indicates potential problems requiring immediate attention. Measurement of the shot pin sleeve outer diameter and inner diameter dimensions allows comparison against manufacturer specifications, with measurements outside tolerance ranges indicating wear that requires component replacement. The inspection should include examination of the shot pin bushing interface surfaces for scoring, galling, or excessive wear patterns that could affect proper alignment and engagement. Seal kit replacement represents a critical maintenance activity, with rod seals, o-rings, and backup rings requiring periodic replacement according to service intervals or whenever leakage is observed. The hydraulic motor that drives the shot pin assembly should be tested for proper operation, with pressure readings verified against system specifications to ensure adequate force for reliable engagement. Contamination in the hydraulic fluid can cause accelerated wear of the 30151951 Shot Pin components, making regular fluid analysis and filtration system maintenance essential preventive measures. During major overhaul intervals, the complete shot pin assembly should be disassembled for thorough cleaning and inspection of all internal components. The shot pin rod, base, cap, cover, and pinion gear should all be examined for wear patterns, with any components showing excessive wear replaced as a complete assembly to maintain proper clearances and function. Documentation of inspection findings and maintenance activities provides valuable trending data that helps predict component life and optimize replacement intervals based on actual operating conditions rather than generic recommendations alone.

Cost-Effective Alternative Solutions: GMS 30151951 Shot Pin Replacements

The drilling industry increasingly recognizes the value of quality alternative components that provide equivalent performance at reduced costs. GMS manufactures replacement 30151951 Shot Pin assemblies that offer identical functionality to original equipment at significantly lower prices, making them ideal for budget-conscious operators and non-critical component replacement scenarios. These alternative components undergo rigorous quality control throughout the manufacturing process, from raw material selection through final inspection, ensuring they meet the demanding requirements of top drive applications. The GMS replacement shot pin assemblies feature the same critical dimensions as original parts, maintaining proper fit and interface with existing shot pin assembly components including bushings, seals, and hydraulic motors. The ISO 9001 certification held by GMS demonstrates the company's commitment to quality management systems that ensure consistent manufacturing processes and product reliability. Manufacturing experience spanning over a decade provides GMS with deep knowledge of top drive component requirements and common failure modes, allowing design refinements that address known weaknesses while maintaining full interchangeability with original parts. The availability of replacement components from stock or with short lead times of typically ten weeks or less provides operational advantages for drilling contractors managing spare parts inventories and minimizing equipment downtime. Technical support from GMS assists customers in proper component selection, installation procedures, and troubleshooting when questions arise during maintenance activities. The cost advantages of alternative components become particularly significant for drilling contractors operating multiple rigs, where spare parts inventory represents substantial capital investment. By utilizing quality alternatives for the 30151951 Shot Pin and other TDS components, operators can reduce their spare parts costs while maintaining adequate backup components to support maintenance activities and minimize downtime. The alternatives prove especially valuable for older top drive systems where original manufacturer support may be limited or where extended delivery times for original parts create operational challenges.

Conclusion

The 30151951 Shot Pin remains essential for TDS-11SA and TDS-9SA top drive operations, providing critical positioning and locking functions during drilling activities. Quality alternative components from manufacturers like GMS offer cost-effective solutions with comparable performance, supporting budget-conscious operators without compromising operational reliability. With proper maintenance and inspection practices, whether using original or alternative components, drilling contractors can ensure their top drive systems deliver consistent performance throughout demanding drilling campaigns.

Ready to optimize your TDS top drive operations with cost-effective, quality-tested components? As a leading China 30151951 Shot Pin factory, supplier, and trusted manufacturer, GMS provides China 30151951 Shot Pin wholesale solutions and maintains competitive 30151951 Shot Pin for sale inventory ready for immediate shipment. Contact us today for detailed 30151951 Shot Pin price quotations and technical specifications. Our team responds within two hours to support your drilling operations with reliable components and expert guidance. Reach out to sales@gmssupply.com to discover how our replacement parts can reduce your operational costs while maintaining the performance standards your drilling operations demand.
