DT15984 Upper Pin Link Support Wear and Replacement Guide

If you are in charge of important drilling operations, you need to know about the DT15984 Upper Pin, Link Support, to keep the system reliable and the operations running smoothly. This carefully made part is the core of Canrig's top drive systems, which are made to work with types 8050, 8035, and 6027AC. This DT15984 Upper Pin, Link Support keeps the structure strong even in the harshest drilling conditions and makes it easier for the load to be spread evenly throughout the mechanical assembly.

​​​​

​​​

Understanding DT15984 Upper Pin Link Support: Specifications and Functionality

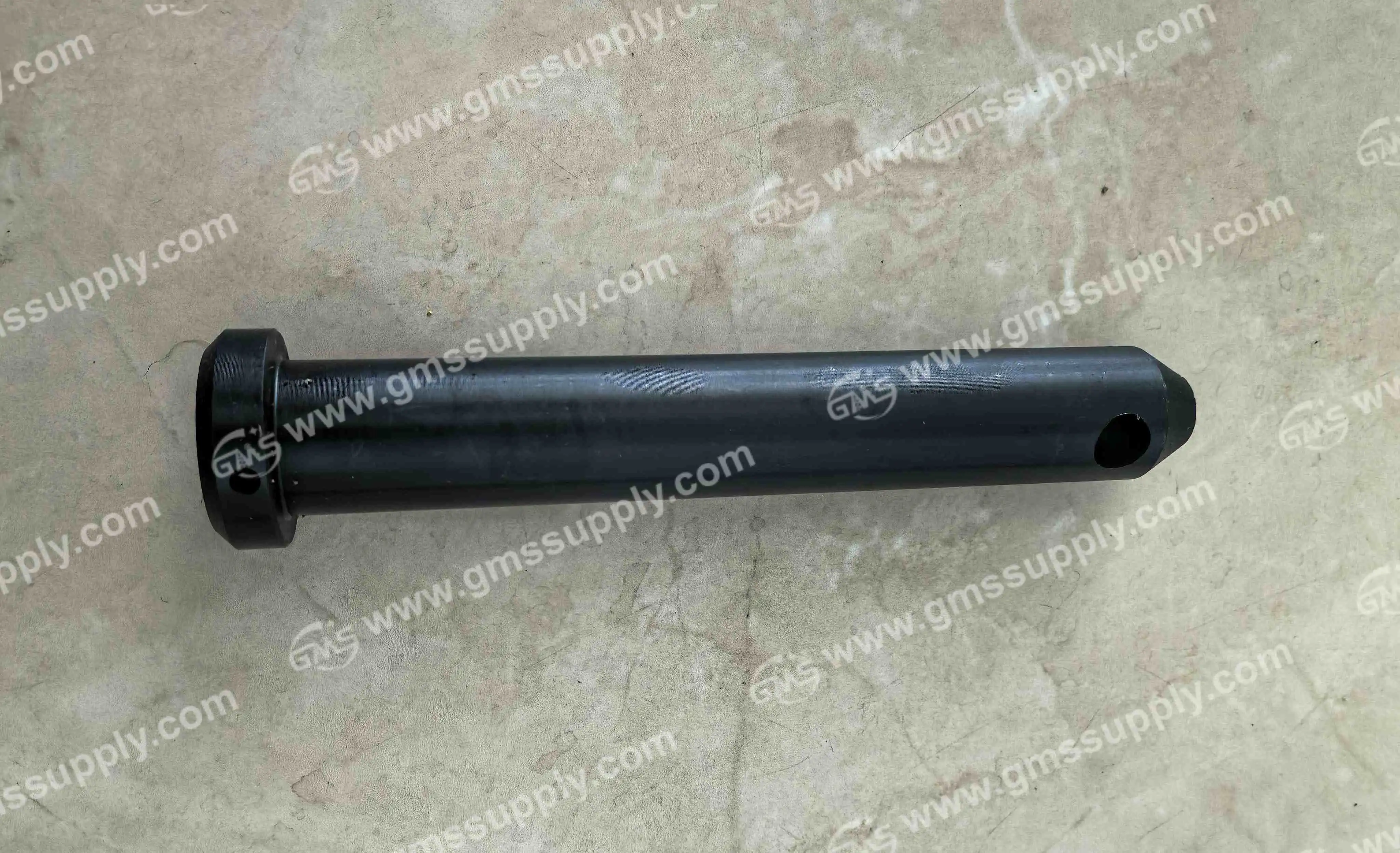

The DT15984 Upper Pin, Link Support is a high-tech piece of engineering made just for oil and gas businesses that use top-drive drilling systems. The hardening process makes the surface hardness between HRC 52 and 60, which is very resistant to wear while still keeping the core flexible enough to handle high-impact shock loads without affecting the structure's strength.

This upper pin is made of a metal that has been precisely ground to meet h6 or h7 fit standards. This makes sure that the interfaces with the bushings are properly sealed and that no lubrication leaks out. Two surface treatments keep the surface from rusting in harsh drilling settings where chemicals and water are always a problem. Engineered grease holes and cross-drilled channels make it easier for lubrication to spread evenly throughout the part. These design features directly address the tough needs of constant drilling operations, where the success of the whole project depends on how reliable the parts are.

In Canrig top drive systems, the DT15984 Upper Pin, Link Support is the main load-bearing axis that connects the important linkage geometry. The smart placement of the part keeps the boom and stick bores from ovalizing badly, which extends the life of the whole hydraulic arm assembly.

Identifying Wear and Troubleshooting Common Issues with DT15984 Link Support

Recognizing early signs of wear is important for keeping drills running at their best and avoiding expensive equipment breakdowns. The DT15984 Upper Pin, Link Support wears in a certain way that only skilled repair teams can spot by checking it regularly and keeping an eye on its performance.

The most common early warning sign is surface degradation, which can show up as cutting, pitting, or strange color changes on the surface around areas of high stress. Operators should keep an eye out for more play or movement in the linkage assembly. This is usually a sign of worn bearings or parts that are coming loose and need quick attention. Symptoms of performance degradation include the linkage not accepting lubrication during regular maintenance, making strange noises while it's running during drilling cycles. These signs show that the internal wear has gone beyond what is allowed, so the part needs to be replaced to keep the system from breaking.

Using the right fitting methods has a big effect on how long DT15984 Upper Pin, Link Support lasts and how well the system works. When installing, it needs to be carefully lined up to make sure that the load is spread out evenly and that there are no areas of early wear. Regular maintenance should base on how hard the machine is used and the conditions outside. This preventative method flushes out contaminants that could speed up wear patterns.

Procurement Guide: Where and How to Buy DT15984 Upper Pin Link Support?

To find trustworthy suppliers for the DT15984 Upper Pin, Link Support, you need to carefully look at their skills, quality control methods, and customer service. Building relationships with manufacturers who consistently offer high-quality goods and have the right technical knowledge is a key part of successful procurement strategies.

Leading providers keep their ISO 9001 certification up to date and use thorough quality control measures all the way through the manufacturing process. These certifications make sure that parts meet international standards for the types of materials they are made of, how accurately they are measured, and how well they work in drilling uses. Suppliers that have been around for a while usually have short wait times and keep stock that can be delivered right away or within two weeks. This inventory management feature is very important for drilling operations, where machine downtime has a direct effect on project timelines and profits.

Bulk purchasing often offers big savings on costs for businesses that are in charge of several drilling units or are planning long campaigns. Expert providers know that drilling operations go through cycles, and they can set prices that work with changing demand patterns while still making sure there is a steady supply of the DT15984 Upper Pin, Link Support. This way of providing aftersales service lowers operating risk and helps with good planning for maintenance.

Best Practices for Maintenance and Replacement to Maximize DT15984 Upper Pin Lifecycle

The DT15984 Upper Pin, Link Support has a much longer useful life when you follow systematic repair procedures. These methods blend planned preventive inspections with replacement criteria based on data that find a good balance between performance and cost-effectiveness.

The upper pin assembly should be looked at visually every day for clear signs of wear, damage, or contamination that could affect performance. Lubrication schedules must take into account how hard the machine is used, the environment, and what the maker says should be done to keep protective films in place and flush out harmful contaminants. Scheduled repair intervals should include thorough checks using the right measuring tools to see how wear is progressing and figure out when to replace the part. This method lets planned maintenance happen during planned downtime instead of repairs that are done on the spot and stop drilling activities.

By replacing the DT15984 Upper Pins, Link Support before they reach critical wear limits, you can keep related systems from getting damaged and keep drills running efficiently during the replacement interval. Keeping track of how well parts work and how often they need to be replaced gives you useful information for planning future purchases and repairs.

Conclusion

The DT15984 Upper Pin, Link Support is an important part of keeping top drive drilling processes running smoothly. If procurement teams and maintenance workers know enough about an item's specs, wear patterns, and maintenance needs, they can get the best performance out of it while keeping costs low. Drilling operations can extend the life of parts and reduce the number of expensive breakdowns by following systematic maintenance protocols, making smart purchasing choices, and following best replacement practices. Investing in quality DT15984 Upper Pin, Link Support and following the right maintenance methods will help operations run more smoothly and projects succeed in tough drilling settings.

FAQ

Q1: What drilling systems are compatible with the DT15984 Upper Pin?

The DT15984 Upper Pin, Link Support specifically fits Canrig Top Drive systems, including models 8050, 8035, and 6027AC. These systems are commonly used in oil and gas drilling operations where reliable top drive performance is essential for operational success.

Q2: How often should lubrication maintenance be performed?

Daily lubrication or every 10 operating hours is recommended using EP2 Moly-fortified grease. This maintenance schedule maintains the protective lubrication film necessary for smooth operation while removing contaminants that could accelerate wear.

Q3: What are the key indicators for replacement timing?

Replacement becomes necessary when components show visible movement in the linkage assembly, difficulty accepting lubrication, unusual operational noise, or when wear measurements exceed acceptable tolerances. Early replacement prevents damage to surrounding components.

Partner with GMS for Reliable DT15984 Upper Pin Link Support Supply

GMS stands ready to support your drilling operations with high-quality DT15984 Upper Pin, Link Support components backed by our decade of industry experience and ISO 9001 certification. Our manufacturing processes deliver consistent quality that matches demanding drilling requirements while maintaining competitive lead times of 2 weeks from stock. Contact our technical team at sales@gmssupply.com to discuss your specific DT15984 Upper Pin, Link Support requirements and discover how our flexible solutions can optimize your supply chain management. As your trusted DT15984 Upper Pin Link Support supplier, we provide comprehensive after-sales support that ensures your drilling systems operate at peak efficiency throughout their service life.
