Gear Pinion 117830 Performance in Heavy Duty Drilling

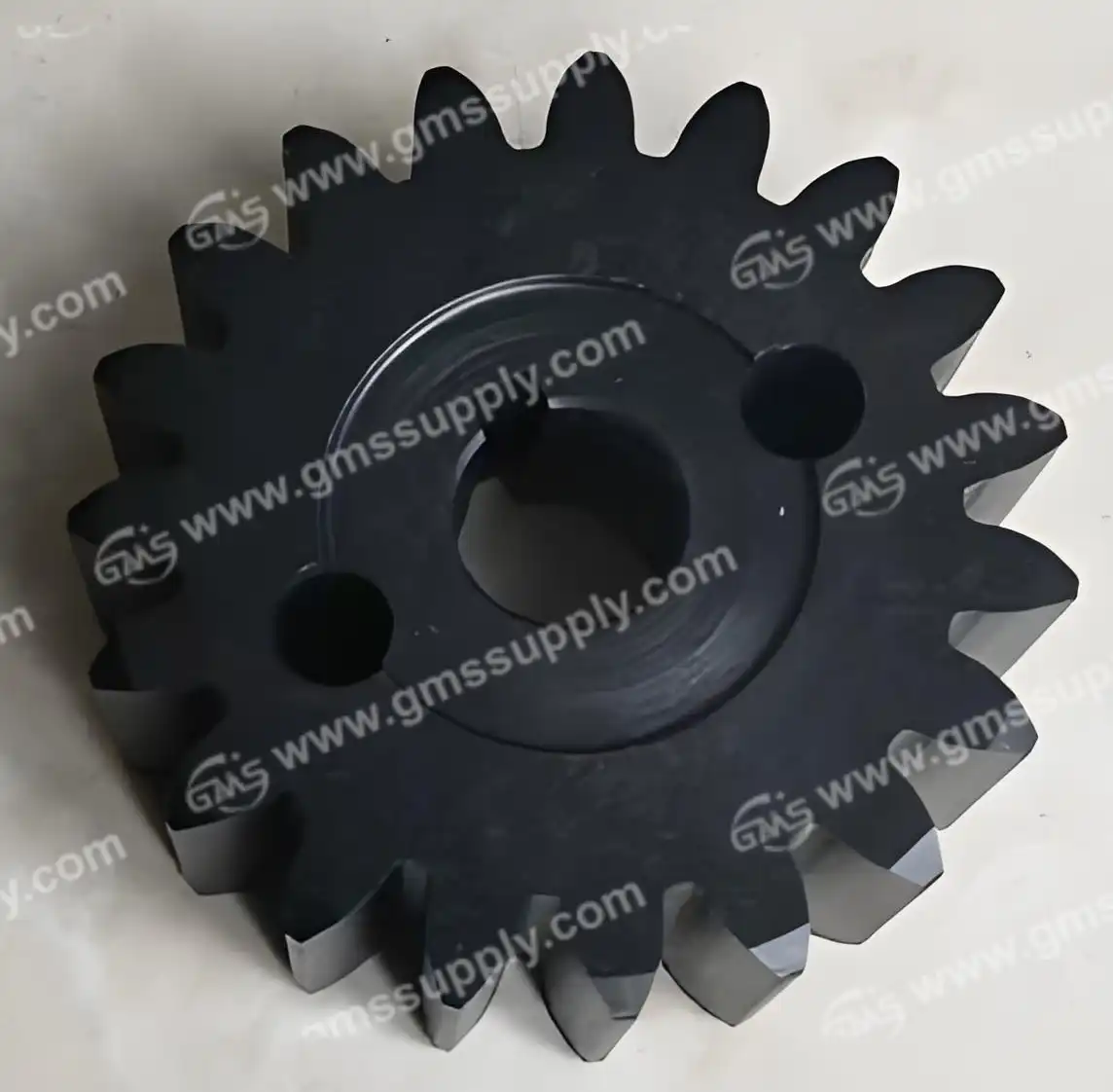

The gear pinion 117830 stands out as a solid transmission part for top drive systems for oil and gas drills, made to work with TDS-11SA and TDS-9SA top drive models. It makes sure that power is transferred smoothly and the machine stays stable even in the harshest downhole circumstances. It has a direct effect on how well drilling works, so procurement managers in charge of heavy-duty equipment teams make choosing quality gear pinion 117830 a top priority.

​

Understanding Gear Pinion 117830: Specifications and Core Features

The gear pinion 117830 is an important part of systems that use top drive drills, and it's possible to move in an exact circular motion with this pinion gear, which is needed to keep the drilling speed and power distribution steady while work is being done. When used for heavy-duty drilling, parts must be able to withstand high mechanical stress, changes in temperature and repeated operations. What material is used has a lot to do with how long the component lasts. High-grade stainless steel is used that are strong enough to resist wear and keep their shape for a long time.

Dimensional accuracy makes sure that the parts fit together perfectly with each other. Tight manufacturing standards stop problems with imbalance that could lower the efficiency of transmissions or cause too much shaking. Because the gear is designed to work with both TDS-11SA and TDS-9SA top drive systems, it is compatible with a wide range of oil and gas drilling setups. ISO 9001 certificate makes sure that manufacturing processes meet international quality standards. This gives buying teams faith in the reliability of parts and the regularity of production runs.

Gear Pinion 117830 Performance in Heavy-Duty Drilling: Optimization and Maintenance

The gear pinion 117830 controls the change in force between the drive motor and the drill string unit in heavy-duty drilling systems. During drilling activities, this function has a direct effect on controlling the spinning speed and making the best use of power. When the top drive system turns on, the pinion gear has to send a lot of mechanical force while staying perfectly in sync with the parts next to it. Any drop in performance in this transmission element can cause a chain reaction of problems, such as lower entry rates, higher fuel use, and faster wear on parts further downstream.

Tooth surface damage from not enough greasing, edge loads caused by imbalance, and heat stress from long periods of high-load activities are all common performance problems. To fix these problems, you need to follow regular repair procedures and keep an eye on operations. Using the right viscosity-grade oils on a regular basis to lubricate creates protective films that keep metals from touching each other and get rid of unwanted heat. At regular times for inspections, the tooth surfaces should be looked at visually for scoring, spalling, or other odd wear patterns that could mean there are problems with alignment or contamination. By using tracking methods, maintenance teams can plan their work for planned breaks.

​

Procurement Guide for Gear Pinion 117830: Sourcing and Supplier Selection

To get quality gear pinion 117830, buyers need to use smart methods that combine source trust, supply, and price. Professionals in charge of buying things should make sure that sellers keep a close eye on quality throughout the whole production process and can show proof that the specs of the parts meet the needs of the application. Prices change based on the number of orders, the time it takes to send, and the level of customization needed. Companies that keep large stock on hand often find that bulk purchasing agreements save money. Knowing what to expect from the lead time keeps schedules from getting thrown off, and having the part in stock means that pressing substitute needs can be met right away.

Building ties with reliable providers has long-term benefits for operations. When parts are of the same quality on multiple orders, it's easier to keep track of the supplies, and there's less need for inspections. Reliable shipping helps with planning upkeep and keeps machine downtime to a minimum. When unexpected parts fail, responsive contact routes make it easy to quickly meet urgent buying needs.

Installation and Compatibility: Ensuring Seamless Integration in Heavy-Duty Machinery

Successful integration of the gear pinion 117830 into TDS-11SA and TDS-9SA top drive systems requires attention to dimensional compatibility and proper installation procedures. Before beginning installation, verify that the replacement pinion matches the part number. Dimensional verification prevents the installation of incorrect components that could cause immediate failure or accelerated wear. Preparation steps include cleaning all mating surfaces to remove residual lubricants, debris, or corrosion that could interfere with proper component seating. Inspect adjacent components for wear or damage that might affect new pinion performance. Proper tool selection ensures installation proceeds without damaging component surfaces or compromising dimensional tolerances.

The installation sequence follows the user's manual for the specific top drive model. Position the pinion gear to achieve optimal mesh geometry with mating components, ensuring even tooth contact across the full face width. Apply specified torque values to fasteners, following proper tightening sequences that prevent distortion or uneven loading. Install appropriate lubrication before operational startup, ensuring all gear surfaces receive adequate oil film protection during initial rotation cycles.

Post-installation testing verifies the correct functionality of the gear pinion 117830 before returning the equipment to full operational duty. Run the top drive system through low-load rotation cycles while monitoring for unusual noise, vibration, or temperature increases. Inspect gear mesh patterns by examining tooth contact areas for uniform loading distribution. Conducting thorough commissioning procedures prevents premature failures and establishes baseline performance parameters for ongoing monitoring.

Conclusion

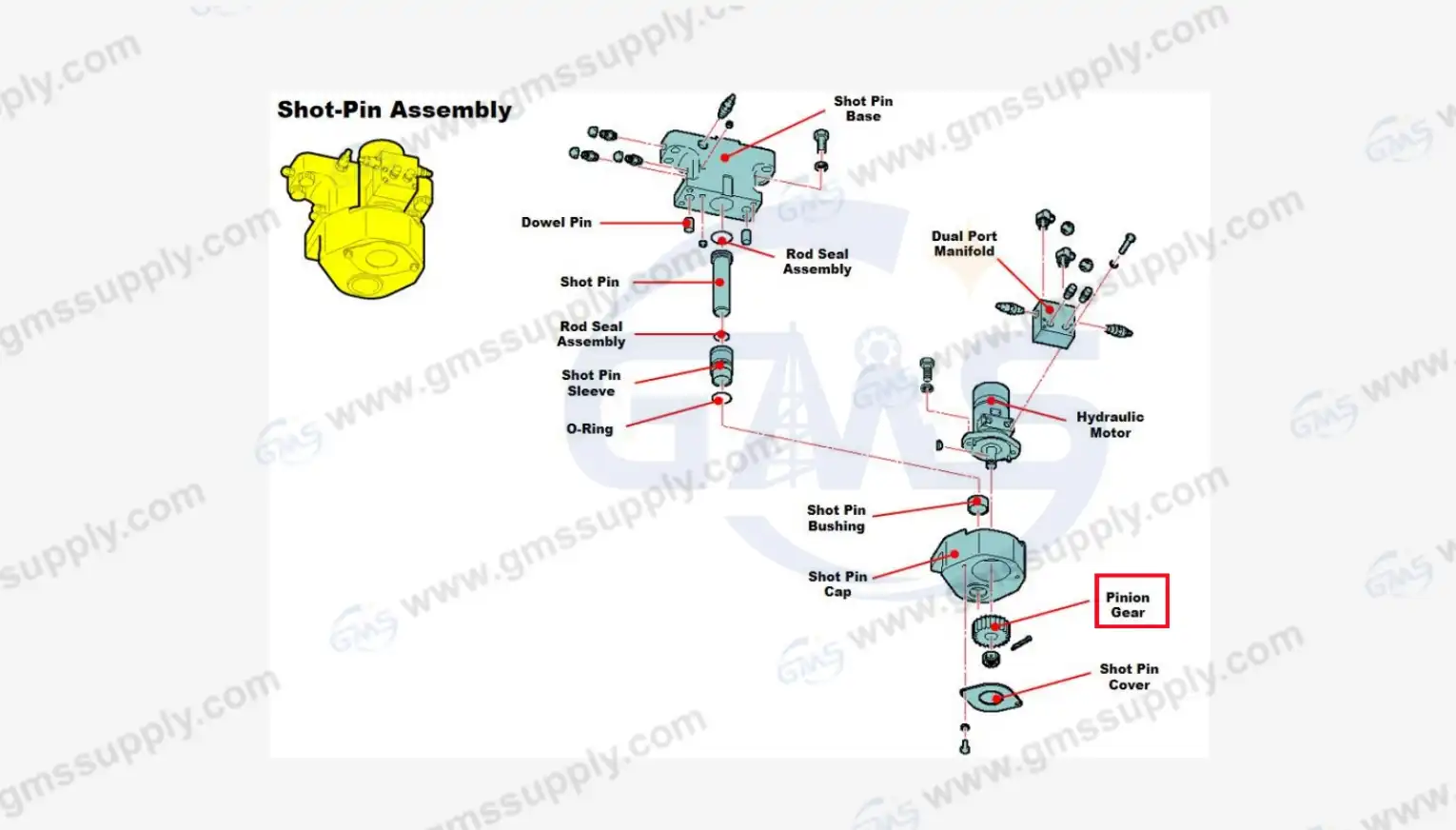

The gear pinion 117830 delivers essential transmission functionality within shot pin assemblies for TDS-11SA and TDS-9SA top drive drilling systems. Its precision engineering, material quality, and dimensional accuracy directly support operational efficiency in demanding oil and gas drilling applications. ISO 9001 certification indicates that manufacturing processes follow internationally recognized quality management standards, including rigorous material verification, dimensional inspection, and process controls. This certification provides assurance that components maintain consistent specifications across production batches. Proper gear pinion 117830 selection, maintenance practices, and installation procedures maximize service life while minimizing unplanned downtime. Procurement strategies emphasizing supplier reliability and quality assurance create long-term operational advantages for drilling operations.

Partner with GMS for Reliable Gear Pinion 117830 Solutions

As a trusted supplier with over a decade of experience serving the oil and gas drilling industry, GMS maintains a ready stock of Gear Pinion 117830 (P/N 11S00395) for TDS-11SA and TDS-9SA top drive systems. Our ISO 9001 certification ensures every component meets rigorous international standards, while our comprehensive quality control processes verify dimensional accuracy and material integrity. We understand that drilling operations cannot afford extended equipment downtime, which is why we maintain large inventory levels and offer short lead times for urgent requirements. When you need a dependable gear pinion supplier who combines quality products with responsive service, contact GMS at sales@gmssupply.com to discuss your gear pinion 117830 procurement requirements and discover how our flexible solutions reduce operating costs while maximizing equipment reliability.
