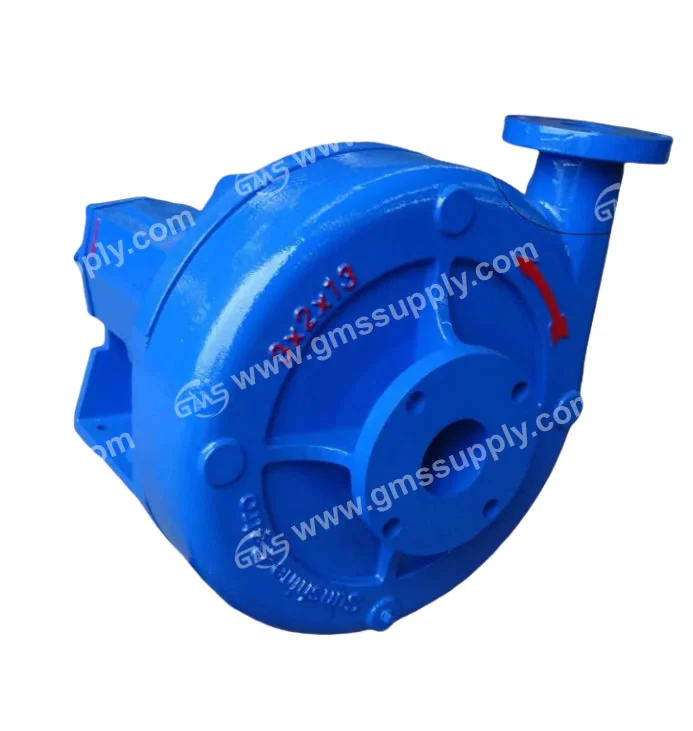

GMS 250-3X2X13 Centrifugal Pump for Cementing & Solid Control

The GMS 250-3X2X13 Centrifugal Pump is a great choice when your drilling business needs solid fluid handling equipment that works well even in rough conditions. This Mission Magnum-type pump is designed to be used in oil and gas drilling systems for solid control and filling. This machine can handle high-viscosity drilling mud with solid particles without any problems thanks to its 13-inch maximum impeller width, 3-inch suction, and 2-inch output setup. GMS is an ISO 9001-certified provider with more than ten years of experience. They offer quality alternatives that meet the standards and dependability that procurement managers need. They also offer shorter lead times and flexible procurement solutions.

Understanding the Technical Design and Performance Characteristics

The tech behind the GMS 250-3X2X13 Centrifugal Pump is based on handling tough working situations that regular water pumps can't handle. The concentric casing design of this pump keeps the space between the rotor and body the same as the pump turns. This design lowers radial thrust loads at different flow rates, which makes the bearings and mechanical seals last a lot longer than with other volute designs.

The pump housing, rotor, and wear pad are some of the wet-end parts that are made from high-chrome alloys that are 400 Brinell or harder. This choice of material is better at stopping the scraping action of barite, bentonite, and drill cuttings-filled gritty drilling fluids. The heavy-duty shaft, which is usually 2.5 inches at the seal area, keeps it from bending too much during use and can handle the mechanical stresses that come with working with slurries that are very dense and have a specific gravity higher than 2.0. Our manufacturing process follows the quality control standards set by ISO 9001:2015. This makes sure that the measurements are correct and the material is whole. According to industry standards, the GMS part number GMS-250-3X2X13 fits perfectly with Mission Magnum specs. This means that buying teams can easily replace it with equipment that is already in place. This compatibility is very important for businesses that manage teams of different types of equipment. Standardization makes inventory less complicated and planning repairs easier.

Based on the needed output head and rotational speed, the pump works well with a flow rate of 200 to 500 gallons per minute (GPM). The 13-inch blade trim works best for most sealing and desanding tasks when it is set to 1,750 RPM. The open rotor design keeps the pump from getting clogged when working with fluids that have particles of different sizes. This keeps the flow steady even when working with slurries that contain up to 60% solids by weight. When compared to regular volute pumps, the concentric casing design makes the operating window bigger. This means that the equipment stays efficient over a wider range of flow rates without causing too much shaking or wearing out parts too quickly. This gives procurement managers more options because the same type of pump can be used for different tasks in their drilling system. This means they don't have to keep as much specialized equipment on hand. When matching pump specs to system needs, it's important to know how much pressure the pump can handle. The GMS 250-3X2X13 Centrifugal Pump works reliably at working pressures of up to 200 PSI and can be used to feed hydrocyclone separators, power mud mixing systems, and help cementing unit operations. The 13-inch impeller is the largest trim size. It can be machined to smaller diameters (11 or 12 inches) to fit certain pump shapes when lower output heads are needed. This keeps the motor from overheating and lowers the amount of energy used.

Ensuring Longevity Through Proper Maintenance and Operational Discipline

Structured repair plans that are made for the tough situations these pumps are used in are needed to make sure that the equipment lasts as long as possible. Regular inspections protect your investment and keep you from having to deal with unplanned downtime that throws off your drilling plans.

The most basic upkeep job is to grease the bearings. We suggest checking the amount of grease every 40 hours of use and replacing it with high-quality lithium-based grease that is right for the temperature range. The GMS 250 series' bearing housing design makes grease fittings easy to reach, making this regular job easier even in small equipment areas. Every 200 hours of use or whenever you notice leaks that aren't happening at regular rates, you should check the mechanical seal. Both single and double mechanical seal systems can be used with this seal design. When working with drilling mud that is made of oil, tungsten carbide seal faces last longer than ceramic or carbon options. Maintaining the right seal flush line flow keeps gritty particles from building up in the seal chamber, which is the primary cause of seals failing too soon in solid control applications.

Too much shaking usually means one of three things: an impeller that is out of balance because of wear or debris buildup, worn bearings, or base bolts that are not tight enough. To start the analysis, check the torque specs for the mounting bolts. When the impeller is made, it is dynamically balanced to ISO 1940-1 Grade G6.3. If there is a lot of shaking during operation, it means that the impeller is wearing unevenly or has damage that needs to be fixed. If the flow rate or release pressure goes down, it could mean that the fan is wearing out, rotating in the wrong direction, or air is getting into the suction line. Make sure the direction of spin fits the arrow that was cast into the pump case. Some fluid naturally flows back toward the suction because the impeller is only partially open. This is called minor internal recirculation, but if there is too much space from wear, performance will be noticeably worse. Leaking seals at unacceptable rates is generally caused by low flush pressure, dirty seal faces, or old seal parts. The pressure in the flush line should be at least 15 PSI higher than the pressure in the stuffing box. The P/N GMS-SEAL-250-TC (tungsten carbide face seal kit) is a full conversion package that comes with fitting directions for switching from packing to mechanical seals.

Why GMS Supply Stands Behind This Equipment

GMS has been in the oil and gas drilling business for more than ten years and has built its name on providing reliable alternatives that meet strict operating needs. Because we are a committed provider and not a manufacturer of tools, we can only focus on quality, availability, and customer service.

Before it is sent out, every GMS 250-3X2X13 Centrifugal Pump in a solids handling pump unit goes through strict quality checks. Material hardness tests show that the high-chrome metal parts meet the minimum 400 BHN requirements. The 13-inch rotor works smoothly at speeds up to 2,400 RPM without damaging vibrations thanks to dynamic balance. Any flaws or holes in the casting can be found with hydrostatic pressure tests at 1.5 times the maximum working pressure. Dimensional checks show that the shaft runout stays below 0.002 inches, which means it is perfectly aligned and works with normal Mission Magnum mounting setups. Our ISO 9001 certification shows that we are dedicated to quality control systems that are written down and make sure that every unit we offer is the same. People who work in buying need this license because they have to make sure that suppliers follow compliance rules and can be tracked all the way through their supply chain.

At our plant, GMS keeps a large stock of the 250 series pumps and other parts that go with them. Because of this smart investment in inventory, basic setups ship within a week of order confirmation, which is a lot faster than the usual lead time for making. This quickness is very helpful when equipment breaks down, and the drilling plan has to be pushed back, or when the project grows, and new equipment needs to be set up quickly. In addition to full pump systems, we also keep a large inventory of spare parts, such as impellers in different trim sizes, mechanical seal kits (P/N GMS-SEAL-250-TC for tungsten carbide seals), bearing assemblies (P/N GMS-BRG-250), and wear parts. This makes sure that repair teams can quickly get equipment back into service, reducing costs associated with downtime that are much higher than the prices of the parts.

Suppliers who really stand behind their goods make their technical help easy to get. The software engineering team at our company helps with installation, performance improvement, and fixing problems with your equipment for as long as it works. If you email sales@gmssupply.com, you'll get in touch with knowledgeable experts who know what your drilling system needs and can suggest options that are perfect for your situation. We keep thorough scientific records for all of our items, such as dimensional drawings, performance curves, and instructions on how to keep them in good shape. With these tools, your repair teams will be able to easily service equipment and plan ahead for part replacements. We know that drilling operations happen all over the world, so we offer expert advice from afar and can set up field service support when help is needed right away.

Navigating the Procurement Process Efficiently

To streamline the process of buying tools in MISSION MAGNUM, 250 series pump people need to be able to communicate clearly and understand their purchasing choices. GMS can handle orders of all kinds and always pays close attention to your needs, whether you need a single repair unit or a bunch of pumps for a new drilling project.

You can contact our sales team and provide details regarding your application—such as fluid characteristics (density, solids content, chemical composition), required flow rate and discharge pressure, and the intended installation layout. Based on this information, we can assess whether the GMS 250-3X2X13 centrifugal pump meets your needs; if the parameters indicate that a different configuration would be more suitable, we will propose an appropriate alternative. We will provide a comprehensive quotation covering the unit price, bulk purchase discounts (for multi-unit orders), estimated shipping costs, and the expected delivery time. The quotation will also include a technical data sheet and detailed model specifications, enabling your engineering team to gather the necessary information to plan the installation and ensure seamless integration with your existing system.

Standard shipping plans use common carriers for deliveries within the United States. To big markets, it usually takes between 5 and 7 working days for packages to get there. Freight forwarders with a lot of experience organize international packages. They take care of export paperwork and the customs approval process. Our logistics team keeps you informed about the state of shipments and lets you know when they're due, which is especially helpful when coordinating the arrival of tools with project plans. The packaging is up to foreign shipping standards and includes protective crates that keep things from getting damaged while they are being shipped and handled. The GMS 250-3X2X13 Centrifugal Pump has a small size (about 24 inches long, 18 inches wide, and 20 inches high), which makes shipping cheaper. Its sturdy construction also means that regular handling doesn't cause damage.

GMS stands behind the quality of its products by offering a full guarantee that covers both manufacturing flaws and material failures. The warranty covers replacing parts and getting expert help for problems that happen while the system is being used normally. This warranty gives purchasing managers faith in the dependability of the tools and the vendor's responsibility. Your long-term investment is safe because real GMS repair parts are available for as long as the equipment is in use. We keep wear parts like impellers with different trim sizes, seal kits with different seal setups, bearing sets, and hardware packages in stock. Standardizing part numbers (with the prefix GMS-250 and the name of the component) makes buying easier and cuts down on mistakes in sourcing.

Conclusion

When picking fluid handling tools for cementing and solid control jobs, you need to carefully look at the performance requirements, the reliability of the provider, and the total cost of ownership. In tough oil and gas drilling conditions, where rough slurries and high solids levels make tools last longer, the GMS 250-3X2X13 Centrifugal Pump has been shown to work well. Our circular casing design, high-chrome metal construction, and ability to work with industry-standard setups give purchasing managers a dependable option backed by quick support from the supply chain. GMS makes it easier to get tools while keeping operations running smoothly. They offer quality management that is ISO 9001-certified, a large inventory, and full expert support. One-week lead times, low prices, and dependability that has been proven in the field all address the main concerns of procurement professionals in charge of important drilling operations.

FAQ

1. Is the GMS 250-3X2X13 Centrifugal Pump compatible with Mission Magnum systems that are already in place?

The GMS 250-3X2X13 Centrifugal Pump has the same hydraulic and size specs as the Mission Magnum I series pumps, so they can be used in any situation. Standard specs are met for mounting bolt patterns, shaft dimensions, and port configurations, so they can be used directly without having to make any changes to current setups. This compatibility also applies to spare parts, so repair teams can use standard parts in groups of different types of equipment.

2. What kind of mechanical seal works best for drilling mud that is oil-based?

Tungsten carbide seal faces (P/N GMS-SEAL-250-TC) work better in oil-based mud situations than tungsten carbide seal faces. Solids that are rough and mixed with drilling fluids can't damage the hard-face combination as quickly as they can damage ceramic or carbon seal faces. Keeping the right seal flush pressure above the stuffing box pressure by at least 15 PSI keeps the seal from failing too soon and makes it last much longer.

3. Can the 13-inch impeller width be changed to meet the needs of different heads?

The 13-inch number means the largest trim size for the rotor. When lower output heads are needed, the impeller can be machined to sizes as small as 11 or 12 inches to fit certain performance curves. This cutting feature lets you get the most out of your hydraulic system for specific tasks, saving you money on power costs and keeping the motor from overheating.

Partner With GMS for Your Centrifugal Pump Supply Needs

To meet your needs for buying drilling tools, GMS blends high-quality production with supplier flexibility. We've been using our GMS 250-3X2X13 Centrifugal Pump for more than ten years to help oil and gas drilling activities in the US and other countries. We send equipment faster than normal manufacturing lead times because we are a committed provider with a large inventory. We also offer technical support and extra parts that your operations need. Our ISO 9001 certification guarantees consistent quality, and our software engineering team is ready to help you choose the right tools, get it set up, and make it run more efficiently. Please email us at sales@gmssupply.com right away to talk about your unique bonding and solid control needs. Ask for full scientific datasheets, performance curves, and price quotes that are specific to the needs of your project. GMS is the reliable, quick, and affordable choice for procurement workers who need to buy industrial equipment. They can provide a single replacement pump or a whole group of units that are all the same.
