GMS 250-Centrifugal Pump Casing,3×2×13 19203-01-30A P25D233H for Oilfield Use Guide

When worn-out pump parts cause drilling operations to stop working, procurement managers know how important it is to quickly get reliable replacements. When it comes to performance, the GMS 250-Centrifugal Pump Casing,3×2×13 19203-01-30A P25D233H is built to last in harsh industrial conditions. This covering is an important part of centrifugal pump systems because it covers the inside workings and keeps the fluid moving smoothly, even when temperatures and pressures change. With more than ten years of experience in manufacturing, GMS Supply offers options that are compatible and meet performance standards. This makes sure that your operations can keep running without sacrificing quality or lengthening wait times.

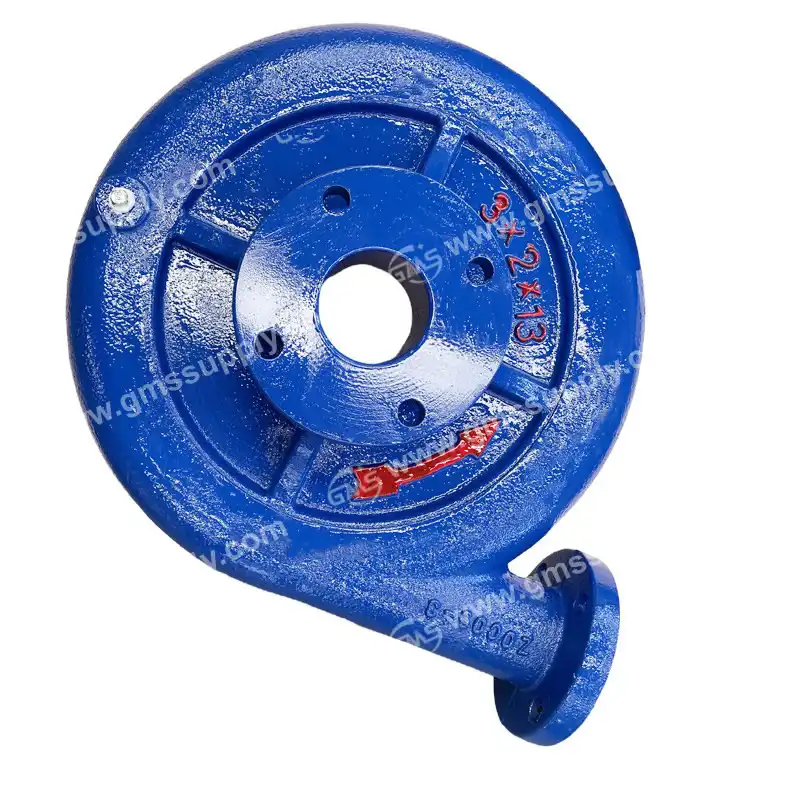

Understanding the GMS 250-Centrifugal Pump Casing: Design and Specifications

The tech behind our pump housing is based on making it last and be accurate. This housing part is made of a high-grade metal that doesn't break down when exposed to heat or chemicals. It was made to handle the roughness of digging mud and the corrosive Hard Iron/High chromium alloy conditions found in oil and gas operations. The number 3×2×13 means that the suction port is 3 inches, the discharge port is 2 inches, and the highest width of the impeller is 13 inches. These are the best dimensions for getting flow rates of 200 to 500 gallons per minute, based on the operating conditions.

Our production method puts a lot of emphasis on precise measurements to make sure that our products work perfectly with Mission Centrifugal pumps, such as the Magnum 3×2×13, 2500 Supreme 3×2×13, and Sandmaster 3×2×13 models. The design of the case includes a circular structure that lowers turbulence and radial loads on bearings. This means that mechanical seals and moving parts will last longer. This well-thought-out engineering solution solves the common problem of seals failing too soon in drilling settings with a lot of shaking.

The choice of material is very important for functional life. We use metals that are hard enough to stand up to the scouring action of fluids that contain sand and drill bits. The inside sides are designed to help fluids move smoothly, which lowers energy loss and stops cavitation, a problem that keeps happening and speeds up component wear and upkeep needs. Our ISO 9001 approval means that every casing goes through strict quality control, from checking the raw materials to testing the end hydrostatic pressure at 1.5 times the maximum working pressure.

The GMS 250-Centrifugal Pump Casing,3×2×13 (GMS part number 250C3213) is the same as the MISSION P/N 19203-01-30A and the MCM P/N P25D233H. This makes it easy for buying teams to order and keep track of supplies. With this interchangeability, you don't have to guess where to find new parts, and your supply chain operations run more smoothly.

Maintenance and Installation Guide for GMS 250-Centrifugal Pump Casing

Installing the pump correctly sets the stage for its effective function. First, look at the case to see if it was damaged during shipping and make sure that all of the mounting areas are clean and free of any dirt. It is very important that the pump casing and drive unit are lined up correctly. Even a small mismatch causes vibrations that damage mechanical seals and speed up bearing wear. To make sure the best performance from the start, we suggest using precision alignment tools and carefully following the torque specs while putting the parts together.

When installing, pay extra attention to the area around the mechanical seal. Make sure the seal sides are clean and not broken, and make sure the seal flush line is still clear. Many premature seal failures are caused by not enough grease or contamination during fitting, not by problems with the parts themselves. By extending the life of equipment and lowering the number of repair calls, taking the time to properly prepare and install seals pays off.

A few key places should be the focus of routine checks. Check the case every so often for signs of wear and tear, especially near the impeller cutwater and outlet areas where the flow rate is fastest. A little wear and tear is normal over time, but fast wear could mean that the blade openings aren't right or that the machine isn't working in the right flow range. Keeping an eye on these wear patterns helps figure out when parts need to be replaced before they fail in a big way.

The state of the mechanical seal tells you a lot about the health of the pump. A small amount of leakage from packing glands is normal and even good for cooling. But a lot of leakage from mechanical seals usually means that the face is damaged or the fitting wasn't done right. If you fix seal problems quickly, you can keep the shaft sleeve and bearing case from getting damaged again. We suggest that you keep important wear parts in stock on-site so that you can respond quickly when repair is needed.

Schedules for lubricating bearings should always be followed. Over-greasing can be just as bad as under-greasing because it can lead to too much heat buildup and damage to the seal. Set up a regular greasing plan based on running hours instead of calendar dates. Pumps that are always working need more care than pumps that only work sometimes.

Procurement Insights and How to Source GMS 250-Centrifugal Pump Casings

When buying parts for industrial pumps, it's important to pay attention to the specs and the reliability of the seller. When looking for the GMS 250-Centrifugal Pump Casing,3×2×13 19203-01-30A P25D233H , make sure you communicate clearly so you get exactly what your business needs. Give the model numbers of your tools and any relevant part numbers from earlier purchases. This will speed up the order process and clear up any questions about compatibility.

Our buying process works for both sudden substitute needs and planned stock builds. Because we keep cases in stock, we can ship them within a week if you need them right away. This will help you avoid long periods of downtime. For bigger Hard Iron/High chromium alloy projects or ongoing repair plans, we work with procurement teams to set up inventory deals that protect your cash flow while also making sure you have parts on hand when you need them.

Managing lead time is especially important for activities that take place in remote areas or on foreign projects. We can help you find shipping options that fit your needs and your budget. We know the paperwork and customs rules for foreign exports and can help you with the paperwork that makes sure your goods get to your job site on time and without any problems.

When you buy in bulk, you can sometimes get better deals on prices. Volume price makes planning easier, whether you're running a big drilling operation with many pumps or a repair center that serves many rigs. We work with procurement managers to set up orders that fit with their budget cycles and keep enough supplies on hand all year long.

Instead of price alone, technical details should help you decide what to buy. Make sure that any cover fits the size requirements of your specific pump type and that the material requirements are right for the job. Whether you're using oil- or water-based drilling fluids, our expert team can help you make sure that everything works together and suggest the best configurations for your drilling setting.

Why Choose GMS 250-Centrifugal Pump Casings for Oilfield Use?

In oil and gas drilling, operational trustworthiness rests on the quality of the parts and the dependability of the suppliers. If you choose GMS as your GMS 250-Centrifugal Pump Casing,3×2×13 (MISSION P/N 19203-01-30A, MCM P/N P25D233H) provider, you'll be working with a company that knows how important your equipment needs are. We've been in the drilling business for ten years and have learned that reliability is more than just high-quality products. It also means quick contact, expert help, and solutions that can be changed to fit your needs.

Our centrifugal pump casing has an improved hydraulic design that makes it use less energy while still keeping the high flow rates needed for solids control and drilling mud circulation. This efficiency directly leads to lower running costs by using less power and making parts last longer. Every part of the system works better when pumps are working within their best performance range. There is less shaking, and the seals and bearings last longer.

Our ISO 9001 certification shows that we handle quality in a planned way that affects every part of the production process. From inspecting the materials that come in to checking the end product, we have strict rules that make sure every casing we ship works the same way. Because the quality is always the same, you can buy with trust, knowing that the parts will work as planned, no matter the production batch or timing.

Our service method is different because we offer technical help. When people ask Hard Iron/High chromium alloy about installation, connectivity, or how to get the best performance, our team gives answers based on what they've seen and done in the field. We know that technical problems don't follow work hours, which is why we make it a priority to help our customers quickly, no matter where they are or what time zone they are in.

The fact that suitable casings are available for a range of pump sizes makes the supply chain easier for businesses that use a wide range of tools. In addition to the 3×2×13 size, we also make cases for Magnum 4×3×13, 5×4×14, 6×5×11, 6×5×14, 8×6×11, 8×6×14, and 10×8×14. With this wide range, procurement teams can combine providers, which speeds up the buying process and lowers the cost of administration.

Conclusion

Choosing the right pump casing provider has effects on working efficiency that last long after the purchase is made. The GMS 250-Centrifugal Pump Casing,3×2×13, is made with solid engineering and high-quality materials to work well in tough industrial conditions. Our dedication to precise measurements makes sure that our products work perfectly with existing pump platforms, and the materials we use make them last in harsh digging settings. With quick response times, low prices, and quick delivery from in-stock items, we provide a complete answer that meets the realistic needs of procurement managers and maintenance teams. When the stability of your equipment is directly linked to the success of your operations, picking a provider with a track record of experience and a focus on customer satisfaction can mean the difference between regular maintenance and costly downtime.

FAQ

1. What makes the GMS 250-Centrifugal Pump Casing,3×2×13 work with more than one brand?

The exact size and shape of our case are designed to match the standards used by Mission Magnum, MCM, Halco, Mattco, Harrisburg, and SPD Mud Hog pumps. This careful making makes sure that the mounting surfaces, bolt patterns, and port locations all match up perfectly with current equipment, so they can be installed right away without any changes.

2. Please let me know how quickly I can get a new pump case.

We keep a lot of 3×2×13 cases in stock, and we usually ship stock things within a week of receiving an order. The time it takes to send a foreign package depends on where it's going and the shipping method you choose. However, we work with experienced logistics partners to keep travel times as short as possible.

3. How good is the quality of the casing?

Our factory is ISO 9001 certified, and each shell goes through hydrostatic pressure testing, dimensional verification, and material hardness proof. You can be sure that every part meets the performance standards for high-pressure drilling uses and has a long service life with these quality control steps.

4. Can oil-based drilling mud be used with the casing?

Yes, our casing can be used with both water-based and oil-based drilling fluids because of the metal it is made of and the way the surface has been treated. The material doesn't rust when exposed to the chemicals that are often added to drilling mud, and it stays strong even when heated and cooled and under a lot of pressure.

Partner with GMS Supply for Reliable Pump Components

When you choose a GMS 250-Centrifugal Pump Casing,3×2×13 19203-01-30A P25D233H provider, you're choosing a partner that wants your business to succeed. As a well-known company that has made drilling equipment parts for a long time, we bring dependability and technical know-how to every relationship with a customer. Our ISO-certified manufacturing methods, big inventory, and short wait times make sure that you get quality parts when your operations need them. Our team offers technical support and quick service that makes your supply chain easier, whether you're a procurement manager looking for parts for a single rig or an MRO buyer in charge of repair plans for the whole fleet. Email our sales team at sales@gmssupply.com to talk about your pump casing needs and find out how GMS Supply can help you reach your business goals with reliable service and high-quality goods. The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
