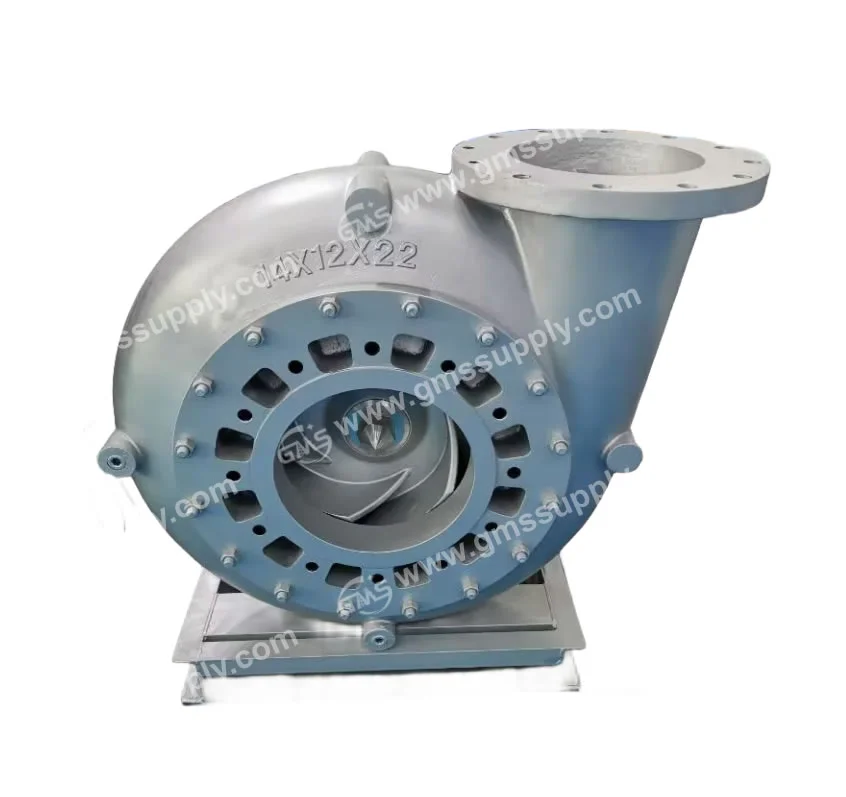

GMS-250 XP Pump 14X12X22: High-Power Blender Pump Guide

The GMS-250 XP Pump 14X12X22 is a centrifugal blender pump that was specifically designed to handle large amounts of slurry in harsh industrial settings. The purpose of this guide is to help procurement managers, MRO buyers, and expert decision-makers find reliable fluid handling solutions for solid control systems, cementing, and oil and gas drilling. Knowing this pump model's technical specs, how to buy it, and how it works will help you make smart buying choices that will cut down on downtime and keep running costs low.

Understanding GMS-250 XP Pump 14X12X22 Specifications and Performance

The dimensions 14X12X22 mean that the suction entrance is 14 inches, the discharge exit is 12 inches, and the width of the impeller is 22 inches. This is the best setup for moving large amounts of abrasive slurries at flow rates of more than 7,500 gallons per minute. Because of this, the GMS-250 XP Pump 14X12X22 is very useful in hydraulic fracturing, where fluids that are full of sand need to be moved quickly between mixing units and high-pressure pumping equipment.

The wet-end parts of this unit are made by GMS with high-chrome alloy metallurgy. The rotor, housing, and wear plate of the centrifugal pump are made of ASTM A532 Class III Type A material, which is harder than 600 Brinell. This choice of material directly addresses the erosive nature of fluids that are often used in oil drills that contain proppants. The metal makes it harder for washout to happen and increases the time between component changes, which lowers the cost of upkeep over the pump's useful life.

There are strengthened bearing housings in the power frame that are meant to handle the big impeller's radial and axial thrust. When the shaft diameter is too big, the deflection at the mechanical seal area is kept to less than 0.002 inches. This makes the seal last a lot longer in continuous-duty situations. The pump works best between 900 and 1200 RPM, which is the sweet spot for matching flow rate with component life. To avoid cavitation damage when working outside of this range, you need to carefully calculate the possible net positive suction head.

This type works well as a charge pump to feed high-pressure plunger units used in fracking because it can handle discharge heads of up to 300 PSI. The temperature range that the pump can handle is wide, so it can handle hot fluids from filling jobs without losing its performance. These standards are in line with the strict needs of upstream activities, where the economics of a project depend on how well the equipment works.

Comparing GMS-250 XP Pump 14X12X22 with Market Alternatives

When procurement managers look at options for moving fluids, they need to see how the GMS model solves certain business problems. In high-sand situations, the GMS-250 XP Pump 14X12X22 configuration gives the casing about 30–50% longer life than normal versions. This is better because the case walls are stronger and the vane shape is different, which lowers the interior turbulence and wear patterns.

As long as the fluid has the right viscosity, the semi-open propeller design lets objects up to 1.5 inches in diameter pass through without getting clogged. In solid control situations where drilling mud circuits contain formation pieces and other debris, this feature is very important. The big cross-section of the volute keeps the flow speed within accepted limits. This stops erosion before it starts and ensures uniform hydraulic performance.

GMS stays compatible with normal mechanical seal setups in the industry by using Tungsten Carbide versus Tungsten Carbide face combinations that can handle rough media. Shaft plates, centrifugal pump housing parts, and impellers all have standard size ranges that allow repair teams to get wear parts from a variety of sources without worrying about whether they will work with each other. This makes it easier for fleet workers to manage multiple pumping units at different digging sites because they can be switched out.

A price-to-performance study shows that the GMS machine has a similar hydraulic efficiency and a lower total cost of ownership. Warranty terms cover problems with the way the parts were made, and GMS's big collection makes it possible to quickly ship parts. When you combine performance reliability with supply chain responsiveness, you can meet two important buying goals: keeping business disruptions to a minimum and keeping capital and maintenance costs low.

Procurement Guide for GMS-250 XP Pump 14X12X22

There is a simple process for getting the GMS-250 XP Pump 14X12X22 that can be used for both urgent repairs and planned fleet growth. When you work directly with GMS Supply, you can talk to expert salespeople who can make sure the product is right for the job and that its dimensions are compatible with the equipment you already have. The company keeps full pump assemblies (P/N: GMS-MAGNUM XP Pump 14X12X22) and important wear parts in stock, so in-stock things can be delivered within a week.

When you place a bulk order for multiple sites, you can pay in a way that fits with the oil and gas industry's normal capital spending processes. GMS works with a variety of business terms to support large-scale buying projects without affecting delivery times. Transparent pricing gets rid of hidden costs, which lets buying managers correctly predict the total cost of purchases when they are making budgets.

International buyers can be sure that the goods they buy are real and come with a full warranty when they buy them through approved channels. With ten years of experience in the field, GMS has built strong transportation relationships that can get big tools to drilling sites that are far away. Transparency in lead times lets operations teams plan pump installations around repair windows, which keeps production from being held up.

Access to expert documents, installation instructions, and troubleshooting help is all part of the system for after-sales support in Magnum XP replacement parts. This support network is helpful when adding the pump to systems that already handle fluids. It's especially helpful when updating, where site-specific factors may mean that the setup needs to be changed. The level of risk that comes with buying equipment is lower when products are available and there is expert help.

Maintenance, Troubleshooting, and Operational Best Practices

Following set repair procedures is necessary to get the most life out of the GMS-250 XP Pump 14X12X22. At regular times, the temperature of the bearings, the alignment of the shafts, and the state of the mechanical seals should be checked. Lubricating bearings according to the manufacturer's instructions, with changes made to the time between applications and the surroundings. For uses that involve high temperatures or pressures, maintenance may need to be done more often to keep things from breaking down too soon.

The rotor, frame, and wear plate of the centrifugal pump are the main parts that are watched for wear. During planned breaks, a visual check shows erosion patterns that show parts need to be replaced before performance starts to decline. Keeping extra parts on-site cuts down on unplanned downtime that happens when wear limits are met. The high-chrome metal design makes the wear patterns predictable, which lets maintenance planners use operating data to set reliable replacement plans.

Common practical problems include vibrations that don't make sense, a drop in flow rate, and high power use. Vibration usually means that the impeller is out of balance because of damage from weathering or a strange item. Flow reduction can happen when the casing wears away, opening up internal gaps, or when limits on the suction side make it hard for the pump to fill up. When there are problems with signal bearing failure or misalignment that send extra load through the drive system, power consumption goes up.

How things are installed has a big effect on how reliable they are in the long run. When the base is properly prepared, the mounting is stable, and vibrations don't get through. To keep bearings and seals from failing too soon, the position of the shaft between the pump and the driver must stay within certain limits. The design of the suction pipes should reduce turbulence as much as possible and leave enough net positive suction head cushion to keep the impeller eye from cavitating. These basics of installation lay the groundwork for effective continuous-duty operation in harsh industrial settings.

Why Choose GMS as Your Pump Supplier

GMS Supply has been providing fluid handling tools and parts in heavy duty pump for drilling to the oil and gas drilling industry for more than ten years. This operating history shows that the company has been able to keep up with the tough needs of upstream operations, where broken equipment has big economic effects. The company's ISO 9001 certification shows that they follow quality management standards that are known all over the world. This gives buying teams written proof that the manufacturing process is controlled.

Throughout the whole production process, quality control methods are in place. Material hardness tests make sure that high-chrome parts meet certain Brinell grades before they are put together. Hydrostatic pressure testing at 1.5 times the maximum working pressure confirms the stability of the casing and ensures that the castings have no holes in them. Dynamic balancing of impellers to ISO 1940-1 Grade G6.3 norms reduces vibrations that wear out bearings more quickly. Coordinate measuring tools are used to make sure that the mounting surfaces and flange faces are exactly in line with the set specs.

Because drilling activities need to be able to respond quickly, the company keeps a lot of full systems and key wear parts in stock. This strategy for keeping inventory lowers the time it takes to buy things, which could otherwise cause projects to run behind schedule or cause unexpected downtime to last longer when equipment breaks down. GMS is different from providers that use build-to-order methods, which take longer to deliver, because it can respond quickly.

Customers can get help from engineers with application-specific questions through the technical support system. When they talk to customers, GMS's support team uses real-life field experience to solve problems with installation, performance, and planning preventive maintenance programs. GMS is a reliable partner for industrial fluid handling needs because of the quality of their products, the dependability of their supply chain, and their expert support.

Flexible options can be used to meet the needs of a wide range of customers, from replacing a single unit to upgrading the whole fleet across multiple working sites. The company wants to keep clients for a long time, so they offer steady product quality, fair business terms, and helpful service that goes beyond the original transaction. These operating principles have made GMS well-known among technical buyers who are in charge of buying important industrial tools.

Conclusion

In conclusion, the GMS-250 XP Pump 14X12X22 has the hydraulic performance, longevity, and flexibility that are needed in oil and gas drilling jobs that are very hard. Its high-chrome metal construction can handle rough slurries, and its large-capacity design can move large amounts of water at flow rates of more than 7,500 GPM. GMS Supply's established inventory position, ISO-certified manufacturing methods, and quick technical help network are all good for procurement managers. Combining tried-and-true design, high-quality production, and a dependable supply chain meets the operating needs of corporate buyers who want to cut down on downtime and maintenance costs.

FAQ

1. How long does it usually take to get the GMS-250 XP Pump 14X12X22?

GMS keeps full pump systems in stock, so for in-stock setups, delivery can happen within a week. Custom specs or orders for a lot of items may need more wait time, which is confirmed by the sales team when the order is placed.

2. Can the pump handle fracture solutions with different amounts of proppant?

The pump can handle up to 22 pounds per gallon of sand, which is a standard quantity used in hydraulic fracturing. In this percentage range, the abrasive proppant particles don't wear away the high-chrome metal wet-end components.

3. Are wear parts for this model of pump easy to find?

GMS keeps important wear parts like impellers (P/N: GMS-MAGNUM XP Pump 14X12X22), cases, wear plates, and mechanical seals in stock. These parts supply cuts down on downtime during planned maintenance or fixes that come up out of the blue.

4. How does the speed of operation affect how long a pump lasts?

By keeping the speed between 900 and 1200 RPM, you can balance the flow with the life of the parts. Going beyond this range raises the internal speeds, which speeds up wear and could cause cavitation if there isn't enough air.

Partner with GMS Supply for Your Blender Pump Needs

Industrial operations need fluid handling equipment that works well and is backed by helpful seller support. GMS Supply offers both through the GMS-250 XP Pump 14X12X22 for sale, which combines strong engineering with easy-to-find stock and professional know-how. Our ISO-certified manufacturing ensures uniform quality, and our long-term supply chain cuts down on wait times that can throw off project schedules. Email our team at sales@gmssupply.com to talk about your application needs and get full specs. As a seasoned provider, we know the operational goals that drive your purchasing choices. We are ready to meet your fluid handling needs with tried-and-true equipment and expert service.
