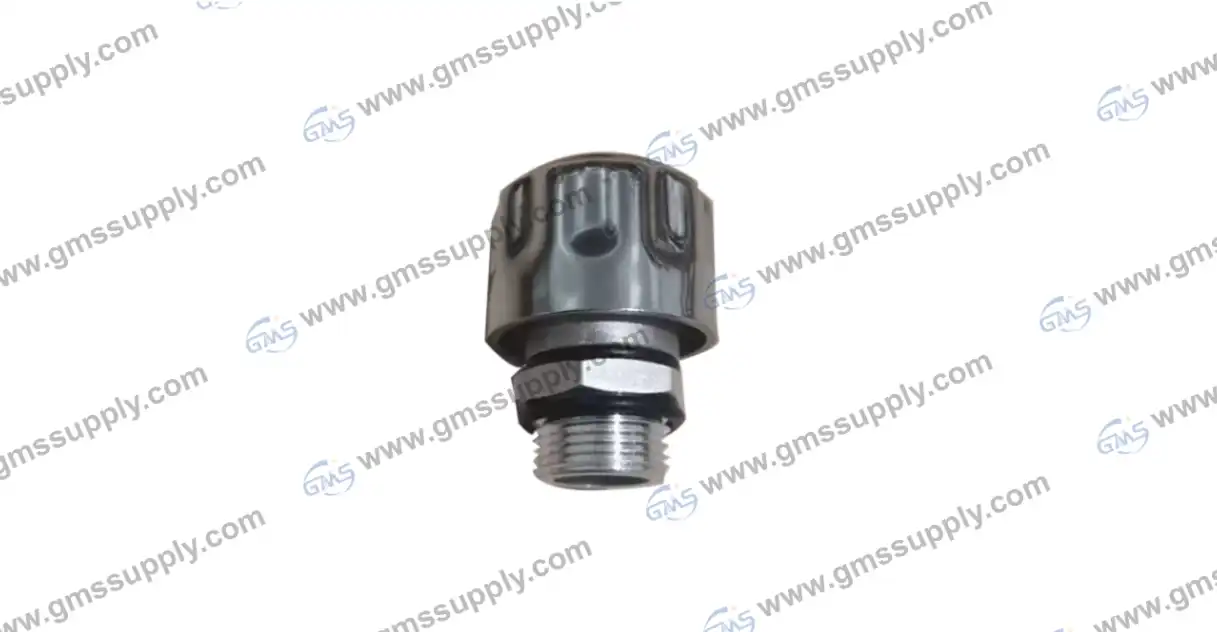

H13-1002-010 Breather 3/4 NPT in Canrig Top Drive Ventilation

The H13-1002-010 Breather, 3/4 Npt is an important part of Canrig's top drive systems for letting air flow through and keeping hydraulic reservoirs and gearboxes clean during oil and gas drills. This special device lets the needed air flow through while filtering out dangerous particles and moisture that could slow down the system. The H13-1002-010 Breather, 3/4 NPT's strong 3/4 NPT threading and proven ability to filter air make it work reliably with Canrig's 275-ton to 750-ton top drive models.

​​

​

Understanding the H13-1002-010 Breather 3/4 NPT and Its Specifications

The H13-1002-010 Breather, 3/4 NPT, is built to last and is perfect for the tough conditions that come up in oil and gas activities. It  has a 3/4-inch National Pipe Taper (NPT) thread pattern that makes connections with normal hydraulic tank ports leak-proof. This threading design meets ASME B1.20.1 standards and seals well without the need for extra gaskets in most situations. When building with materials, longevity and resistance to corrosion are very important. The housing is made of high quality steel that can handle the shocks and salt spray that are common in offshore drilling settings. The materials keep their structure strong at a wide temperature range, which is good for drilling activities where temperatures change quickly.

The H13-1002-010 Breather, 3/4 NPT's filter media is made up of high-efficiency elements that are meant to catch particles as small as 10 microns. This level of filter gets rid of silica particles, metal fines, and other airborne particles that could lower the quality of hydraulic fluid. The two-way flow design allows for quick changes in fluid level while the equipment is running, while keeping the filter performance constant. This makes sure that the breather doesn't stop air from moving during rapid hydraulic cylinder movement or thermal expansion cycles. This balance between how well the fluid filters and how much it can flow is very important for keeping up with fluid cleaning standards in tough drilling situations.

Installation, Maintenance, and Longevity of the H13-1002-010 Breather

Following the right steps during fitting will ensure that the H13-1002-010 Breather, 3/4 Npt works at its best and lasts as long as possible. Before starting the installation, the mounting port must be carefully cleaned to get rid of any dirt or old glue that may still be there. Before assembly starts, the 3/4 NPT threads should be checked for damage. To get a good seal without over-torquing, thread contact should follow standard NPT rules. Tighten by hand first, then with a wrench. Because the curved thread design seals by compression, it's important not to use too much force, which could damage either the breather or the tank port.

Regular repair makes sure that the system stays safe and extends the life of the H13-1002-010 Breather, 3/4 Npt. During regular maintenance, equipment should be inspected visually to look for harm to the outside, signs of clogging, or signs of contamination bypass. Replacement times depend on how the machine is used, but in dusty places, they are usually every three to six months. Monitoring based on conditions works better than replacing things based on when they break. If they have them, visual saturation indicators make it clear when to change the parts. In places where there are a lot of particles, inspecting more often helps keep the system from getting clogged up too soon, which could stop it from working.

Procurement Insights: How to Buy and Source the H13-1002-010 Breather 3/4 NPT?

To buy the H13-1002-010 Breather, 3/4 Npt strategically, buyers need to know about the skills, quality standards, and logistics of suppliers, all of which affect the total cost and risk of the purchase. Trusted suppliers have ISO 9001 certification and use strict quality control measures throughout the whole production process. These certifications show that quality control systems have been set up and are working to make sure that products always meet international standards and perform well. When planning for buying, lead times are very important. If a supplier keeps enough goods on hand, they can usually fill orders within two weeks. Manufacturers who make to order may need more time. When you need to repair in short time, it's helpful to know which suppliers have parts in stock.

Why Choose the H13-1002-010 Breather for Your Industrial Needs?

The practical benefits of this H13-1002-010 Breather, 3/4 Npt go beyond its basic filtration function. They include protecting the system, making it more reliable, and saving money over time in demanding industrial settings. Performance data shows that choosing the right breathers is an important part of keeping the hydraulic system clean and dependable. Systems with the right-sized breathers have much lower levels of pollution and slower component wear rates than systems that aren't properly protected. This part stops wetness from getting in, which helps keep the fluid's properties and stops corrosive acids from forming that could damage other parts inside. This stability is important for equipment that works in different parts of the world where the weather changes a lot during operational times.

Buying good H13-1002-010 Breather, 3/4 Npt will pay off by extending the life of the hydraulic fluid, lowering the number of times that parts need to be replaced, and making the system more reliable. Avoiding failures caused by contamination can often pay for the cost of a component with just one less fix. Being compatible with synthetic hydraulic fluids increases the number of uses and ensures that chemicals work with all kinds of fluids. This adaptability helps equipment be flexible and lets you choose the right fluid in the future without having to change any parts.

Conclusion

The H13-1002-010 Breather, 3/4 Npt is an important purchase for protecting the hydraulic system in Canrig top drive uses. Its strong construction, proven ability to filter, and reliable performance make it an important part for keeping operations running smoothly in tough drilling settings. The dependability and cost-effectiveness of the whole top drive system for oil and gas drilling projects depend on how well this H13-1002-010 Breather, 3/4 Npt is chosen, installed, and maintained.

FAQ

Q1: What maintenance schedule should be followed for the H13-1002-010 Breather?

Maintenance intervals depend on environmental conditions, but replacement every three to six months in dusty drilling environments ensures optimal protection. Visual inspection during routine equipment servicing helps identify early signs of saturation or damage that might require immediate attention.

Q2: Can the filtration element be cleaned and reused?

The filtration media in these breathers cannot be effectively cleaned with solvents or other cleaning methods. Cleaning attempts may damage binding agents or fail to remove embedded fine particulates, compromising filtration effectiveness and system protection.

Q3: What happens if the breather becomes clogged during operation?

Clogged breathers create pressure imbalances that can lead to pump cavitation during fluid withdrawal or seal damage during rapid filling. Regular inspection and timely replacement prevent these conditions that could result in expensive system repairs.

Partner with GMS for Your H13-1002-010 Breather Requirements

GMS stands ready to support your ventilation component needs with our comprehensive inventory and industry expertise. As a trusted H13-1002-010 Breather, 3/4 Npt supplier, we maintain stock availability for immediate shipment while providing ISO 9001 certified quality assurance. Our technical team understands the critical nature of these components in drilling operations and works diligently to ensure your equipment maintains peak performance. Contact our specialists at sales@gmssupply.com to discuss your specific H13-1002-010 Breather, 3/4 Npt requirements and experience the GMS difference in industrial component supply.

References

1. American Society of Mechanical Engineers. "Pipe Threads, General Purpose (Inch)." ASME B1.20.1-2013.

2. International Organization for Standardization. "Hydraulic Fluid Power - Fluids - Method for Coding the Level of Contamination by Solid Particles." ISO 4406:2017.

3. National Fluid Power Association. "Contamination Control Guidelines for Hydraulic Systems." NFPA/T3.10.17-2009.

4. Society of Automotive Engineers. "Hydraulic System Filtration." SAE J1165-2018.

5. American Petroleum Institute. "Specification for Top Drive Systems." API Spec 8C-2018.

6. Industrial Filtration Society. "Breather Design and Application Guidelines for Mobile Equipment." IFS Technical Bulletin TB-2019-03.
