How 744-10-0 Screw Shoulder Improves Equipment Strength

The 744-10-0 Screw Shoulder makes equipment much stronger by distributing loads evenly across mechanical assemblies and being carefully designed. This special part isn't like regular threaded fasteners because it has an unthreaded cylindrical shoulder section that stops radial play, stops thread crushing under shear loads, and keeps important connections stable in terms of size. When installed correctly in heavy-duty systems like Canrig Top Drive systems (models 8050, 8035, and 6027AC), the 744-10-0 Screw Shoulder improves structural integrity, lowers wear, and extends the life of top drive systems in oil and gas drilling activities.

​​​​

​​​

Understanding the 744-10-0 Screw Shoulder and Its Technical Specifications

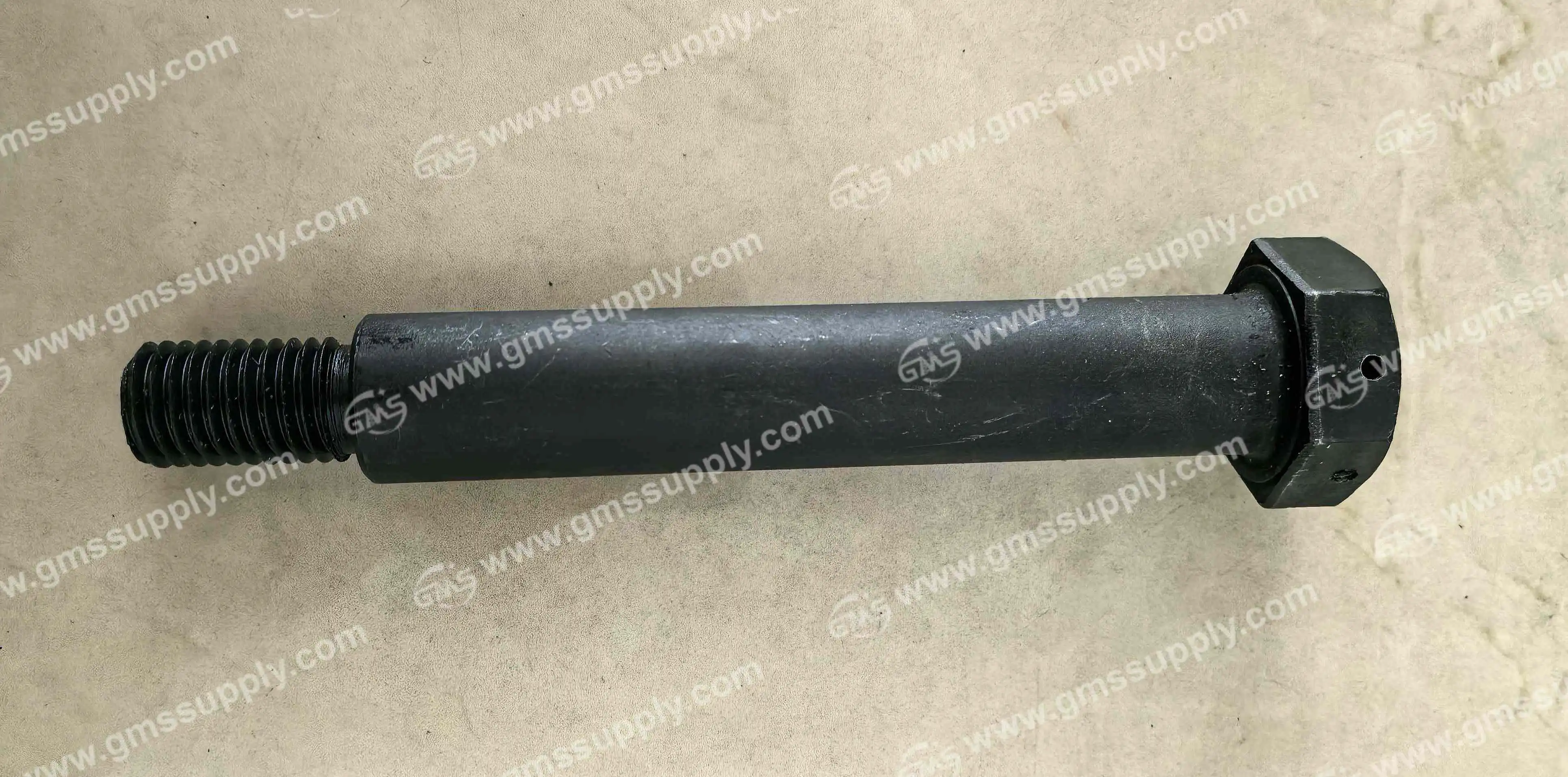

The 744-10-0 Screw Shoulder is different from other fasteners because it was engineered to work in high-stress oilfield conditions. This precisely machined part has the properties of a structural bolt and the ability to precisely align, which makes it essential for equipment that needs to be securely attached and placed precisely.

The technical details of the 744-10-0 Screw Shoulder show that it was carefully designed to be as efficient as possible. The part is usually made from high-grade alloy steel that goes through special heat treatment methods and has a length of 6.60 inches and a thread configuration of 34-10UNC. This process makes the material as hard as enough, usually between HRC 32 and 43. It then has a tensile strength that often goes over 140,000 PSI while still being flexible enough for dynamic loading conditions.

The makeup of the material is very important to how well the 744-10-0 Screw Shoulder works. The construction made of alloy steel has better mechanical properties than normal carbon steel options. This is especially true when it comes to resistance to fatigue and maintaining its shape when temperatures change. Surface treatments, like black oxide coating, give more security against corrosion and lower the friction coefficients that occur during installation and use.

The 744-10-0 Screw Shoulder diameter stays within tight tolerances that make sure it fits correctly in parts that are meant to fit together. This tight control over dimensions stops unwanted movement while still letting the thermal expansion and contraction cycles that are normal for drilling tools work. The threaded part meets class 2A threading standards, which means it engages reliably without requiring too much force, which could damage the shoulder.

How does the 744-10-0 Screw Shoulder Enhance Equipment Strength?

The main way that the 744-10-0 Screw Shoulder makes tools stronger is by better distributing the load. The shoulder part that isn't threaded makes a bigger bearing surface that spreads applied forces over a larger area. This lowers stress concentrations that usually cause standard bolt applications to fail early.

The fact that the part can take both axial and radial loads at the same time makes it very useful in machinery that turns like the top drives. When drilling, top drive systems are loaded in a lot of different ways including by rotational forces, vertical loads, and lateral vibrations. The 744-10-0 Screw Shoulder handles these forces well by keeping things perfectly aligned and not deforming even when they are under a lot of stress.

The geometry of this screw makes it possible to relieve stress without the sharp stress changes that happen in regular threaded screws. The smooth change from the shoulder to the threaded sections spreads mechanical stress more equally. This stops the crack-starting points that often cause catastrophic failures in important top drive systems.

Performance data from drilling operations shows that when 744-10-0 Screw Shoulder are used instead of standard fasteners, machine reliability goes up by a measurable amount. Top drive operators say that maintenance intervals have been shortened and there has been less unplanned downtime. This is directly linked to higher operating efficiency and a lower total cost of ownership.

When 744-10-0 Screw Shoulders are installed correctly, they make a precise fit that keeps the assembly's specs over long periods of service. This physical stability stops the equipment from gradually becoming loose and playing loose, which hurts its performance and speeds up the wear and tear on its parts in regular fastening systems.

Selecting and Procuring the Right 744-10-0 Screw Shoulder for Your Business Needs

To successfully buy 744-10-0 Screw Shoulders, you need to carefully think about the needs of your application and the capabilities of the supplier. The first step in the selection process is to accurately evaluate the loading conditions, environmental factors, and the need for compatibility with current top drive configurations.

Figuring out the right material specifications and surface treatments for your tools is easier when you know how it works. Because they are exposed to drilling fluids and harsh environments, oil and gas drilling usually needs better corrosion protection. These needs are met by the 744-10-0 Screw Shoulder, which includes choices for materials and protective coatings that keep performance levels high over long service cycles.

Criteria for judging a supplier should focus on how well they manufactures, whether they follow approval rules, and how reliable their supply chain is. ISO 9001 approval shows that the company follows international standards for quality management, and well-established inventory management systems make sure that their parts are always available when needed.

When buying in bulk, procurement managers can often save money and make sure they have enough inventory for planned repair tasks. A lot of suppliers have price plans that lower the cost per unit while keeping quality standards high. But also, remember to weigh these savings against the cost of storage and keeping inventory in order to get the best overall procurement costs.

Superior 744-10-0 Screw Shoulder suppliers are different from commodity suppliers in that they can provide comprehensive aftersales services. Access to application engineering knowledge helps choose the best parts for a particular piece of equipment, and technical help cuts down on downtime during setup or maintenance.

Installation and Maintenance Best Practices for 744-10-0 Screw Shoulders

The efficiency benefits of the 744-10-0 Screw Shoulder design are at their best when installed correctly. To get the best results from the fitting process, you need to pay close attention to how the holes are prepared, how the alignment is checked, and how much torque is used.

Making holes requires making sure that the diameter specs and surface finish quality of the parts that fit together are correct. The receiving hole should give the shoulder section the right amount of space while still allowing the threaded part to engage properly. To get the exact measurements needed for precision fits, reaming processes are often needed.

Because of the 744-10-0 Screw Shoulder's unique shape, the way torque is applied is different from how bolts are installed. The torque measurement is for the threaded section, not the shoulder diameter. Following the torque values ensures the right preload without putting the integrity of the component at risk.

Checking for alignment during 744-10-0 Screw Shoulder installation stops binding situations that could cause parts to wear out or break early. The screws should be able to turn easily in the hole it fits into, and the threaded engagement should keep it in place securely. Any binding or interference means there are problems with the dimensions that need to be fixed before the final fitting.

Regular inspections are a big part of maintenance plans because they find wear patterns, rust, and loosening conditions before the 744-10-0 Screw Shoulder affects how well the top drives work. Visual inspection methods can find damage to the surface or a loss of adhesion, and measurement verification makes sure that the part continues to fit precisely within the limits of the assembly. To get the best maintenance timing, replacement plans should take both calendar time and operational cycles into account.

Why Choose GMS 744-10-0 Screw Shoulder Solutions for Your Equipment Needs?

More than ten years of experience in oil and gas drilling operations have given GMS the skills to provide high-quality 744-10-0 Screw Shoulder for your drilling projects. We strive for excellence by using strict quality control methods and providing helpful customer service that understands the specific needs of industrial procurement experts.

Getting ISO 9001 certification shows that we are committed to quality management principles that make sure our 744-10-0 Screw Shoulders always work well and are reliable. Leading drilling contractors and machinery operators around the world trust this certification because it shows systematic approaches to manufacturing control, supplier qualification, and customer happiness.

Our relationships with manufacturers put a lot of emphasis on having precise machining skills and high-quality materials that meet or go beyond the requirements of the OEM makers. Before being sent to customers, the 744-10-0 Screw Shoulder parts we sell go through a thorough process of inspection to make sure they meet engineering standards.

Inventory management systems make sure that there are enough 744-10-0 Screw Shoulders in stock to handle both regular maintenance needs and emergency repairs. Our normal wait times for stock items are within two weeks. Besides, our skilled team knows the problems that users of drilling equipment face and comes up with useful solutions that make the equipment more reliable and effective.

Ordering processes that are flexible can suit a wide range of customer preferences, from buying single parts like the 744-10-0 Screw Shoulder to full maintenance kits with a variety of fastener types and sizes. This gives you the freedom to use a variety of buying methods while keeping quality standards the same for all of your products.

Conclusion

The 744-10-0 Screw Shoulder is a major step forward in fastening technology for oil and gas drilling applications. It is especially useful in oil and gas drills, where accuracy and dependability are key to business success. This special part makes equipment stronger by distributing loads more evenly, relieving stress, and staying the same size over time. This 744-10-0 Screw Shoulder also makes upkeep easier and increases the equipment's useful life. These benefits are at their highest when the right products are chosen, installed, and maintained. This leads to higher operating efficiency and a lower total cost of ownership in tough industrial settings.

FAQ

Q1: What distinguishes the 744-10-0 shoulder screw from standard threaded fasteners?

The 744-10-0 features an unthreaded cylindrical shoulder section between the head and threads, providing precise alignment and superior load distribution compared to standard bolts. This design eliminates radial play and prevents thread crushing under shear loads.

Q2: How do I determine the correct torque specification for installation?

Torque specifications apply to the threaded section based on thread size rather than shoulder diameter. Consult manufacturer guidelines for your specific thread configuration to prevent over-tightening and potential head fracture.

Q3: What material options are available for corrosive environments?

While standard alloy steel provides excellent mechanical properties, stainless steel variants offer enhanced corrosion resistance for marine or chemically aggressive environments. Consult with suppliers regarding material selection for specific applications.

Q4: Can shoulder screws be reused after removal?

Reusability depends on inspection results for thread damage, shoulder wear, and overall dimensional integrity. Components showing signs of deformation, corrosion, or dimensional changes should be replaced to maintain assembly performance.

Partner with GMS for Reliable 744-10-0 Screw Shoulder Solutions

GMS stands ready to support your equipment strength requirements with high-quality 744-10-0 Screw Shoulder components backed by ISO 9001 certification and over a decade of industry experience. Our comprehensive inventory, competitive lead times, and technical expertise ensure you receive the reliable solutions needed for critical drilling operations. Contact our team at sales@gmssupply.com for detailed 744-10-0 Screw Shoulder specifications, volume pricing, and expedited delivery options that keep your equipment operating at peak performance.
