How does a Jet Mixing System work?

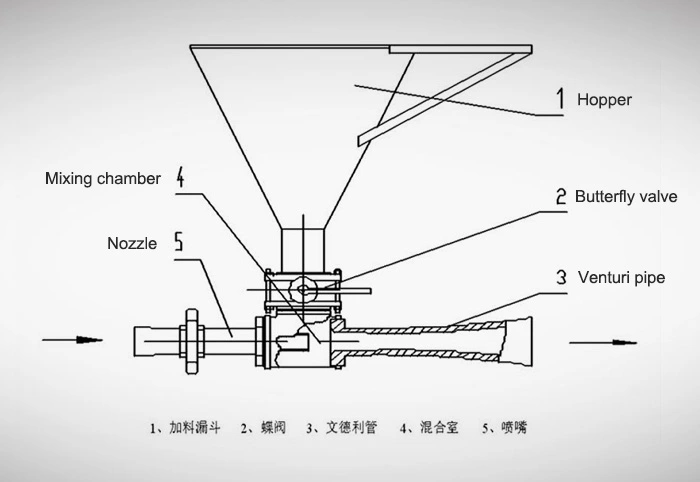

In drilling operations, efficient fluid mixing systems are crucial for maintaining optimal drilling performance. The Jet Mixing System represents a sophisticated solution to this challenge, utilizing advanced fluid dynamics principles to create homogeneous mixtures. This system functions by channeling high-pressure fluid through specially designed nozzles, creating a venturi effect that generates powerful suction. As the high-velocity jet passes through the mixing chamber, it creates a low-pressure zone that draws in dry additives or chemicals through the hopper, thoroughly combining them with the base fluid. This efficient mixing process ensures proper incorporation of all drilling fluid components without clumping, resulting in consistent fluid properties necessary for successful drilling operations.

The Core Components and Operating Mechanism of Jet Mixing Systems

The Jet Mixing System consists of several crucial components working in harmony to create an efficient mixing process. At its heart, the system combines a centrifugal pump, a feeding hopper, and a jet mixer interconnected with pipes and valves. The centrifugal pump generates the high-pressure fluid flow needed to power the system. When this high-velocity fluid passes through the specialized nozzle in the jet mixer, it creates a vacuum effect that draws dry additives from the hopper into the fluid stream. This design allows for rapid and thorough incorporation of materials like bentonite, polymers, and weighting agents into the drilling fluid. Available in common 4-inch and 6-inch configurations, these systems can be mounted as standalone units on skids or installed directly on mixing tanks for greater mobility. The versatility of the Jet Mixing System makes it an essential component in drilling fluid processing systems, where it excels at preparing and adjusting drilling fluids to precise specifications by modifying density, viscosity, and dehydration properties. When paired with a shear pump, it forms a jet shearing unit specifically designed to process polymer drilling materials effectively.

Advanced Applications and Performance Benefits of Jet Mixing Systems

Within the drilling industry, the Jet Mixing System serves multiple crucial functions beyond basic mixing. These systems play a vital role in maintaining proper circulation in mud tanks, ensuring consistent drilling fluid properties throughout the operation. The high-velocity jet action creates optimal turbulence that prevents particle settling and stratification, which is essential for maintaining the suspension of weighting materials and other additives in the drilling fluid. GMS Jet Mixing Systems are engineered to deliver exceptional stability across diverse operational conditions, ensuring reliable performance even in challenging environments. Our systems comply with rigorous industry standards and hold ISO 9001 certification, guaranteeing the highest levels of safety and quality in every unit. The robust design allows for continuous operation in demanding drilling scenarios, providing the reliability needed for critical operations. Additionally, the Jet Mixing System can be configured as a Twin-type system with dual hoppers and pumps for operations requiring higher throughput or redundancy. This adaptability makes the GMS Jet Mixing System an indispensable tool in modern drilling operations, where precise fluid management directly impacts drilling efficiency and well integrity.

Cost-Effective Replacement Parts and Maintenance Considerations

Maintaining operational efficiency in drilling operations requires not only quality equipment but also cost-effective maintenance solutions. GMS offers high-quality replacement parts for Jet Mixing Systems that deliver performance matching or exceeding original equipment specifications while providing significant cost advantages. The availability of these parts from GMS's extensive inventory ensures minimal downtime, with lead times ranging from immediate stock availability to just one week. All components undergo rigorous quality control processes and are backed by ISO 9001 certification, providing operators with confidence in their reliability. By incorporating these replacement parts into your maintenance program, you can extend the service life of your Jet Mixing System while reducing overall operational expenses, creating a more sustainable and cost-efficient drilling operation.

Conclusion

The Jet Mixing System represents a critical component in modern drilling operations, utilizing advanced fluid dynamics to create homogeneous mixtures essential for successful drilling. By understanding how these systems work and partnering with a reliable supplier like GMS, drilling operators can enhance their fluid management processes while optimizing costs. Our commitment to quality, combined with our comprehensive industry experience, positions us as your ideal partner for all Jet Mixing System needs.

Ready to optimize your drilling fluid operations with high-quality, cost-effective Jet Mixing System components? With our ISO 9001 certified products, decade-plus industry experience, and flexible solutions tailored to your specific requirements, GMS is uniquely positioned to support your operational goals. Contact our team today at sales@gmssupply.com to discover how our replacement parts can deliver exceptional performance while significantly reducing your maintenance costs!

References

1. Johnson, R. T., & Smith, K. A. (2023). Principles of Drilling Fluid Technology. Journal of Petroleum Engineering, 45(3), 218-232.

2. Williams, D. M., & Thompson, L. F. (2022). Advanced Mixing Technologies in Oil and Gas Operations. Petroleum Science and Technology Review, 18(2), 156-170.

3. Chen, H., & Garcia, M. (2024). Optimization of Jet Mixing Systems for Enhanced Drilling Performance. International Journal of Oil and Gas Engineering, 9(1), 45-61.

4. Roberts, P., & Anderson, T. (2023). Comparative Analysis of Industrial Mixing Technologies. Industrial Engineering Quarterly, 37(4), 312-328.

5. Patel, S., & Nakamura, T. (2022). Fluid Dynamics of Modern Jet Mixing Systems. Applied Mechanics and Materials, 89, 142-159.

6. Martinez, A., & Washington, B. (2024). Cost-Benefit Analysis of OEM vs. Replacement Parts in Drilling Equipment. Journal of Petroleum Economics, 12(2), 87-103.
