How Does the Wash Pipe Mud Tube 722-10-0 Ensure Reliable Fluid Circulation?

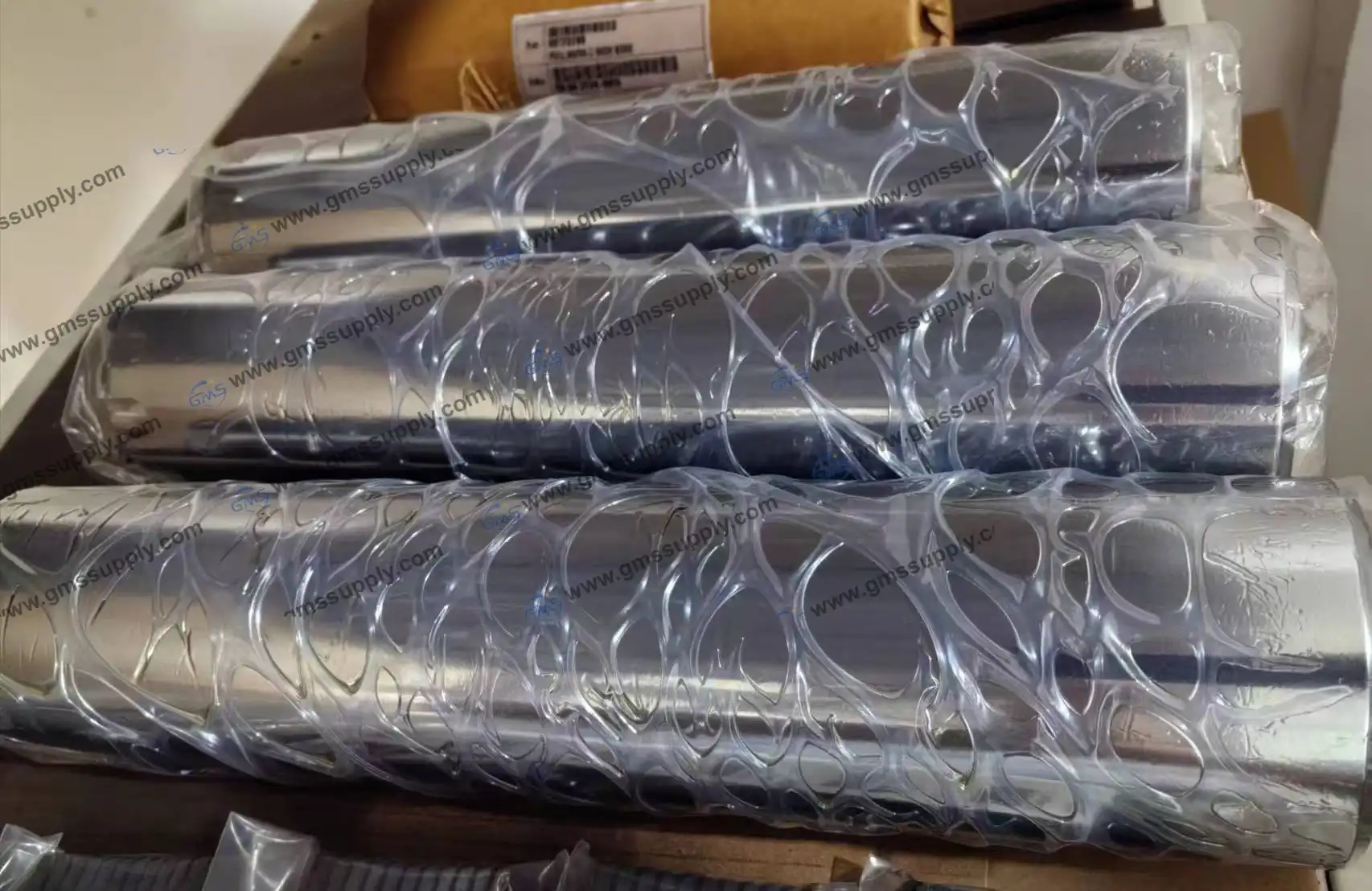

In the demanding world of oil and gas drilling operations, maintaining reliable fluid circulation is paramount to operational success and safety. The 722-10-0 Wash Pipe Mud Tube stands as a critical component in top drive systems, specifically engineered to ensure uninterrupted drilling fluid circulation throughout the entire drilling process. This essential tubular component serves as the primary conduit within the wash pipe assembly, facilitating the seamless flow of drilling mud from the surface circulation system to the downhole drilling tools. The Wash Pipe Mud Tube 722-10-0 operates under extreme conditions, withstanding pressures up to 5000 PSI while maintaining structural integrity and performance reliability. Its robust construction and precise engineering make it indispensable for drilling contractors and operators who depend on consistent fluid circulation to achieve optimal drilling performance, protect drilling equipment, and maintain wellbore stability during critical drilling operations.

Advanced Pressure Management and Structural Integrity

The 722-10-0 Wash Pipe Mud Tube employs sophisticated engineering principles to manage the extreme pressures encountered in drilling operations, ensuring reliable fluid circulation under the most challenging conditions. This component is specifically designed to withstand operational pressures up to 5000 PSI, making it suitable for high-pressure drilling environments where conventional components might fail. The tube's construction incorporates high-grade materials that exhibit exceptional tensile strength and fatigue resistance, enabling it to endure the constant pressure fluctuations and mechanical stresses inherent in drilling operations. The 3.00-inch bore diameter of the Wash Pipe Mud Tube 722-10-0 is optimally sized to maintain adequate flow rates while preserving structural integrity under pressure. During drilling operations, the component experiences not only internal pressure from the circulating drilling fluid but also external forces from the rotating drill string and vibrations from the drilling process. The tube's wall thickness and material composition are carefully calibrated to provide a safety margin that prevents catastrophic failure while maintaining operational efficiency. This robust design ensures that the Wash Pipe Mud Tube 722-10-0 can reliably circulate drilling fluids without compromising the integrity of the circulation system, thereby protecting both personnel and equipment from potential hazards associated with pressure-related failures.

Seamless Integration with Top Drive Systems

The 722-10-0 Wash Pipe Mud Tube demonstrates exceptional compatibility with major top drive systems, particularly the Canrig Top Drive models 8050, 8035, and 6027AC, ensuring seamless integration and optimal fluid circulation performance. This component serves as the critical bridge between the stationary circulation system and the rotating drilling assembly, enabling continuous fluid flow while accommodating the complex mechanical movements of the top drive system. The tube's design incorporates precise dimensional tolerances and connection specifications that ensure perfect alignment with the gooseneck pipe(S-pipe) and main shaft assemblies. The Wash Pipe Mud Tube 722-10-0 features specially engineered connection points that maintain seal integrity under rotation, preventing fluid leakage that could compromise circulation efficiency or create safety hazards. The component's integration capabilities extend beyond mere mechanical connection, as it must also accommodate the dynamic movements of the top drive system during drilling operations. The tube's flexibility and structural design allow it to handle the angular movements and positional changes that occur during drilling while maintaining consistent fluid flow characteristics. This seamless integration capability makes the Wash Pipe Mud Tube 722-10-0 an ideal replacement component for operators seeking to maintain or restore optimal fluid circulation performance in their top drive systems without requiring extensive modifications or system redesigns.

Enhanced Circulation Efficiency and Performance Optimization

The 722-10-0 Wash Pipe Mud Tube incorporates advanced fluid dynamics principles to maximize circulation efficiency and optimize overall drilling performance through superior flow characteristics and minimal pressure losses. The component's internal surface finish and bore geometry are specifically engineered to minimize turbulence and friction losses that can impede fluid circulation and reduce system efficiency. The smooth internal profile of the Wash Pipe Mud Tube 722-10-0 promotes laminar flow conditions, reducing energy losses and ensuring that drilling fluids reach the drill bit with optimal pressure and flow rates. This enhanced circulation efficiency directly translates to improved drilling performance, as adequate fluid circulation is essential for effective cuttings removal, drill bit cooling, and wellbore stability maintenance. The tube's design also considers the rheological properties of various drilling fluids, ensuring compatibility with different mud systems without compromising circulation performance. The Wash Pipe Mud Tube 722-10-0 maintains consistent flow characteristics across a wide range of fluid viscosities and densities, making it suitable for diverse drilling applications and formation conditions. The component's ability to maintain circulation efficiency under varying operational conditions helps drilling operators achieve consistent performance while reducing operational costs associated with excessive pressures or circulation system inefficiencies. This performance optimization capability makes the Wash Pipe Mud Tube 722-10-0 an invaluable component for drilling operations seeking to maximize productivity and minimize operational downtime.

Conclusion

The 722-10-0 Wash Pipe Mud Tube represents a critical advancement in drilling fluid circulation technology, combining robust engineering with practical operational benefits to ensure reliable performance in demanding drilling environments. Through its superior pressure management capabilities, seamless integration with top drive systems, and enhanced circulation efficiency, this component addresses the fundamental requirements of modern drilling operations while providing cost-effective solutions for equipment maintenance and replacement. As a dependable supplier of wash pipe mud tube 722-10-0, GMS ensures our product matches the original in both quality and performance, offering drilling contractors and operators a reliable alternative that maintains operational excellence while reducing overall costs.

Ready to enhance your drilling operations with reliable fluid circulation solutions? Partner with GMS for quality Wash Pipe Mud Tube 722-10-0 components that deliver consistent performance and exceptional value. Our commitment to quality extends beyond product delivery, encompassing comprehensive support and expertise that helps you achieve operational excellence. With our ISO 9001 certification ensuring the highest standards of quality management, over ten years of industry experience providing valuable expertise, and fast response times prioritizing quick communication, we deliver efficient and reliable service tailored to your needs. Our large inventory allows us to fulfill urgent orders swiftly, while our short lead times streamline processing to keep your projects on track. We provide excellent after-sales services with dedicated support teams ensuring continuous assistance, and our flexible solutions offer customizable options tailored to your unique project requirements and challenges. Whether you are an oil and gas exploration company, drilling contractor, equipment distributor, or engineering procurement company, GMS is here to meet your needs with quality and reliability. Contact us today at sales@gmssupply.com to discuss your specific requirements and discover how our expertise can support your drilling operations.
