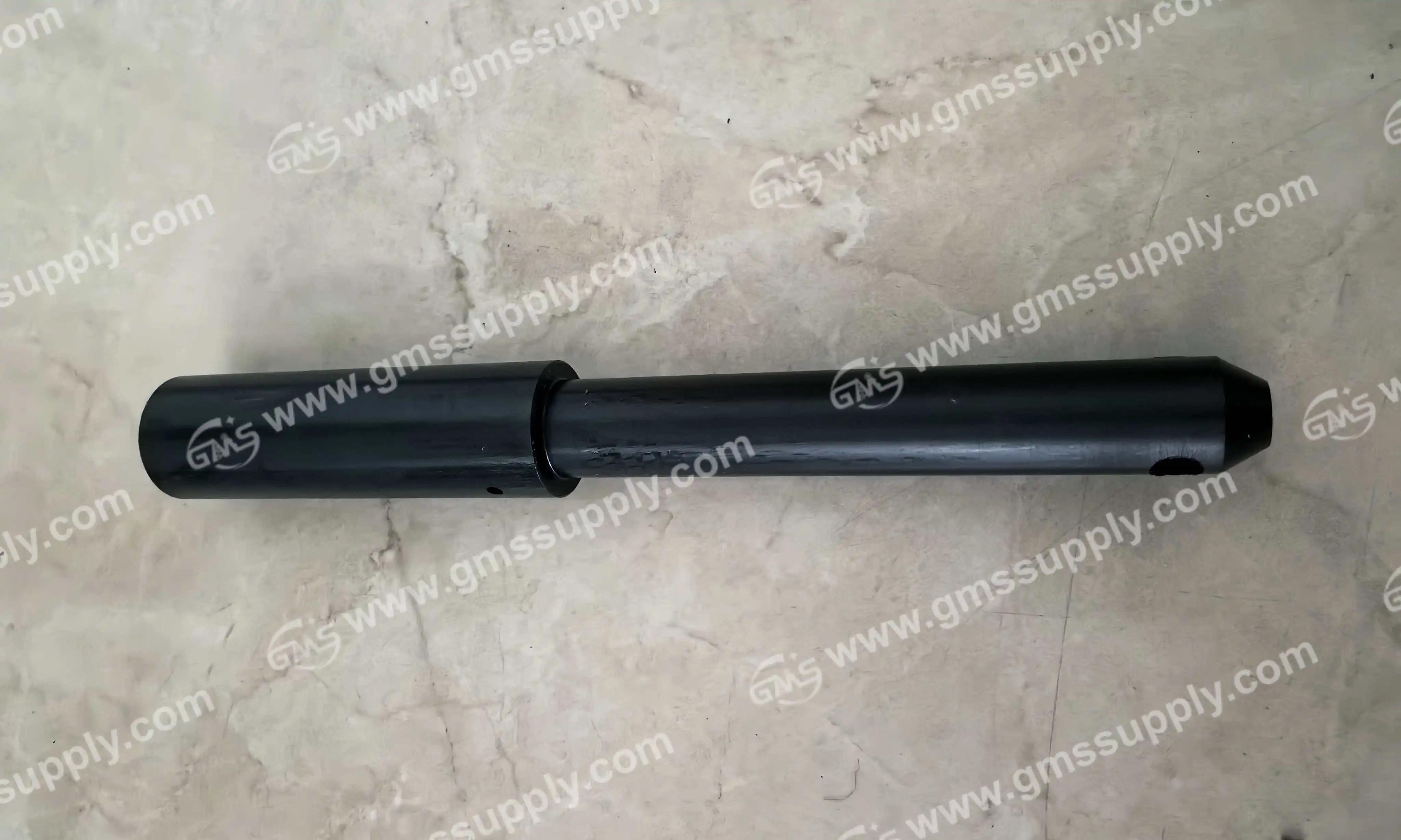

How DT15985 Lower Pin Improves Link Support Stability

Stability isn't just an option in high-stakes oil and gas drilling activities; it's a must. The DT15985 Lower Pin, Link Support does just that by improving load distribution, offering better wear resistance, and providing solid structural support in Canrig Top Drive models 8050, 8035, and 6027AC. It keeps link sections aligned even when they are under a lot of working stress. This DT15985 Lower Pin, Link Support keeps equipment from moving laterally and absorbs shock loads during rotary drilling, which lowers equipment vibration, increases the time between maintenance checks, and protects the stability of important drilling activities in oil and gas settings.

​

Understanding the DT15985 Lower Pin and Its Role in Link Support

In top drive systems, link support systems are the backbone that holds together some of the toughest tools used in industry. The DT15985 Lower Pin, Link Support is the pivot point in these systems and has to handle a lot of shear and twisting forces during drilling rounds. To make sure it fits correctly in the link support box, this precisely made part usually has to measure within very small ranges. The DT15985 Lower Pin, Link Support is made from a high-carbon alloy steel and goes through heat treatment processes that make it both hard and flexible, which is important for parts that need to fight wear on the surface and take impact loads without breaking. Protective coatings that meet strict standards for rust protection are part of the surface treatment, which is very important in drilling settings where drilling fluids, changes in temperature, and abrasive particles can quickly wear down metal surfaces that aren't covered. The shape and precision-ground bearing surfaces keep friction to a minimum and stop the "stepped" wear patterns that usually mean a part is failing. The type of metal used to make quality bottom pins is what makes them unique. The tensile strength of high-grade alloy steel always beats the minimum standards set by the industry. Induction hardening is used on the material to make a top layer that is harder while keeping the body tough and able to absorb shock. This structure has two properties: it stops both surface spalling and catastrophic stress failure. The bearing surface stays smooth, which lowers the friction coefficient and makes both the pin and the nut last longer. This focus on surface engineering directly leads to practical savings by lowering the number of times that parts need to be replaced and the number of unplanned repair events that happen. In Canrig top drive systems, the bottom pin is where the link support connects to the drill string and moves the pressure from the drive system to it. When it's in use, this small part goes through repetitive pressure patterns that include axial compression, rotational forces, and lateral stress from moving pipes. The DT15985 Lower Pin, Link Support works really well in these situations because it was designed with real-life operating factors in mind.

Common Challenges in Link Support Systems and How the DT15985 Resolves Them

Traditional link support systems have problems that keep happening, which cause problems with operations and costs. Knowing about these problems helps explain why choosing the right parts is so important for drilling productivity. The DT15985 Lower Pin, Link Support was engineered specifically to address these mechanical shortcomings. Standard pins often wear out too quickly because the surface isn't hard enough or the wrong material was used. Precision specs make sure that the part stays aligned throughout its service life by keeping small gaps that stop it from moving too much. Drilling sites are often under demanding environment conditions, with salt water contact in offshore operations, hydrogen sulfide in sour gas wells, and constant moisture in many drilling uses. Standard pins that don't have the right surface protection rust, pit, or experience galvanic rusting very quickly, which makes the structure less strong. When these harmful elements hit good lower pins, the surface processes they get protect them. The testing procedures make sure that these coats can stand up to long periods of time in corrosive settings, which makes sure that the DT15985 Lower Pin, Link Support keeps its shape and ability to hold weight throughout its service life. When equipment breaks down during digging, it costs a lot of money. The daily rates for rigs are often over tens of thousands of dollars, which makes unexpected repairs very pricey. When traditional lower pins break too soon, operations have to be stopped until they can be replaced. The DT15985 Lower Pin, Link Support cuts down on both planned and unplanned upkeep by increasing repair intervals and making the system more reliable. Operations say it has been measurably longer between checks of link supports and fewer emergency repairs of parts. Because it increases effective digging time, this dependability has a direct effect on the bottom line.

Installation, Maintenance, and Longevity of the DT15985 Lower Pin

Which parts last as long as they're supposed to depends on how well they are installed and maintained. When using the DT15985 Lower Pin, Link Support, the best result is achieved by following the set protocols. Before installation can begin, both areas must be thoroughly cleaned. Any kind of pollution, like drilling mud leftovers, metal shavings, or rust, makes it hard for things to fit right and speeds up wear. Workers should look over the link support plate for any damage or changes in size that could affect how the pins fit. When installing, using too much force can mean there are problems with the dimensions that need to be looked into. Once in place, holding devices must be put in place according to the instructions that came with the equipment. The DT15985 Lower Pin, Link Support itself floats to allow for proper movement, but supporting hardware keeps it from moving while the machine is working. Using the right amount of force on holding parts is very important. When you don't torque something enough, it can come free when the machine shakes, but when you torque it too much, you will damage the threads or make stress risers. Following written torque specs saves both the pin and the parts around it. Performing regular inspections helps find problems early on, before they become major problems. Visual inspections should be done at regular times usually when the top drive is serviced regularly. Inspectors look for surface scoring, wear patterns that don't seem right, or retention pin holes that get longer. Lubrication is an important part of upkeep. When used regularly, high-quality lithium-molybdenum grease stops galling and lowers friction. In harsh settings or high-use situations, lubrication may need to be done every day to make sure the safety is good enough. Predictive repair methods help find problems before they get too bad. Strange noises during operation, like clunking or grinding, usually mean that there is too much space or not enough lubricant. The service life of the DT15985 Lower Pin, Link Support depends on how it is used, but if you keep ti in good shape, it usually last much longer than normal options. Replacement is needed when specific wear criteria are met during inspection, such as surface wear that goes beyond certain levels, changes in dimensions that make too much clearance, or any cracks that can be seen during inspection.

Procurement Guide: Sourcing Quality Lower Pin Components

Strategic buying makes sure that processes get parts that meet performance standards while also lowering costs and improving the dependability of the supply chain. There are a few things you should think about when looking for DT15985 Lower Pin, Link Support components for top drive systems. When a supplier has ISO 9001 approval, it means they have put in place strict quality rules that cover where the materials come from, how they are made, and how they are inspected at the end. GMS Supply keeps its ISO approval and uses strict quality control at every stage of production. By paying close attention to quality control, parts are made that will work reliably in tough drilling settings. Drilling activities can't wait for long periods of time for parts to arrive. When suppliers have enough product on hand, they can fill orders quickly, which cuts down on downtime when replacements are needed. The DT15985 Lower Pin, Link Support is kept in stock by GMS, and lead times are usually two weeks or less, which means that procurement teams can safely plan repair schedules without having too much safety stock. Sometimes, complex industrial parts need help with fitting or fixing. When suppliers know how their goods will be used, they add value that goes beyond the part itself. Our support team has worked in the oil and gas business for more than ten years, helping with drilling operations by giving advice on installation, upkeep, and making sure that certain top drive configurations are compatible. The initial buying price is important, but the total cost of ownership tells us more about the whole picture. It is common for operating savings to support a higher original investment for parts that last longer, require less upkeep, and have less unplanned downtime. Instead of just looking at the price of the parts, procurement professionals should look at the cost per working hour. Businesses that manage a lot of rigs or plan big maintenance efforts can get the best deals by buying the DT15985 Lower Pin, Link Support in bulk. Our team works with procurement managers to set up orders in a way that balances the costs of keeping goods with the benefits of buying in bulk.

Conclusion

Link support security in top drive systems relies on the quality of the parts and how well they are maintained. The DT15985 Lower Pin, Link Support makes operating efficiency better by using better materials, more precise engineering, and protective surface treatments. When operations use high-quality parts, they report longer service intervals, fewer emergency repairs, and better drilling efficiency. These are all results that have a direct effect on how profitable they are in competitive drilling markets. Choosing the DT15985 Lower Pin, Link Support from suppliers with a lot of knowledge, quality systems that have been tested, and quick support systems is the key to making drilling processes reliable and cost-effective.

FAQ

Q1: What kinds of materials are used to make the DT15985 Lower Pin, Link Support?

This part is made from a high-carbon alloy steel that goes through a special heat process to get the best hardness and toughness qualities. Surface treatments make things less likely to rust, which is good for drilling in tough settings.

Q2: If not the Canrig 8050, 8035, and 6027AC, can this lower pin be put on other top drive models?

The DT15985 Lower Pin, Link Support is designed to work with these Canrig types. Installation on other machinery needs to be checked to make sure the dimensions and load requirements are compatible.

Q3: How long does it last compared to regular link support pins?

According to operational reports, repair intervals are much longer than with normal options. The exact change depends on how the system is used, how it is maintained, and environmental factors. Proper greasing and regular inspections make parts last longer.

Q4: What kinds of inspections should be done during regular maintenance?

During normal top drive service, the DT15985 Lower Pin, Link Support surface should be looked at visually for wear, scoring, or changes in size. Any odd noise from an operation needs to be looked at right away.

Partner with GMS for Reliable Link Support Components

GMS is your reliable provider for important top drive system drilling parts because we care about quality and customer service. We deliver the DT15985 Lower Pin, Link Support to meet performance standards and offer fast service that keeps your business running smoothly. We help procurement teams meet tight repair schedules and strict business needs by having ISO 9001 certification, a large inventory, and short wait times.

You can email our team at sales@gmssupply.com to talk about your particular DT15985 Lower Pin, Link Support needs, get detailed specs, or find out how much the component costs. We help repair teams get the most out of their parts by giving them full product documentation, application advice, and support after the sale.

References

1. American Petroleum Institute. "Recommended Practices for Top Drive Systems in Drilling Operations." API Specification 8C, 2018.

2. Johnson, M. & Peterson, R. "Material Selection and Heat Treatment for High-Load Pivot Components." Journal of Industrial Machinery Engineering, Vol. 34, No. 2, 2020.

3. National Association of Corrosion Engineers. "Protective Coatings for Oilfield Equipment: Performance Standards and Testing Protocols." NACE Publication 6H189, 2019.

4. Robertson, T. "Predictive Maintenance Strategies for Top Drive Systems." Offshore Drilling Technology Quarterly, Spring 2021.

5. Society of Petroleum Engineers. "Component Reliability in Rotary Drilling Systems: Case Studies and Best Practices." SPE Technical Paper 195847, 2019.

6. Williams, D. & Chen, L. "Lifecycle Cost Analysis of Critical Drilling Components." International Journal of Oil and Gas Engineering, Vol. 12, No. 4, 2021.
