How durable is the frame, Sandmaster pump P/N 20938-02-1?

Because it is made of HT250 cast iron, the Frame, Sandmaster pump P/N 20938-02-1 is very durable and was designed to work in harsh industrial settings. This power-end housing is grease-lubricated and can handle the constant mechanical pressures, temperature changes, and rough conditions Frame, Sandmaster pump P/N 20938-02-1 that are common in oil and gas drills. With the right upkeep, this shorter Frame, Sandmaster pump P/N 20938-02-1 design works just as well as standard-length centrifugal pump frames and can fit into mobile applications with limited room, like frac trucks and blender units.

Understanding the Frame Construction of Sandmaster Pump P/N 20938-02-1

The frame unit is the first part of any centrifugal pump that makes it strong. We know that procurement managers and MRO buyers need a lot of technical information before they make decisions about what to buy, which could affect business uptime here at GMS.

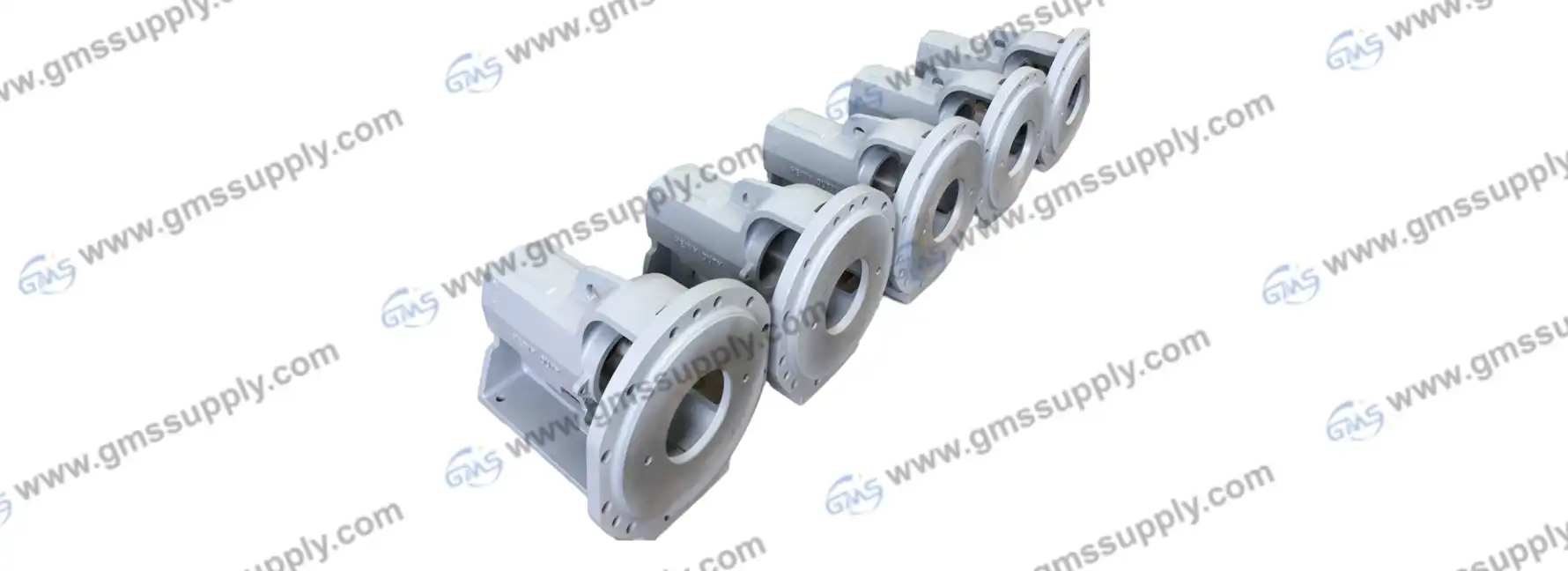

The frame body for Frame, Sandmaster pump is made of HT250 grey cast iron, which was chosen because it is good at reducing vibrations and staying the same size when it's loaded. Unlike steel options that are made to order, this cast design spreads load evenly across the bearing housing and mounting feet. The tensile strength of the material is high enough to meet the mechanical needs of high-pressure pumping uses, and it won't wear down over thousands of hours of use. Our manufacturing process follows ISO 9001 guidelines, which means that each frame casting goes through strict quality checks. Spectroscopic analysis proves the metal's makeup, and hardness testing shows that the bearing bore areas keep the structural integrity needed for the shaft to line up correctly. These quality measures directly address the concerns of technical managers who are in charge of making sure that the equipment fleet works well.

The Frame, Sandmaster pump P/N 20938-02-1 line is a strategic engineering answer for situations where equipment selection is limited by space. It's about four inches shorter than similar normal centrifugal pump housings, which is why this frame assembly is the best choice for hydraulic fracturing blender trucks and mobile cementing units. Even though the footprint is smaller, the structure still works well because it has reinforced parts around stress points that keep the load-bearing capacity needed for continuous job cycles. The grease lubrication method built into this frame design gets rid of the problems that come with using oil-bath lubrication in mobile settings. Grease works the same no matter Short Frame Centrifugal Pump what angle the equipment is at or how much it shakes. This is a useful property that maintenance teams like when they have to work on pumps on frac trucks that are moving over rough terrain. The Zerk fitting holes make it easy to get to places where regular cleaning needs to be done. This helps preventative maintenance programmes that make parts last longer.

Key Factors Affecting Frame Durability in Industrial Pump Applications

When procurement workers know what affects the lifespan of a Frame, Sandmaster pump P/N 20938-02-1, they can make choices that meet their business needs and stay within their budget.

During running, centrifugal pump frames are constantly put under mechanical stress. When the shaft unit turns, it creates radial loads that move through the bearing housings and into the frame structure. In solid control situations where the pump works with drilling mud that has rough cuts in it, these loads get stronger because of the density and number of particles in the fluid. The Frame, Sandmaster pump P/N 20938-02-1 has bearing bore limits that were made to exact specs. This keeps the frame concentric, which stops the shaft from running out of alignment and the seal from failing too soon. Another thing to think about when it comes to longevity is cyclic stress. When pumps are used with varied speeds or a lot of start-stop cycles, they experience fatigue stresses that can cause tiny cracks to form in lower-quality casts. Our casting method includes controlled cooling rates that keep the finished product's internal stresses to a minimum. This gives it the fatigue resistance needed for uses that are used on a regular basis, like those in well service operations.

Equipment used in oil and gas drilling is subjected to hard conditions that speed up wear and tear if not fixed. Thermal expansion and contraction cycles are caused by changes in temperature between starting and working conditions. The HT250 material standard for this Frame, Sandmaster pump P/N 20938-02-1 makes it thermally stable, so the size changes are kept to a minimum over a wide range of normal working temperatures. More problems arise when corrosive media are used. Chemicals in drilling fluids, cement slurries, and formation water can damage metal surfaces that aren't covered. Even though the frame doesn't touch the fluid, it is still important to think about how it might be affected by spills and spray. A lot of owners put protective coatings on the outside of their machines, which is something we suggest as part of a full repair plan. Preventive upkeep has a big effect on how long a frame lasts. Maintenance teams can find wear patterns before they break by inspecting things on a regular basis. Follow the manufacturer's instructions for how often to grease—usually every 8 to 12 hours of constant duty. Bearing housings should be checked for temperature rise, which means the bearings aren't oiled well enough or are wearing out. If these problems are fixed quickly, they won't cause more damage to the frame casting itself.

Real-World Performance in Demanding Applications

Any industry part is put to the test in the field, where it has to work in a variety of circumstances. We've sold Frame, Sandmaster pump P/N 20938-02-1 kits to workers all over North America who work in different areas of the energy industry.

Pumping equipment is put through a lot of stress during hydraulic fracturing activities. Blender pumps work for long amounts of time, processing thick proppant slurries that put a lot of radial stress on bearing systems. The small Frame, Sandmaster pump P/N 20938-02-1 design fits inside the limited room of the frac truck chassis while still keeping the rigidity needed for safe operation. Operators say that if these grease-lubricated frames are properly maintained, they need to be serviced about as often as bigger oil-bath designs, but they don't have to worry about keeping the oil amounts right on equipment that moves between well sites all the time. Cementing processes have some of the same problems, but the fluids they use are different. Cement slurries have a high viscosity and have particles in them that make the conditions rough. The Frame, Sandmaster pump P/N 20938-02-1, the ability to Short Frame Centrifugal Pump to keep bearings in alignment under long-term loads is helpful for the pump charge used in these services. Drilling contractors like that parts can be switched out. When upkeep is needed, new parts can be put in quickly, which cuts down on time spent not working.

Centrifugal pumps are used by people who drill water wells to charge triplex mud pumps and move drilling fluids around. In these situations, the fluids are usually better than in oil fields, but the equipment still has to work nonstop for weeks at a time during digging projects. The Frame, Sandmaster pump P/N 20938-02-1 assembly is easier to place on drill rig accessories because it is lighter and takes up less room than other important equipment. For mixing purposes with special drilling fluids, you need pumps that work consistently with fluids that have different densities and viscosities. The frame's structural stability makes sure that the mechanical seals stay in place no matter what the fluid situation is. This stops leaks that are bad for the environment and cost more to run.

Procurement Considerations for Industrial Buyers

To make smart buying choices, you need to weigh the short-term costs against the long-term benefits. As a seller with a lot of experience working with industrial procurement managers, we know what makes you choose the tools you do.

Products of different quality can be found in the aftermarket for centrifugal pump parts. Buying frame parts from well-known companies ensures that the sizes are correct and that the materials meet working needs. The GMS part number S021938 is directly compatible with the Mission Frame, Sandmaster pump P/N 20938-02-1 specifications. This gives procurement teams a safe option that keeps the fleet standardised. There are big risks with fake or low-quality casts. Poor metallurgy or bad machining standards cause early breakdowns that cause unplanned downtime and damage to other parts that are connected. Our ISO 9001 certification gives you proof that your seller qualification processes are working, meeting the compliance standards that procurement teams are in charge of.

When equipment breaks down, it directly affects how much money a production-based business makes. GMS keeps a large stock of Frame, Sandmaster pump P/N 20938-02-1 kits and other related parts, so most orders can be delivered within a week of being confirmed. This inventory position helps you plan your maintenance, whether you're planning preventative rebuilds or fixing problems that come up out of the blue. Operators who are in charge of multiple pump units can get extra benefits from buying in bulk. Volume agreements help you save money and make sure that you can get parts when you need them for your repair plans. Our team works with buying managers to come up with stocking plans that balance the cost of keeping goods with the risk of having to keep equipment down for longer periods of time.

After the initial purchase, ongoing technical help is important for keeping the tools running well over time. Our application engineers can help with questions about installation, upkeep, and fixing problems. Help with this kind is especially Frame, Sandmaster pump P/N 20938-02-1 useful when adding new parts to old machines or changing the way pumps are set up for new uses. The guarantee we offer specifically covers the integrity of the frame, which eases the minds of capital equipment managers who need proof that parts are reliable. Full support after the sale includes expert drawings, parts lists, and upkeep suggestions that help your team get the most out of the equipment's life and return on investment.

Ensuring Long-Term Reliability Through Proper Maintenance

To reach its full service life potential, even the strongest frame construction needs to be properly maintained. Setting up good repair procedures will protect your equipment investment and help it work reliably.

For grease-lubricated frames, the most important upkeep task is to keep track of the lubrication. Setting up a written plan for greasing based on working hours stops bearing failures that can damage frame parts. Using the right type of grease keeps the greasing film thick and the temperature under control. When you re-grease, you get rid of contaminants and old, worn-out oil that make the bearings less safe.

As part of the inspection process, the outside of the frame should be visually inspected for cracks or other signs of stress. Pay close attention to the mounting feet and bearing housing areas because they are subject to the most stress. Any strange shaking or temperature rise should be looked into right away, because these signs often point to problems that get worse over time and cost more to fix if they aren't fixed.

Checking the alignment of the frame while the pump is being installed and then put back together again makes sure that mechanical loads are spread out evenly throughout the structure. If the driver and pump shaft are not lined up correctly, side loads that are higher than what was planned can happen, which could lead to premature wear or damage to the structure. Following the right installation steps will keep your expensive equipment from breaking down when it shouldn't.

Conclusion

The Frame, Sandmaster pump P/N 20938-02-1 lasts a long time because the engineers carefully chose the materials, designed the structure, and thought about how to keep it in good shape. The HT250 is made of cast iron, which gives it the strength and resistance to shaking needed for tough oil and gas drilling jobs. Its small size also helps with the space issues that come with mobile pumping equipment. By getting parts from reputable companies like GMS and keeping them in good shape, this frame assembly provides dependable service that supports operational uptime and cost-effective fleet management. Our ISO-certified production methods and many years of experience in the field make sure that the parts you receive meet the performance standards your operations require.

FAQ

1. What makes the grease lubrication system preferable for mobile applications?

Using grease instead of oil makes it easier to keep the right amount of oil in equipment that works at different angles, like frac trucks that have to go over rough terrain. In contrast to oil-bath systems, which can starve bearings when the equipment is tilted, grease stays in place no matter how the equipment is positioned. This feature lowers the chance of bearing failure due to not enough greasing, which happens a lot in mobile pumping situations.

2. How does the shortened frame length affect structural performance?

The four-inch shorter length than normal frames doesn't affect their ability to hold weight. Under working loads, reinforced parts around the mounting feet and bearing housings keep the structure strong. The technical changes were mostly about getting rid of non-essential parts while keeping the stress distribution features needed for safe operation.

3. Can this frame assembly be used across different pump sizes?

The Frame, Sandmaster pump P/N 20938-02-1 design can handle pump sizes from 3x2x13 to 10x8x14 and works with a variety of impeller widths and output configurations. This flexibility makes inventory management easier for people who run a lot of different kinds of equipment, since a single frame design can meet a lot of different pumping needs.

Partner with GMS for Reliable Sandmaster Pump Components

GMS is ready to help you with your centrifugal pump component needs with the Frame, Sandmaster pump P/N 20938-02-1, with the knowledge they've gained from working with industry customers for ten years. As a reliable Frame, Sandmaster pump P/N 20938-02-1 provider, we offer quality control that is ISO-certified, along with quick customer service that understands the needs of business buyers. Our large inventory and short wait times keep your operations running even when equipment needs to be fixed. Our expert support team also gives you application advice that helps you choose the right parts and install them correctly. Email our team at sales@gmssupply.com to talk about your particular needs. We provide the skilled service and high-quality products that industrial operations need, whether they are in charge of regular maintenance for a fleet of already-owned equipment or they are looking for parts for new installations.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
