How E11417 RTD PT Supports Temperature Monitoring in Oilfield Systems

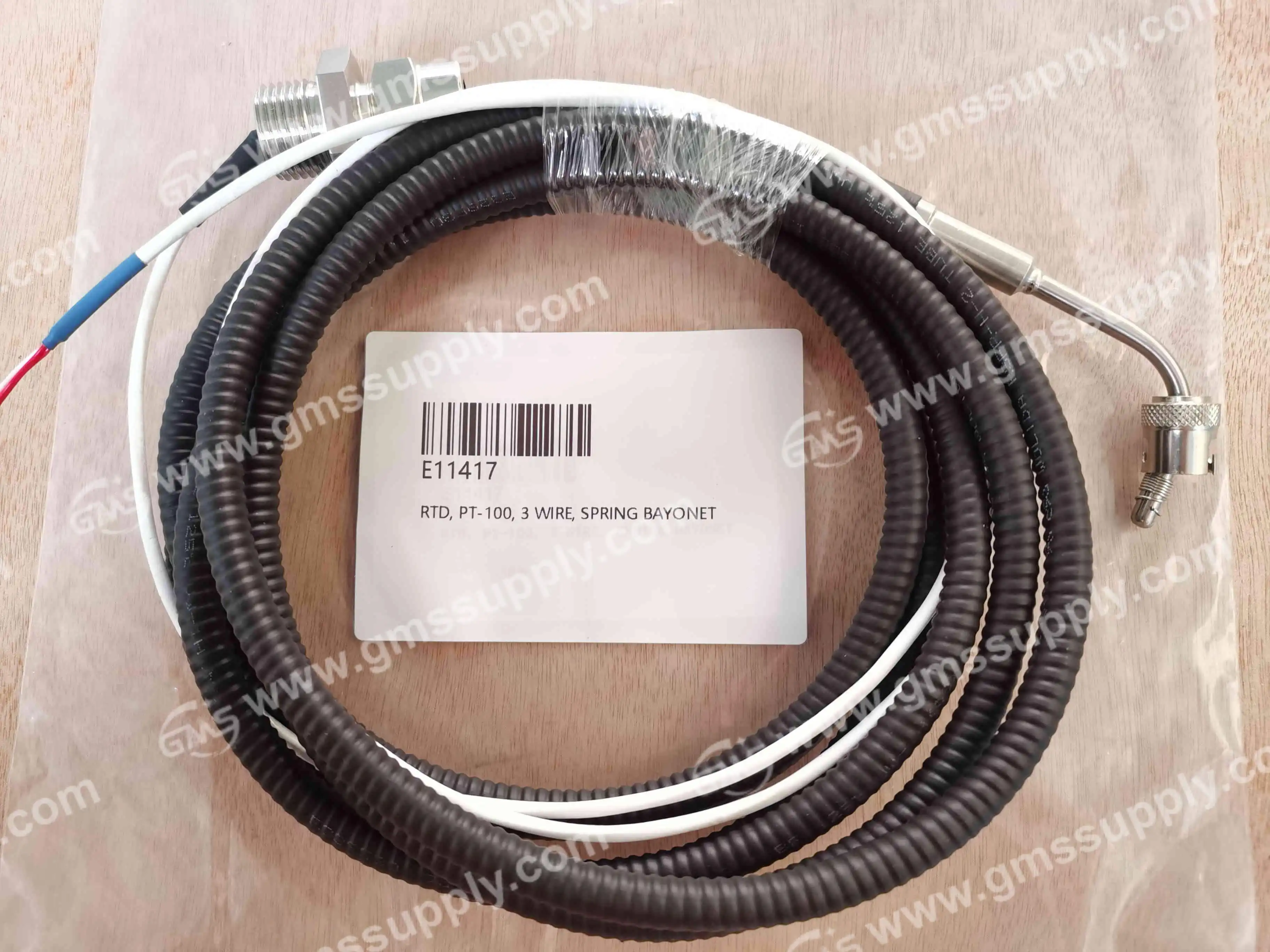

The E11417 RTD PT-100, 3 WIRE SPRING BAYONET measures temperatures accurately and reliably for Canrig top drive systems 8050, 8035 and 6027 that work in tough drilling conditions. This temperature sensor uses a platinum sensing element with a 3-wire setup that accounts for lead resistance, which gets rid of measurement mistakes that happen when cables are run over long distances, which is common on drilling rigs. The E11417 RTD PT-100, 3 WIRE SPRING BAYONET design makes sure that the installation is stable and won't shake, and it also keeps the heat contact constant. If drilling operations depend on equipment working without any problems, having correct temperature data keeps expensive machinery from breaking down and saves money on repairs.

Understanding the Role of E11417 RTD PT-100 in Oilfield Temperature Monitoring

In drilling activities, temperature sensors have to deal with different problems than those found in most industrial settings. Top drive systems make a lot of heat when they're running all the time, and keeping an eye on the temperature keeps important parts from breaking. The E11417 RTD PT-100, 3 WIRE SPRING BAYONET is a resistance temperature monitor that was made to work with TDS systems. The PT-100 label means that the platinum element of the sensor measures 100 ohms at 0°C. Compared to other sensing technologies, this platinum-based design is more accurate and stable over time. Temperature data stays the same across the sensor's operational range, which is usually between -50°C and +260°C, which covers all the possible drilling situations. The three wires that make up this sensor make it unique for use in oilfields. Standard 2-wire resistance temperature monitors have a big flaw: the measurement is messed up by the resistance of the link wires, giving wrong temperature readings. When sensor lines on drilling rigs go from the top drive to the control systems and are up to several dozen meters long, this leads to resistance that can cause mistakes of several degrees. This issue is fixed by the 3-wire design, which lets the measurement circuit figure out and remove the lead resistance, which makes sure that the temperature reading only shows the real sensing element resistance. This technical edge directly affects operational dependability, drillers get the correct data they can rely on when making important choices. The extra useful spring bayonet fitting adds to the list of benefits. The bayonet mount is different from threaded sensors because it doesn't need any tools to be installed and can stay in place even when the device moves. Instead, it uses a twist-and-lock system with spring force. This design keeps the pressure between the sensor tip and the measurement surface constant, so there are no breaks in the pressure that would cause temperature lag. When drilling, the equipment is constantly vibrating, but this safe mounting keeps the E11417 RTD PT-100, 3 WIRE SPRING BAYONET from moving, which would compromise the accuracy of the measurements. Maintenance teams like that the installation doesn't require any tools, which cuts down on the time it takes to change parts during regular maintenance or in an emergency.

Key Challenges in Oilfield Temperature Monitoring and How E11417 Addresses Them

Temperature monitors in drilling settings are put through conditions that would quickly break down standard industrial parts. Knowing about these problems helps explain why specific monitors are important for operations to go well. As drilling activities switch between full-load and idle periods, there are often big changes in temperature. When drilling deeply through hard rocks, top drive systems may heat up quickly, and they may cool down while pipes are connected or equipment is being adjusted. This changing of temperature puts stress on sensor materials, which could lead to drift in less stable designs. The E11417 RTD PT-100, 3 WIRE SPRING BAYONET is made from materials that are stable at high and low temperatures, which means that the calibration is still accurate after many heating and cooling processes. Mechanical shock and vibration are always a threat to the stability of sensors. When drilling, strong vibrations go through the whole system. Sensors that are attached to spinning tools, like top drives, are put under a lot of mechanical stress. Compression-fit sensors that were used in the past can become loose over time, losing heat touch and giving inaccurate readings. This problem is solved by the spring-loaded bayonet design, which keeps the pressure steady no matter how much the system vibrates. Another problem is corrosive conditions, which are especially bad for ocean digging, where salt spray and humidity make metal break down faster. The sheath around the E11417 is usually made of stainless steel, which doesn't rust and conducts heat well for quick reaction times. This choice of materials guarantees a long life, even in harsh sea settings. In drilling settings with a lot of electrical noise, signal interference can mess up temperature data. Electrical equipment like variable frequency drives, high-current motors, and others sends out electromagnetic waves that can mess up sensor wires and cause false readings. The 3-wire RTD design is better at blocking noise than thermocouple sensors, which send out much smaller voltage readings that are easier to mess up. The people who are drilling can get accurate and stable temperature readings even when big electrical equipment is close. These design elements work together to improve business uptime. On the other hand, monitors that aren't reliable force working limits that are too low, which lowers efficiency or, even worse, don't warn of dangerous overheating until damage happens. The E11417 RTD PT-100, 3 WIRE SPRING BAYONET is designed to last, which is directly related to the ongoing operation that is necessary for drilling projects to be successful.

Procurement and Supply Chain Insights for Purchasing E11417 RTD PT-100 Sensors

To find trustworthy E11417 RTD PT-100, 3 WIRE SPRING BAYONET, you need to pay attention to the qualifications of the suppliers and the trustworthiness of the supply chain. Companies that drill and companies that take care of tools have unique buying problems that affect their choices. GMS has been a reliable supplier to the oil and gas drilling business for over ten years. Our ISO 9001 certification makes sure that the quality control of our products meets international standards, which gives drilling operations the stability they need. We keep a large stock of sensors that work with Canrig Top Drive systems (models 8050, 8035, and 6027), so we can quickly change sensors that need to be replaced for repair or in an emergency. Our normal hold time for stock items is only two weeks, so there isn't much chance that the equipment will be down for a long time while we wait for parts to arrive. Verification of authenticity is still very important when getting vital parts. There are many sellers in the market, but not all of them offer real, high-quality goods that meet the needs of customers. GMS product has the exact performance traits needed for reliable operation while still working perfectly with TDS equipment that is already in use. Our manufacturing process oversees each step of the process, from choosing the raw materials to testing the finished products to make sure they meet the high standards needed for drilling operations. Companies that run a lot of drilling rigs or make equipment that needs regular sensing supplies can benefit from bulk purchasing agreements. Our customer service team works directly with buying professionals to understand the needs of each application, suggest the best combinations, and look for ways to make all of our equipment fleets more uniform. This helpful method helps buyers get the most out of their sensor choices and inventory management. Support after the sale is what sets trustworthy sellers apart from those who disappear after the sale. Our team is always here to help with questions about installation, troubleshooting, and application advice. When operators run into strange sensor behavior or need help making their temperature tracking systems work better, they talk to suppliers who know both the E11417 RTD PT-100, 3 WIRE SPRING BAYONET and how to use them in drilling. This dedication to customer satisfaction builds the kind of long-term ties that drilling businesses look for in suppliers of key parts.

Conclusion

Temperature tracking is an important part of safe and effective drilling, and the choice of sensor has a direct effect on how reliable the equipment is and how long it can keep running. The E11417 RTD PT-100, 3 WIRE SPRING BAYONET is made to work in drilling settings because it has a tried-and-true 3-wire compensation design, a vibration-resistant spring bayonet fixing, and a strong build. When used in demanding situations like Canrig top drive systems, these technical traits make the system accurate and last a long time. People who work in procurement benefit from working with experienced E11417 RTD PT-100, 3 WIRE SPRING BAYONET suppliers who know both the technical needs and the practical facts of oil and gas drilling. This makes sure that they can get quality parts with prompt support and delivery.

FAQ

Q1: Why is the 3-wire configuration important for RTD in drilling applications?

The three-wire design makes up for the resistance of the wires that connect the sensor to the control system. In drilling rigs, monitors may be put far away from control panels, which means that cables have to be run for a long distance. Standard 2-wire RTDs measure with lead resistance, which gives fake high temperature readings. Because there are three wires, the measurement circuit can figure out and remove this lead resistance, which makes sure that the temperature readings only show the resistance of the sensor element.

Q2: What makes the E11417 suitable for Canrig top drive systems?

The E11417 RTD PT-100, 3 WIRE SPRING BAYONET is designed to work with TDS top drives and has been tested to work with Canrig types 8050, 8035, and 6027. The working conditions these systems make are compatible with their temperature range, mounting style, and protection of the environment. The sensor can handle the shaking, changing temperatures, and exposure to the air that come with top drive operations. It provides accurate temperature tracking that is needed to protect equipment and keep workers safe.

Partner With GMS for Your Temperature Monitoring Needs

We know that drilling operations cannot tolerate component failures or supply chain disruptions. As an established E11417 RTD PT-100, 3 WIRE SPRING BAYONET manufacturer, GMS combines quality products with the service reliability your operations demand. Our ISO 9001-certified production ensures every sensor meets rigorous performance standards, while our maintained inventory enables fast shipment—typically within two weeks for stock items. Whether you're sourcing components for scheduled maintenance, building spare parts inventory, or responding to urgent replacement needs, our team stands ready to support your requirements. Contact our sales team at sales@gmssupply.com to discuss your E11417 RTD PT-100, 3 WIRE SPRING BAYONET applications, request specifications, or place orders. We deliver the combination of product quality, industry experience, and customer service that builds lasting partnerships.
