How Mud Agitator Works in Mud Tank Systems

It is very important for the safety of the Mud Agitator and the efficiency of drilling activities to keep the properties of the drilling fluid consistent. This is done by a mud stirrer, which keeps drilling mud in storage tanks mixed so that solids don't settle to the bottom. The motor turns a reduction gear system that turns an impeller that is submerged below the surface of the fluid. This creates patterns of circulation that keep the solids fairly spread out in the tank. This constant mixing keeps the mud's density and viscosity stable, which is important for drilling wells and keeping the wellbore stable in oil and gas activities.

Understanding the Mud Agitator in Mud Tank Systems

Keeping the qualities of the mud the same while it is being stored and pumped around is a big part of managing drilling fluid in oil and gas drilling. Barite and other solid bits naturally settle to the bottom of drilling mud when it's not being used. This can cause changes in density that can make oil and gas drilling operations more difficult. This is where agitation tools are very important, as they ensure the mud maintains the consistent properties needed for smooth and safe oil drilling processes.

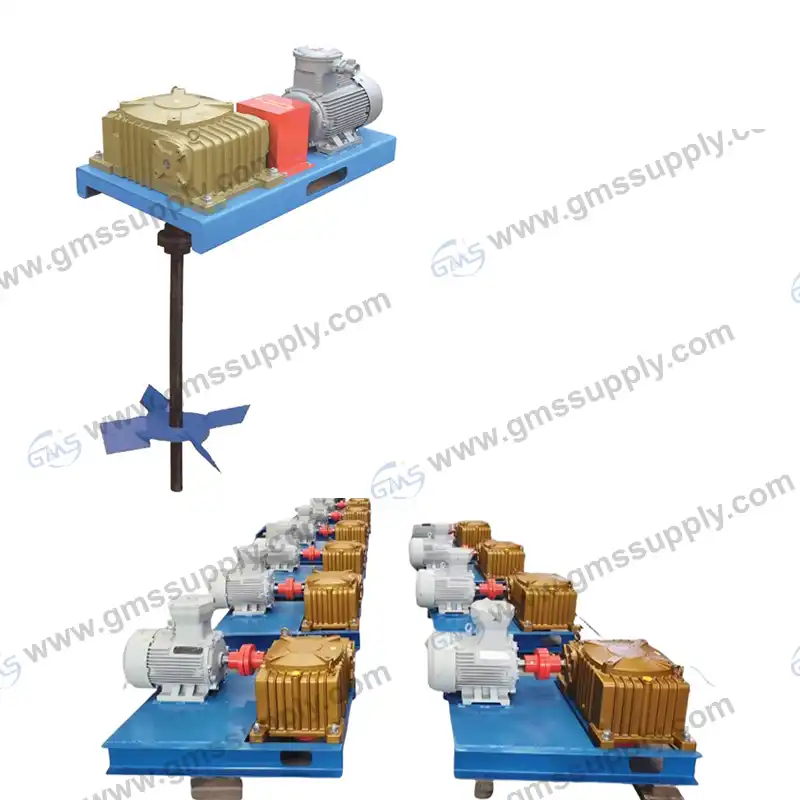

The mud tank stirrer for oil and gas drilling is made up of several parts that are all connected and work together. The machine's power comes from its motor. The motor can have anywhere from 5.5kW to 15kW of power, depending on the size of the tank and the type of mud used in oil drilling. This motor is connected to a reduction gearbox, which lowers the speed of spinning while increasing torque. The reducer link sends this power to the main shaft, which goes into the tank. The end of the shaft has a propeller  that spins about 60 times per minute. This makes the flow that holds the suspension in place, ensuring solids remain evenly distributed in the drilling mud.

The GMS mud stirrer can be installed horizontally, which makes the most of the tank's surface area—an important advantage in oil and gas drilling sites where space is often limited. The rotating unit  has special bearing seals that keep drilling mud from damaging the inside parts. Rubber blocks reduce noise and vibrations while the machine is running. They also extend the service life of components, minimizing maintenance needs and unplanned downtime in busy oil drilling operations.

There are both axial and radial flow patterns when the turbine turns. The four-blade impeller creates enough shear force to break up particle groups without breaking down polymers or other beneficial mud additives critical for oil and gas drilling. The speed of 60 RPM is just right for thorough mixing while also using little energy. As the fluid moves away from the propeller, it forms a circulation loop that goes around the whole tank. This eliminates any dead spots where solids could build up, ensuring the mud’s properties stay consistent across the entire tank.

Tank turnover rate represents how quickly the entire drilling mud tank agitator tank volume circulates. The GMS-11 model, with its 1000mm diameter impeller, can maintain effective suspension in tanks up to 30 cubic meters. This circulation prevents the formation of settled layers that reduce usable tank capacity and compromise mud quality—both of which are key to maintaining efficient oil and gas drilling operations and wellbore stability.

Component materials directly affect operational lifespan in corrosive oil and gas drilling environments. The impeller uses high-strength materials resistant to abrasion from sand and other solid particles commonly found in oil drilling mud. The shaft assembly withstands both torsional stress from the motor and bending forces from fluid resistance. Proper material selection ensures the agitator can operate continuously for extended periods between maintenance intervals, reducing downtime and operational costs for oil drilling projects.

Types of Mud Agitators and Their Applications

For the best results, different types of oil and gas drilling call for different agitator configurations. Knowing about these differences helps procurement teams choose technology that meets the specific needs of oil drilling operations. There are vertical agitators that sit on top of tanks and have tubes that go straight down into the fluid. This set-up works well for tanks that are deeper, and the propeller needs to reach lower fluid levels. The vertical shape makes mixing work well with less space, so it can be used on oil drilling platforms that don't have a lot of room.

Bottom stabilisers are built into the GMS vertical types for shafts longer than 2.0 meters. These keep the shafts from deflecting, which could damage the bearings and seals—common issues in oil and gas drilling sites where equipment is exposed to constant vibration and harsh conditions. A horizontal attachment method is used for the GMS mud agitator, which has clear benefits for oil drilling applications.

The impeller is installed on the side of the tank, which places it at the best depth for maximum movement efficiency. This design lowers the overall height needed, which is helpful on offshore oil and gas drilling sites that don't have a lot of vertical space. Motors and gears stay at deck level instead of above tanks, which makes maintenance easier—a crucial factor in oil drilling, where minimizing downtime is essential for meeting project deadlines.

The horizontal agitators also spread the weight of the tank structures more widely, which lowers stress levels that could cause long-term problems with the structures. The small size makes the tops of the tanks free for other tools or people to move around, which increases operational flexibility in oil and gas drilling sites. Turbine-style impellers feature flat or slightly curved blades that generate strong radial flow patterns.

These work effectively in high-density muds where heavy particles need aggressive mixing—a common scenario in oil and gas drilling where mud density is carefully controlled to maintain wellbore stability. The four-blade configuration in GMS models provides a balance between mixing power and energy consumption. Each blade angle has been optimized to minimize power requirements while maintaining particle suspension, helping to control operational costs in oil drilling.

Specialised impeller shapes may be used for drilling mud tank agitators, useful for different oil and gas drilling tasks. When cementing in oil wells, the mixing might need to be done more gently so that air doesn't get mixed in, but when busy oil drilling is going on, the solids content needs to be stirred up a lot. The GMS agitator line has motors with power ranges from 5.5kW (GMS-5.5) to 15kW (GMS-15), along with impellers of the right size to meet different oil drilling operating needs.

Maintenance, Troubleshooting, and Safety Measures

Reliable operation depends on systematic maintenance that addresses wear before it causes failures. Procurement decisions for oil and gas drilling equipment should consider long-term maintenance requirements alongside initial equipment costs, as unplanned downtime can be costly and disrupt oil drilling schedules.

Regular visual inspections catch developing issues before they escalate. Check the motor coupling  for signs of wear or misalignment every 500 operating hours—a standard maintenance interval in oil and gas drilling. Listen for unusual noises that might indicate bearing wear or impeller damage. Monitor vibration levels using baseline measurements established during initial commissioning. Significant increases often signal mounting problems or component imbalance, which can lead to equipment failure in oil drilling environments.

The reducer requires oil level checks monthly, with complete oil changes every 2,500 hours or six months. Using proper extreme pressure gear oils rated for the operating temperature range protects internal gears from premature wear—critical in oil and gas drilling sites where temperature fluctuations are common. The first oil change should occur after 100-300 hours to remove metal particles generated during the break-in period, ensuring long-term reliability in oil drilling operations.

Excessive vibration typically stems from three sources: improper mounting, coupling misalignment, or impeller damage. Start troubleshooting by verifying all mounting bolts remain tight—a simple but essential step in oil and gas drilling equipment maintenance. Check the alignment between motor and gearbox shafts using precision tools. If the impeller has struck debris or the tank bottom, it may require replacement to restore balance, which is vital for consistent performance in oil drilling mud mixing.

Overheating indicates inadequate lubrication, excessive load, or insufficient ventilation. Verify oil levels meet specifications and ventilation openings remain clear—important in oil and gas drilling sites where dust and debris can accumulate. If the mud density has increased significantly, the agitator may be undersized for current oil drilling conditions, requiring evaluation of whether a higher-power model is needed to maintain proper mixing.

Seal leaks around the shaft often result from worn components or contamination. The GMS design includes special bearing seal configurations (within P/N 081115-07 revolving assembly) that provide reliable protection against drilling mud intrusion—a common issue in oil and gas drilling that can lead to costly equipment damage. Replacing seals according to recommended intervals prevents costly repairs from mud intrusion into bearings or gearboxes, minimizing Agitator with a motor downtime in oil drilling operations.

Procurement Guide: Selecting and Buying Mud Agitators

Selecting appropriate agitation equipment requires matching technical specifications to oil and gas drilling operational requirements. This evaluation process ensures investments deliver expected performance over their service lives in oil drilling projects. Tank volume represents the primary sizing criterion. Calculate the total volume requiring agitation, accounting for typical fill levels rather than maximum tank capacity.

The GMS-5.5 model handles smaller tanks up to 15 cubic meters, while the GMS-15 suits larger oil and gas drilling installations up to 40 cubic meters. For intermediate sizes, the GMS-7.5 and GMS-11 provide graduated capacity options, ensuring there is a model suitable for every oil drilling application. Mud properties significantly affect agitator selection in oil and gas drilling.

High-density muds (above 12 pounds per gallon) require more power to maintain suspension than lighter fluids—a common distinction in oil and gas drilling, where mud density is tailored to specific well conditions. Muds with high solids content demand more aggressive mixing than freshly prepared batches. Share specific gravity ranges and solids percentages with suppliers to verify that proposed models can handle your oil drilling conditions.

Environmental factors influence equipment specifications for oil and gas drilling. Offshore oil drilling installations face salt spray and corrosive atmospheres requiring enhanced coating systems. Temperature extremes affect motor ratings and lubricant selections—important in both onshore and offshore oil drilling sites. Indoor versus outdoor installation impacts motor enclosure requirements, ensuring equipment can withstand the unique conditions of each oil drilling location.

Technical support access matters as much as initial equipment quality for oil and gas drilling operations. Verify suppliers maintain adequate spare parts inventory for critical wear items like seals, bearings, and impellers—essential for minimizing downtime in oil drilling, where even small equipment failures can disrupt operations. The GMS parts catalog includes detailed component breakdowns with specific part numbers, facilitating rapid identification and ordering when maintenance needs arise.

Lead time can have a big effect on oil and gas drilling job schedules. Standard configurations are kept in stock by GMS, and popular models can be delivered in one week. Compared to build-to-order manufacturing, which can take 6–8 weeks, this inventory-based method cuts down on delays—a crucial advantage in oil drilling, where project timelines are often tight, and delays can be costly. If you need replacements right away, check to see if there are any choices for faster shipping.

Conclusion

For drilling fluid management to work well in oil and gas drilling, the agitation equipment, the Agitator with a motor, ​​​​​​ must be reliable and keep the mud's properties the same throughout the process. Knowing how agitation systems work, from how the motor and gearbox interact to how the fluid moves around the impeller, helps you choose the right tools for oil drilling. The horizontal design method, shown by GMS models from 5.5kW to 15kW, mixes fluids well while making the best use of space on oil and gas drilling platforms.

Choose the right materials, do regular upkeep, and follow the right troubleshooting steps to make the agitator last longer and avoid costly downtime in oil drilling. To be successful at procurement, you need to make sure that the equipment you buy fits the needs of the oil and gas drilling project, that you look at the capabilities of the seller beyond the price, and that you build relationships with makers who are committed to long-term support through parts availability and expert assistance for oil drilling operations.

FAQ

1. What determines the appropriate power rating for a drilling mud tank agitator?

Tank volume and mud density represent the primary factors. Calculate your typical operating volume and share mud weight ranges with suppliers. The GMS-5.5 (5.5kW) suits smaller tanks with lighter muds, while the GMS-15 (15kW) handles larger volumes or heavier fluids. Proper sizing ensures adequate circulation without excessive energy consumption.

2. How often should gearbox oil be changed?

Change oil after the initial 100-300 operating hours to remove break-in particles, then every 2,500 hours or six months afterward. Use extreme-pressure gear oils meeting manufacturer specifications. Regular oil changes prevent premature gear wear and extend gearbox life significantly.

3. Can the agitator operate if mud has settled in the tank?

Starting against settled mud creates an excessive load that may damage the motor or gearbox. If the system has been idle long enough for solids to settle around the impeller, manually rotate the shaft or flush the area before starting. This precaution protects components from overload stress.

Partner with GMS for Reliable Mud Agitator Solutions

GMS brings over ten years of specialized experience supplying high-quality agitation equipment to oil and gas drilling operations worldwide. Our ISO 9001-certified manufacturing ensures every unit—from the compact Mud Agitator  GMS-5.5 to the robust GMS-15—meets rigorous quality standards for consistent, long-term performance. We maintain a substantial inventory of complete assemblies and spare components, including motors , impellers , and revolving assemblies, enabling rapid one-week delivery that keeps your projects on schedule. As a trusted mud agitator supplier, we provide comprehensive technical support throughout equipment selection, installation, and operational life. Contact our team at sales@gmssupply.com to discuss your specific tank configurations and mud properties, and receive expert recommendations tailored to your operational requirements. Our flexible solutions and responsive service ensure you secure the right equipment at competitive prices, backed by reliable after-sales support that protects your investment.

References

1. American Petroleum Institute. "Recommended Practice for Field Testing of Drilling Fluids." API RP 13B-1, Fourth Edition, 2019.

2. Bourgoyne, A.T., Millheim, K.K., Chenevert, M.E., and Young, F.S. "Applied Drilling Engineering." Society of Petroleum Engineers Textbook Series, Volume 2, 1991.

3. Chilingarian, G.V. and Vorabutr, P. "Drilling and Drilling Fluids." Developments in Petroleum Science, Volume 11, Elsevier Science Publishers, 1983.

4. Darley, H.C.H. and Gray, G.R. "Composition and Properties of Drilling and Completion Fluids." Gulf Professional Publishing, Fifth Edition, 1988.

5. Mitchell, R.F. and Miska, S.Z. "Fundamentals of Drilling Engineering." Society of Petroleum Engineers Textbook Series, Volume 12, 2011.

6. Rabia, H. "Oilwell Drilling Engineering: Principles and Practice." Graham & Trotman Publishing, 1985.
