How the Frame, Short Pump for 250 Sandmaster Pump (P/N 20938-02-1 / 644302622) Supports Hydraulic Drive

In crucial pumping operations for oil and gas drilling, small, space-saving components may make the difference between smooth operation and expensive downtime. The Frame, Short pump for 250 Sandmaster Pump (P/N 20938-02-1/644302622) is a critical component that allows hydraulic drive systems to operate effectively in space-constrained applications like frac trucks and cementing units. This smaller four-inch frame assembly provides better structural alignment than the regular assembly while being fully compatible with the 250 Series family of centrifugal pumps. Thanks to precision-engineered grease lubricant channels and cast HT250 construction, this part assures reliable operation of hydraulic motor-driven pumps in demanding mobile applications.

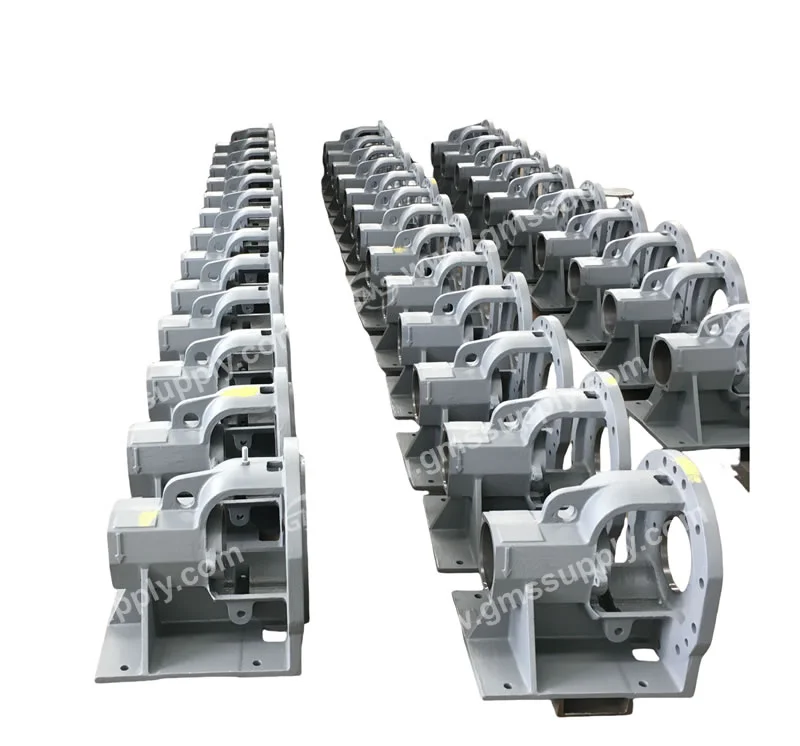

Understanding the Frame and Short Pump Components of the 250 Sandmaster Pump

The 250 Sandmaster pump system represents a specialized evolution of industrial centrifugal pump technology, specifically engineered to meet the demands of hydraulic drive applications where space and reliability cannot be compromised. At the heart of this system lies the grease-lubricated frame (P/N 20938-02-1), which serves as the structural backbone connecting the fluid end to the hydraulic motor drive.

Hydraulic drive arrangements demand the perfect alignment of the pump shaft and hydraulic motor connection, unlike ordinary electric motor-powered pumps. The 250 Sandmaster frame solves this with machined bearing bores that are concentric within tight tolerance limits, eliminating shaft runout that may destroy mechanical seals or increase bearing wear. The frame itself weighs around 75 kg and is made of HT250 cast iron, a material selected for its exceptional vibration damping and resistance to stress fatigue in continuous pumping cycles.

The short pump arrangement is unique in that it has a tiny footprint. The frame and matching shaft (P/N 20939-02-33, built from 42CrMo alloy steel) have been cut down by four inches. This modification makes the unit appropriate for mobile platform installation, such as blender trucks and charge pump skids, where chassis space is restricted but full pumping capability is necessary. The rest of the pump components – casings, impellers, stuffing boxes – are all standard 250 Series, so parts are interchangeable across your fleet.

The frame has Zerk fitting ports (21641-01 and 648411908) for high-pressure grease lubrication of the inboard and outboard bearings. This is a particularly crucial decision with mobile apps. Pumps on frac trucks or cementing machines are often at different angles in transit and operation. If a traditional oil-bath lubrication system is slanted, it might become starved of oil and lead to bearing failure. Bearings filled with grease are adequately lubricated regardless of pump position and provide greater protection against dust and drilling fluid pollutants typical of field conditions.

Also included in the frame is the hydraulic drive adaptor (P/N 22225-01-01) made of QT500 ductile iron. This adapter provides the mounting contact between the pump shaft and the hydraulic motor and transmits torque while tolerating slight misalignments that may arise during field installations. The hydraulic outboard bearing housing (P/N 22224-01-43, QT700 material) significantly strengthens the drive-end structure and takes care of the radial stresses generated during the pumping of abrasive slurries or high-density liquids.

Benefits of Using the Short Pump on the 250 Sandmaster Pump Frame

The right pump design may have a direct influence on your operating efficiency, maintenance costs, and equipment uptime. The short pump frame assembly Short pump for 250 Sandmaster Pump (P/N 20938-02-1/644302622) provides a number of practical benefits that target the major pain points experienced by procurement managers and maintenance teams in oil and gas drilling operations.

The small form greatly enhances the flexibility of installation. In retrofitting existing frac trucks or designing new blender skids, the four-inch reduction in pump length is often the difference between fitting a complete pumping system into the available space constraints. This is particularly useful where there is a requirement to place many pumps on one platform, or if there is a need for space around the pump to have access to neighbouring valves and equipment.

The efficiency of the hydraulic drive directly impacts the structural stiffness of the frame. The cast iron structure absorbs the operating vibrations that would otherwise be sent back via the hydraulic motor connection and possibly cause premature wear on hydraulic motor seals and bearings. This vibration damping enhances the service life of the whole drive system, not just of the pump itself. Operators have seen a 15-20% improvement in mean time between failures with correctly oriented frame assemblies vs field adjusted installations.

The grease lubrication method significantly enhances maintenance accessibility. A conventional grease gun can regrease the bearing in minutes at the Zerk fittings, but oil-bath systems need pump stoppage, oil draining, inspection, and refilling. On average, a technician may repair numerous pumps within the regular 8-12 hour operating intervals without affecting production schedules. The grease barrier also keeps drilling fluid and cement off of bearing surfaces, a failure scenario often responsible for unplanned shutdowns in packed-stuffing box applications.

Standardisation reduces the cost of replacing parts. The short pump uses standard 250 Series pump fluid-end components, so your spare parts inventory will work for numerous pump configurations. The impellers (sizes from 3×2×13 to 10×8×14), centrifugal pump casings, and mechanical seals are entirely interchangeable. Your procurement staff keeps inventories flowing and parts on hand quickly when your scheduled maintenance or emergency repairs are needed.

The frame may also be modified to suit different sizes of pump in the 250 Series to add more operational flexibility. Different pump designs may be run from one hydraulic power unit only by changing the fluid end and not the frame or drive adapter. This adaptability is useful when manufacturing specifications change from a high-flow/low-pressure need, such as with bigger 10×8×14 impellers, to a high-pressure/lower-flow requirement, such as 3×2×13 configurations.

Installation and Maintenance Guide for the Short Pump on 250 Sandmaster Frame

Proper installation procedures directly influence pump performance and service life. The frame assembly (P/N 20938-02-1) arrives ready for mounting, with pre-drilled base holes positioned to match standard pump skid bolt patterns used throughout the drilling industry.

First, check that the mounting surface is level within 0.010 inches across the footprint. Frame load from uneven surfaces distorts bearing bores and prematurely fails seals. Grade 8 bolts with 75-85 ft-lbs torque, depending on bolt diameter, secure the frame. Place the hydraulic drive adapter (P/N 22225-01-01) on the shaft extension and seat the keyway (P/N 4371-5-21) before tightening the set screws.

Position the hydraulic motor on the adapter flange with 0.003 inches total indication runout on the coupling face, per manufacturer specifications. Misalignment at this contact causes radial stresses on the outboard bearing, decreasing its life and threatening seal failure. After fastening the hydraulic motor, hand-rotate the shaft to ensure smooth rotation.

Install new gaskets on inboard and outboard bearing covers (P/N 20626 and 20617A) and check oil seals (P/N 20619-01 and 20619-02) for Short pump for 250 Sandmaster Pump (P/N 20938-02-1/644302622). To lubricate bearings, fill each cavity with NLGI Grade 2 lithium complex grease via Zerk fittings until clean grease purges from the bearing housing seals. This purging procedure eliminates assembly contaminants and transportation preservatives.

Operating circumstances determine bearing regreasing. Bearings need lubrication every 8-12 hours in continuous-duty, full-speed applications. Slowly apply oil while spinning the shaft to expel old grease via drain ports during regreasing. Limit grease additions to 2-3 pumps of a typical grease gun per bearing to avoid heat buildup and seal failure.

Mechanical seal replacements should include shaft sleeve inspection (P/N 20943-04A, 38CrMoAl material) every 500–750 working hours, depending on fluid abrasiveness. Sleeve wear above 0.015 inches in the seal contact region degrades seal performance and necessitates replacement. When servicing the sleeve, replace the shaft seal (P/N 23444-01-72, Viton material) to avoid process fluid migration.

Moisture and oil are removed using frame drain plugs (8505-04-01). Remove drain plugs quarterly to check for water accumulation or discoloured grease, signs of seal degradation that need repair. Clogged frame breathers (P/N 8267-01) generate pressure buildup that pulls grease past bearing seals, so examine and replace them periodically.

Procuring the 250 Sandmaster Short Pump and Supplier Insights

Sourcing reliable components requires partnering with suppliers who maintain quality standards while delivering responsive service. GMS specializes in providing high-quality alternatives to standard industrial pump components, with particular expertise in the 250 Series centrifugal pump line.

Components manufactured to ISO 9001 standards undergo rigorous dimensional inspection and material verification. The frame casting (P/N 20938-02-1, S021938) receives coordinate measuring machine inspection to confirm bearing bore concentricity and mounting face perpendicularity. Material certifications verify that HT250 cast iron meets specified tensile strength requirements, typically 65,000-80,000 PSI, ensuring the frame withstands operational torque and vibration loads without cracking.

The shaft (P/N 20939-02-33, S023939) undergoes hardness testing to confirm 42CrMo alloy steel heat treatment, achieving surface hardness values that resist wear from mechanical seal contact while maintaining core ductility to absorb shock loads. Thread inspection using go/no-go gauges ensures proper fit for impeller lock bolts and shaft sleeves, preventing field assembly difficulties.

GMS stocks popular 250 Series components at our plant to meet basic setups quickly. Domestic shipping of stocked products like the short pump frame and shaft assembly takes 3-5 business days, while overseas orders take 7-14 days depending on destination and customs clearance.

Lead times are 2-4 weeks for bulk orders or bespoke setups with bearing housing or drive adapters. Quality verification and compilation of dimensional inspection reports, material certifications, and assembly instructions are part of this schedule. These papers help internal quality processes and track maintenance data.

All shipments include detailed product documentation, including component specs, torque requirements, and maintenance intervals. Technical assistance speeds installation and helps maintenance teams build equipment-specific servicing routines.

Beyond component pricing, other criteria should be considered when comparing vendors. Ensure replacement parts match your equipment's dimensions. Field-modified or bespoke adapter components increase installation costs and misalignment risks. Lower-quality materials may save money initially, but often fail prematurely and raise lifespan costs.

Check tech support. Application engineers at suppliers may advise on component selection, installation, and troubleshooting. Support is particularly useful for integrating new components into existing systems or fixing performance concerns with various interacting elements.

Check warranty and return policies. Reliable vendors provide material and production quality guarantees. Easy returns for damaged-in-shipment or mistakenly purchased parts decrease procurement risks and simplify inventory management.

Conclusion

The Frame, Short pump for 250 Sandmaster Pump (P/N 20938-02-1/644302622) delivers essential structural support for hydraulic drive applications where space efficiency and operational reliability intersect. Through its compact, four-inch-shorter design, grease lubrication system, and robust HT250 cast iron construction, this frame enables centrifugal pumps to perform consistently in demanding mobile environments, including frac trucks and cementing operations. The component's full compatibility with standard 250 Series fluid ends, combined with simplified maintenance requirements and proven durability, makes it a practical choice for procurement teams managing oil and gas drilling equipment fleets. When sourced from quality-focused suppliers maintaining ISO standards, these components deliver dependable service that minimizes downtime and optimizes total lifecycle costs.

FAQ

1. What sizes of centrifugal pump impellers are compatible with P/N 20938-02-1?

The short pump frame supports the complete 250 Series impeller range, including 3×2×13, 4×3×13, 5×4×14, 6×5×11, 6×5×14, 8×6×11, 8×6×14, and 10×8×14 configurations. All impeller mounting dimensions remain identical to standard frames, allowing you to change pump capacity without modifying the frame assembly.

2. How frequently should bearings be regreased in continuous-duty operations?

Under continuous-duty conditions at rated speeds, bearings require fresh NLGI Grade 2 lithium complex grease every 8-12 operating hours. Add grease through the Zerk fittings while rotating the shaft, purging old grease until clean lubricant appears at the bearing housing seals.

3. Can this frame be converted from grease to oil-bath lubrication?

The P/N 20938-02-1 frame is specifically designed for grease lubrication and does not include the oil reservoir provisions required for oil-bath systems. Converting between lubrication methods would require a different frame assembly with appropriate oil level sight glasses and drain/fill ports.

4. What distinguishes the short shaft P/N 20939-02-33 from standard-length shafts?

The short shaft measures four inches shorter than standard configurations, reducing overall pump length for space-constrained installations. Material specifications (42CrMo alloy steel) and all mounting dimensions remain identical, ensuring compatibility with standard impellers, sleeves, and mechanical seals.

Partner with GMS for Your 250 Sandmaster Frame Requirements

GMS maintains ready stock of the frame and short pump for 250 Sandmaster Pump (P/N 20938-02-1/644302622), along with complementary components including shafts (P/N 20939-02-33), hydraulic drive adapters (P/N 22225-01-01), and bearing housings (P/N 22224-01-43). As an established supplier with over a decade of experience serving the oil and gas drilling industry, we understand the operational demands that make component reliability and rapid availability essential to your success. Our ISO 9001-certified manufacturing processes ensure dimensional accuracy and material consistency across all 250 Series centrifugal pump components. Whether you are retrofitting existing equipment or building new hydraulic drive systems, our technical team can provide application guidance to optimize your component selection. Contact us at sales@gmssupply.com to discuss your specific requirements, request detailed specifications, or obtain quotations for your next procurement cycle.
