Is Your Stuffing Box for 250 Centrifugal Pump Built for High-Pressure Use?

In the demanding world of oil and gas operations, centrifugal pumps face extreme conditions that test every component's durability and performance. The Stuffing Box for 250 Centrifugal Pump stands as a critical sealing component that directly impacts operational efficiency and safety. When high-pressure applications push equipment to its limits, the question becomes paramount: is your stuffing box engineered to withstand these challenging conditions? Understanding the construction, materials, and design specifications of your stuffing box determines whether your pump will maintain optimal performance under pressure or become a costly point of failure. The answer lies in recognizing that not all stuffing boxes are created equal – those designed for high-pressure applications incorporate advanced materials, precision engineering, and robust construction methods that enable them to handle extreme operating conditions while maintaining reliable sealing performance throughout their service life.

Understanding High-Pressure Requirements for Stuffing Box Applications

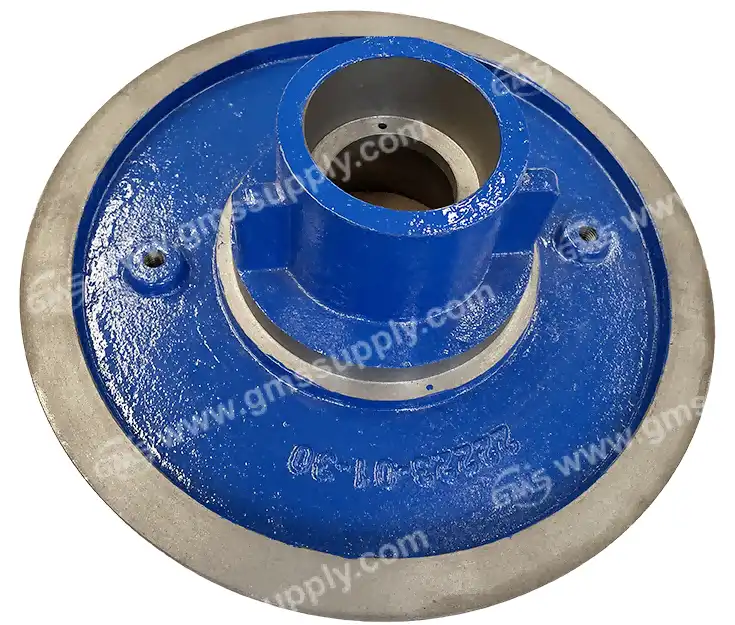

High-pressure applications in centrifugal pumps demand stuffing boxes that can withstand significant mechanical stress while maintaining effective sealing capabilities. The Stuffing Box for 250 Centrifugal Pump must be engineered to handle pressures that often exceed standard operating parameters, particularly in oil and gas drilling environments where system pressures can fluctuate dramatically. Key components such as the stuffing box ( MISSION/MCM OEM P/N 20614-01-30 P25SB/PK and 22223-01-30A P25SB/MS) variants are specifically designed to address these demanding conditions. The P25SB/PK model, designated as Stuffing Box F/Packing, utilizes traditional packing arrangements that create multiple sealing barriers, while the P25SB/MS variant, known as Stuffing Box F/Mech Seal, employs mechanical sealing technology for enhanced pressure resistance. These designs incorporate robust housing materials and precision-machined surfaces that maintain dimensional stability under extreme pressure conditions. The material selection process focuses on high-strength alloys and specialized coatings that resist corrosion and wear, ensuring long-term reliability even when subjected to aggressive fluids and high-pressure differentials that characterize modern drilling operations.

Material Engineering and Construction Standards for Pressure Resistance

The construction of a high-pressure Stuffing Box for 250 Centrifugal Pump requires careful attention to material selection and manufacturing processes that ensure structural integrity under extreme conditions. Premium-grade materials undergo rigorous testing to verify their ability to withstand both mechanical stress and chemical exposure commonly encountered in oil and gas applications. The MISSION P/N 20614-01-30 and 22223-01-30A models demonstrate this commitment through their use of specialized alloys that maintain strength characteristics across wide temperature ranges while resisting fatigue failures that can occur under cyclic pressure loading. Manufacturing processes incorporate precision machining techniques that achieve tight tolerances essential for effective sealing performance, while heat treatment procedures optimize material properties for maximum durability. The P25SB/PK and P25SB/MS variants utilize different sealing approaches, with the packing-based system relying on compression-resistant materials that maintain their sealing properties under high pressure, while the mechanical seal version employs hard-faced sealing surfaces that resist wear and maintain precise clearances. Quality control measures include pressure testing protocols that verify performance under conditions exceeding normal operating parameters, ensuring that each Stuffing Box F/Packing and Stuffing Box F/Mech Seal unit meets stringent reliability standards before deployment in critical applications.

Performance Optimization Through Advanced Design Features

Modern Stuffing Box for 250 Centrifugal Pump designs incorporate sophisticated engineering features that optimize performance under high-pressure conditions while extending service life and reducing maintenance requirements. The 20614-01-30 P25SB/PK model features enhanced packing chamber geometry that promotes even stress distribution, preventing localized pressure concentrations that could lead to premature failure. Similarly, the 22223-01-30A P25SB/MS variant incorporates advanced mechanical seal technology with spring-loaded sealing elements that automatically adjust to maintain optimal contact pressure as components experience thermal expansion and mechanical wear. These design improvements directly address the challenges of high-pressure operation by providing consistent sealing performance across varying operating conditions. The Stuffing Box F/Packing configuration utilizes multi-ring packing arrangements that create redundant sealing barriers, while the Stuffing Box F/Mech Seal system employs balanced seal designs that minimize the effects of system pressure on sealing force requirements. Thermal management features include heat dissipation channels and cooling fluid circulation paths that prevent excessive temperature buildup during high-pressure operation. These engineering innovations ensure that the stuffing box maintains its sealing effectiveness even when subjected to the extreme conditions typical of deep-well drilling, high-pressure injection systems, and other demanding applications where reliable performance is essential for operational success and safety compliance.

Conclusion

The capability of a Stuffing Box for 250 Centrifugal Pump to handle high-pressure applications depends fundamentally on its engineering design, material quality, and manufacturing precision. Through advanced construction techniques, premium materials, and rigorous quality control measures, modern stuffing boxes can reliably serve in the most demanding operational environments. The Stuffing box(MISSION/MCM OEM P/N 20614-01-30, 22223-01-30A, P25SB/PK, and P25SB/MS) variants represent the evolution of sealing technology that addresses the critical requirements of high-pressure pump applications while delivering the reliability and performance that modern industrial operations demand.

Ready to upgrade your pump's sealing performance? As a leading China Stuffing Box for 250 Centrifugal Pump factory, supplier and manufacturer, GMS provides comprehensive solutions for your high-pressure sealing needs. Our China Stuffing Box for 250 Centrifugal Pump wholesale options ensure cost-effective procurement while maintaining the highest quality standards. With ISO 9001 certification, over 10 years of industry experience, fast response times, large inventory, short lead times, excellent after-sales services, and flexible solutions, we stand ready to support your operational success. Whether you're managing TDS top drive system overhaul, equipment repair, maintenance services, or new installations, GMS delivers the quality and reliability your operations demand. Contact us today at sales@gmssupply.com to discuss your specific requirements and discover how our premium stuffing box solutions can enhance your pump's performance and reliability in high-pressure applications.
