MANIFOLD ASSY CLAMP CYLINDER 118511 Supplier List in China – Verified & Direct-from-Factory Options

Finding reliable suppliers for the MANIFOLD ASSY CLAMP CYLINDER 118511 in China requires careful evaluation of manufacturers who understand the critical role this component plays in top drive systems. This comprehensive supplier guide connects drilling operators with verified manufacturers offering direct-from-factory pricing, quality certifications, and technical expertise in producing replacement parts for NOV TDS systems. Whether you're managing drilling operations or sourcing spare parts for maintenance programs, understanding your options among China-based suppliers ensures you receive quality components that meet operational requirements while maintaining cost efficiency.

Understanding the Role of MANIFOLD ASSY CLAMP CYLINDER 118511 in Top Drive Systems

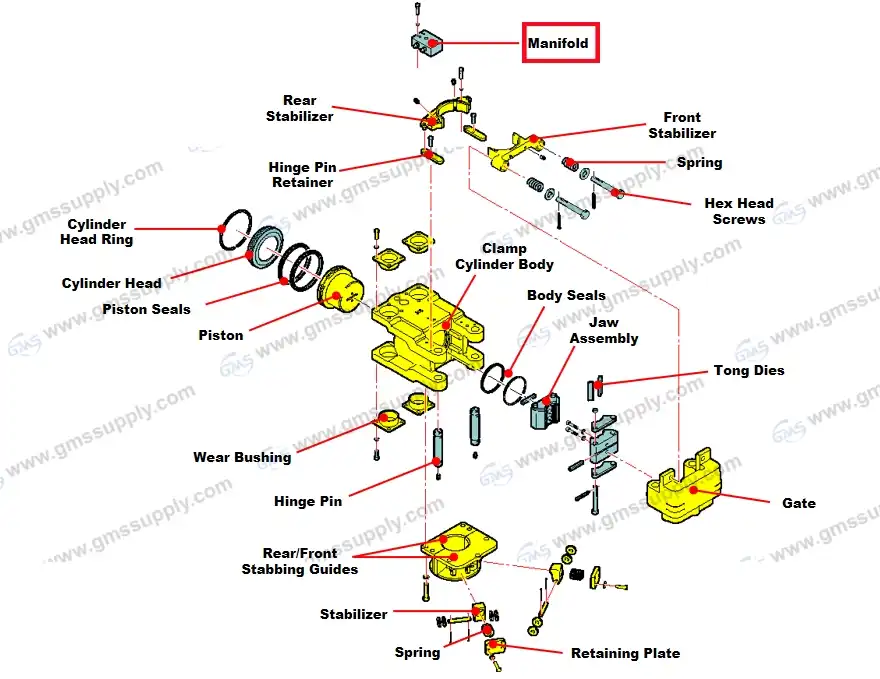

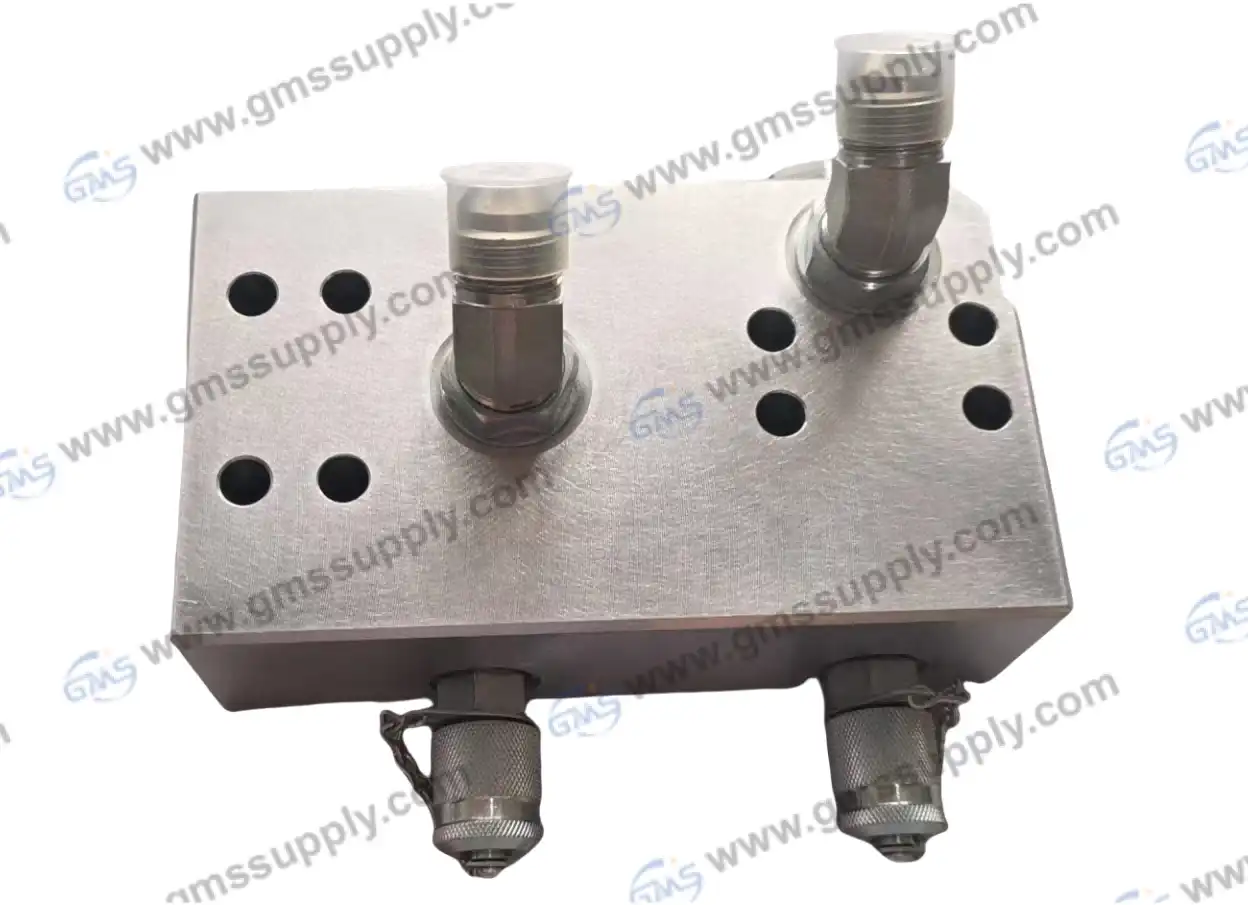

The MANIFOLD ASSY CLAMP CYLINDER 118511 serves as a critical hydraulic control component within top drive drilling systems, particularly in NOV VARCO TDS models including TDS-10SA, TDS-9SA, and TDS-11SA configurations. This manifold assembly integrates with the pipe handler's clamp cylinder mechanism, directing hydraulic pressure to enable the precise gripping and releasing actions necessary during tubular handling operations. Within the hydraulic circuit, the manifold coordinates pressure distribution to ensure the clamp cylinder maintains adequate holding force on drill pipe connections while the torque wrench performs makeup and breakout operations. The assembly typically operates at system pressures around 1000 psi, though specific applications may vary depending on rig configuration and operational parameters. Given the demanding offshore and onshore drilling environments where top drive systems operate continuously, the MANIFOLD ASSY CLAMP CYLINDER 118511 must withstand repeated pressure cycles, exposure to drilling fluids, and the mechanical vibrations inherent in rotary drilling operations. Quality replacement parts for this component directly impact operational reliability, as manifold failures can result in inability to properly handle tubulars, leading to non-productive time and potential safety concerns on the rig floor.

Criteria for Evaluating China MANIFOLD ASSY CLAMP CYLINDER 118511 Suppliers

When assessing potential China MANIFOLD ASSY CLAMP CYLINDER 118511 suppliers, procurement managers should prioritize several key evaluation criteria to ensure they partner with manufacturers capable of delivering reliable replacement components. Manufacturing capability assessment begins with verifying the supplier's machining precision equipment, as manifold assemblies require tight tolerances to maintain proper sealing and pressure control within hydraulic systems. ISO 9001 certification provides foundational evidence of quality management systems, though suppliers serving the oil and gas sector should demonstrate additional understanding of oilfield equipment specifications. Production capacity matters particularly for operators maintaining multiple rigs or planning preventive maintenance programs requiring inventory of critical spares. Lead time capabilities separate suppliers who maintain ready stock from those manufacturing only upon order confirmation, with implications for emergency replacement scenarios. Material traceability becomes essential when components must withstand corrosive drilling environments, requiring suppliers to document the specific alloy compositions and heat treatment processes applied to manifold bodies and connection ports. Technical support availability distinguishes suppliers who merely sell parts from those who provide engineering assistance for installation, troubleshooting, and compatibility verification with existing top drive hydraulic systems. After-sales service commitments, including warranty terms and response protocols for component failures, reflect supplier confidence in their manufacturing quality and willingness to support customer operations beyond the initial transaction.

Technical Specifications and Compatibility Considerations

Proper replacement of the MANIFOLD ASSY CLAMP CYLINDER 118511 requires attention to hydraulic specifications, port configurations, and mounting dimensions that ensure compatibility with the specific TDS top drive variant installed on your drilling rig. Port sizing and thread specifications must match the existing hydraulic connections to the clamp cylinder and system supply lines, as mismatched fittings can create leak paths or restrict flow sufficient to compromise clamp holding force. Pressure ratings stamped on replacement manifolds should meet or exceed the maximum system pressure of your top drive hydraulic power unit, with appropriate safety factors for pressure transients during rapid valve cycling. Material selection affects both chemical compatibility with your hydraulic fluid type and corrosion resistance in offshore environments where salt spray may contact exposed surfaces. Some China MANIFOLD ASSY CLAMP CYLINDER 118511 suppliers offer upgraded seal packages using modern elastomer compounds that provide extended service life compared to original equipment sealing materials, particularly beneficial for rigs operating in elevated temperature conditions. Dimensional verification becomes critical when sourcing from alternate suppliers, as mounting bolt patterns, overall envelope dimensions, and actuator attachment points must align precisely with the existing pipe handler torque wrench assembly. Reputable China manufacturers provide detailed dimensional drawings and can confirm interchangeability with specific NOV part numbers, helping procurement teams avoid costly ordering errors that result in parts requiring modification or proving unusable upon arrival at the rig site.

Global Machinery Supply Co., Ltd. – Your Trusted Partner for TDS Components

Global Machinery Supply Co., Ltd. has established itself as a professional China MANIFOLD ASSY CLAMP CYLINDER 118511 supplier specializing in top drive spare parts for the oil and gas drilling industry. With more than fifteen years of focused experience in drilling machinery supply, GMS understands the critical nature of top drive system components and the operational impact when essential parts like the MANIFOLD ASSY CLAMP CYLINDER 118511 fail during drilling operations. The company's product portfolio specifically addresses NOV VARCO TDS models including TDS-11SA, TDS-9SA, and related configurations, ensuring deep familiarity with the technical requirements and interchangeability considerations relevant to these widely deployed top drive systems. GMS maintains comprehensive quality control throughout the manufacturing process, holding ISO 9001 certification that demonstrates commitment to systematic quality management from raw material procurement through final inspection and customer delivery. The company's technical team provides engineering support to help customers verify component compatibility, interpret dimensional specifications, and troubleshoot installation or performance concerns that may arise with replacement manifold assemblies. Inventory management at GMS emphasizes maintaining stock availability or very short lead times for frequently requested components, recognizing that drilling contractors often require rapid parts delivery to minimize non-productive time when equipment failures occur. Beyond product supply, GMS offers after-sales service support addressing warranty claims, technical questions, and ongoing consultation as customer relationships develop over multiple procurement cycles and expanding parts requirements as drilling fleets grow or equipment configurations evolve.

Conclusion

Selecting appropriate suppliers for the MANIFOLD ASSY CLAMP CYLINDER 118511 significantly impacts both operational reliability and maintenance cost management for drilling operations utilizing NOV VARCO top drive systems. China-based manufacturers offer compelling alternatives to original equipment suppliers, delivering compatible replacement components at substantially reduced costs while maintaining quality standards suitable for demanding oilfield applications. Successful procurement requires careful supplier evaluation, technical specification verification, and quality assurance protocols ensuring received parts meet dimensional, material, and performance requirements.

As a professional China MANIFOLD ASSY CLAMP CYLINDER 118511 factory, supplier and manufacturer, Global Machinery Supply Co., Ltd. invites drilling contractors, equipment distributors, and maintenance organizations to explore our comprehensive offerings for top drive system components. With over fifteen years of specialization in TDS spare parts, ISO 9001 certification, extensive inventory for fast delivery, short lead times, and dedicated after-sales support, GMS delivers reliable solutions tailored to your operational requirements and budget parameters. Whether you need China MANIFOLD ASSY CLAMP CYLINDER 118511 wholesale quantities for fleet maintenance programs or MANIFOLD ASSY CLAMP CYLINDER 118511 for sale for individual rig requirements, our flexible approach ensures you receive appropriate technical solutions at competitive MANIFOLD ASSY CLAMP CYLINDER 118511 price points. Contact our technical sales team at sales@gmssupply.com today to discuss your specific component requirements, receive detailed quotations, and discover how GMS can become your trusted partner for quality top drive replacement parts that keep your drilling operations running efficiently.
