MISSION MAGNUM XP Centrifugal Pump 14X12X22 IMPELLER

When purchasing managers in oil and gas drilling operations have to deal with MISSION MAGNUM XP Centrifugal Pump tough fluid transfer problems, the MISSION MAGNUM XP Centrifugal Pump stands out as a dependable worker made to handle large amounts of rough slurry. This pump is designed to work in tough conditions, such as with corrosive fluids or sand-filled mixes. It provides reliable performance in situations where business stability is essential. We at GMS Supply offer high-quality new impellers and parts that are exactly the same as the original MISSION MAGNUM XP design. This way, we can keep your equipment running at its best while keeping costs low over its lifetime. Our ISO 9001-certified parts give procurement workers a reliable option that helps keep important industrial settings running.

MAGNUM XP IMPELLER 14X12X22  24024-X0-HS

Understanding the Core Design of High-Performance Blender Pumps

The type of material determines how long a pump will last in rough conditions. When pumping proppant-filled slurries that are typical in frac activities, the high chrome alloy construction gives it great wear resistance.

The shape of the volute case makes it easier to convert fluid movement to pressure energy while keeping turbulence to a minimum. This design choice lowers the loads on the radial bearings and increases the life of the mechanical seals, two things that have a big effect on repair plans. The semi-concentric volute design strikes a balance between producing pressure and wearing out slowly. This is a useful solution that increases the time between rebuilds in the field. The sizes of the suction and outflow flanges are designed to keep the flow rates at their best, which lowers the risk of cavitation damage during high-output operation.

Operational Advantages That Impact Your Bottom Line

When hydraulic design is efficient, less brake horsepower is needed MAGNUM XP IMPELLER 14X12X22 24024-X0-HS for the same flow rates. This efficiency lowers the amount of electricity used over longer pumping cycles, which is important to think about when equipment is running all the time during digging missions. Lowering the power draw also lowers the temperature stress on the motor windings, which increases the life of the motor and lowers the need for extra cooling.

How fast maintenance teams can fix things during short operating windows depends on how easy it is to get to parts. The MISSION MAGNUM XP design makes it easy to change the impeller without taking the whole pump apart. This cuts down on the time needed for planned maintenance. Standardised mounting sizes and flange shapes make it easier to keep track of parts inventory. This lets maintenance teams keep important wear parts on hand without spending too much on specialised spares.

Technical Specifications That Matter to Procurement Teams

Understanding key specs helps people who buy things match the powers of tools to the needs of operations. The MISSION MAGNUM XP Centrifugal Pump line comes in a number of different versions to meet the needs of different applications.

Available Impeller Configurations

GMS Supply keeps a stock of the most popular MISSION MAGNUM XP fan sizes, which lets them ship parts quickly:

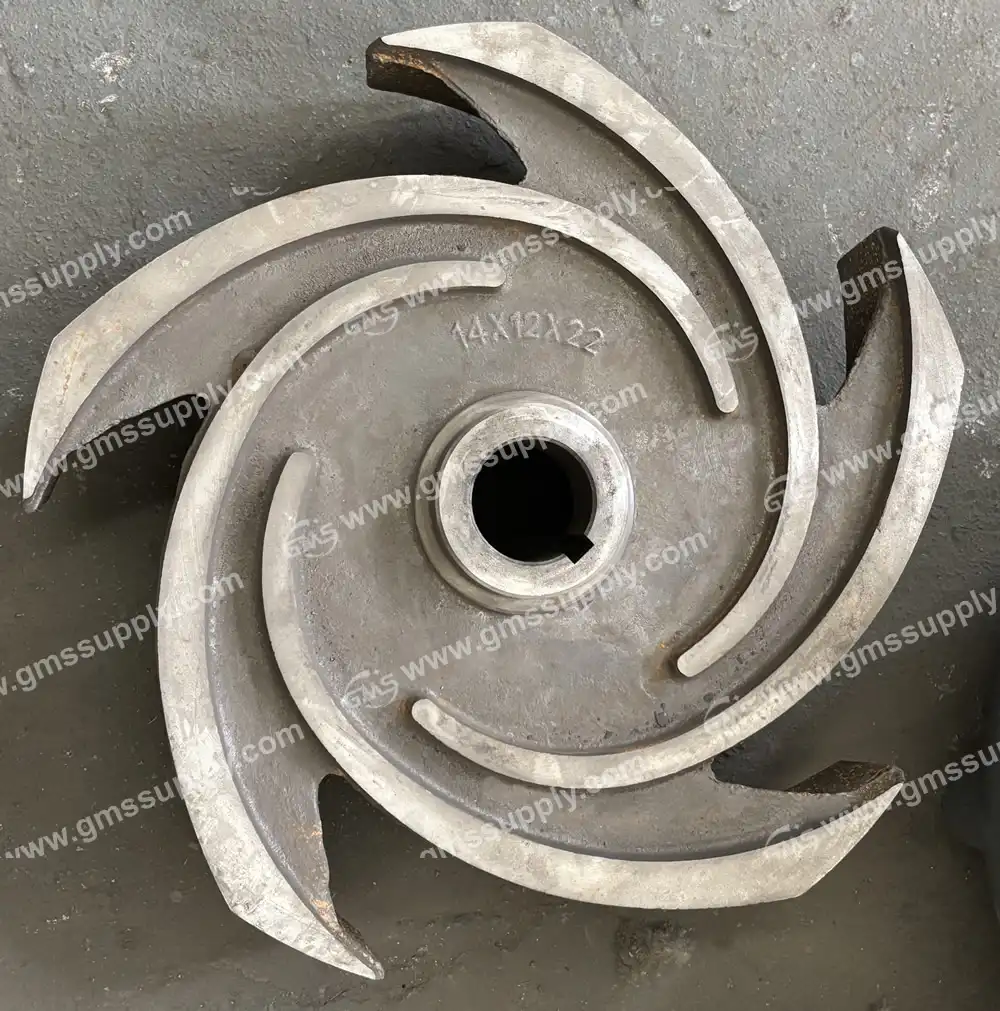

• The 14x12x22 design (GMS P/N GMSXP22I, similar to 24024-X0-HS P/N 662005003) has a 14-inch diameter for suction, a 12-inch diameter for release, and room for a 22-inch impeller diameter for the most flow. This size is good for blenders that need flow rates close to 7,500 GPM.  MAGNUM XP IMPELLER 14X12X22 24024-X0-HS
• The 12x10x23 configuration (GMS P/N GMSXP23I, similar to 25010-Y0-30 P/N 662005002) has a slightly lower capacity but still works very efficiently. It's good for situations where room or power limits bigger frame sizes.
• The 8x6x18 configuration (GMS P/N GMSXP18I, similar to 25292-T0-30 P/N 662005018) is used for tasks that need modest flow rates and small installation spaces. This is often the case for support fluid transfer jobs.

Every GMS fan goes through a strict quality check to make sure it is the right size and the same metal throughout. Our production process is ISO 9001-certified and includes laser emission spectrometry analysis to check the amounts of chromium and carbon, which ensures the abrasion resistance meets the requirements. Coordinate measuring machine checking confirms important tolerances, making sure that the parts fit correctly onto existing pump pedestals without any modifications. These quality control steps get rid of the matching worries that can come up when buying modified parts.

Pressure Ratings and Operating Parameters

Working pressures can reach 300 to 500 PSI, based on the type of flange and how it is configured. This is enough to handle the release pressures that happen in the blender service. The need for a low Net Positive Suction Head lowers the risk of cavitation. This is especially important when drawing from storage bins that are open to the air or when there is suction lift. Knowing these factors helps engineers choose the right pump configurations when they are looking to replace or buy new equipment.

Strategic Procurement Considerations for Replacement Components

When looking for important MISSION MAGNUM XP Centrifugal Pump parts, procurement workers have to weigh a lot of different factors. Lead time, quality assurance, expert help, and the total cost of landing all play a role in choosing a provider.

GMS Supply has a lot of the in-demand MISSION MAGNUM XP spare impellers and cases in stock, so they can ship them within a week of receiving an order. This inventory position takes into account how quickly pumps need to be fixed in drilling operations, where downtime for equipment can throw off project schedules. Our stocking approach is based on the configurations that are most often used in drilling activities in North America. This way, we can make sure that you have what you need when you need it most.

To avoid expensive field changes, replacement parts must be able to easily match dimensions. Coordinate measuring tools are used by our manufacturing partners to check the flange bolt circles, base mounting dimensions, and stuffing box concentricity. These are the important measures that show if a new part can be installed without any changes needing to be made. This careful attention to size removes the need for extra work and delays that can happen when aftermarket parts are made incorrectly.

Our team has more than ten years of experience helping with drilling operations and giving expert advice on choosing the right parts. We put a high value on responsive communication, whether you're checking part number cross-references, material specifications, or wait time choices for large orders. The support doesn't stop with the sale; there is help available for startup questions or assistance with fixing problems.

Extending Pump Service Life Through Proactive Maintenance

Systematic upkeep is needed for even the toughest MISSION MAGNUM XP Centrifugal Pump tools to work at their best and last as long as possible. Knowing the basics of repair helps operations teams get the most out of the money they spend on tools.

Visually checking the wear patterns on the pump housing and impeller on a regular basis lets you know when erosion is speeding up. In many cases, inspection plans are tied to working hours or the amount of fluid that is pumped. This lets maintenance teams find wear patterns that aren't normal before they lead to a catastrophic failure. By keeping an eye on the changes in discharge pressure during operation, you can see how performance slowly decreases as internal gaps open up due to wear.

Keeping a planned inventory of spare parts helps balance the risk of business risk with the cost of capital investment. Businesses that handle a lot of goods usually keep at least one full set of impellers on hand for important pump sizes. This makes it possible to change the impellers quickly during planned repair times. Casing inventory varies on how fast it wears out in different service conditions. For example, operations that pump high concentrations of solids may need more casing stock than clean fluid uses.

Strange sound patterns, sudden drops in pressure,MAGNUM XP IMPELLER 14X12X22 24024-X0-HS, or strange noises during operation are often signs that mechanical problems are starting to show up. Getting expert support early on helps find the root causes before they cause more damage. GMS gives maintenance teams tips to help them tell the difference between normal wear patterns and problems that need to be fixed right away.

Why Industrial Buyers Choose GMS for Critical Pump Components

The relationship with the provider goes beyond the purchase. People who work in procurement look for partners who understand the pressures they are under and can provide them with solid goods and services.

Our ISO 9001 certification shows that we are committed to managing quality consistently throughout our supply chain. This approval isn't just paperwork; it's a set of organised steps that make sure every part meets the standards before it's shipped. After working in the industry sector for ten years, we have a better idea of what procurement teams need: accurate scientific information, realistic lead times, quick communication, and parts that do what they're supposed to do.

Our inventory depth takes into account how quickly MISSION MAGNUM XP Centrifugal Pump repairs need to be done in digging activities. When equipment breaks down and projects are behind schedule, having a lot of high-demand options in stock means shorter wait times. Our supply chain is set up to act quickly, with quick delivery of key parts that keep your operations running, being our top priority.

What makes us different is that we can tailor our answers to your exact needs. We change how we do things to help you succeed, whether you need fast shipping to get to a remote drilling site, specific material certifications for project paperwork, or expert help choosing the best configuration for your special service conditions.

Conclusion

In conclusion, the MISSION MAGNUM XP Centrifugal Pump gives businesses the performance they need to deal with rough slurries and move large amounts of fluid in tough conditions. It is the best choice for oil and gas drilling because it is well-built, has an efficient hydraulic design, and has been used reliably in the field. GMS Supply helps keep your equipment running by giving you high-quality new impellers and parts that are made to the same specs as the originals. They offer ISO 9001 quality assurance and quick expert support. We are your trusted partner for important pump parts because we have been in the business for ten years, have a large inventory, and are committed to short wait times.

FAQ

1. What sizes of impellers does GMS have in stock for MAGNUM XP pumps?

The three most popular sizes that we keep in stock are the 14x12x22 (GMS P/N GMSXP22I), the 12x10x23 (GMS P/N GMSXP23I), and the 8x6x18 (GMS P/N GMSXP18I). These sizes are perfect for most blender uses in oil and gas drilling, so they can be quickly filled from stock.

2. How does GMS make sure that new parts will work with old equipment?

During the production process, we use a coordinate measuring machine to check important dimensions like the designs of the flange bolts, the footprints for the base mounting, and the concentricity of the stuffing boxes. This level of accuracy in measurements means that parts can be installed without having to be changed in the field. This cuts down on installation time and eliminates worries about fitting.

3. What kind of material requirements do GMS impellers have to meet?

Our impellers are made from a high-chromium metal that meets the requirements of ASTM A532 Class III. This metal has great resistance to wear in sand-filled environments like those found in drills.

4. How long do teams that buy things usually have to wait?

Items that are in stock usually ship within a week of proof of the order. Because pump repairs in drilling activities need to be done quickly, our inventory approach is based on high-demand designs.

Partner with GMS Supply for Reliable MISSION MAGNUM XP Centrifugal Pump Components

Maintenance teams and procurement managers trust GMS Supply to provide new impellers and other parts for their MISSION MAGNUM XP Centrifugal Pump that have been tested and proven to work in the field. Email our team at sales@gmssupply.com to talk about your particular needs, get technical specs, or get prices for single units or large orders. Our large collection, quality methods that are ISO 9001-certified, and ten years of experience in the field make sure that you get the right parts when you need them. Oil and gas drilling teams are under a lot of practical pressure. That's why we've set up our business to provide reliable parts and service that keep your equipment running.
