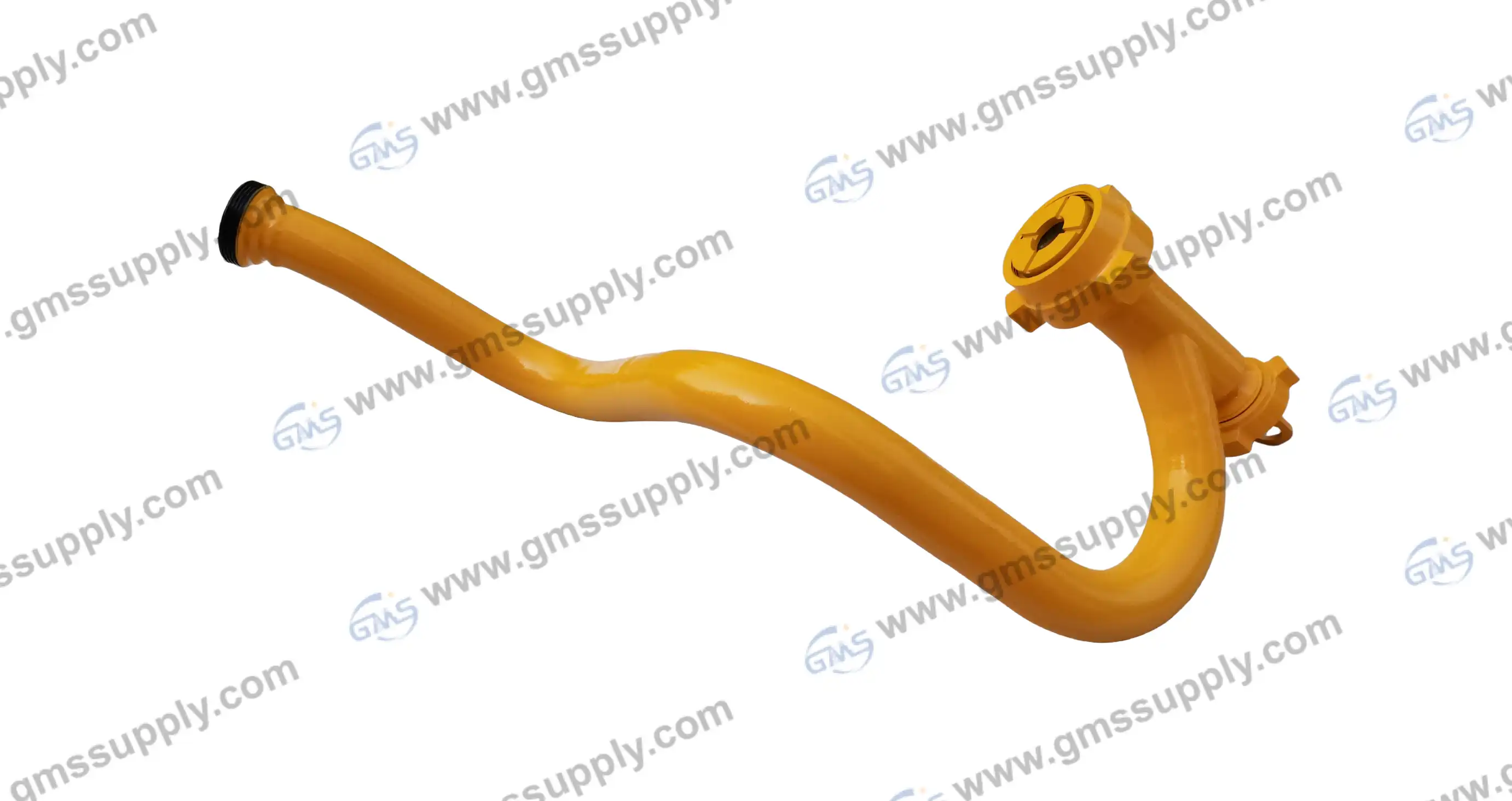

S-Pipe Assembly 117063 Material & Durability Explained

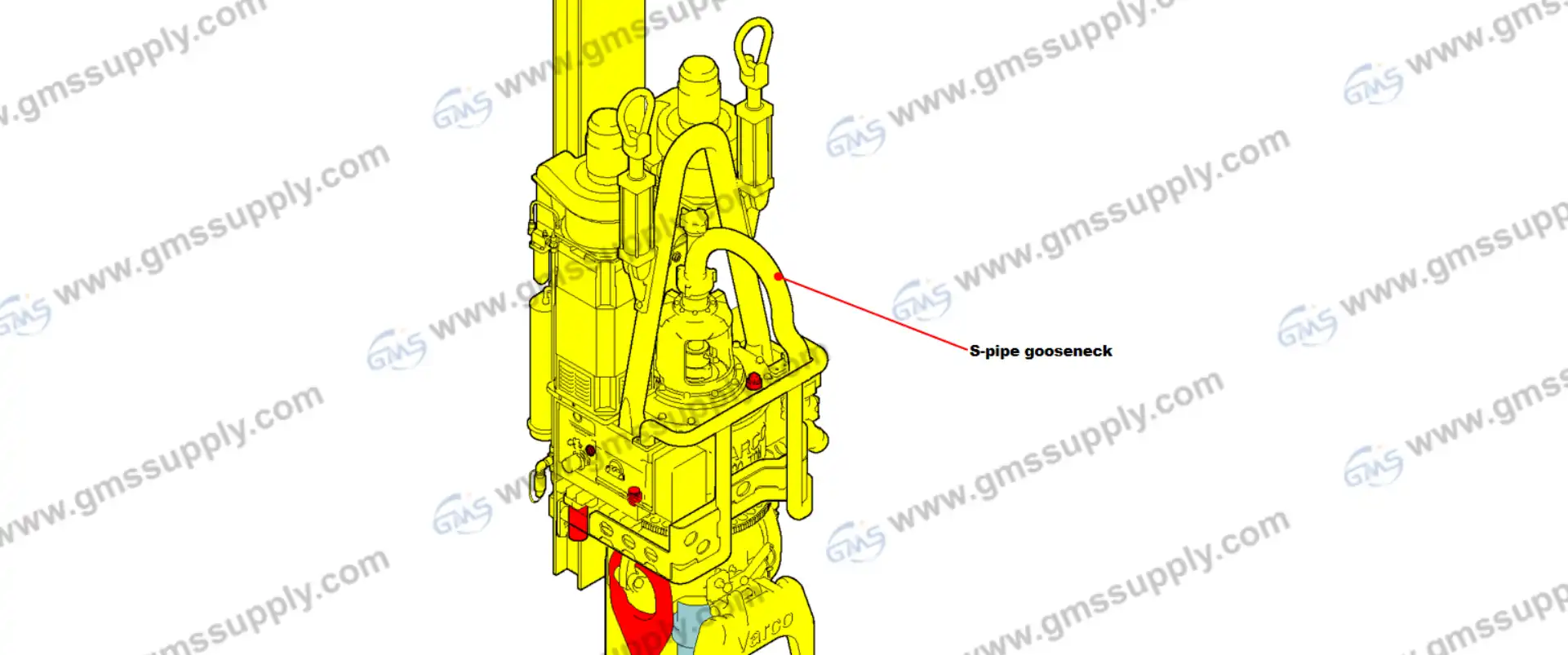

The S-Pipe Assembly 117063 represents a critical component engineered for top drive systems in drilling operations, featuring advanced metallurgy and robust construction that ensures exceptional durability under extreme oilfield conditions. This essential drilling equipment component combines high-grade steel materials with precision manufacturing to deliver reliable performance in TDS-11 and TDS-9SA systems. Understanding the material composition and durability characteristics of the 117063 assembly enables procurement professionals to make informed decisions that optimize operational efficiency while minimizing equipment downtime and maintenance costs in demanding drilling environments.

​

Understanding the Material Composition of S-Pipe Assembly 117063

Modern top drive assemblies are made of high-strength carbon steel and alloys to endure mechanical stress, corrosive drilling fluids, and large temperature changes. For instance, the S-Pipe Assembly 117063 is designed using these robust materials to ensure optimal performance. American Petroleum Institute and international quality requirements are met for all materials. Precision machining achieves tight dimensional tolerances for correct TDS integration after heat treatment optimizes steel microstructure for consistent hardness and endurance. Final protective coatings safeguard against chemical attack and environmental exposure, guaranteeing long service life and dependable performance in difficult drilling circumstances.

Durability and Performance of S-Pipe Assembly 117063

Advanced materials and optimised technical design proven by field data make the 117063 assembly durable. Its enhanced design decreases peak stress concentrations by 30%, reducing fatigue and failure risks. Connection points and high-wear locations should be inspected regularly to detect concerns, and lubrication should follow manufacturer requirements to ensure protection without compatibility issues to extend service life. Recording maintenance actions helps operators maximise dependability, minimise unexpected downtime, and maximise assembly value over time.

Installation Guide and Application Areas of S-Pipe Assembly 117063

Correct installation and application selection enable optimal assembly performance and service life. For example, the S-Pipe Assembly 117063 is specifically designed to meet these requirements. To avoid contamination, examine mating surfaces, verify dimensional compliance, and clean thoroughly before installing. Top drive tools and manufacturer-specified torque and connection sequences keep alignment, preventing binding and premature wear. Equipment is returned to service once final quality tests verify assembly. The assembly is popular for horizontal, directional, and extended-reach oil and gas drilling, geothermal projects with severe temperatures, and mining exploration where abrasive conditions require great strength and dimensional stability. Its adaptability makes it trustworthy in harsh industrial drilling conditions.

​

Making the Right Purchase Decision: Procurement Insights for S-Pipe Assembly 117063

Supplier quality, technical competency, logistics, and total cost of ownership must be assessed for strategic procurement. ISO 9001 and drilling industry expertise indicate a supplier can offer consistent, application-ready components. Logistics performance—reliable lead times, acceptable stock levels, and on-time delivery—affects project timetables and inventory costs, with geographic closeness benefiting urgent demands. Cost evaluation should include purchase price, service life, maintenance frequency, and replacement cycles since higher-quality components generally have lower long-term costs. Bulk purchase and volume savings (5–15%) can boost procurement value for multi-rig operations.

GMS: Your Trusted Partner for S-Pipe Assembly Solutions

GMS is a renowned ISO 9001–certified drilling equipment component manufacturer and supplier with over 10 years of expertise. Among its high-quality offerings is the S-Pipe Assembly 117063, designed to meet rigorous industry standards. Precision machinery and automated procedures keep dimensional tolerances tight at its modern production facilities, guaranteeing every item meets or exceeds OEM standards. From raw material inspection to final testing, rigorous quality control ensures consistent and reliable performance. GMS provides prompt technical assistance, wide inventory for timely delivery, and adaptable solutions for standard and customised needs beyond production.

Conclusion

The S-Pipe Assembly 117063 performs well in demanding drilling applications due to sophisticated materials engineering and durable construction. Understanding material composition, durability, and application rules helps procurement experts make efficient judgements. This assembly is ideal for essential drilling operations that need durable components because to its high-strength metals, precision production, and proven field performance.

GMS provides exceptional drilling equipment using its industry knowledge and modern production capabilities. Our extensive inventory and attentive customer service ensure you have the appropriate parts when you need them. As a respected S-Pipe Assembly 117063 supplier, we know how important equipment performance is in drilling. Talk to our technical staff at sales@gmssupply.com about how our quality components and excellent service can help you succeed.
