Sandmaster Pump Shaft 20939-02-33  Installation and Maintenance Guide

Keeping your centrifugal pumps running efficiently in demanding oil and gas operations depends heavily on the condition of critical rotating components. The Sandmaster Short Frame Pump Shaft 20939-02-33 serves as the backbone of your pump system, transferring power from the drive unit through precision-engineered bearings while withstanding intense pressure, abrasive slurries, and corrosive environments. Understanding proper installation procedures and scheduled maintenance protocols of the Sandmaster Short Frame Pump Shaft 20939-02-33 can reduce unplanned downtime, extend component lifespan, and protect your capital investment in fluid handling equipment.

​​​​

​​​

Understanding Sandmaster Pump Shafts: Features and Functions

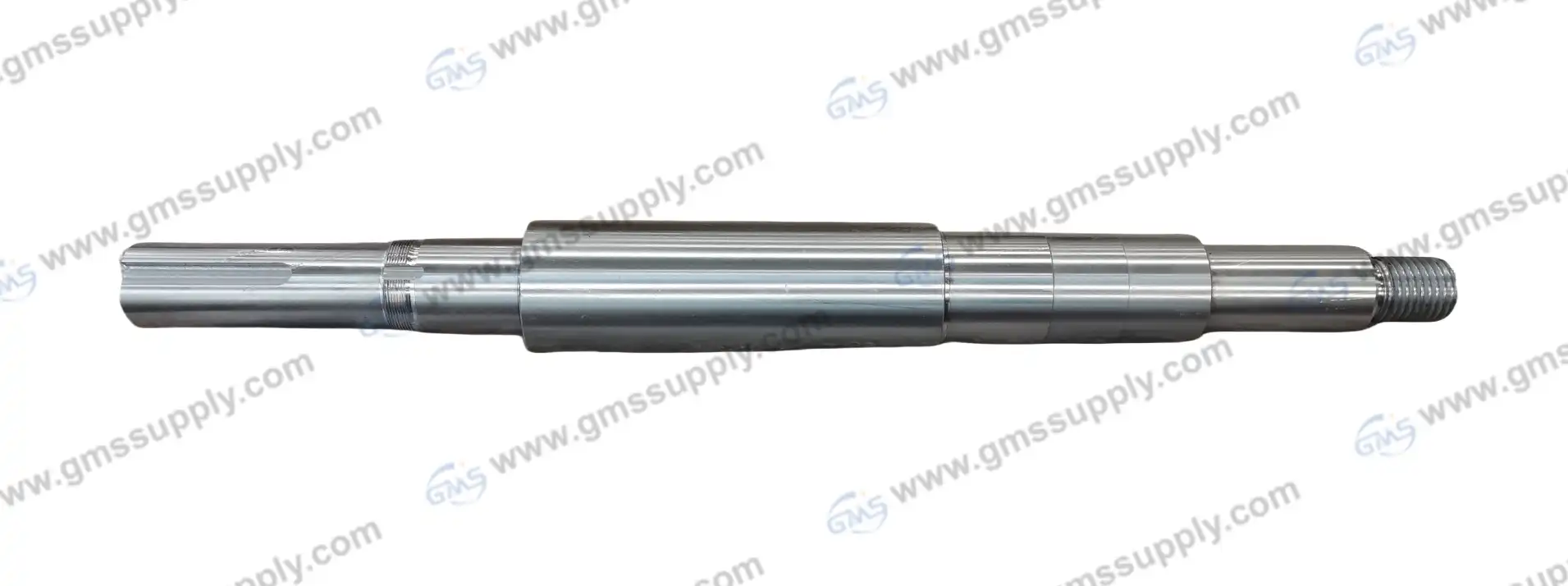

The Sandmaster Short Frame Pump Shaft 20939-02-33 represents a specialized solution for space-constrained installations. This component carries part number S023939 (compatible with MISSION P/N 20939-02-33) and is manufactured from 42CrMo alloy steel, selected specifically for its exceptional tensile strength and fatigue resistance under cyclic loading conditions. What sets this shaft design apart is its compact geometry—shortened by four inches compared to standard configurations—making it particularly valuable for mobile applications such as oilfield frac trucks, blending systems, and charge pump installations where equipment footprint presents real constraints. Despite the reduced length, the engineering maintains full structural integrity and torque transmission capabilities across pump sizes ranging from 3×2×13 through 10×8×14 configurations. The 42CrMo material specification delivers superior performance characteristics that matter in real-world drilling operations. This chromium-molybdenum alloy provides excellent through-hardening properties, meaning the shaft maintains consistent strength from surface to core rather than just surface hardness. When your pump encounters sudden pressure spikes during cementing operations or handles abrasive-laden fluids during solid control processes, this material composition resists both immediate failure and gradual degradation that shortens service intervals. Sandmaster centrifugal pumps adapted for hydraulic motor drives rely on precise shaft dynamics to maintain seal integrity and bearing alignment. The shortened shaft geometry reduces deflection under load, which translates directly to longer seal life and reduced maintenance frequency—critical factors when equipment operates in remote locations where service calls carry high cost and logistical complexity.

Step-by-Step Installation Instructions for Sandmaster Pump Shafts

Proper Sandmaster Short Frame Pump Shaft 20939-02-33 installation begins well before any tools touch components. Prepare a clean workspace free from abrasive contaminants that could damage precision-machined surfaces during assembly. Review the pump model specifications to confirm compatibility—while most short pump components interchange with GMS-250/MCN 250 assemblies, always verify part numbers match your specific configuration. Check the bearing journals for any shipping damage, nicks, or corrosion that could cause premature bearing failure. Verify keyway dimensions meet specifications, and threads show no damage. Replace any components showing wear, corrosion, or damage—installing a new shaft into worn housings or with degraded bearings wastes the investment in replacement parts. Begin by installing bearings onto the shaft using appropriate installation tools that apply force to the bearing inner race only. Position the shaft assembly into the short pump frame, ensuring the hydraulic drive adapter aligns correctly. The compact design of Sandmaster pumps demands careful attention during this step—four inches less working length means tighter tolerances and less room for angular misalignment. Use feeler gauges to verify parallel alignment before securing mounting bolts. Before connecting the hydraulic drive or pumped fluid lines, perform a thorough operational check. Rotate the shaft manually to verify smooth rotation with no binding or unusual resistance. Check bearing preload meets specifications—excessive preload generates unnecessary heat, while insufficient preload allows damaging play. Install coupling guards and verify all safety shields are in position before proceeding to powered operation.

Maintenance Best Practices for Sandmaster Pump Shafts

Establishing a maintenance schedule for your Sandmaster Short Frame Pump Shaft 20939-02-33 based on actual operating conditions rather than arbitrary calendar intervals maximizes both reliability and cost-effectiveness. Pumps handling abrasive slurries in oil drilling applications experience different wear patterns than those in blending or water well charging services. Visual inspection during daily walk-throughs catches many issues before they escalate into failures. Look for evidence of leakage around shaft seals, which indicates either seal wear or shaft surface damage. Increases of twenty percent or more from baseline measurements suggest developing imbalance or misalignment issues that affect shaft loading. Lubrication represents the most critical maintenance task for extending shaft and bearing life. Use lubricants specified for this shaft in your operating environment—high-temperature grease for hot service, moisture-resistant formulations for outdoor installations exposed to weather. Shaft failures typically stem from predictable causes. Fatigue cracks develop when operating loads exceed design parameters or when corrosion creates stress concentration points. Fretting wear appears at press-fits when insufficient interference allows micro-motion between components. Shaft wear at seal contact areas indicates either abrasive contamination in seal chambers or improper seal selection for the application.

Procuring Sandmaster Pump Shafts: Where and How to Buy

Sourcing replacement Sandmaster Short Frame Pump Shaft 20939-02-33 from qualified suppliers ensures you receive parts meeting original specifications rather than inferior substitutes that compromise reliability. GMS has specialized in fluid handling equipment components for over a decade, serving oil and gas operations, engineering construction projects, and industrial facilities requiring dependable pump parts with predictable delivery schedules. The short frame Sandmaster pump shaft (GMS P/N S023939, compatible with MISSION P/N 20939-02-33), manufactured from 42CrMo alloy steel, maintains dimensional accuracy and material properties matching equipment requirements. ISO 9001 certification backing the manufacturing process provides documented quality assurance that matters when procurement decisions must satisfy both engineering specifications and corporate standards. Lead time represents a critical factor when equipment downtime directly impacts production revenue. Maintaining an inventory of common wear components enables a rapid response—stock items typically ship within one week of order placement. This responsiveness reduces the pressure to maintain excessive on-site spare parts inventory while ensuring replacement components arrive before extended equipment outages affect operations. Technical support during component selection prevents costly errors. Pumps operating across the range from 3×2×13 through 10×8×14 configurations share many interchangeable components, such as the Sandmaster Short Frame Pump Shaft 20939-02-33, but subtle differences exist. Confirming part compatibility before ordering eliminates delays caused by incorrect parts and the administrative burden of returns and reorders. Volume purchasing provides economic advantages for operators managing multiple pump installations or distributors serving regional markets. Bulk orders benefit from pricing considerations while ensuring parts consistency across your equipment fleet. Custom specifications can be accommodated when unique operating conditions or legacy equipment require dimensional or material variations from standard configurations.

Conclusion

Maintaining Sandmaster centrifugal pump systems through proper Sandmaster Short Frame Pump Shaft 20939-02-33 installation and preventive maintenance directly impacts your operational efficiency and cost structure. The compact design of short frame configurations brings performance capabilities to space-constrained applications, while the 42CrMo shaft construction delivers durability under demanding conditions. Following systematic installation procedures, maintaining scheduled inspections, and sourcing quality replacement Sandmaster Short Frame Pump Shaft 20939-02-33 from experienced suppliers like GMS protects your equipment investment and minimizes unplanned downtime that disrupts production schedules.

FAQ

1. What material is the Sandmaster short frame pump shaft made from?

The shaft carries GMS part number S023939 (compatible with MISSION P/N 20939-02-33) and is manufactured from 42CrMo chromium-molybdenum alloy steel. This material provides excellent tensile strength, fatigue resistance, and through-hardening properties essential for withstanding the cyclic loading and harsh environmental conditions typical in oil drilling and fluid handling applications.

2. How often should I perform maintenance on Sandmaster pump shafts?

Maintenance frequency depends on operating conditions, but quarterly alignment checks and monthly visual inspections represent good baseline practices. Monitor bearing temperatures, vibration levels, and seal condition during daily operations. Pumps handling highly abrasive fluids or operating continuously may require more frequent attention than intermittent-duty applications in less demanding service.

3. What advantages does sourcing through authorized channels provide?

Working with established suppliers like GMS ensures part authenticity and comprehensive aftersales support. ISO 9001 manufacturing certification provides traceability and quality assurance. Reliable inventory and short lead times reduce emergency procurement costs while after-sales support helps troubleshoot installation or performance issues.

Partner with a Trusted Sandmaster Pump Shaft Supplier

GMS delivers the replacement Sandmaster Short Frame Pump Shaft 20939-02-33 your operations depend on, backed by ISO 9001 quality certification and over ten years of industry experience. Our short frame Sandmaster pump shaft (P/N S023939), manufactured from premium 42CrMo alloy steel, provides reliable performance matching your operational requirements. Large inventory holdings and efficient logistics ensure one-week lead times on stock items, minimizing equipment downtime. Contact our technical team at sales@gmssupply.com for detailed Sandmaster Short Frame Pump Shaft 20939-02-33 specifications, volume pricing, or application assistance. We're committed to supporting your operations with dependable components and responsive service that reduces your total cost of ownership.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
