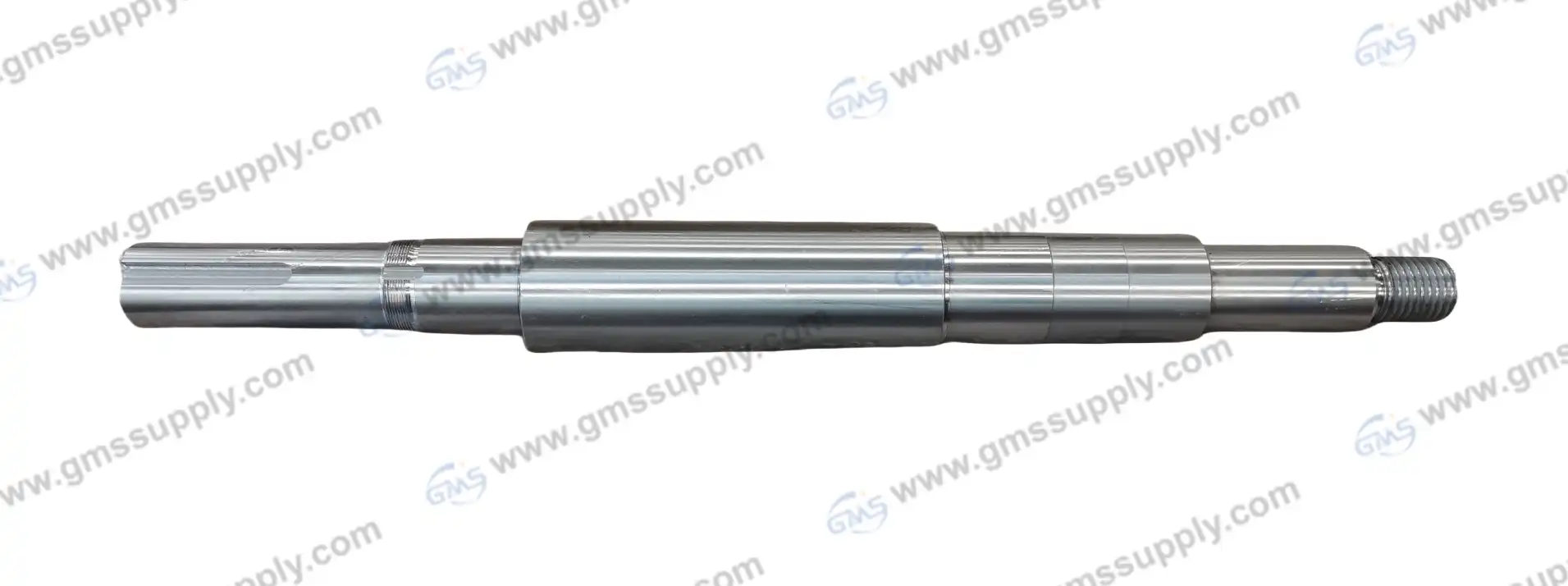

Short Frame Pump Shaft 20939-02-33 Uses & Advantages

The 20939-02-33 short frame pump shaft represents a specialized mechanical component designed for compact centrifugal pump systems(used in MISSION SANDMASTER PUMP) in oil and gas drilling operations. This precision-engineered drive shaft delivers reliable torque transmission while maintaining optimal performance in space-constrained applications. The rotating shaft connects the motor drive to the centrifugal pump impeller, enabling efficient fluid handling in demanding industrial environments. Its shortened frame design offers significant advantages over standard configurations, particularly in mobile drilling units where equipment footprint matters. Understanding the specific uses and benefits of the 20939-02-33 short frame pump shaft can help procurement managers make informed decisions for their fluid handling systems.

Core Applications of the Short Frame Pump Shaft

The 20939-02-33 short frame pump shaft is used in many oil and gas fluid handling systems for tasks like filling, charge pump service, water transfer, drilling mud movement, and hydraulic fracturing. It moves high-density mud with cuts and chemicals through centrifugal pumps in drilling uses. It can handle radial loads from changes in density, and its small size makes it ideal for remote sites with limited room. During fracking operations, it helps blender and charge pump systems work by transferring high torque during quick load spikes and protecting against wear from sand slurries. During the sealing process, the 20939-02-33 short pump shaft adapts to changes in the viscosity and density of the slurry while staying perfectly aligned to avoid bond failures. When there are more than one stage, this part drives charge pumps and keeps the low-pressure fluid flow fixed to prevent cavitation and reduce shaking. It can safely move both clean and treated created water for water transfer, and it fits compact skid-mounted units. In systems for blending and mixing, the shaft moves the impellers to mix chemicals evenly. The systems are designed to be smooth to run and stable in size, so they keep the right clearances and mix chemicals efficiently all the time. This helps keep oilfield activities safe and running smoothly.

Key Advantages of the Short Frame Design

The 20939-02-33 short frame pump shaft design makes better use of space by cutting the overall length of the pump by four inches compared to standard frames. This is especially important for mobile applications that have to follow weight and transport rules, as it lets contractors use deck space more effectively and improves vehicle balance. Its smaller and lighter design makes it easier to move around, but it still has the power needed for tough jobs. This helps keep shipping costs low by keeping equipment within normal shipping measurements. The shorter shaft also makes repair easier to reach, as it's easier to change bearings and work on mechanical seals in the tight areas that are common on drilling skids. Additionally, the short frame design of the 20939-02-33 short frame pump shaft works better with hydraulic motor drives, which gives equipment designers more options for power transfer plans without affecting pump performance.

Material Properties and Quality Assurance

High-quality chromoly alloy steel (42CrMo) is used in the 20939-02-33 short pump shaft(used in MISSION SANDMASTER PUMP), and it is subjected to optimized heat treatment to achieve an ideal balance of strength, toughness, and fatigue resistance for demanding oilfield operating conditions. This well-thought-out choice of materials gives great wear resistance in the cycling and shock loading conditions that are common in oil and gas activities, where equipment is constantly started and stopped and pressures change. Precision grinding of the bearing plates keeps the concentricity within 0.002 inches. This reduces instability and allows for smooth, vibration-free operation at up to 3,500 RPM. During production, strict quality control measures are used, such as a careful study of the chemical makeup and a check of the dimensions using advanced coordinate measuring machines (CMM) to make sure they are within the acceptable ranges set by the designers. This lowers the risk of 20939-02-33 short pump shaft's surprising breakdowns and increases the total service life in tough field circumstances.

Conclusion

The 20939-02-33 short pump shaft delivers essential performance advantages for space-constrained oil and gas operations. Its compact design, superior material properties, and proven reliability make it an optimal choice for drilling mud systems, fracturing operations, and various fluid handling applications. The component's versatility across multiple pump configurations, combined with its enhanced portability and maintenance accessibility, provides significant operational benefits. Understanding these uses and advantages enables procurement professionals to make informed decisions that optimize equipment performance while controlling operational costs.

FAQ

What distinguishes the 20939-02-33 from standard pump shafts?

The primary difference lies in the overall length and bearing journal spacing. The 20939-02-33 short pump shaft features a shortened design specifically engineered for compact pump frames, reducing overall assembly length while maintaining structural integrity and performance capabilities.

How does shaft material affect operational reliability?

The chromoly alloy steel construction provides superior fatigue resistance compared to standard carbon steels. The specific heat treatment achieves optimal hardness levels that balance wear resistance with toughness, preventing brittle failure under shock loads.

What maintenance practices extend shaft service life?

Regular bearing lubrication, proper shaft alignment, and routine runout measurements help maximize component life. Monitoring vibration levels can identify developing problems before they cause shaft failure or damage to associated components.

What causes premature shaft failure in pump applications?

Common failure modes include operation against closed discharge valves, contamination in bearing lubrication systems, and misalignment during installation. Proper operating procedures and regular maintenance prevent most premature failures.
