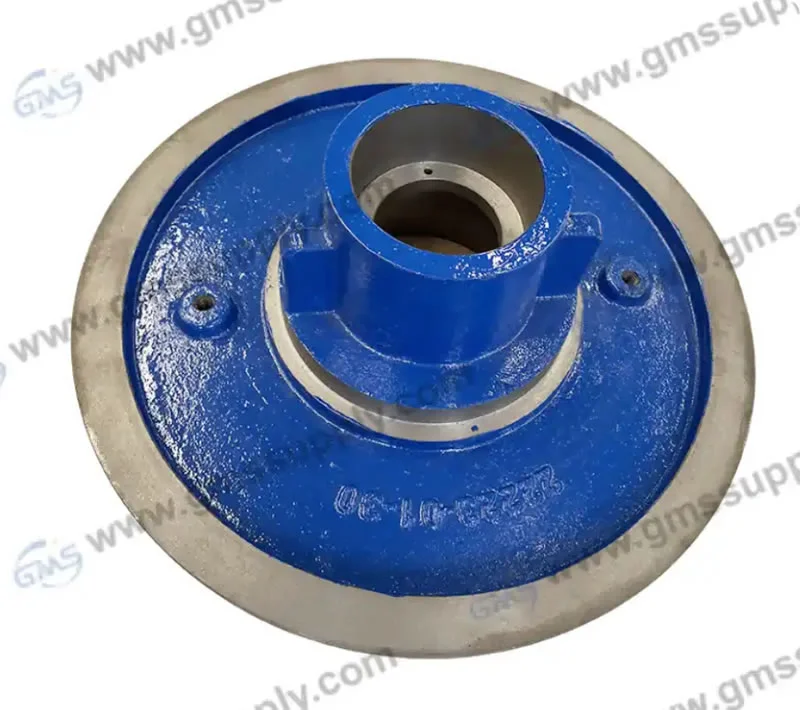

Stuffing Box Mechanical Seal 22223-01-30 P25SB/MS: Zero-Leak Performance

When industrial processes need complete sealing integrity, the Stuffing box mechanical seal 22223-01-30 P25SB/MS provides it. It is a leak-proof solution designed for environments with a lot of fluid handling. This mechanical seal housing (P/N 22223-01-30) is made to be a direct replacement part for 250 series centrifugal pumps. It gives procurement managers and maintenance engineers the precise sealing they need to avoid costly downtime and environmental compliance issues. This part works with Mission Magnum, Mission Supreme 2500, and other related pump configurations that have a 2.50-inch shaft diameter. It is the perfect combination of manufacturing precision and operating stability that B2B buyers today expect from their industrial supply partners.

Understanding the P25SB/MS Mechanical Seal Design and Core Functionality

The 250 stuffing box with the Stuffing box mechanical seal 22223-01-30 P25SB/MS is used for something very different from the packing-based version (P/N 20614-01-30 P25SB/PK). Most packing boxes use compressed rope to make a seal around the spinning shaft. The mechanical seal housing, on the other hand, has precision-machined sides that can fit either a single or double mechanical seal. In terms of technology, this change in form is a big step forward in fluid control strategy.

When we make this part at GMS, we make sure that the seal hole stays concentric within 0.002 inches, which has a direct effect on how well the seal face lines up and how long it lasts. The inside is shaped in a way that makes the flush ports work better, which helps heat escape and keeps the seal faces from breaking down during continuous use. The housing is made of high-tensile ductile iron and has been treated to resist corrosion. It can handle the harsh chemicals used in oil and gas drilling, such as drilling fluids, completion brines, and process chemicals.

The mounting interface is carefully machined to make sure a hermetic static seal against the pump frame. On the critical sealing faces, the surface finish must be Ra 63 or better. This careful attention to manufacturing detail gets rid of any possible leak lines that could damage the stability of the system. For more than ten years, we've been supplying these parts to businesses all over North America. We've seen that the right housing choice and installation directly affect the mechanical seal service life, often extending operational intervals from months to years when quality seal assemblies are used.

Addressing Installation Challenges and Maintenance Considerations

Even the most carefully designed parts can have problems working if they are installed incorrectly or if the environment is not in the right conditions. When buying, workers look at the total cost of ownership; they should know that the P25SB/MS stuffing box for the 250 Series Centrifugal Pump wears down in predictable ways.

The most common installation mistake we've seen from customer feedback is the pump shaft not being lined up with the seal bore. When the mounting face of the stuffing box isn't perfectly parallel to the centerline of the shaft, it causes seal face runout, which wears out both the rotating and stationary seal parts too quickly. Before installation, we suggest using a straightedge and a feeler gauge to make sure the mounting surface is flat. Any deviations should not be more than 0.001 inches across the diameter.

Particulate getting in behind the mechanical seal is another problem that needs to be fixed often. When drilling fluids contain sand, barite, or formation cuttings, solids can build up in the seal chamber if they are not flushed properly. The smooth surfaces of both the seal and the housing bore are worn down by these rough particles. Our P25SB/MS design has larger flush ports that make it easier for solids to escape. However, workers must keep up with the right flush flow rates—usually 2 to 5 gallons per minute, but this depends on the fluid—to get the most out of this design benefit.

Several key signs should be the focus of routine inspections. By looking at the mounting face for rust pits or damaged gasket grooves, you can find out early on if the static seal might fail. Checking the seal hole for wear or a score can help you figure out when the housing needs to be replaced. We have proof that proper installation, proper flushing, and alignment verification can extend the housing's useful life beyond five years in typical oil drilling pump applications. This saves a lot of money because the housing doesn't have to be replaced as often when installation mistakes are avoided.

Material Selection and Performance Characteristics

The 250 stuffing box's performance range and service life in harsh industrial settings are directly affected by the metals that make it up. We make the P25SB/MS housing at GMS out of ductile iron that meets the requirements of ASTM A536 Grade 65-45-12. This gives us the best combination of mechanical strength, castability, and cost-effectiveness for mass production.

This choice of material is better at resisting impact than grey iron options. This is an important quality for pump systems that are subject to vibration and shock loading during start-up and shutdown processes. The ductile iron matrix can handle mechanical stress without cracks spreading, which is a way that lower-quality casts fail when they use the wrong base materials. The minimum tensile strength of 65,000 psi ensures that the housing stays structurally sound even when the bolt loads are used to get the right sealing compression.

Another important success factor is chemical defence. Our housings have an anti-corrosion treatment that protects them from the pH changes that happen in drilling muds and finishing fluids. The pH can go from very acidic to very basic, based on the features of the formation and the chemicals that are added. This protective layer makes parts last longer in places where untreated casts would break down quickly.

The thermal properties of ductile iron make it easy for heat to move from the seal contact to the frame around the pump. This helps keep the temperature of the seal face within safe working ranges. Too much heat production, which is often caused by not enough lubrication or face loading, speeds up seal wear and can cause a catastrophic failure. Our housing material's ability to conduct heat well makes it a passive cooling system that works with active flushing systems.

Through our ISO 9001-certified production process, we keep full track of all of our materials and can provide Material Test Reports on request for customers who need proof that our products meet the requirements of their purchase for the 250 Series Centrifugal Pump. This framework for quality assurance gives procurement professionals peace of mind that every housing unit meets the chemical and mechanical performance standards needed for their jobs.

Strategic Procurement Approaches for Industrial Seal Components

To effectively source important pump parts, you need to know how the supply chain works, how lead times can change, and how total costs affect more than just unit prices. GMS has been a supplier to the North American business market for more than ten years, so they have come up with buying solutions that work with the real-world problems that B2B buyers face.

Maintenance managers whose job it is to keep unexpected downtime to a minimum are most concerned with the availability of their inventory. The P25SB/MS stuffing box is always in stock at our distribution center, so standard orders can be delivered in one week. We're committing to this inventory because we know that when a pump fails, long procurement cycles don't work. For example, when a seal housing breaks, operations need new parts right away, not in six to eight weeks.

Operators who are in charge of multiple pump setups or who know they will need to repair pumps on a regular basis can save money by using bulk purchasing programs. When you place an order of five units or more, you can switch to a volume price tier. These tiers offer savings that represent the practical benefits of consolidated shipping and lower transaction overhead. These programs are set up to work with the way that drilling contractors, service companies, and facility maintenance departments like to buy things. These groups like to keep a strategic inventory of important wear parts on hand.

Technical help during the buying process is what sets experienced sellers apart from distributors of simple parts. Our team helps buyers confirm that parts will work together before they buy them by verifying their dimensions. This is especially helpful when the documentation for existing equipment is missing or unclear. We've avoided many possible ordering mistakes by looking over customer requests and advising them on the right stuffing box type (mechanical seal vs. packing) based on how their pump is set up.

International transaction capabilities make it easier for Canadian operators and multinational companies that manage fleets of equipment across North America to buy things across borders. We accept orders in US dollars and offer standard payment options such as wire transfer, corporate credit accounts for approved buyers, and flexible payment plans that work with the buying habits of big businesses.

Why Procurement Professionals Choose GMS for Critical Sealing Components

There are more than just technical specs on a datasheet that need to be looked at when choosing a supplier for important parts like mechanical seal housings. In the last ten years, GMS has built a name for itself in the industrial equipment market by being reliable, quick to respond, and genuinely dedicated to helping customers run their businesses.

Because we are ISO 9001 certified, you can be sure that every stuffing box we make, including Stuffing box mechanical seal 22223-01-30 P25SB/MS, goes through the same quality control steps. According to engineering standards, dimensional inspection protocols check that the bore is concentric, the mounting face is flat, and the bolt circle is accurate. Verification of the materials shows that the casting makeup meets ASTM requirements. This methodical approach to quality management gets rid of the variation that leads to problems with compatibility and early failures, which is something that purchasing managers have unfortunately seen happen with sellers who aren't as strict.

We can find and fix the small design details that make the difference between good components and great ones, thanks to the manufacturing knowledge we've gained over thousands of production runs. In our P25SB/MS design, the larger flush ports, the optimised wall thickness distribution that balances strength and weight, and the surface finish specifications on critical sealing faces are all examples of engineering improvements made through customer feedback and processes for continuous improvement.

Customers who are responsive give you a competitive edge. This is especially true for procurement and maintenance managers who have had problems with suppliers who see questions as interruptions instead of chances to provide value. We quickly answer technical questions, process quotes within 24 hours, and stay in touch with you throughout the whole order fulfilment process. This service promise shows that we know that your decision to buy includes more than just the part itself. It also includes trust that we'll be there for you during the whole process of buying and beyond.

Our strategy for keeping parts in stock directly addresses the need for speed that comes with unplanned maintenance. We avoid the pain of being told "it's on backorder" when you need a part right away by keeping high-demand things like the 250 stuffing box in stock. We built our business model around the fact that operationally, downtime costs a lot more than the extra cost of getting parts faster.

Authenticity and traceability of products add another layer of value. Each part comes with a clear part number label and, if asked, material certifications that show it meets all the standards that apply. This paperwork helps with your internal quality management needs and gives you the audit trail that you may need for maintenance records and legal compliance.

Conclusion

The Stuffing box mechanical seal 22223-01-30 P25SB/MS is an important purchase for improving the dependability of centrifugal pumps used in oil and gas drilling and industry fluid handling. Because it is made of durable ductile iron, was carefully planned, and works with standard 250 series pump designs, it is an important part of repair programs that aim to stop leaks and make equipment last longer. Procurement professionals can improve the performance of sealing systems while keeping the total cost of ownership low by choosing the right products, installing them correctly, and working with a responsive supplier who keeps an inventory on hand. The information in this guide about technical specs, material properties, and design features helps you make smart buying choices that support operating excellence and equipment reliability in tough industrial settings.

FAQ

1. Can the mechanical seal stuffing box be used in pumps that already have packing in them?

To switch from packing to mechanical seals, you need to get a new packing-style stuffing box (P/N 20614-01-30) and a mechanical seal type (P/N 22223-01-30). The sizes of the internal bores are different for these designs. For example, the mechanical seal housing doesn't have the lantern ring groove that you'll find in packing boxes, and it needs to be made with very exact measurements so that the seal face can line up. This conversion update usually has big practical benefits, like getting rid of leak streams, lowering shaft wear, and extending the time between maintenance visits.

2. Which models of pumps can handle this particular stuffing box setup?

The P25SB/MS housing fits directly onto 250 series centrifugal pumps with 2.50-inch shaft diameters. This includes the Mission Magnum, Mission Supreme 2500, and similar models made by MCM, Halco, Mattco, and other companies. The pilot diameter (where the housing attaches to the pump frame) and the seal bore specifications are what dimension compatibility checks are mostly about. When equipment paperwork isn't clear, our technical team can help with application proof.

3. What causes a stuffing box to break down too quickly?

Most of the time, accelerated wear is caused by a misaligned pump shaft that puts too much stress on the seal faces, not enough flush flow that lets abrasive particles build up, or chemical attack from fluids that are not compatible. Vibrations caused by cavities can also put stress on the housing mounting interface. Proper installation with confirmed alignment, the right flush system design, and confirmation of material compatibility greatly extends the service life of components beyond the normal time between replacements.

Partner with GMS as Your Trusted Stuffing Box Mechanical Seal Supplier

When your operations need reliable sealing parts that are available right away and have quick technical support, GMS has the complete answer that buying professionals and maintenance managers need. As a supplier of Stuffing box mechanical seal 22223-01-30 P25SB/MS with ten years of experience, we can help you meet your equipment reliability goals with our ISO 9001-certified manufacturing, ready-to-ship inventory, competitive bulk pricing, and knowledge of the industry. Our team knows how hard it is for you to run your business, so we've set up our company to give you the quick response and reliable product quality that your needs. Email our sales team at sales@gmssupply.com to get a full quote, talk about how you want your pump to be set up, or set up fast delivery for urgent needs. When you need to buy something, we're ready to help you with the professionalism and dependability that keep your business running.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
