Top 5 Uses of E11417 RTD PT in Temperature Control Systems

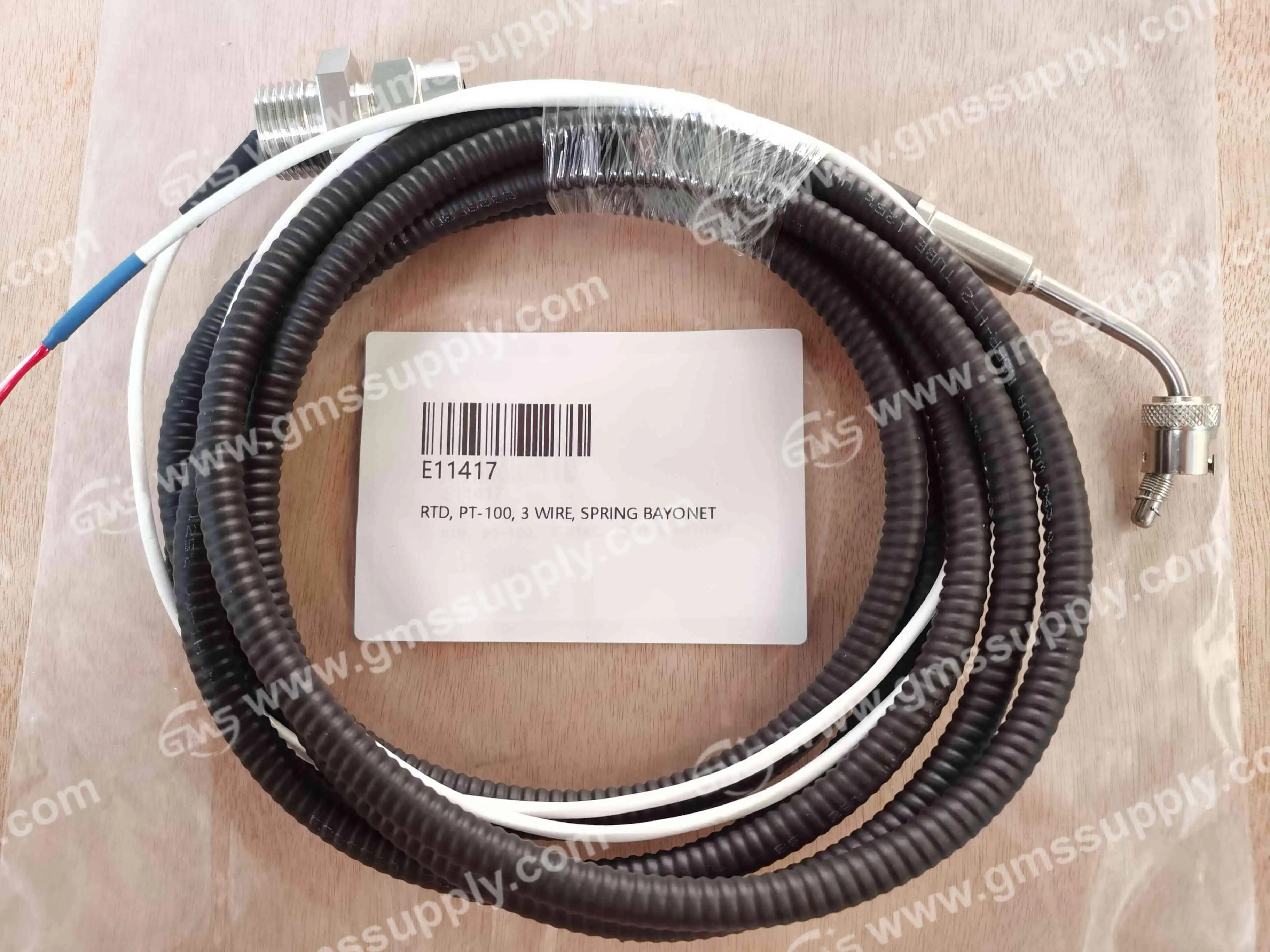

The E11417 RTD PT stands as a cornerstone component in modern temperature monitoring applications across drilling operations. This precision resistance temperature detector offers exceptional accuracy in measuring thermal variations within TDS top drive systems. Its three-wire configuration with spring bayonet design ensures reliable performance in demanding offshore and onshore environments. The PT-100 specification delivers consistent resistance-to-temperature correlation, making it indispensable for critical drilling equipment applications. Understanding its core applications helps operators optimize their temperature control strategies effectively.

Primary Applications in Top Drive System Monitoring

The E11417 RTD PT sensor is very important for keeping an eye on the temperature of the top drive. It keeps parts safe from the heat that comes from mechanical friction and hydraulics. It works with the Canrig 8050, 8035, and 6027 models. Its spring bayonet mount makes it easy to install, and its three-wire construction makes sure that readings are precise. The RTD keeps an eye on the temperatures of the bearings, hydraulics, and motors all the time. If they go above a certain level, the system shuts down to avoid expensive problems. High sensitivity may pick up variations as little as 0.1°C, which lets operators keep an eye on things in real time and plan maintenance ahead of time. This helps them spot thermal trends early and protect expensive drilling equipment.

Hydraulic System Temperature Regulation

The E11417 RTD PT sensor monitors drilling equipment hydraulic system temperatures to minimise overheating, which reduces oil viscosity and wears components. Thermal maps from strategically placed sensors indicate hot regions for cooling. The vibration- and shock-resistant RTD feeds data to temperature compensation algorithms to automatically alter pump speeds and cooling fans to prevent thermal runaway. This data helps maintenance personnel schedule oil changes and filter replacements, increasing equipment life and saving downtime. In harsh drilling conditions, real-time monitoring optimises hydraulic performance and protects expensive components.

Motor Protection and Performance Optimization

Monitor drilling equipment electric motor temperatures using the E11417 RTD PT sensor to prevent heat damage to windings, bearings, and insulation. Real-time data from motor housings allows control systems to minimise load, activate cooling, or trigger emergency shutdowns. RTD feedback keeps motors at ideal temperatures, maximising efficiency and minimising energy use. Predictive maintenance programs estimate bearing and winding inspections using temperature patterns, allowing planned downtime for repairs. High-demand drilling operations benefit from this proactive approach to reliability, motor life, and unexpected maintenance.

Environmental Monitoring in Enclosed Systems

The E11417 RTD PT sensor protects circuit boards and control systems in enclosed drilling equipment by monitoring ambient temperatures. It protects ventilation systems from overheating by activating fans as temperatures rise and controls humidity by maintaining appropriate thermal conditions for reliable operation. Emergency response systems use RTD data to detect rapid temperature rises that indicate fires or equipment failures. Real-time monitoring protects personnel and equipment, ensuring electronic components operate safely and improving system reliability in demanding drilling operations.

Process Control and Safety Systems Integration

The E11417 RTD PT sensor provides accurate temperature data to emergency shutdown and process control systems for drilling safety. Critical alarms shut down machinery to prevent damage as temperatures rise. Integration with dispersed control systems offers centralised monitoring of different temperature points throughout drilling platforms, while data logging assures regulatory compliance. Real-time oversight improves safety, operational efficiency, and thermal responsiveness, safeguarding personnel and equipment in harsh drilling settings.

Quality Assurance and Reliability Features

GMS manufactures the E11417 RTD PT under ISO 9001 standards, ensuring reliable temperature measurements through rigorous calibration and quality checks. Its three-wire design accounts for lead resistance, ensuring accurate readings regardless of cable length or environment. Corrosion-resistant materials withstand drilling fluids, salt, and chemicals, extending service life and decreasing maintenance. The spring bayonet mount secures attachment. Tests verify compatibility with conventional transmitters and data collecting systems, easing installation and commissioning. This durable construction performs well in harsh drilling conditions.

Conclusion

Temperature control systems in drilling operations depend on reliable sensor technology for safe, efficient operation. The E11417 RTD PT provides accurate, durable temperature monitoring across diverse applications. From top drive system protection to environmental monitoring, these sensors deliver critical thermal data. GMS combines manufacturing expertise with comprehensive support to ensure optimal sensor performance. Investing in quality temperature monitoring technology protects valuable drilling assets while improving operational efficiency.

GMS stands ready to support your temperature monitoring requirements with high-quality E11417 RTD PT sensors. Our ISO 9001 certified manufacturing ensures consistent product quality and reliable performance. As an experienced E11417 RTD PT supplier, we maintain extensive inventory for rapid delivery to drilling operations worldwide. Contact our technical team at sales@gmssupply.com to discuss your specific application requirements and discover how our temperature monitoring solutions enhance operational safety.
