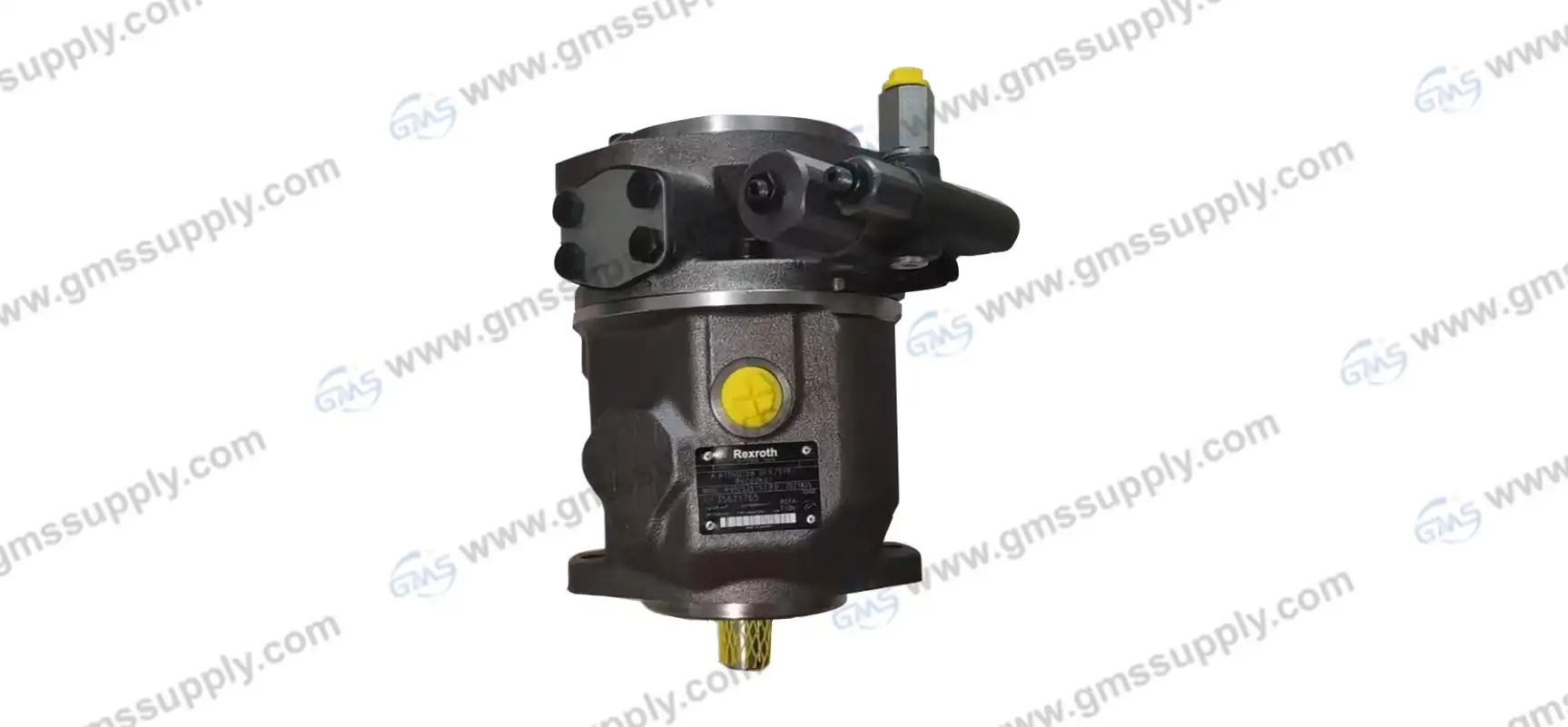

Troubleshooting H01-1008-010 Hydraulic Pump Failures

If the pressure drops quickly during drilling or if you hear strange sounds coming from the hydraulic system, it could be the hydraulic pump H01-1008-010 that is to blame. This part turns mechanical energy into hydraulic flow, which makes it easy to drill. The Canrig 8035, 8050, and 6027 all use top drive systems, and this is what they are made of. On oil and gas drilling sites, supply managers and maintenance teams are in charge of making sure that equipment works at its best. Knowing how to spot and fix common problems with this pump can mean the difference between cheap repairs and costly downtime.

​

Understanding Common Failures of H01-1008-010 Hydraulic Pump

There are a few common ways that the Canrig hydraulic pump H01-1008-010 breaks down that make it less useful for digging. Maintenance teams can fix problems before they get worse, cost a lot to fix, or put people in danger if they see these signs early.

Stress loss is one of the most common issues people talk about. When people notice that the top drive system can't keep the maximum pressure while it's turning or moving things, it's usually because the pump case is worn out. The small gaps between the gear teeth and the pump case get bigger over time as the parts age. This lets the hydraulic fluid go in a circle instead of straight ahead. This pressure drop is especially clear when the system tries to handle heavy loads during drilling, which requires steady hydraulic power to be done safely and effectively.

If you hear strange sounds coming from the pump system, it could mean that the gears are broken. A whining sound is often a sign of cavitation. This is when gas bubbles form and pop in the hydraulic fluid because the fluid is too thick or the inlet pressure is too low. Grinding or hitting sounds could mean that something more serious is wrong, like worn-out bearings or broken gear teeth. As soon as you hear these sound signals, you should check the system right away. Keeping it running could damage the hydraulic parts in the top drive system and make the pump stop working altogether.

Flaws in the flow show up as uneven hydraulic performance, Canrig hydraulic pump H01-1008-010, when activities are being done. People who run the machine may notice that the top drive spins faster or that it takes longer for a tool to react. There are several things that could be causing these symptoms. These include contaminated hydraulic fluid with particles that block internal pathways, worn seal assemblies that let fluid leak inside, or air getting into the system and creating areas of compressible fluid where there shouldn't be any. These problems get worse when the temperature in the digging site changes. This is because changes in viscosity affect how well pumps work and how fluids flow.

The pump gets too hot when it works at temperatures above what is suggested. When there is too much heat, mechanical energy is turned into heat instead of useful work by the pump. Some of the things that can lead to this are running the pump at higher pressures than it's designed to handle, not cooling the hydraulic fluid enough, or internal friction from parts that are worn out. When seals and fluids are exposed to high temperatures for a long time, they break down faster. This starts a chain of failures that shortens the pump's life.

How long a pump lasts depends a lot on how it is used. Drilling tools wear out faster when they work close to their highest pressure limits all the time than when they play it safe. Even in remote areas, changes in temperature from day to night put stress on seal materials and cause them to expand and shrink in cycles that weaken the seal over time. When digging stages change, the work that needs to be done changes a lot. This puts stress on the pump parts over and over, which can cause them to break down over time because they get tired.

Step-by-Step Troubleshooting Process for H01-1008-010 Pump

To effectively troubleshoot the H01-1008-010 pump, a systematic approach is essential. This process ranges from simple observations to in-depth diagnostics, enabling repair teams to identify issues quickly without unnecessary disassembly or parts replacement.

Start by documenting any performance issues. Observe whether the pressure drops immediately when the machine starts or gradually over time. Note changes in sound and whether problems worsen under heavier loads. These recorded details provide a foundation for diagnosis. Compare the pump's current performance data with its specifications, noting any variations in temperature, pressure, or flow rate.

Next, assess the quality of the hydraulic fluid. Inspect a sample—clean fluid should appear clear and consistent in color. If the fluid is discolored, cloudy, or contains metal particles, it indicates contamination. Following ISO cleaning guidelines, a lab test can determine pollution levels and whether particulate counts exceed acceptable limits. The manufacturer typically specifies an appropriate viscosity range; maintaining this ensures proper lubrication and performance.

A thorough examination of the pump components is crucial. Remove air intake and outlet ports to check for dirt accumulation or damage. Inspect external seals for cracks or leaks, and perform basic checks for internal damage within the pump case. If necessary, disassemble the pump to inspect gears, bearings, and shaft alignment. Look for wear patterns on gear teeth, which may indicate contamination or excessive load conditions.

Reviewing the installation can help identify setup-related problems. Ensure that the torque specifications for mounting bolts have been met; inadequate tightening can lead to noise and accelerated bearing wear. Verify that inlet and outlet lines are correctly positioned and avoid sharp bends that could restrict fluid flow. Ensure that the connection between the drive shaft and housing is properly aligned to prevent side loads on bearings and seals. Additionally, maintaining the correct fluid level and airflow in the hydraulic tank is vital to avoid cavitation.

Implement these diagnostic steps to address issues with the Canrig hydraulic pump H01-1008-010 effectively. If contamination is identified, clean the entire system and replace the filter. Establish stricter monitoring protocols to prevent future issues. Components that show excessive wear should be replaced promptly. Replacement parts for the H01-1008-010 pump are readily available, minimizing downtime.

If installation errors are discovered, adjust the mounting position, verify the required power, and correct the line routing as needed.

This structured troubleshooting process has practical applications. For instance, an oil pumping company on the Gulf Coast experienced pressure drops in its Canrig 8050 top drive system. Maintenance records indicated a gradual decline in pressure over three weeks, but no issues were noted initially. A fluid analysis revealed significant contamination, with metal fragments indicating internal wear. Upon disassembly, it was found that ineffective screens had allowed debris to scratch the gears. The issue was resolved by replacing the damaged pump with a new unit, enhancing filtration, and instituting weekly fluid sampling. Since these changes were made, the company has maintained stable pressure performance for over 18 months without further problems.

Best Practices for Installation and Maintenance of H01-1008-010

Proper installation and maintenance of the H01-1008-010 pump are crucial for ensuring its longevity and reliability. A meticulous approach during installation can prevent future issues.

Begin by placing the pump unit on a clean, level surface that can adequately support its weight. Avoid any mounting configurations that might introduce excessive vibration, as this can accelerate bearing wear and lead to stress cracks in the pump body. Follow the manufacturer’s instructions for tightening mounting hardware in a cross-pattern to evenly distribute force. Be cautious not to overtighten, as this could warp the case and hinder internal components.

When connecting hydraulic lines, cleanliness is vital to prevent contamination and leaks. Ensure all connection surfaces are clean before assembly. Use hydraulic thread lubricant and avoid materials that may degrade when exposed to oil-based fluids. Tighten connections without excessive force to maintain sealing integrity and prevent damage to threads. Ensure that line bends are smooth and appropriately sized, and position exit lines to minimize interference. It's beneficial to run the inlet line downhill to utilize gravity, reducing the risk of cavitation.

The alignment of the shaft connection significantly impacts bearing lifespan  and seal effectiveness. Misalignment can create side loads that place undue stress on bearings. Utilize dial indicators or laser alignment tools to ensure the pump input shaft and drive shaft are aligned within specified tolerances. If necessary, shims or adjustments to the mounting points may be required to achieve proper alignment.

A common oversight during installation is the failure to prime the pump before initial operation. Cavitation damage can occur within seconds if the pump runs dry. Before connecting the pump to the system, fill the housing with clean hydraulic fluid through the designated inlet. Manually rotate the shaft several times to circulate the fluid throughout the internal passages. Additionally, Canrig hydraulic pump H01-1008-010 confirms that the pump is oriented correctly according to the system's design and that the flow direction aligns with the pump's arrows.

Regular maintenance is essential for optimal performance and longevity. Develop a maintenance schedule based on operational hours and environmental conditions. Key tasks should include checking fluid quality, inspecting seals, lubricating parts, and cleaning the pump.

Every 250 hours, assess the condition of the hydraulic fluid. If the operating environment is dirty, more frequent checks may be necessary. Collect a sample in a clean jar to evaluate clarity and color, looking for any contaminants. Replace the fluid if it lacks proper density or if contamination levels approach unacceptable limits, as maintaining clean fluid helps prevent wear-related issues.

Inspect external seals monthly for any signs of damage or leakage. Minimal leakage around shaft seals may be acceptable; however, persistent dripping indicates that seals need replacement. Check for scoring or unusual wear patterns on the seals, which may suggest alignment issues. When replacing seals, ensure that the new ones match the original specifications in material and dimensions.

Lastly, monitor bearing conditions by checking pressure and temperature. High temperatures or wear may indicate inadequate lubrication or excessive load. Address these warning signs promptly to avoid severe damage. Regularly observing changes in noise levels, pressure, or fluid temperature can help identify wear or potential failures early, allowing for scheduled maintenance and minimizing unexpected breakdowns.

Conclusion

This hydraulic pump H01-1008-010 usually breaks down in a certain way, so to fix it, you need to know how to find it and make sure you follow strict rules for installation and maintenance. When you choose a supplier, you should think about both the short-term prices and how reliable they are and how well they can help you in the long run. GMS has new pumps that are made to ISO 9001 standards and are of high quality. They also have a lot of tools and can help you with technical issues quickly, so that your drilling operations go smoothly. Your hydraulic systems will always work the way oil and gas drilling operations need them to if you choose the right parts and do regular maintenance.

FAQ

1. What causes the most common failures in hydraulic pumps for top drive systems?

About 70% of hydraulic pump problems in digging are due to fluid that isn't clean. When you mix gritty particles with hydraulic fluid, they cut the inside of gears and speed up wear, just like grinding compound. If you use good filters and keep regular fluid tracking plans, you can avoid most mistakes that are caused by contamination.

2. How often should the drilling fluid be checked for hydraulics?

The hydraulic fluid should be checked every 250 hours of normal use. More tests need to be done, maybe every 100 to 150 hours, when digging in places with a lot of dust or big changes in temperature. When you test things often, you can find patterns of contamination before they damage parts. This helps you plan ahead for maintenance.

3. Can replacement pumps match performance specifications reliably?

When you get new pumps that are made to exact specs, they work just as well as the old ones. With ISO 9001 approval, you can be sure that the way things are made meets high standards and close limits. A lot of tests are done on GMS goods before they are sent out to make sure they meet the requirements for bulk efficiency and pressure performance.

4. What inventory levels should operations maintain for critical pump components?

Risk tolerance and how long you think people will have to wait can help you decide how much stock to keep on hand. A backup stock of at least one whole pump unit is kept by businesses that can't afford to be closed for long periods of time. Sites with more than one drilling unit may keep extra units on hand after studying how often they break down and how important they are to the work. Less stock needs to be kept on-site when you work with sellers who keep a lot of stock.

Ready to Source Reliable Hydraulic Pump Solutions?

Since GMS has been selling oil and gas drilling parts for more than ten years, you can trust them to give you the hydraulic pump H01-1008-010. Because our production process is ISO 9001-certified, we can keep prices low while making sure that every pump meets strict quality standards. Procurement managers like that we have a lot of items in stock, wait times are short, and you can change the things you buy to fit your needs. The device comes with technical help for as long as it is made, so your repair teams can get the most out of it and keep downtime to a minimum. You can email us at sales@gmssupply.com to talk about your hydraulic pump needs and find out how GMS can help your drilling go smoothly.
