What Is 117939 Helical Pinion Gear Used For？

What Is 117939 Pinion Gear Helical Used For? The 117939 Pinion Gear Helical serves as a critical component in top drive drilling systems, specifically designed for NOV Varco TDS-11SA equipment used in oil and gas exploration. This precision-engineered gear facilitates smooth power transmission and torque transfer within the gearbox assembly, ensuring reliable rotational force delivery during drilling operations. The 117939 Pinion Gear Helical design reduces noise while maximizing load capacity and gear alignment precision, making it essential for maintaining optimal drilling performance in demanding industrial environments.

​

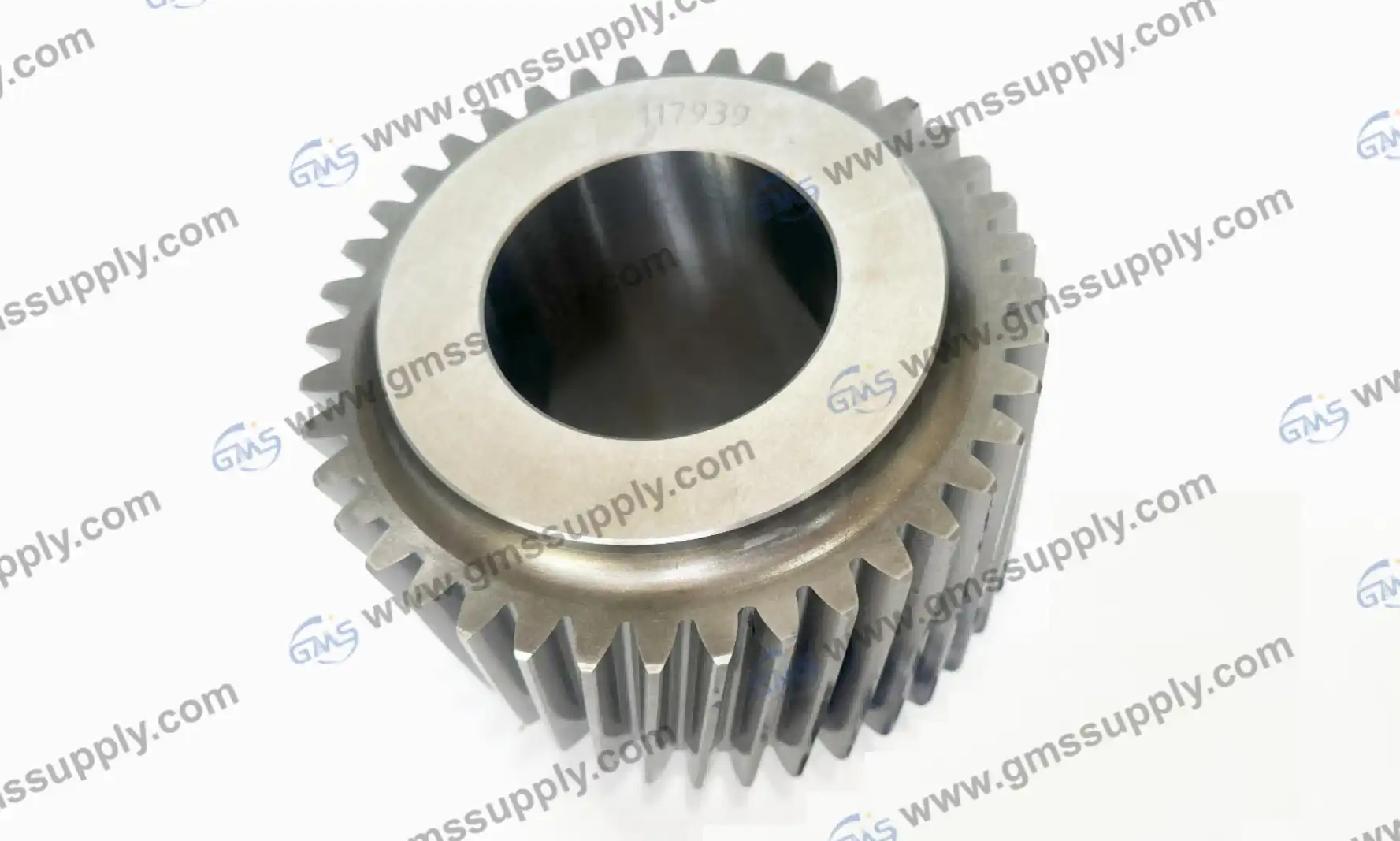

Understanding the 117939 Pinion Gear Helical Component

There is a crucial component called the 117939 Pinion Gear Helical helix that is made to work in harsh oil and gas drilling conditions. This part is different from other spur gear designs because the gear teeth are carefully arranged in a spiral pattern. Because the gear teeth are shaped like a circle, they fit together better and more easily as they slowly connect with each other. Torque multiplication works well because of the gear ratio. This gives users the spinning force they need to break through different types of rock. The TDS-11SA types, which are common in oil and gas drills, work properly with this part and other modern top drive systems. Every 117939 Pinion Gear Helical is checked many times to make sure it is the right size, has a smooth surface, and is made of strong materials. Modern metalworking techniques are used to make the parts last longer and be better able to handle the stresses that come with using heavy machinery.

Critical Functions in Drilling Operations

The 117939 Pinion Gear Helical is an important part of drilling systems because it controls the spinning of the drill string, which lets the operator precisely set the cutting direction and entry rate. It can handle big mechanical loads and keep its spinning speed fixed even when the working conditions change. The spiral tooth form cuts down on noise and sound transfer by a large amount. This keeps nearby parts from wearing out or breaking too soon. It moves the cutting tool's high power from the drive motor to it quickly and keeps the gears lined up even when they're under a lot of stress. By spreading forces across many teeth, the 117939 Pinion Gear Helical reduces stress in one area, increases service life, and lowers the number of times it needs to be serviced or replaced. This makes it possible to run efficient continuous drilling operations. This balanced load-sharing design helps keep the machine from wearing out too quickly, lowers the chance of a sudden mechanical failure, and keeps the torque transmission steady even when working conditions change. Overall system performance goes up, and downtime and long-term running costs go down a lot as a result.

Design Features and Performance Benefits

The 117939 Pinion Gear Helical has improved design features that make it work better and last longer in tough situations. Its curved teeth make more than one contact point when it engages, spreading loads more widely than straight-cut gears and lowering the risk of failure when heavy loads are applied. When high-strength alloy steels are heated in certain ways, they get the best mix of hardness, toughness, and wear resistance, while still being able to handle shock loads. Tight tooth specs are made by precision cutting, which reduces slack and makes sure that power is transmitted correctly. Advanced lube systems and smooth surface finishing work together to cut down on friction and heat production during operation. Full quality control, which includes measuring, testing, and checking for performance, makes sure that 117939 Pinion Gear Helicals are always made correctly and work reliably in tough drilling settings.

Conclusion

The 117939 Pinion Gear Helical is a key power-transmission component in NOV Varco TDS-11SA top drive drilling systems. Its spiral tooth design enables smooth, quiet operation, efficient torque transfer, and reduced vibration under heavy loads. Manufactured with high-strength alloy steel and strict quality control, the 117939 Pinion Gear Helical improves load distribution, minimizes wear, and ensures reliable, long-term performance in demanding oil and gas drilling environments.

Professional Industrial Gear Solutions from GMS

Industrial operations require dependable mechanical components to maintain continuous productivity. GMS serves as your trusted 117939 Pinion Gear Helical supplier, delivering precision-engineered solutions that meet demanding operational requirements. Our ISO 9001 certification ensures consistent quality standards, while our extensive inventory provides rapid delivery to minimize equipment downtime. Contact our technical team at sales@gmssupply.com to discuss your specific 117939 Pinion Gear Helical requirements and discover how our proven solutions enhance your drilling operations.
