What is included in the S PIPE PACKAGE 30156835?

The S PIPE PACKAGE 30156835 is a comprehensive assembly kit designed specifically for oil drilling top drive systems, particularly for TDS-11SA and TDS-9SA models. This essential package contains multiple critical components that work together to ensure smooth operation of the drilling system's fluid transfer capabilities. From the main S-pipe weldment to various seals, mounts, fasteners, and connection elements, the S PIPE PACKAGE 30156835 provides operators with all necessary parts for efficient maintenance and replacement. Understanding the complete contents of this package is crucial for drilling operations to maintain operational integrity and prevent costly downtime in demanding oil field environments.

Components and Configuration of the S PIPE PACKAGE 30156835

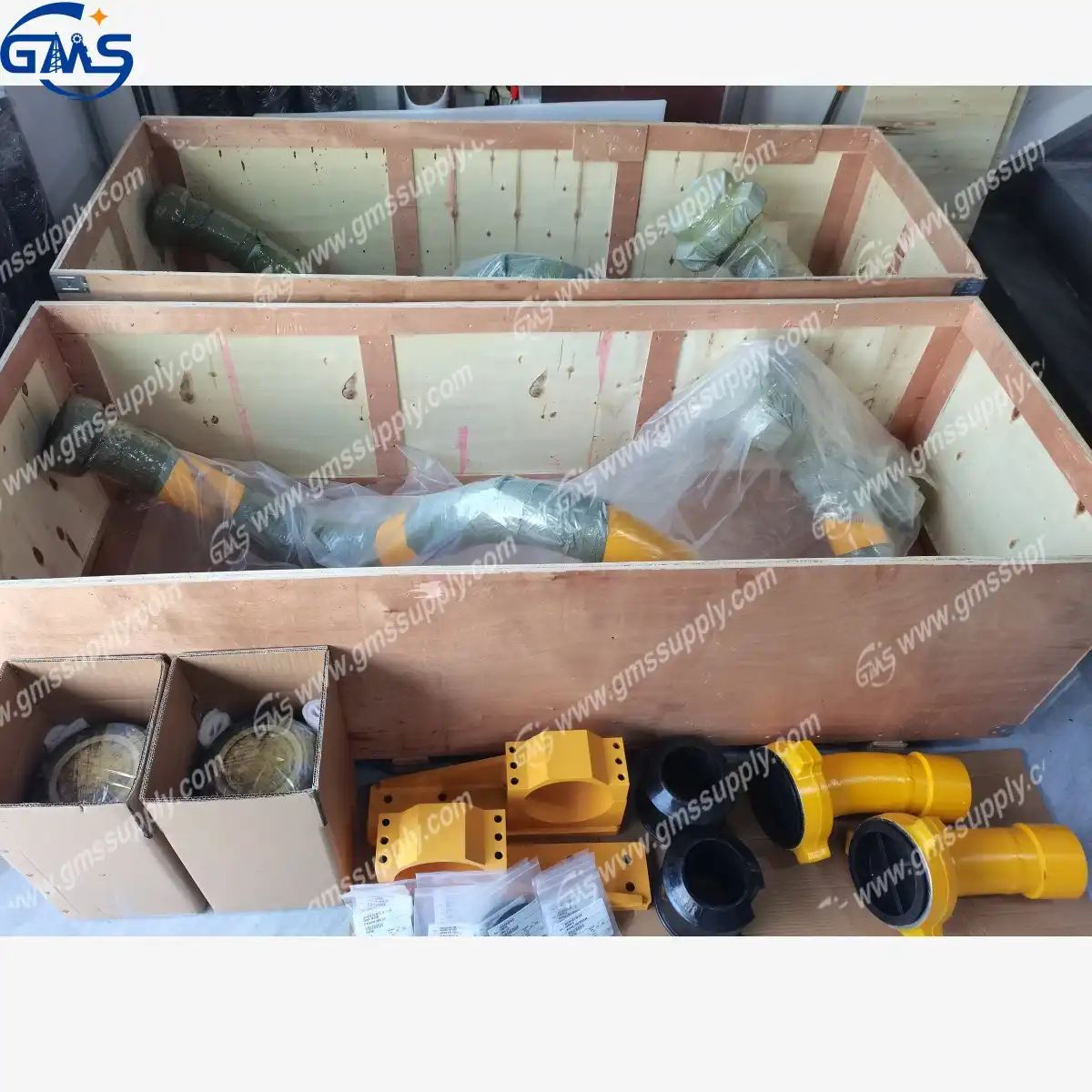

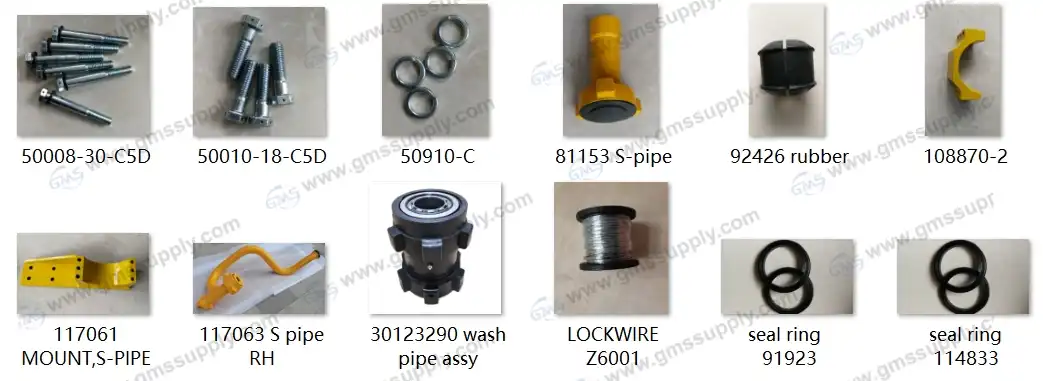

The S PIPE PACKAGE 30156835-R75-1 (GMS Part No. 11S02321) includes a comprehensive collection of precisely engineered components designed to work seamlessly together in top drive systems. At the core of this package is the S-PIPE RH WELDMENT 7500pSi (OUTSIDE GUARD) with OEM reference number 117063-7500, which serves as the main conduit for drilling fluid transfer. Supporting this central component are critical mounting elements including the MOUNT S-PIPE-TOP (108870-2) and MOUNT S-PIPE RH (117061), which ensure proper positioning and securing of the assembly within the top drive system. The package features essential sealing elements such as the RUBBER S-PIPE (92426), SEAL RING 3" FIG 1002 (91923), and SEAL RING 4" FIG 1002 (114833) that prevent fluid leakage under high-pressure conditions often encountered in drilling operations. The S PIPE PACKAGE 30156835 also contains the necessary fasteners including various hex head cap screws (50008-30-C5D, 50010-18-C5D), lock washers (50908-C, 50910-C), and specialized elements like the WING NUT 4" FIG 1002 (81158) and LOCKWIRE (Z6001). This comprehensive package ensures drilling operators have all required components for efficient maintenance and reliable operation of their TDS-11SA and TDS-9SA top drive systems.

Performance and Compatibility of S PIPE PACKAGE 30156835

The S PIPE PACKAGE 30156835 is engineered to deliver exceptional performance in the challenging conditions of oil drilling operations. This package has been specifically designed for optimal compatibility with TDS-11SA and TDS-9SA top drive models, ensuring seamless integration with existing systems. The included ASSEMBLY WASH PIPE (30123290) works in conjunction with the S-PIPE RH WELDMENT 7500PSi to provide reliable fluid transfer capability under extreme pressure conditions. The package's specialized ELBOW S-PIPE 4"API LPT END FEMALE (81153) component enables proper routing of drilling fluids through the system with minimal pressure loss. Each component within the S PIPE PACKAGE 30156835 has been manufactured to precise specifications that meet or exceed OEM standards, ensuring long-term reliability even in the harsh environments typical of drilling operations. The O-RING (51300-425-B) and various seal rings included in the package provide excellent pressure retention capabilities, preventing costly leaks and system failures. GMS's commitment to quality ensures that their alternative S PIPE PACKAGE 30156835 maintains full functionality and compatibility while offering significant cost advantages compared to OEM parts, making it an ideal solution for operations seeking to optimize their maintenance budgets without compromising on performance.

​​​​​​​

Cost Benefits and Advantages of GMS Alternative S PIPE PACKAGE 30156835

The GMS alternative S PIPE PACKAGE 30156835 offers substantial cost benefits while maintaining exceptional quality standards. As a direct replacement for the OEM package, this alternative solution provides operators with significant price advantages compared to original manufacturer parts. This cost efficiency is particularly valuable for drilling operations with tight maintenance budgets or those seeking to optimize operational expenditures without compromising system reliability. The package (GMS Part No. 11S02321) undergoes rigorous quality control processes, backed by GMS's ISO 9001 certification, ensuring that all components meet international standards for performance and durability. The alternative S PIPE PACKAGE 30156835 is manufactured using high-grade materials that match or exceed OEM specifications, resulting in components that can withstand the extreme pressures and harsh conditions encountered in drilling operations. With GMS maintaining extensive inventory of these packages and components, customers benefit from immediate availability and short lead times—a crucial advantage when addressing urgent maintenance needs that could otherwise result in costly operational downtime. The S PIPE PACKAGE 30156835 alternative represents a smart investment for drilling contractors and oil exploration companies looking to maintain equipment reliability while effectively managing maintenance costs in today's competitive energy industry.

Conclusion

The S PIPE PACKAGE 30156835 provides a comprehensive solution for top drive system maintenance in oil drilling operations, offering all essential components for efficient fluid transfer and system integrity. GMS's alternative package delivers significant cost savings without compromising on quality or performance, making it an ideal choice for companies seeking to optimize their maintenance budgets. Whether you're managing a fleet of drilling equipment or providing maintenance services, our ISO 9001 certified products, backed by over 10 years of industry experience, ensure you receive reliable parts with fast response times, short lead times, and excellent after-sales support. For more information about the S PIPE PACKAGE 30156835 or other top drive components, contact our team of experts today at sales@gmssupply.com.
