What is the function of a Centrifugal Pump Wear Pad?

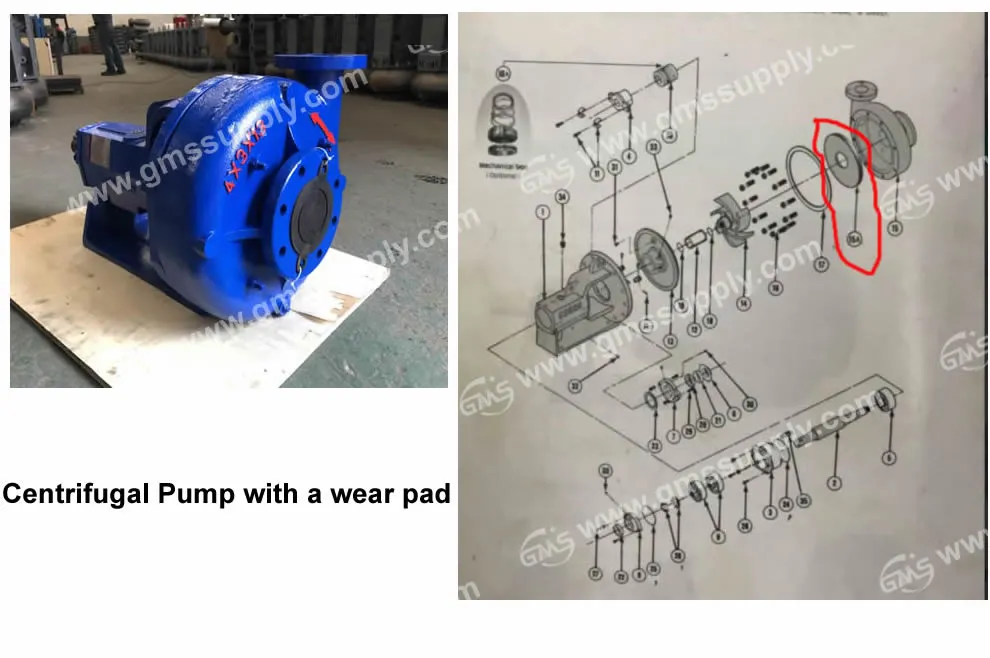

The Centrifugal Pump Wear Pad serves as a critical component in centrifugal pump systems, playing an essential role in maintaining operational efficiency and extending equipment lifespan. These specialized components are designed to be sacrificial elements that protect more expensive pump parts from wear and damage. In centrifugal pumps, Wear Plates create a replaceable seal between the pump's impeller and casing, controlling internal recirculation by maintaining proper clearance between rotating and stationary components. This controlled leakage path minimizes pressure losses and prevents excessive fluid bypass that would otherwise reduce pump efficiency. Well-designed Centrifugal Pump Wear Pads absorb the friction and wear that would otherwise damage critical pump components, making them an economical solution for maintaining optimal pump performance in demanding industrial applications.

The Critical Role of Wear Pads/Wear Plates in Pump Efficiency and Longevity

Wear Plates serve as the unsung heroes of centrifugal pump systems, silently performing several vital functions that directly impact operational performance. The primary purpose of Centrifugal Pump Wear Pads is to maintain volumetric efficiency by restricting internal leakage between the high-pressure and low-pressure areas within the pump. When properly maintained, these components ensure that the maximum amount of fluid flows through the intended path rather than recirculating internally. As pumps operate, natural clearance between the impeller and casing would gradually increase due to erosion, cavitation, and general wear, leading to reduced efficiency and increased energy consumption. By incorporating replaceable Centrifugal Pump Wear Pads, operators can easily restore these critical clearances during maintenance without replacing the entire impeller or casing assembly. This design philosophy dramatically reduces total ownership costs while maintaining optimal performance. Additionally, Wear Plates absorb the impact of any shaft deflection or misalignment that might occur during operation, preventing metal-to-metal contact between the impeller and pump casing that could cause catastrophic failure. GMS offers high-quality 250 Series Centrifugal Pump Wear Pads that provide stable performance even under high-temperature and high-pressure conditions, engineered to meet international standards including ISO 9001 certification.

Signs of Wear Plate Failure and Replacement Indicators

Understanding when to replace Centrifugal Pump Wear Pads is crucial for preventing costly downtime and secondary damage to more expensive pump components. The most obvious indicator of Wear Plate deterioration is decreased pump performance, typically manifested as reduced flow rate, pressure, or efficiency. This gradual decline occurs as increased clearances allow more fluid to recirculate internally rather than being discharged through the outlet. Operational data showing unexplained increases in power consumption relative to output is another telltale sign that Wear Plates may have exceeded their service life. During routine maintenance inspections, visual examination of Centrifugal Pump Wear Pads may reveal scoring, grooving, or dimensional changes that compromise their sealing capability. Unusual vibration patterns can also signal that Wear Plates have degraded, as the increased clearances allow for greater hydraulic imbalance and fluid turbulence within the pump casing. In applications where abrasive materials are present—such as drilling mud in oil and gas operations—Wear Plates typically require more frequent replacement. GMS supplies direct replacement Centrifugal Pump Wear Pads for numerous OEM reference numbers including H2501-01-30A through H2506-01-30A and H2527-01-30A, with part numbers like 2500W4313 and 2500W6514 specifically designed for 250 Series centrifugal pumps used in demanding environments. With stock availability and short lead times of just 1-7 days, GMS ensures minimal operational disruption when replacement becomes necessary.

Cost-Effective Replacement Solutions from GMS

Selecting the right Wear Plate replacement strategy can significantly impact both immediate maintenance costs and long-term operational expenses. GMS specializes in providing high-quality alternative Centrifugal Pump Wear Pads that offer substantial cost advantages without compromising performance or reliability. These replacement components are manufactured to precise specifications that match OEM dimensions and material properties, ensuring perfect fitment and equivalent service life. Unlike OEM parts that often carry premium pricing, GMS alternative Centrifugal Pump Wear Pads typically deliver cost savings of 20-30%, making them particularly attractive for operations with tight maintenance budgets or facilities managing large pump fleets. The economic benefits extend beyond initial purchase price, as GMS maintains extensive inventory of common wear pad variants, eliminating the extended lead times that often accompany OEM orders. This availability is particularly valuable for MISSION 2500 Supreme Centrifugal Pumps and similar models used in critical applications where downtime directly impacts production. With over a decade of experience serving the oil and gas exploration industry, mining operations, and wastewater treatment facilities, GMS has developed specialized expertise in centrifugal pump components. Their engineering team understands the unique challenges faced in different operational environments and can recommend the optimal wear pad materials and designs for specific applications. All GMS products undergo rigorous quality control processes verified by ISO 9001 certification, ensuring that alternative parts deliver the reliability required for demanding industrial applications without the premium price tag.

Conclusion

Centrifugal Pump Wear Pads play a fundamental role in maintaining pump efficiency, protecting critical components, and reducing maintenance costs. By controlling internal leakage and providing sacrificial wear surfaces, these components directly impact operational performance and equipment longevity. GMS offers high-quality, cost-effective alternatives that deliver equivalent performance to OEM parts, backed by ISO certification and extensive industry experience. When selecting replacement Wear Plates, consider working with specialists who understand your specific application requirements.

Ready to optimize your centrifugal pump performance while reducing maintenance costs? Contact our experienced team for professional advice on selecting the perfect Centrifugal Pump Wear Pad for your application. With our extensive inventory, fast response times, and flexible solutions, we're committed to keeping your operations running smoothly. Reach out today at sales@gmssupply.com to discover how our quality replacement parts can enhance your equipment's reliability while reducing your maintenance budget.
