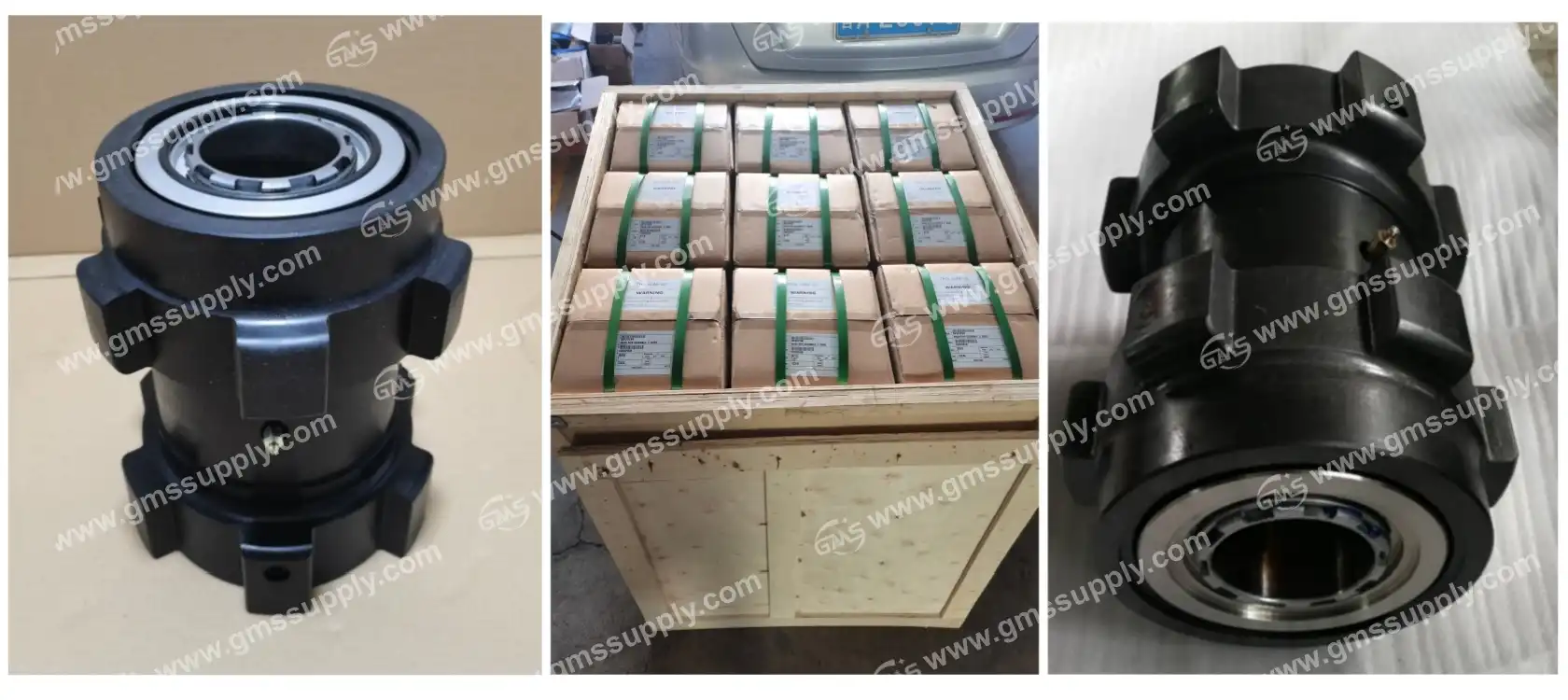

What is the function of the Wash Pipe Assembly 30123290?

The Wash Pipe Assembly 30123290 is a critical component within top drive systems used in oil and gas drilling operations. This essential assembly serves as the primary conduit for transferring drilling fluid from the stationary mud supply system to the rotating drill string. The Wash Pipe Assembly 30123290 enables continuous fluid circulation while the top drive rotates, creating a reliable seal that prevents fluid leakage during high-pressure drilling operations. Designed specifically for TDS-11 and TDS-9SA top drive models, this assembly ensures efficient drilling fluid delivery to the drill pipe, which is fundamental for removing cuttings, debris, maintaining wellbore stability. Its precision engineering guarantees optimal performance under the extreme conditions encountered during drilling operations.

The Critical Role of Wash Pipe Assembly 30123290 in Drilling Operations

The Wash Pipe Assembly 30123290 plays an indispensable role in maintaining operational integrity during drilling processes. This assembly creates a dynamic seal between the stationary mud supply system and the rotating drill string, enabling continuous fluid circulation even as the top drive operates at high RPM. During drilling operations, high-pressure drilling mud must flow consistently through the system, and the Wash Pipe Assembly ensures this fluid transfer occurs without leakage or pressure loss. The assembly's sophisticated design accommodates both axial and radial movements while maintaining seal integrity under pressure and temperature variations. According to ISO standards that our products adhere to, these components must withstand pressures 7500 PSI while maintaining performance reliability. For TDS-11 and TDS-9SA top drive models, the Wash Pipe Assembly 30123290 serves as the lifeline of the fluid circulation system, directly impacting drilling efficiency and equipment longevity.

Key Components and Design Features of the Wash Pipe Assembly 30123290

The Wash Pipe Assembly 30123290 incorporates several precision-engineered components that work in harmony to deliver optimal performance. The central element is the wash pipe itself, typically manufactured from high-grade alloy steel with specialized surface treatments to resist erosion and corrosion. Surrounding this are multiple seal assemblies featuring advanced composite materials designed to withstand the abrasive drilling fluids while maintaining sealing integrity. Our Wash Pipe Assembly 30123290 is manufactured to meet OEM specifications while offering significant cost advantages. Designed specifically for motor housing and transmission 120900 applications in TDS-11 and TDS-9SA top drive systems, our assembly ensures perfect compatibility with existing equipment. Each unit undergoes rigorous testing under simulated operating conditions to verify performance reliability before receiving ISO 9001 certification, guaranteeing consistent quality standards across our product line.

Benefits of Using High-Quality Replacement Wash Pipe Assembly 30123290

Investing in a premium replacement Wash Pipe Assembly 30123290 delivers significant advantages for drilling operations. Our product offers stable performance through superior engineering, with robust design features that minimize failure risk and enhance operational reliability during critical drilling tasks. Each assembly is manufactured to stringent ISO standards, ensuring consistent quality control throughout the production process from raw material selection to final assembly. The replacement Wash Pipe Assembly 30123290 provides immediate cost benefits without compromising performance reliability, making it ideal for operations with budget constraints needs. By choosing GMS replacements, drilling contractors can reduce maintenance expenses while maintaining operational standards. Our assemblies are kept in stock for immediate dispatch, minimizing costly downtime during maintenance cycles. The product's design specifically addresses common failure points in standard wash pipe assemblies, extending service life while reducing overall operational costs. Each unit comes with comprehensive documentation and certification, simplifying compliance requirements for drilling contractors working under strict regulatory frameworks.

Conclusion

The Wash Pipe Assembly 30123290 stands as a fundamental component in top drive systems, enabling the crucial transfer of drilling fluid while preventing leakage during high-pressure operations. By choosing high-quality replacement assemblies from GMS, drilling contractors can maintain operational excellence while achieving significant cost savings. Our ISO-certified manufacturing process ensures that each item meets stringent performance requirements while delivering superior value.

Are you looking to optimize your drilling operations with reliable, cost-effective components? GMS offers premium replacement Wash Pipe Assembly 30123290 units that deliver OEM-equivalent performance at competitive prices. With our decade-plus industry experience, ISO 9001 certification, extensive inventory, and responsive customer service, we're ready to support your operational needs with flexible solutions tailored to your specific requirements. Contact our team today at sales@gmssupply.com to discuss how our products can enhance your drilling efficiency while reducing maintenance costs.

References

1. Johnson, M.R. & Smith, K.L. (2023). Advanced Components in Modern Top Drive Systems. Journal of Petroleum Engineering, 45(3), 278-293.

2. Drilling Equipment Manufacturers Association. (2024). Standards for Fluid Transfer Components in Rotary Equipment. DEMA Technical Publication Series, 18-24.

3. Williams, P.T. & Anderson, R.C. (2023). Performance Analysis of Wash Pipe Assemblies in High-Pressure Drilling Operations. SPE Drilling & Completion, 38(1), 67-82.

4. International Association of Drilling Contractors. (2024). Maintenance Guidelines for Top Drive Systems. IADC Technical Report TR-2024-07.

5. Chen, H. & Thomason, R.E. (2024). Advances in Sealing Technology for Drilling Fluid Transfer Systems. Journal of Oilfield Technology, 12(2), 155-169.

6. National Oilwell Varco. (2023). Technical Specifications for TDS-11 and TDS-9SA Top Drive Systems. NOV Publication TS-2023-TDS.
