Why the 829-35-0 GUIDE PLATE Is Critical in equipment Alignment?

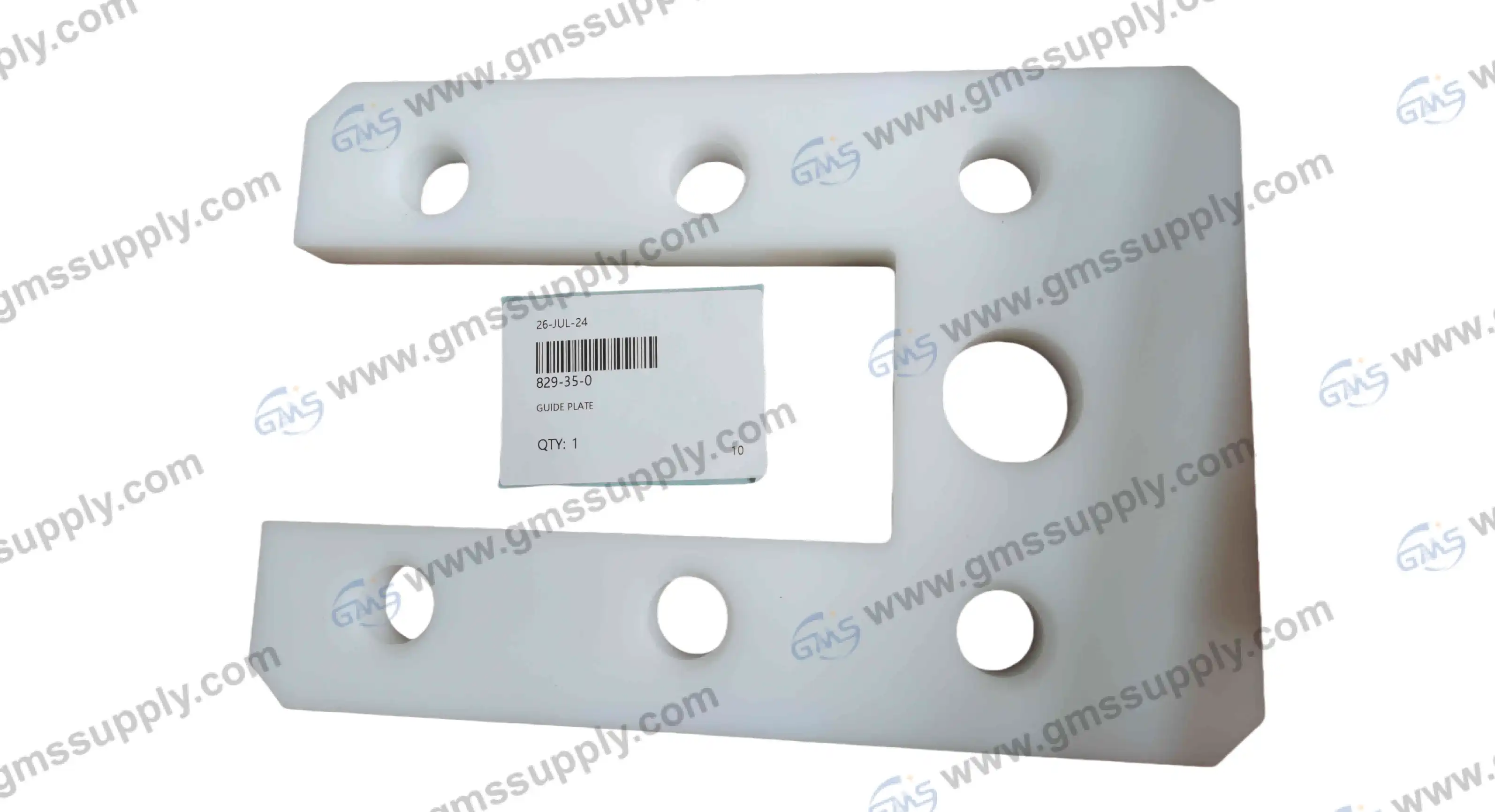

The 829-35-0 Guide Plate plays an indispensable role in maintaining proper alignment within Canrig top drive systems during drilling operations. This precision-engineered component ensures that inner tubes remain correctly positioned throughout the drilling process, preventing misalignment that could lead to equipment damage, increased vibration, and reduced operational efficiency. By providing structural support and load distribution across critical connection points, the 829-35-0 Guide Plate helps maintain the integrity of the entire drilling assembly while minimizing downtime and extending equipment lifespan in demanding oil and gas exploration environments.

Understanding the Fundamental Role of Guide Plates in Top Drive Systems

Within the complex mechanical architecture of Canrig top drive systems, guide plates serve as critical alignment components that maintain proper positioning of internal assemblies during drilling operations. The 829-35-0 Guide Plate specifically functions as a connection and load support element within models including the Canrig Top Drive 8050, 8035, and 6027AC systems. These top drive systems represent sophisticated drilling technology that has revolutionized modern drilling operations by eliminating the need for manual handling of drill pipe sections and enabling continuous rotation of the drill string. The guide plate's primary responsibility involves ensuring that inner tubes and related components maintain their designated spatial relationships even under the substantial forces generated during drilling activities. When drilling through various geological formations, the drill string experiences multiple stress vectors including torsional forces, axial loads, and lateral pressures that can cause components to shift from their optimal positions. The 829-35-0 Guide Plate counteracts these displacement tendencies by providing rigid structural guidance that keeps inner tubes aligned with their corresponding outer assemblies. This alignment function directly impacts drilling efficiency because misaligned components generate additional friction, increase wear rates on contact surfaces, and can lead to premature failure of expensive drilling equipment.

How Misalignment Compromises Drilling Performance and Equipment Longevity？

The consequences of inadequate inner tube alignment extend far beyond simple mechanical inefficiency, affecting multiple aspects of drilling operations and equipment reliability. When the 829-35-0 Guide Plate fails or becomes worn beyond acceptable tolerances, inner tubes begin to experience eccentric loading patterns that were never intended in the original system design. This eccentric loading creates uneven stress distribution across bearing surfaces, causing accelerated wear on one side while leaving other areas relatively untouched. The resulting imbalance generates vibration frequencies that propagate throughout the entire drill string, creating resonance effects that can damage not only the top drive system but also downhole tools and surface equipment. Vibration-induced damage represents one of the most costly maintenance challenges in drilling operations because it often manifests as fatigue failures in components that appear visually sound until catastrophic failure occurs. The 829-35-0 Guide Plate prevents these destructive scenarios by maintaining precise alignment tolerances that distribute loads evenly, minimize vibration generation, and ensure that all moving parts operate within their designed clearance specifications. Operators who neglect guide plate condition or delay replacement often discover that the cost savings from extended service intervals prove illusory when compared to the expenses associated with major component failures, unplanned downtime, and reduced rate of penetration caused by suboptimal drilling performance.

Installation and Maintenance Best Practices for Maximum Performance

Proper installation procedures for the 829-35-0 Guide Plate prove critical for achieving the alignment benefits this component provides within Canrig top drive systems. Before installation, technicians should thoroughly inspect the guide plate for any shipping damage, surface defects, or dimensional irregularities that could compromise performance. Mounting surfaces within the top drive assembly require careful cleaning to remove old lubricant residues, corrosion products, and debris that could prevent flush seating of the new guide plate. Following manufacturer torque specifications during fastener installation ensures uniform clamping force distribution that maintains guide plate position without inducing distortion or creating stress risers at bolt holes. Sequential tightening patterns prevent warping during assembly, with torque values verified using calibrated tools to eliminate guesswork. After initial installation, operators should monitor guide plate condition through regular inspection intervals that align with overall top drive maintenance schedules. Visual examination can reveal early indicators of excessive wear, including surface scoring, edge rounding, or material transfer from contacting components. Operators should also recognize that guide plate condition interrelates with other top drive components, meaning premature wear may indicate problems elsewhere in the assembly such as bearing degradation, seal leakage, or structural misalignment requiring comprehensive troubleshooting beyond simple component replacement.

Economic Advantages of Quality Replacement Guide Plates

The financial implications of guide plate selection extend beyond initial purchase price to encompass total cost of ownership considerations including reliability, longevity, and impact on related components. While OEM guide plates command premium pricing, quality replacement alternatives like those manufactured by Global Machinery Supply offer compelling value propositions for budget-conscious operators and applications where non-critical component substitution proves acceptable. These replacement guide plates maintain the essential dimensional accuracy and material properties required for proper function while achieving cost savings through optimized manufacturing processes and competitive supply chain management. For drilling contractors operating multiple rigs or conducting routine maintenance on aging equipment, the cumulative savings from strategically sourcing quality replacement parts can significantly impact operational budgets without compromising reliability when proper quality standards are maintained. The 829-35-0 Guide Plate replacement market has matured to include suppliers who invest in precision manufacturing equipment and quality control processes that rival OEM capabilities, producing components that meet or exceed original specifications at reduced cost points. This competitive marketplace benefits end users by providing alternatives during supply chain disruptions, reducing inventory carrying costs through multiple sourcing options, and enabling faster replacement part acquisition for time-sensitive repairs. Responsible purchasing policies balance cost considerations against reliability requirements, recognizing that different applications justify different quality levels based on drilling environment severity, operating duty cycles, and consequences of component failure in specific operational contexts.

Conclusion

The 829-35-0 Guide Plate represents a critical yet often overlooked component that directly influences drilling efficiency, equipment reliability, and operational costs in Canrig top drive systems. By maintaining proper inner tube alignment, this precision component prevents the cascading failures and performance degradation that result from misalignment under demanding drilling conditions. Operators seeking to optimize their maintenance strategies and control costs should consider quality replacement alternatives that deliver OEM-equivalent performance at reduced prices, particularly for budget-constrained operations or non-critical component applications where cost advantages prove compelling.

As a trusted China 829-35-0 Guide Plate manufacturer and China 829-35-0 Guide Plate supplier, Global Machinery Supply (GMS) offers ISO 9001 certified replacement guide plates engineered to meet the demanding requirements of modern drilling operations. With over 15 years of industry experience specializing in top drive spare parts for Canrig systems, GMS provides China 829-35-0 Guide Plate wholesale solutions that combine competitive pricing with reliable performance. Our extensive inventory ensures short lead times for most items, with many components available from stock for immediate delivery. When you need 829-35-0 Guide Plate for sale at competitive 829-35-0 Guide Plate price points without compromising quality, GMS delivers the perfect balance of value and reliability. Our commitment extends beyond competitive pricing to include responsive customer service with typical response times under two hours, comprehensive after-sales support, and flexible solutions tailored to your specific operational requirements. Whether you're planning routine maintenance, building spare parts inventory, or responding to urgent repair needs, GMS stands ready to support your drilling operations with quality components backed by professional service. Contact us today at sales@gmssupply.com to discuss your 829-35-0 Guide Plate requirements and discover how our China 829-35-0 Guide Plate factory capabilities can help reduce your operating costs while maintaining the reliability your operations demand. Let GMS become your trusted partner for Canrig top drive components and experience the difference that expertise, quality, and customer focus make in your drilling success.
