Shipping Centrifugal Pumps & Spare Parts: Focus on 8x6x14, 6x5x11 Models, Stuffing Boxes, Sleeves, Packing & Casings

Shipping Centrifugal Pumps & Spare Parts: Focus on 8x6x14, 6x5x11 Models, Stuffing Boxes, Seals, Sleeves, Packing & Casings

A practical guide for buyers and logistics teams handling industrial pump shipments

When you operate in industries like oil & gas, mining, chemical processing, or water treatment, centrifugal pumps and their spare parts are mission-critical. Ensuring they arrive on time, undamaged, and with proper documentation is just as important as choosing the right pump.

In this post, we focus on two widely used centrifugal pump models, 8x6x14 and 6x5x11, and the most common spare parts that accompany them:

Stuffing box (mechanical type) #641116157, 22223-01-30, P25SB/MS

Mechanical seal #648414308, 22451-1,P25MS/TT

Ceramic shaft sleeve #P25SHSLVC, 20613-21G-7A, 641102181

Graphite packing set #648402600, 8264-24-OB

Casings # H2506-37AH, 19117-01-30A

We'll also cover best practices for shipping these items to avoid delays, damage, and customs headaches.

Why Proper Shipping Matters for Pumps & Spare Parts

Centrifugal pumps and their components are heavy, often oversized, and sensitive to impact, moisture, and corrosion. A single damaged casing or scratched mechanical seal can shut down a production line for days.

For international shipments- whether by sea, air, or land-careful packaging, accurate labeling, and correct documentation are non-negotiable.

Pump Models: 8x6x14 and 6x5x11-Key Features

Both models follow the common naming convention: Suction x Discharge x Impeller Diameter (inches).

These pumps are workhorses. But their performance depends heavily on reliable spare parts, which brings us to the components most frequently ordered for shipment.

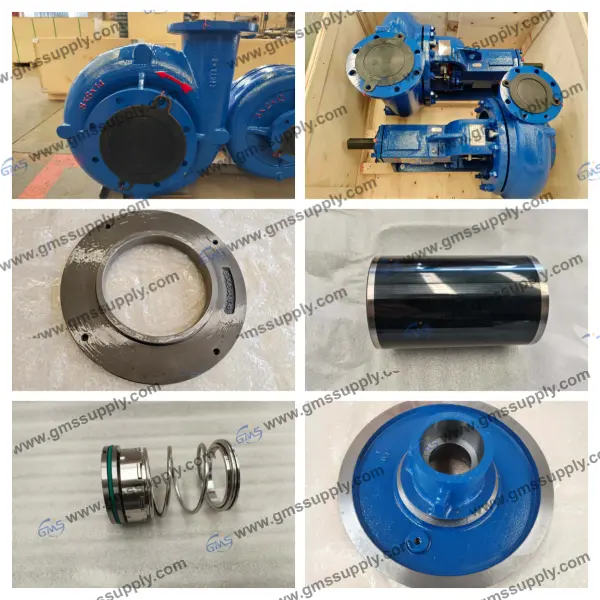

Spare Parts Commonly Shipped with These Pumps

1. Stuffing Box (Mechanical Type)

The stuffing box houses the sealing arrangement around the pump shaft. A mechanical stuffing box reduces leakage and extends seal life.

2. Mechanical Seal, TC

Mechanical seals prevent fluid from escaping along the rotating shaft. They are fragile -the faces are lapped to a mirror finish.

3. Ceramic Shaft Sleeve

Ceramic shaft sleeves protect the pump shaft from wear, especially when handling abrasive fluids. They are hard but brittle.

4. Graphite Packing Set

As a dynamic sealing element between the rotating shaft and the pump casing, it prevents the pumped medium from leaking outward along the shaft.

5. Casings (for 8x6x14 and 6x5x11)

The pump casing is the heaviest and largest component. It is usually cast iron.

Best Practices for Shipping Centrifugal Pump Spare Parts

Step Action

1. Inventory & tagging. Label every item with the pump model, part name.

2. Packaging. Heavy parts using wooden crates. Fragile parts (seals, sleeves), double-box with foam.

3. Documentation Include: commercial invoice, packing list, material certificates (if required), and photos of the packed items for customs.

4. Protection. All metal surfaces: apply rust preventive oil. For ceramic sleeves: no metal to ceramic contact.

5. Marking.“FRAGILE”, “THIS SIDE UP”, “DO NOT STACK HEAVY ITEMS”.

Choosing a Reliable Shipping Partner for Pump Parts

Look for forwarders with experience in industrial machinery and spare parts.

Final Thoughts

Shipping centrifugal pumps like the 8x6x14 and 6x5x11- along with essential spare parts such as

Stuffing box (mechanical type) #641116157, 22223-01-30, P25SB/MS

Mechanical seal #648414308, 22451-1,P25MS/TT

Ceramic shaft sleeve #P25SHSLVC, 20613-21G-7A, 641102181

Graphite packing set #648402600, 8264-24-OB

Casings # H2506-37AH, 19117-01-30A

requires careful planning. The right packaging, documentation, and carrier selection will save you money, time, and frustration.

Whether you are a plant manager ordering a full casing or a maintenance team rushing a mechanical seal, treat every shipment as if the component is already installed and running. Because in the world of industrial pumps, downtime is the real cost.
