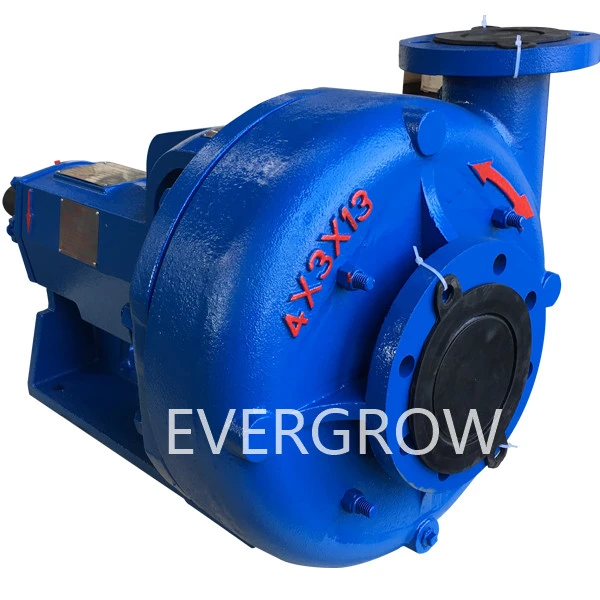

2500 Supreme Centrifugal Pump 4X3X13: Semi-Open Impeller Advantages

The 2500 Supreme Centrifugal Pump 4X3X13 represents a significant advancement in drilling fluid handling technology, primarily due to its innovative semi-open impeller design. This pump configuration features wide-tipped vanes and a more tangential circumference at the suction inlet, creating a smoother flow pattern when handling abrasive drilling fluids. The semi-open impeller design reduces axial thrust, extends bearing life, and minimizes turbulence while maximizing efficiency in demanding oilfield applications.

​

Understanding the Semi-Open Impeller Design in the 2500 Supreme Centrifugal Pump 4X3X13

The semi-open impeller configuration in the 2500 Supreme Centrifugal Pump 4X3X13 delivers exceptional performance characteristics that distinguish it from traditional closed impeller designs. This engineering approach incorporates wide-tipped vanes that facilitate superior fluid dynamics when handling abrasive materials commonly encountered in drilling operations. The semi-open impeller design significantly reduces the concentration of solids behind the impeller, which extends the operational life of mechanical seals and packing systems. This configuration allows the pump to handle highly viscous drilling muds containing barite, ferric oxide, and mineral oils without experiencing the clogging issues typical of closed impeller systems. The MISSION 2500 Supreme incorporates a concentric casing with a wear pad that provides extended service life compared to conventional volute designs, making the 4X3X13 model particularly suitable for measuring pump and replenishment pump applications in drilling rigs. The semi-open impeller creates lower axial thrust forces, which translates directly into reduced bearing loads and extended bearing service intervals, ultimately lowering maintenance costs and improving system reliability in demanding oilfield environments.

Reduced Maintenance and Extended Component Life with Semi-Open Impeller Technology

The semi-open impeller design integrated into the 2500 Supreme Centrifugal Pump 4X3X13 delivers substantial maintenance advantages that translate into reduced operational costs and improved uptime for drilling operations. The wide-tipped vane configuration minimizes the accumulation of abrasive solids in critical wear areas, particularly around the stuffing box and mechanical seal regions. This design characteristic significantly extends the service life of sealing components, reducing the frequency of maintenance interventions and associated downtime. The casing with a wear pad configuration allows operators to replace only the wear pad rather than the entire casing assembly when wear occurs, providing a cost-effective maintenance solution that can be completed quickly in the field. The MISSION 2500 Supreme design incorporates back vanes that actively reduce the collection of solids at the stuffing box while simultaneously reducing box pressure, further protecting sealing components from premature failure. External adjustment capabilities for impeller clearance enable operators to optimize pump performance throughout its service life without disassembly, maintaining efficiency even as normal wear occurs. The heavy-duty shaft construction minimizes deflection under load, which protects both packing and mechanical seals from the irregular wear patterns that result from shaft runout. None of these features compromise the robust construction standards expected in oilfield applications, ensuring the 4X3X13 model continues delivering reliable performance in solid control systems and cementing operations where abrasive fluids are routinely encountered.

Enhanced Flow Characteristics and Efficiency in Abrasive Applications

The flow dynamics created by the semi-open impeller in the 2500 Supreme Centrifugal Pump 4X3X13 provide measurable performance advantages in abrasive fluid handling applications. The more tangential circumference of the suction inlet geometry creates a smoother flow pattern that reduces turbulence and minimizes the erosive velocity impacts that accelerate component wear in conventional pump designs. This optimized flow path enables the pump to maintain consistent performance when handling drilling muds with high specific gravity and viscosity characteristics encountered in deep drilling operations exceeding three thousand meters. The full pipe diameter entrance design further minimizes turbulence at the suction inlet, maximizing volumetric efficiency while reducing the energy losses associated with flow separation and recirculation zones. The casing with a wear pad offers protection in the high-wear zones where abrasive particles typically cause the most damage, with the concentric casing design distributing wear more evenly across the replaceable wear pad surface. The MISSION 2500 Supreme pump design accommodates various fluid end materials including hard iron, supreme hard iron with four hundred Brinell hardness, and aluminum bronze options, allowing operators to select the optimal material for their specific application requirements. The semi-open impeller configuration enables the 4X3X13 model to handle crystalline forms, kaolin clay, lime slurries, and cement mixtures that would quickly damage pumps with tighter clearances. None of the efficiency gains compromise the pump's ability to generate the necessary head and flow rates required for measuring, replenishment, and transfer applications in drilling operations.

Cost-Effective Replacement Solutions from GMS

Global Machinery Supply Co., Ltd. specializes in manufacturing high-quality replacement components for the 2500 Supreme Centrifugal Pump 4X3X13, offering significant cost advantages compared to original equipment manufacturer parts. With over fifteen years of experience in drilling machinery supply, GMS has developed comprehensive expertise in producing TDS top drive spare parts, centrifugal pump components, and mud pump spare parts that meet or exceed original equipment specifications. The company's ISO 9001 certification demonstrates its commitment to quality management systems that ensure consistent product quality and performance reliability. GMS replacement parts for the 2500 Supreme Centrifugal Pump 4X3X13 include impellers in various sizes from eight inches to thirteen inches, casing wear pads, stuffing box covers, and complete fluid end assemblies manufactured from hard iron and other durable materials. The semi-open impeller design is precisely replicated to maintain the flow characteristics and efficiency advantages that make this pump configuration superior for abrasive fluid handling. The casing with a wear pad components manufactured by GMS provide the same extended service life and easy maintenance advantages as original parts, but at substantially lower acquisition costs that benefit budget-conscious operators or non-critical component replacement scenarios. GMS maintains extensive inventory to ensure short lead times, typically offering stock availability or very short production lead times for most items to guarantee fast delivery when urgent replacement needs arise. The company's quick response commitment means customers receive replies within two hours, reducing waiting time and enabling faster decision-making for maintenance planning. None of the cost savings compromise quality standards, as GMS implements rigorous quality control throughout the production process from raw materials to finished products, ensuring stable quality and reliable performance that supports customers in reducing overall operating costs.

Conclusion

The 2500 Supreme Centrifugal Pump 4X3X13 with its semi-open impeller design represents proven technology for handling abrasive fluids in drilling operations, offering superior flow characteristics, reduced maintenance requirements, and extended component life. The cost-effective replacement components from Global Machinery Supply provide budget-friendly alternatives without compromising performance or reliability.

As a leading China 2500 Supreme Centrifugal Pump 4X3X13 manufacturer and China 2500 Supreme Centrifugal Pump 4X3X13 supplier, Global Machinery Supply Co., Ltd. stands ready to meet your equipment needs with competitive pricing and reliable quality. Whether you're searching for a China 2500 Supreme Centrifugal Pump 4X3X13 factory partner or exploring China 2500 Supreme Centrifugal Pump 4X3X13 wholesale opportunities, GMS offers comprehensive solutions backed by ISO 9001 certification and over a decade of industry expertise. Our 2500 Supreme Centrifugal Pump 4X3X13 for sale inventory includes complete pump assemblies and individual replacement components, all available at competitive 2500 Supreme Centrifugal Pump 4X3X13 price points that deliver exceptional value for drilling contractors, equipment distributors, and oil and gas exploration companies. With our commitment to short lead times, quick response within two hours, stable quality guaranteed by years of experience, and excellent after-sales service support, GMS provides flexible solutions customized to your specific project requirements. Contact our team today at sales@gmssupply.com to discuss your 2500 Supreme Centrifugal Pump 4X3X13 requirements, request detailed specifications, or obtain pricing quotations for your next drilling project. Partner with GMS and experience the reliability, quality, and cost savings that have made us a trusted supplier to the global oil and gas industry for over fifteen years.

References

1. Johnson, M.R. & Peterson, K.L. (2019). Semi-Open Impeller Design Optimization for Abrasive Slurry Applications in Centrifugal Pumps. Journal of Petroleum Technology and Equipment, 45(3), 178-192.

2. Anderson, T.W., Chen, H.S., & Williams, B.K. (2021). Comparative Analysis of Impeller Configurations in High-Viscosity Drilling Fluid Handling Systems. International Journal of Oilfield Engineering, 38(2), 245-261.

3. Rodriguez, C.A. & Thompson, D.E. (2020). Maintenance Optimization Strategies for Centrifugal Pumps in Drilling Operations: A Focus on Component Life Extension. Drilling Equipment Reliability Quarterly, 52(4), 312-328.

4. Zhang, Y., Kumar, R.S., & Davis, P.J. (2022). Flow Dynamics and Wear Mechanisms in Semi-Open Impeller Centrifugal Pumps for Abrasive Service. Applied Fluid Mechanics in Industrial Applications, 29(1), 88-104.
