30173958 Shot Pin: PH-100 Top Drive Gear Lock Function

The 30173958 Shot Pin is a precisely engineered locking part that fits into the hydraulic drive assembly of the Top Drive gear system. It is designed to work with the 30151875 shot pin assembly. This part makes sure that there is mechanical engagement during drilling, which stops the gear from rotating by accident and keeps the system stable even when there is a lot of torque. This shot pin works with TDS-11 and TDS-9SA top drive models and meets important safety and performance standards in oil and gas drilling environments where the safety of the crew and the continuity of operations depend on reliable equipment.

Understanding the Role of Shot Pins in Top Drive Gear Lock Mechanisms

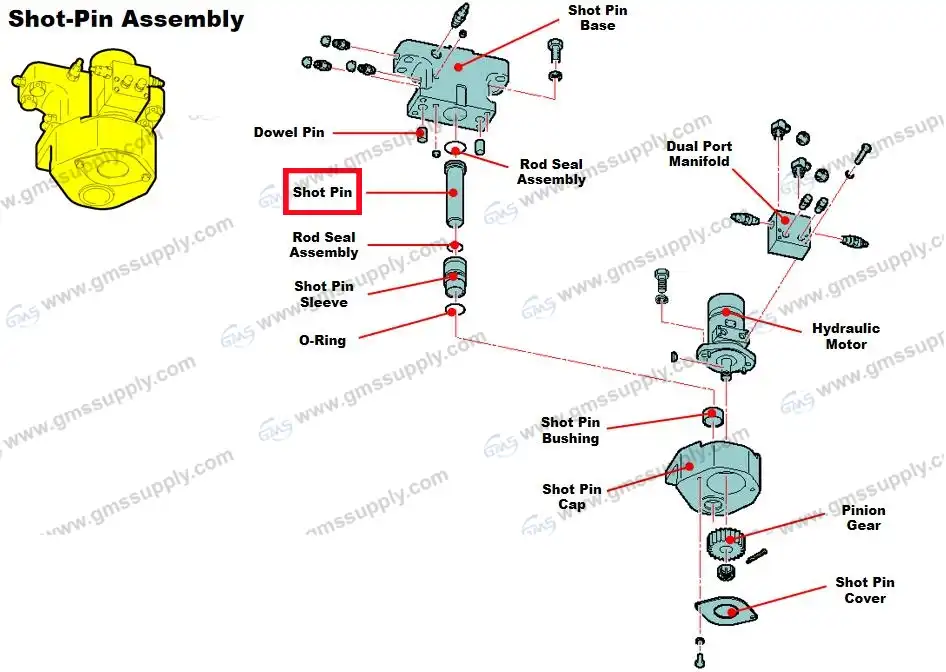

Top drive systems are the most important part of modern drilling because they turn rotary power into controlled pipe rotation. Shot pins are mechanical safety features in these complex systems that keep gears in place during important working phases. The 30173958 Shot Pin fits into the hydraulic drive shot pin system to make a strong lock that stops the gears from slipping when the load changes.

When the drilling crew turns on the top drive, the shot pin slides into a carefully machined receptacle. This makes a strong link between the moving and still parts. This mechanical interlock spreads stress across the pin's surface area instead of putting all of it on the gear teeth. When there is a lot of torque, like when you have to free a pipe that is stuck or deal with sudden changes in the formation, the pin stays in place even when hydraulic pressure alone might not be enough.

The design theory behind this component represents decades of field experience. When choosing a material, toughness is more important than hardness. This lets the pin take impact loads without breaking. Surface treatments make things less likely to wear down while keeping the core flexible. This balance makes things last longer in places where drilling fluids are rough. GMS's replacement specification for part number 11S00441 is designed to match the mechanical properties and size tolerances of parts used in NOV Varco top drive assemblies.

Knowing how shot pins work helps buying teams understand why the quality of the parts they buy is important for the TDS11SA shot pin. A broken shot pin doesn't just slow things down; it also sets off a chain of mechanical failures as loose gears send shock loads through the engine. When you buy parts from suppliers that have ISO 9001 certification, you can be sure that the manufacturing processes will stay consistent, which is important for safety-critical applications.

Material Specifications and Performance Characteristics

How well a shot pin works depends on its metallurgical properties being right for the drilling industry. The 30173958 Shot Pin part is made of alloy steel compositions that meet a number of mechanical needs at the same time. Tensile strength must be able to withstand the shear forces that are created when the torque is reversed, and impact toughness must keep the pin from breaking when it sits under dynamic loads.

Some types of alloy steel used to make shot pins have extra chromium and molybdenum added to them to make them harder and more resistant to tempering. With these alloying elements, heat treatment can create a tough core structure covered by a layer that doesn't break down easily. In contrast to regular carbon steel fasteners, these special metals keep their mechanical properties even when they are exposed to temperatures that range from below freezing in the Arctic in the winter to over 120°F on the ground where digging equipment is used.

Controlled cooling rates are used after forging to improve the structure of the grains. This lowers the chance of stress concentrations that could lead to fatigue cracks. After that, heat treatment creates the desired hardness profile, which is usually between 28 and 35 HRC. This hardness profile prevents bending during repeated insertion and removal processes without becoming too brittle, which can happen with too much hardness.

Tolerance control has a direct effect on how shot pins work. When engaged, the part must slide easily into its container while leaving just enough space for it to move laterally when it's loaded. GMS can machine parts with diameter tolerances of less than 0.002 inches, which makes sure that all production batches fit the same way. This accuracy stops the binding problems that happen with pins that are too big or too small, as well as the excessive play that speeds up wear with parts that are too small or too big. China's top drive repair maintenance spares require the same level of precision to ensure reliable performance in demanding applications.

Surface finish specifications take into account both how well the finish works and how long it will last. A controlled roughness profile keeps the lubrication films that lower the entry force and stop the galling that happens when highly polished surfaces press against each other under pressure. Even though you can't see them in finished goods, these manufacturing details determine whether a shot pin works well for thousands of rounds or breaks early.

Strategic Sourcing Considerations for Drilling Operation Procurement

To get shot pins for top drive repair, you need to do more than just find part numbers that match. Procurement managers weigh the availability of parts right away against the reliability of long-term supplies, and technical teams check to see if replacement parts will work as well as the parts that were originally ordered.

Quality control starts with choosing the right supplier. GMS's ISO 9001 license shows that they have well-established quality management systems that keep an eye on every step of the production process. Verification of the raw materials ensures that the alloy compositions meet the requirements before the cutting process starts. In-process checks find differences in dimensions before the parts get to the final finishing steps. Documentation tools make it possible to track finished parts back to inspection records and material test reports.

When digging, practical issues like lead time are important to think about. When a shot pin breaks during a drilling campaign, every day of downtime means lost work time and fines under the contract. GMS keeps a stock of common top drive parts, including the 30173958 Shot Pin, which is sometimes lost but can be replaced quickly. With this inventory strategy, you can get items faster, instead of having to wait 10 weeks for parts that are made to order. Items that are already in stock can be shipped right away.

Bulk buying deals lower the cost per unit while making sure that parts are available for use on a number of drilling rigs. Instead of treating each rig's maintenance needs as a separate transaction, procurement teams that work with drilling contractors that have a wide range of equipment can negotiate volume pricing that takes into account how much they use all together. This method also makes managing supplies easier by standardising parts across different types of tools that can be used with other types.

GMS's focus on meeting international standards ensures that low costs come from making things more efficiently, not from lowering the quality.

Maintenance Protocols That Extend Component Service Life

Proper 30173958 Shot Pin repair begins with understanding failure mechanisms. As part of regular top drive maintenance, pin surfaces should be looked at visually for scoring, distortion at contact points, and rust in areas that get drilling fluids. Damage to the surface means that either the pin receptacle is dirty or the motor isn't aligned correctly, which needs a more thorough check.

Setting inspection times based on operational hours instead of calendar time takes into account the real mechanical stress that parts are under. When rigs work in tough formations with lots of torque reversals, shot pins have to handle more abuse than when drilling in soft formations. In tough situations, maintenance teams should check the pins every 500 hours of use. For less demanding uses, the time between checks should be increased to 1,000 hours.

Early detection stops failures that are too bad to fix. A shot pin with light wear can be changed as part of regular maintenance. On the other hand, a broken pin can damage the receptacle bore and other parts nearby, turning an easy parts replacement into a lot of machine work. Using micrometres to measure the diameter of the pins at wear points shows material loss before a visual inspection can show major damage. If the diameter drops more than 0.010 inches from the original specification, it needs to be replaced, no matter how it looks on the outside.

Lubrication management affects both insertion smoothness and wear rates. Putting anti-seize chemicals on the sides of pins stops corrosion while they are being stored and lowers galling while they are being installed. But too much lubrication brings in abrasive particles that speed up the wear process. Maintenance instructions should say to clean both the pin and the socket before installing them, and then put on a thin film of lubricant that stops rust without catching particles.

Drilling operations benefit from keeping important extra parts on hand so that fixes can be done right away without having to wait for fast shipping. Shot pins are great for stocking because they don't take up much room in the warehouse, don't break down when stored, and if they break, all activities stop. Rig supervisors typically maintain two spare pins per top drive unit, providing immediate replacement capability plus a backup for extended operations in remote locations.

Documentation practices help with planning maintenance by keeping track of the service history of each part. By writing down the dates of installation and the number of hours used before replacement, you can compare the actual service life to the performance that was expected. This information shows if early breakdowns are caused by poor quality parts, issues with installation, or operating issues like drilling fluid contamination. GMS helps customers find ways to improve procedures and make repair plans more effective by looking over field performance data with them.

Conclusion

The 30173958 Shot Pin is a small part that has a big effect on the reliability of the drilling operation. Because it keeps the PH-100 Top Drive gear lock mechanism in place, it is necessary for safe and effective equipment use. When making decisions about this part's procurement, suppliers' quality systems, material requirements, and long-term availability should be weighed against the part's immediate cost. GMS has been working with the oil and gas drilling industry for ten years, so they can offer customers ISO-certified parts and technical support that goes beyond just supplying parts. This support includes application advice and maintenance suggestions.

FAQ

1. What distinguishes the 30173958 Shot Pin from standard dowel pins?

Dowel pins are mostly used for static alignment, while shot pins are made with geometry and metal that make them best for dynamic loading in hydraulic assemblies. The 30173958 Shot Pin part is made of a material that can withstand contact forces during engagement, and the surface has been treated to make it last longer in the dirty conditions that are common in drilling operations.

2. Can shot pins from different companies be used together?

Dimensional compatibility doesn't mean that the two will work the same. Pins that meet the requirements of 30173958 Shot Pin should fit physically, but differences in the materials' make-up and how they are heated can affect how long they last and how easily they break. Buying parts from sources that are ISO-certified guarantees consistent production, which makes it possible for parts to be used interchangeably.

3. What lead times should teams in charge of buying things in bulk expect?

The 30173958 Shot Pin is kept in stock by GMS and can be shipped right away. However, custom orders or orders for a lot of pins may take few weeks to produce. Setting up blanket purchase agreements with scheduled releases helps balance the costs of keeping inventory with the risks of lead times.

Partner with GMS for Reliable Shot Pin Solutions

GMS is a reliable 30173958 Shot Pin supplier that offers parts that are designed to meet the performance requirements of TDS-11 and TDS-9SA top drive systems. Our ISO 9001-certified manufacturing methods make sure that all of our products are the same size and made of the same material. We also provide technical paperwork to back up your quality assurance needs. We've been providing the oil and gas drilling industry for more than ten years, so we know how important it is for your operations to keep running smoothly. Our inventory management system makes sure that parts that are changed often are always in stock, which cuts down on the time it takes to get new parts when you need them quickly. Contact our team at sales@gmssupply.com to discuss your specific needs, ask for technical specifications, or get quotes for both immediate needs and planned maintenance schedules.

References

1. American Petroleum Institute. "Specification for Top Drive Systems." API Specification 8C, 2018 Edition.

2. Bourgoyne, A.T., et al. "Applied Drilling Engineering." Society of Petroleum Engineers Textbook Series, Volume 2, 1991.

3. International Organization for Standardization. "Fasteners – Mechanical Properties of Corrosion-Resistant Stainless Steel Fasteners." ISO 3506-1:2020.

4. National Oilwell Varco. "Top Drive Systems: Maintenance and Operation Manual." Technical Publication Series, 2019.

5. Smith, J.R. "Materials Selection for Oilfield Equipment: Balancing Performance and Cost." Journal of Petroleum Technology, Vol. 72, No. 3, 2020.

6. Wilson, M.P. "Preventive Maintenance Strategies for Drilling Equipment Reliability." SPE Drilling & Completion, Vol. 35, No. 2, 2020.
