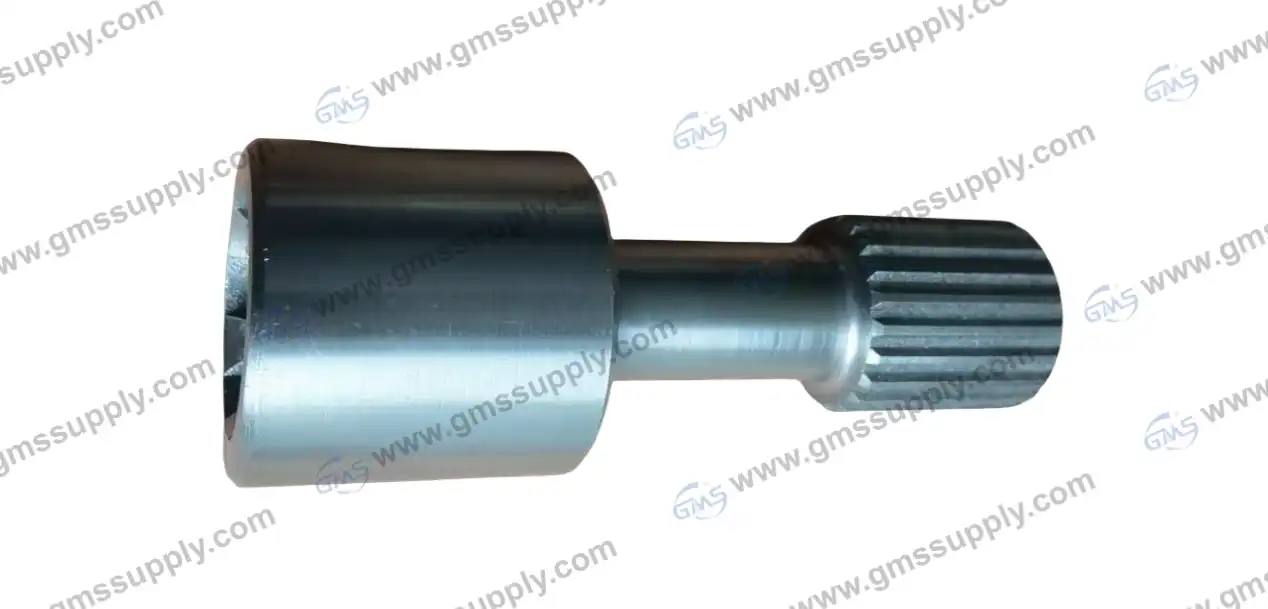

ADAPTER 109579 for Top Drive Pumps: Wiring, Alignment & Assembly Verification Checklist

When oil and gas drilling companies manage their top drive pump systems, each part is very important to making sure the systems keep working. The Motor Pump Adapter 109579 is a key part of gearbox lubrication pump systems for the TDS-11SA and TDS-9SA top drive types, as it connects the motor to the pump parts. This adapter makes sure that the right amount of torque is sent, that the motor and parts stay mechanically aligned, and that problems caused by vibration are avoided. In tough oil and gas drilling settings, knowing how to choose quality Motor Pump Adapter 109579 can cut down on downtime and make tools last longer.

​

Understanding Adapter 109579 – Specifications, Features & Compatibility

The Motor Pump Adapter 109579 is a carefully designed link part that connects drive motors and lubrication pump units in top drive systems so they can work together. This adapter is different from other coupling devices because it was especially made to work in the harsh conditions of oil and gas drilling, where reliability and continued operation are essential. This connection part is built to last and can handle the mechanical pressures that come with top drive gearbox lubrication systems. Based on the attachment patterns and shaft configurations found in TDS-11SA and TDS-9SA top drive types, part number 109579 can be used. This adapter works perfectly with pump kits that are made to grease gearboxes in top-drive systems. The form of the part meets the size standards of both the TDS-11SA and TDS-9SA models, so it fits correctly without any changes. When looking for replacement parts for top drive repair, using part numbers to make sure they are compatible helps avoid costly fitting mistakes. Long lead times that can delay important repair tasks and mess up oil and gas drilling plans are eliminated by having the product in stock.

Wiring and Electrical Alignment Checklist for Motor Pump Adapters

Even though Motor Pump Adapter 109579 functions as a mechanical link, the pump system it supports needs precise electrical connections to work properly. When the electrical wiring is done right, motor problems are avoided, and the lubrication pump works within its design limits. Before you do any electrical work on top drive pump systems, you need to turn off all power sources and use the right checking tools to make sure there is no energy. To keep people working on the system safe, lock-out/tag-out processes must be closely followed. Look over the motor case and pump unit for any damage or dirt that might affect the electrical integrity. Check the top drive model's manufacturer's specs to see if it lists the voltage needs, phase configuration, and amperage rates. When you connect a motor to a pump system, you need to make sure that the phases are connected correctly and that the connections are safe. If the phase rotation is off, the pump might work backwards, which would mean less oil flow and possibly damage to the motor. Once the wire connections are complete, check the insulation resistance between the motor windings and ground to make sure the values meet or go beyond the minimums set by the maker. Before turning on the system, this test checks for possible insulation breakdown. Make sure the voltage at the motor's terminals fits the specs on the nameplate, taking into account any accepted errors.

Mechanical Alignment and Assembly Verification of Adapter 109579

How well the Motor Pump Adapter 109579 is installed mechanically has a direct effect on how long it works and how reliable the system is. Misalignment puts extra stress on bearings, seals, and connecting parts, which speeds up wear and makes it more likely that something will go wrong during important oil and gas drilling operations. The connector links the motor shaft to the pump input shaft, so it needs to be lined up perfectly in both directions within very small gaps. When shaft centerlines cross at an angle, this is called angular misalignment. On the other hand, when centerlines stay straight but are shifted, this is called parallel misalignment. Both of these situations cause cycle stress, which wears down parts and shortens the life of bearings. As different parts of the drill grow at different rates, changes in temperature in the oil and gas drilling surroundings can affect alignment. When installing an adapter, stubborn reluctance is often a sign of cross-threading, shaft contamination, or problems with the dimensions. If the pump shakes in a strange way during the test spin, double-check the alignment measures and make sure all the mechanical connections are tight.

Procurement and Support – Sourcing Adapter 109579 for Your Operations

In order to keep enough extra parts for top drive systems on hand, you need to work with sellers who know how oil and gas drilling works. How well you can keep your systems running during repair cycles is directly related to how easily you can get important parts. GMS Supply keeps Motor Pump Adapter 109579 in stock, so you don't have to wait for long lead times that can cause fixes to be put off. After ten years of working with the oil and gas drilling business, we've honed our purchasing process so that it can handle both emergency orders for a single unit and planned large purchases for maintenance stockpiles. As a seller that is ISO 9001 certified, GMS keeps a close eye on quality throughout the whole process of buying and shipping. Before shipping, each part is inspected to make sure it meets the material and size requirements. We know that choosing the right parts can be confusing at times, especially when you're in charge of a lot of different pieces of equipment or changing your maintenance methods. Our team is ready to help you right away to make sure you get the right parts for your oil and gas drilling application. Our partnerships with maintenance and purchasing workers in the oil and gas business have been built around this dedication to customer service.

Conclusion

The Motor Pump Adapter 109579 is an important but often forgotten part of top drive pump systems that needs to be installed and checked correctly. Paying close attention to the integrity of the wiring, the accuracy of the mechanical alignment, and the regular proof of the assembly process will protect your investment in top drive equipment and help it work reliably. Downtime risks that come with oil and gas drilling operations can be reduced by using procurement strategies that make sure parts are available from qualified sources. When you have technical knowledge, quality Motor Pump Adapter 109579, and quick help from your provider, you can set up effective maintenance plans that keep top drive systems working within their design limits.

FAQ

1. Is the ADAPTER 109579 compatible with both TDS-11SA and TDS-9SA top drive models?

Yes, this adapter (P/N 11S00383) was made to fit the pump assembly requirements for both the TDS-11SA and the TDS-9SA top drive systems. The sizes and shapes for mounting make it possible for the gearbox lubrication pump to work with these types.

2. What are the most common installation mistakes that reduce adapter lifespan?

Misalignment during installation is the main reason why adapters fail too soon. Surfaces that aren't cleaned well enough before they are put together can get dirty, which can stop them from fitting properly and cause runout. If the fastener pressure is wrong, it either lets the part move while it's working or bends the fastening surface.

3. How quickly can GMS Supply provide adapter 109579 for urgent maintenance situations?

We keep this part in stock so that we can meet the time-sensitive repair needs that are common in drilling activities. Standard orders are sent out quickly, and urgent orders can be handled more quickly. Ten years of working in the oil drilling industry have taught us that the availability of parts has a direct effect on your ability to keep your business running.

Optimize Your Top Drive Maintenance with GMS Supply as Your Trusted Adapter 109579 Supplier

Teams in charge of maintaining top drive systems do their jobs better when they work with sellers who have a lot of stock, a lot of technical knowledge, and quick service. For more than ten years, GMS Supply has provided ISO 9001-certified parts for oil drilling activities. One example is the Motor Pump Adapter 109579 for TDS-11SA and TDS-9SA types. Our ready-to-ship inventory cuts down on wait times for purchases, and our bulk-buying choices save money for planned repair programs. You can talk to our team at sales@gmssupply.com about your unique needs for Motor Pump Adapter 109579 and get personalized help with your top drive component needs.
