When procurement Jet Mixing System managers ask what the best jet mixing system is for efficiently mixing mud, the answer depends on how well they understand fluid physics and how reliable the system is in the field. A high-performance Jet Mixing System mixes Venturi-principle technology with strong centrifugal pumps to mix drilling fluids instantly and evenly. The best method keeps the mud's properties stable by managing its density, viscosity, and the way additives are spread out, all while reducing downtime and operating costs. GMS has mixing hoppers that are ISO 9001-certified and designed to work in harsh oil and gas drilling settings. These hoppers will make sure that your preparation of drilling fluid always meets the exact requirements.

​

Understanding Jet Mixing Systems for Mud Mixing

The Venturi effect is what makes mud mixing work so well. It happens when fluid speeds up through a nozzle that is closing, creating a localised low pressure. In a Jet Mixing System, a centrifugal pump forces drilling fluid quickly through a specially designed nozzle assembly. This creates a vacuum at the entrance to the bin. This vacuum sucks dry substances like bentonite, barite, polymers, and other additives into the fast-moving fluid stream. As soon as the powder particles touch the moving fluid, strong shear forces are created that break up clumps of powder before they can cause problems.

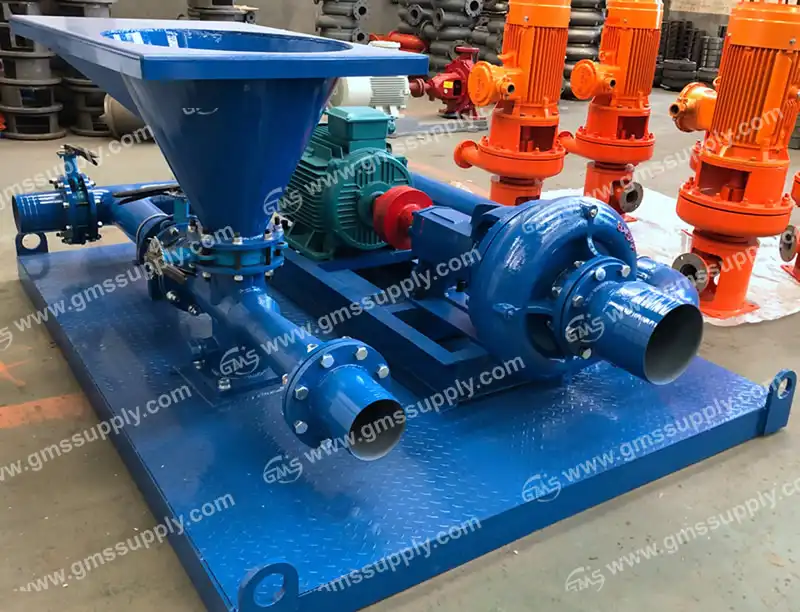

Our GMS mixing hopper units are made up of three integrated parts: a high-capacity centrifugal pump, a precisely designed feeding hopper, and a jet mixer with the best possible nozzle geometry. Pipe manifolds and control valves, which are usually found in 4-inch and 6-inch sizes (P/N: GMS-JET series), connect these parts. The system can be put on a separate skid with a control panel built in, or it can be put on your mud tank directly for easier movement. This adaptability lets oil and gas drilling companies set up their solids control system based on the room they have and how they need to work.

The choice of materials is very important for how long a system lasts and how consistently it works. The nozzle assembly and mixing area are constantly exposed to weighting agents that are rough and fluid chemicals that are corrosive. GMS makes these important wear surfaces out of alloy steel that doesn't wear down easily. They then cover the visible parts with marine-grade coatings that are thicker than 250 microns. This building standard makes sure that our mixing hoppers keep their hydraulic efficiency even when they're working with high-pH mud systems or fluids that are high in barite, which is common in deep oil and gas drilling.

The size of the centrifugal pump affects how much the mixing hopper can hold and how much vacuum it can create. Choosing the right pump makes sure that there is enough head pressure to create the speed needed for the Venturi action to work, and that the input pressure stays between 0.25 MPa and 0.4 MPa. This range of pressures creates the best vacuum conditions without using too much energy. When combined with a shear pump, the setup turns into a jet shearing unit designed for making polymer-based drilling mud. Controlled shear rates work on polymer chains without breaking them down mechanically.

Design Principles and Optimization Techniques for Jet Mixing Systems

More than any other design factor, the shape of the nozzle determines how well it mixes. The throat diameter, convergence angle, and exit configuration must find a balance between the ability to create a vacuum and the barrier to flow. GMS engineers find the best values for these factors by using fluid dynamics modelling, which is then confirmed by testing in the field with a variety of oil and gas drilling fluids. When the throat width wears down to 10-15% of its original size because of abrasive fluid service, hoover efficiency drops significantly. This means that the nozzle needs to be replaced. Performance loss can be avoided by inspecting regularly during routine repair intervals.

Flow velocity through the Venturi section must reach levels that create adequate vacuum for powder entrainment—typically requiring localized pressure drops of at least -0.02 MPa. Achieving this condition depends on proper pump selection and minimizing back-pressure in the discharge line. Blocked discharge paths or excessive elevation changes between the mixer and mud tank can prevent the system from reaching optimal operating conditions. Procurement teams should verify that system specifications match their specific installation geometry and fluid handling requirements for oil and gas drilling.

The hopper design itself influences feeding consistency and operator safety. Larger hopper capacities reduce the frequency of material addition, improving workflow efficiency during bulk additive incorporation. However, excessively large hoppers can create bridging issues with certain powders, where material arches across the hopper opening and stops flowing. GMS balances these considerations in our standard 4-inch and 6-inch configurations, sizing the opening and hopper angle to promote consistent material flow across the range of common oil and gas drilling additives.

Offshore oil and gas drilling operations demand rapid mud weight adjustments to respond to unexpected formation pressures. A major Gulf Coast oil and gas drilling contractor faced recurring delays when weighing up drilling fluid using their aging mechanical mixing system. The process required 45 minutes per density increase cycle, during which oil and gas drilling operations were completely suspended. After retrofitting their mud system with a GMS Jet Mixing System, mixing time dropped to 18 minutes for equivalent density changes. The 60% reduction in non-productive time translated directly to significant cost savings and improved well delivery schedules.

Horizontal directional oil and gas drilling presents unique challenges because operations occur in remote locations with limited equipment footprints. A pipeline installation company supporting oil and gas drilling in the Permian Basin needed to prepare high-viscosity bentonite slurries in tight staging areas. Their previous mixing approach created inconsistent gel strengths that led to hole stability problems and stuck drill string incidents. Switching to a skid-mounted mixing hopper unit provided the high-shear environment necessary to fully hydrate polymers. The resulting fluid consistency improved hole cleaning effectiveness and eliminated costly downhole tool retrieval operations.

Deep well oil and gas drilling in challenging geological mixing hopper formations requires precise control over fluid loss characteristics and density profiles. An exploration company conducting oil and gas drilling in shale formations at depths exceeding 15,000 feet needed to incorporate specialized polymers and weighting agents while maintaining tight specification windows. The GMS jet mixing hopper delivered consistent dispersion of multiple additives simultaneously, enabling the oil and gas drilling team to maintain wellbore pressure control throughout the trouble-prone formation interval. The equipment's reliability under continuous operation conditions—processing tons of material daily—demonstrated the durability advantages of proper component selection and manufacturing standards.

Procurement Guide: Selecting and Buying the Best Jet Mixing System

Quality certification provides the foundation for procurement confidence. GMS maintains ISO 9001 certification, demonstrating our commitment to consistent manufacturing processes and quality control throughout production. This certification signals that our mixing hoppers undergo systematic inspection protocols, from raw material verification through final assembly testing. Buyers should request documentation of pressure testing results—reputable manufacturers hydrostatically test manifolds and mixing chambers at 1.5 times maximum working pressure to verify structural integrity under oil and gas drilling operational stress.

Material specifications warrant careful review during the procurement process. The mixing chamber, nozzle assembly, and hopper construction should utilize abrasion-resistant materials appropriate for your specific oil and gas drilling fluid chemistry. Stainless steel components offer superior corrosion resistance for high-salinity or acidic mud systems, while alloy steel construction provides excellent wear resistance at a lower cost for standard bentonite-based fluids. Surface coatings must meet marine-grade standards if the equipment will serve offshore oil and gas drilling applications where salt spray exposure accelerates corrosion.

Purchase price represents only one component of the total ownership cost for oil and gas drilling. Installation requirements, ongoing maintenance expenses, and operational efficiency collectively determine long-term value. A skid-mounted Jet Mixing System typically installs faster than tank-integrated configurations, reducing initial setup costs but requiring dedicated deck space. Tank-mounted units eliminate separate footprint requirements and simplify fluid routing, but may complicate future reconfiguration. GMS offers both mounting options, allowing procurement teams to optimize based on their specific oil and gas drilling operational constraints.

Spare parts availability and supplier responsiveness directly impact equipment uptime for oil and gas drilling. With over a decade of industry experience serving oil and gas drilling, GMS maintains a substantial inventory of critical wear components, including nozzle assemblies, pump impellers, Jex mixing mounted skid and seal kits (various P/N configurations available for immediate shipment). Our typical lead time from stock is one week, significantly faster than many competitors who rely on extended manufacturing cycles. This inventory depth, combined with technical jet mixing skid-mounted support from experienced application engineers, reduces the risk of extended downtime when maintenance or repairs become necessary.

The twin-hopper configuration merits consideration for oil and gas drilling operations with high additive consumption rates or frequent mud property adjustments. While the initial investment exceeds that of single-hopper systems, the ability to simultaneously mix different additives or double mixing throughput often justifies the additional cost. Oil and gas drilling programs involving rapid transitions between different mud types—such as switching from water-based to weighted systems—benefit particularly from dual-mixing capability that maintains operational momentum during fluid changeovers.

Conclusion

Selecting the best Jet Mixing System for mud mixing efficiency requires balancing technical performance, build quality, and supplier reliability. High-velocity jet technology delivers superior mixing outcomes compared to mechanical alternatives, eliminating common problems like polymer clumping while reducing maintenance requirements and energy consumption. The Venturi principle creates a powerful vacuum action that ensures complete hydration of additives, maintaining the precise fluid properties essential for safe, efficient oil and gas drilling operations. Procurement decisions should prioritize ISO-certified manufacturing, abrasion-resistant construction, and supplier inventory depth that supports rapid parts delivery. GMS combines proven engineering with decade-long industry experience and flexible solutions—from single hoppers to twin configurations—ensuring your solids control system achieves optimal performance across diverse oil and gas drilling operational scenarios.

FAQ

1. What maintenance schedule should be followed for jet mixing equipment?

Routine inspection every three months addresses the highest-wear components, particularly the Venturi nozzle where abrasive contact is most intense. Check the throat diameter against original specifications; replacement becomes necessary when wear exceeds 10-15% of the designed dimension. Centrifugal pump impellers (P/N varies by model) require inspection for erosion or impact damage from inadvertent solids ingestion. The hopper should be flushed clean between different additive types to prevent cross-contamination. Coating condition on external surfaces needs periodic assessment, with touch-up painting applied to any areas showing coating breakdown before corrosion initiates.

2. How does the system handle highly viscous drilling fluids?

The high-velocity jet action remains effective across a wide viscosity range because mixing occurs through fluid shear rather than mechanical stirring. Maintaining adequate inlet pressure becomes more critical as viscosity increases—the centrifugal pump must deliver sufficient head to overcome the increased flow resistance. Some operations pair the mixing hopper with a shear pump specifically for polymer-heavy formulations, where additional mechanical energy helps activate long-chain molecules. GMS engineers can recommend optimal pump sizing based on your specific fluid viscosity targets and additive loading rates.

Partner with GMS for Superior Jet Mixing System Solutions

GMS stands ready as your trusted jet mixing system supplier, Jet Mixing System delivering equipment that matches the performance demands of modern drilling operations while providing the reliability your bottom line requires. Our ISO 9001-certified manufacturing ensures every mixing hopper unit meets rigorous quality standards, from pressure testing to coating application. With a substantial inventory of complete systems and spare components, we ship most orders within one week, minimizing your procurement lead time. Our technical team brings decade-long experience in solids control applications across oil and gas drilling operations, providing application support that helps you optimize system configuration for your specific mud formulations and operational workflow. Contact our specialists at sales@gmssupply.com to discuss your mixing requirements and receive detailed specifications for our GMS-JET series mixing hoppers. We'll help you evaluate single versus twin-hopper configurations, recommend appropriate component materials for your fluid chemistry, and provide transparent pricing that supports your budget planning. Request your quote today and discover how the right mixing technology reduces non-productive time while improving fluid quality consistency.
