Common Issues and Fixes for H10252 Valves Hydraulic

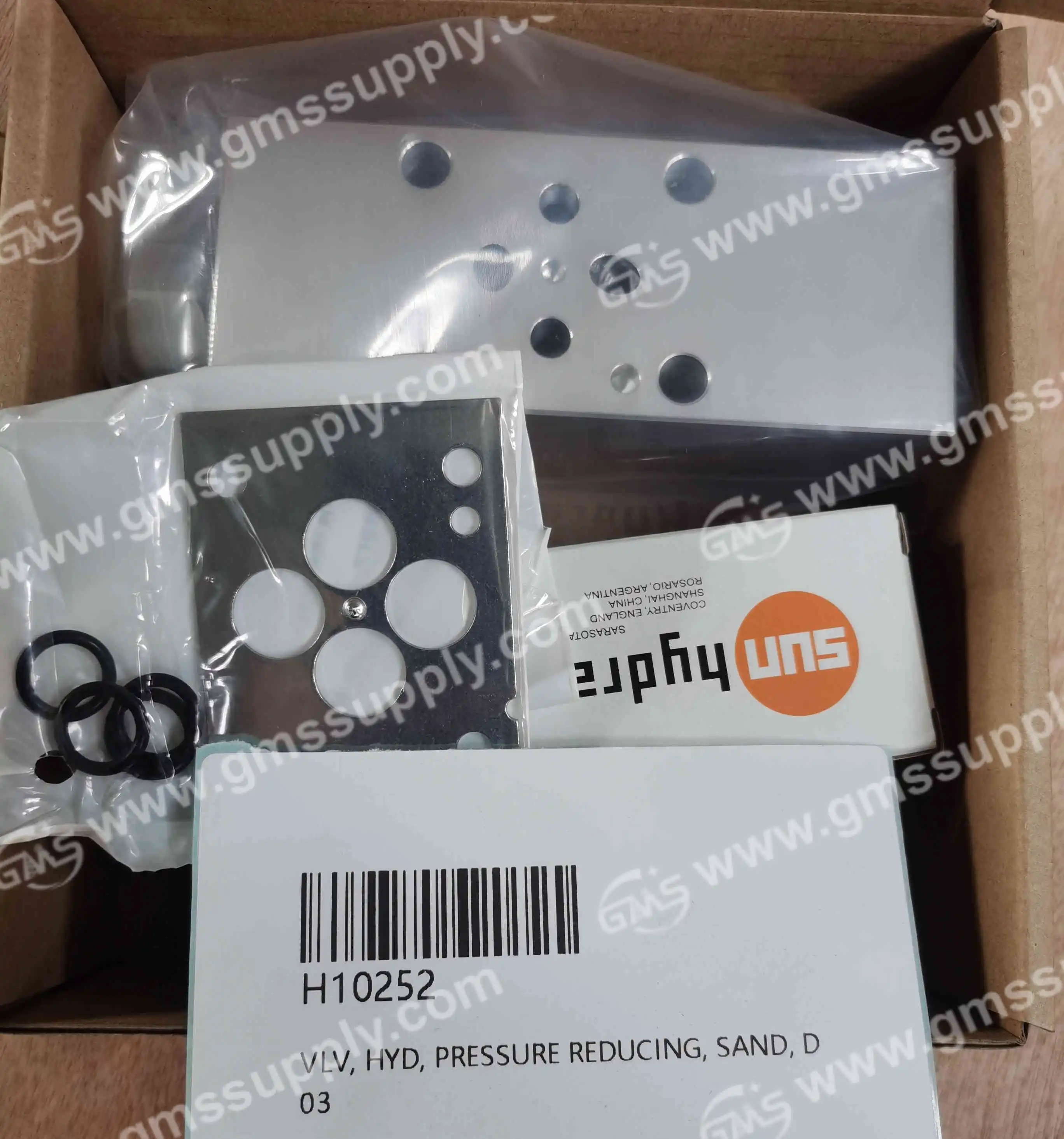

When you use top drive systems in oil and gas drills, the heavy hydraulic loads and dirty fluids constantly put stress on pressure-reducing valves. The HYD valve H10252 is an important part of the Canrig 8035 and 8050 top drive models for controlling the pressure in the secondary circuit and keeping downstream parts safe from damaging spikes. By learning about common failure patterns and following structured repair procedures, you can cut down on unnecessary downtime and make hydraulic system parts last longer.

​

Understanding Common Issues with H10252 Hydraulic Pressure Valves

Hydraulic pressure-reducing valves have to work in tough situations that slowly hurt their performance. Maintenance teams can fix problems before they become major by spotting early warning signs. This protects both equipment and working plans.

One of the most common problems with hydraulic pressure-reducing valves is that the output pressure doesn't stay the same. During steady-state activities, operators notice that the gauge numbers change a lot, which means the valve is having a hard time keeping its setpoint. This problem usually happens because the spool or poppet surfaces are worn down on the inside, there is dirt in the pilot channels. In drilling operations where precise pressure control is needed to protect sensitive pilot circuits, these changes can cause a chain reaction of problems in a number of hydraulic functions. Leaking inside through worn seals makes the problem worse because it lets high-pressure fluid go right through the control system.

If you can see hydraulic fluid leaking around the valve body, it means that the seal is wearing out or that the pressure settings were not followed correctly during installation. Leaks from the outside waste expensive hydraulic fluid and put workers on the rig floors at risk. When there is an internal leak, it is harder to find, but when it does happen, the performance is clearly worse because the valve can't separate the low-pressure circuit from the main system pressure. Temperature cycling in drilling settings speeds up the aging process of elastomers, especially when equipment is used in places where temperatures change a lot between shifts.

Particulate matter getting into hydraulic fluid that hasn't been properly filtered speeds up the wear on carefully polished valve surfaces. Because the HYD valve H10252 has a sandwich design, the parts that move must be very close to each other. When sharp particles move through these gaps, they make cutting patterns that stop the seal from working properly. Over time, this wear makes internal leaking paths bigger and makes pressure control less accurate. Field studies from oil drilling operations show that three times as many valves fail in hydraulic systems that are dirty as in systems that are properly kept.

By taking regular samples of the hydraulic fluid, you can keep an eye on its state and catch contamination problems early, before they damage expensive parts. Setting standard performance measures for new valves helps maintenance teams find patterns of wear and tear by comparing them.

Step-by-Step Troubleshooting Guide for H10252 Pressure Valves

Systematic testing methods cut down on the time needed to fix problems and keep parts from having to be replaced when they don't need to be. The way below walks you through reasonable inspection steps that can be used in the field.

First, look at the valve body and the links next to it for clear signs of leaks, corrosion, or damage to the outside. Use accurate test gauges to write down the current lower pressure setting while the system is working at normal load levels. Check the numbers you've measured against the range that's been given. Depending on how it's set, the Canrig HYD valve H10252 should keep the low circuit pressure between 7 and 210 bar. When values are very different from what was expected, it means there are problems inside the company that need to be looked into further. Check the torque specs for the mounting hardware to make sure it fits properly against the D03 contact surface. Loose mounting can cause leaks and wear caused by vibrations.

When the valve doesn't keep the decreased pressure at a good level, you should carefully rule out other possible reasons. Take off the adjustment mechanism and look for broken threads or other junk that is stopping the spring preload from working right. Wearing the right safety gear, clean all exposed openings with approved hydraulic system solvents and compressed air. Flow clean hydraulic fluid through the valve while it is not attached to the system to make sure that the pilot passageways stay clear. Internal component wear means that valves often need to be replaced instead of fixed, especially when measuring tools aren't available in the field. GMS keeps spare valves (P/N: C80350209) in stock that work with Canrig 8035 and 8050 top drive systems. This cuts down on the time it takes to get new ones when they are needed.

Regular repair times make hydraulic valves last a lot longer. Set up inspection times based on working hours instead of date and time, since how equipment is used during different drilling activities varies a lot. As suggested by the maker, hydraulic fluid should be changed every 2,000 hours of use or when a contamination study shows that the fluid is breaking down. Put in high-efficiency filtration in the main hydraulic system to get rid of particles before they get to important parts. During planned maintenance windows, check the pressure settings while the machine is running and write down the numbers so that you can look at trends. Before the bypass valves open, replace the filter elements. This keeps the hydraulic system clean all the time.

Together, these safety measures make sure that the working conditions keep wear on the parts to a minimum. This means that pressure-reducing valves will work reliably for as long as they are supposed to. When compared to reactive maintenance methods, operators who use thorough maintenance plans report much lower rates of component failure.

H10252 Valve Performance in Demanding Applications

For Canrig top drive uses, the Canrig HYD valve H10252 has specific performance features that meet the needs of the drilling environment. Knowing about these features helps buying managers decide if a product is right for a certain business situation.

When the room is limited, standard inline valve placement is limited in complex manifold assemblies. This is where sandwich-style hydraulic valves come in handy. The D03 mounting design offers standard connections that make replacement easier and keep parts compatible with different types of equipment. This valve can handle flow rates and keep the low pressure fixed even when the main system loads change. Different types of applications can use the adjustment range, which includes low-pressure starter circuits and moderate-force actuator control.

The choice of material is very important for how long a valve lasts. High-strength construction can handle the sudden changes in pressure that can happen during drilling, and surface treatments protect against rust when exposed to hydraulic fluids with chemicals or moisture. Because the envelope is so small, it can be added to current top-drive hydraulic systems without having to rebuild the manifold.

When choosing a valve, you should think about all of its functions, such as its pressure ranges, flow needs, compatibility with other fluids, and entry restrictions for upkeep. The Canrig HYD valve H10252 standard gives enough safety margins for the way a normal Canrig top drive hydraulic system works.

Installation and Operational Guidelines

The basis for effective long-term performance is set by following the right installation steps. Paying attention to details during the initial setup keeps things from breaking down too soon and cuts down on the need for fixing.

Check that the hydraulic manifold or subplate's fixing surface is flat enough. Thoroughly clean all fixing surfaces, getting rid of any leftover gasket material, rust, or dirt that might stop the seal from working right. Check the port threads for harm and make sure the type of seal fits the valve port designs. Make sure that the direction of the valve for Canrig TDS service matches the pipes in the system. Pressure-reducing valves need to be connected to the right ports in order to work properly.

To install the valve, make sure the fitting hardware is tight enough. If the force isn't spread out evenly, it can bend the valve body and create internal paths for leaks or blockage. Connect the system pressure lines to the ports that are marked, and then double-check the connections before putting pressure on the system. Set the first adjustment screw to the lower end of its working range. Then, slowly raise the pressure while using calibrated gauges to keep an eye on the shortened circuit. Small changes should be made at a time, and the pressure should be stable between changes.

During the first few uses, keep a close eye on the valve for any strange noises, vibrations, or temperature changes that could mean there were problems with the installation. Check that the lowered circuit pressure stays the same during the normal working cycle of the equipment, which includes changes in load and direction. Write down standard performance measures, such as pressure settings, flow rates, and fluid temperature, so you can use them later when you're trying to figure out what's wrong.

Pressure sensors that allow remote tracking and predictive repair plans may be built into modern hydraulic systems. These electronic tracking systems send out constant data streams that show how performance is slowly declining before it breaks down. This helps with strategies for replacing things before they break.

Procurement Strategies for H10252 Valve Components

The total cost of ownership, the supply of parts, and quality guarantee must all be balanced in order for procurement to work well. Industrial buyers who are in charge of maintaining drilling equipment need supply chain partners who know how important it is to meet quality standards and operating needs quickly.

Qualified providers show several important skills that help long-term partnerships work well. With ISO 9001 certification, you can be sure that the quality standards of the manufacturing process are always met. This is done through written methods and regular checks. When suppliers keep a lot of inventory on hand, buying wait times are cut down, which lets companies act quickly when unexpected problems arise. Uncertainty about buying is taken away by clear information about supply, specs, and compatibility.

When looking for new hydraulic valves, make sure that the specs match the needs of the product. The Canrig HYD valve H10252 substitute keeps the same size and shape as the Canrig 8035 and 8050 top drive hydraulic systems, making sure they fit and work correctly. Before you place an order, make sure you have the scientific paperwork that confirms the pressure levels, flow capacities, and adjustment ranges. Traceability of parts through batch numbers and production records helps with quality checks if there are problems with performance.

Drilling activities can't afford to be shut down for long periods of time while they wait for important hydraulic parts. When suppliers keep common, worn items in stock, they can ship them the same day or the next, which keeps equipment from sitting idle for too long. Maintenance teams should plan their strategic inventory to include a safety stock of pressure-reducing valves and other hydraulic parts that are prone to breaking. Buying in bulk may save you money and make sure you have access to the goods during busy times. When sending goods internationally, you need to pay close attention to the customs paperwork, especially for equipment that works in countries other than the supplier's home country.

GMS Supply has helped industry clients with oil and gas drilling projects for over a decade, giving them a lot of knowledge of the needs of Canrig top drive components. Our approach to managing goods keeps stock levels at a level that lets us respond quickly to customer needs, and our competitive price shows how efficiently we run our business.

Conclusion

Hydraulic pressure-reducing valves are an important part of a reliable top drive system because they keep sensitive parts safe while keeping the system running smoothly. Systematic repair and preventive maintenance work well for the Canrig HYD valve H10252 because its wear patterns are easy to predict. Total cost of ownership can be lowered by learning about common ways things break, using organized troubleshooting methods, and getting new parts from providers who know what they're doing. When procurement professionals build relationships with highly skilled sellers, they gain a competitive edge through less downtime and more readily available equipment. Paying close attention to the steps needed for installation, keeping an eye on how things are working, and replacing parts at the right time are all important parts of making hydraulic systems that work well for a long time.

FAQ

Q1: What is the expected service life of H10252 hydraulic pressure valves under typical operating conditions?

Service life depends a lot on how clean the hydraulic fluid is, how much pressure is used compared to the highest rates, and how well the machine is maintained. Systems that are well taken care of and have good filtering can usually work for 8,000 to 12,000 hours before they stop working well and need to be replaced. Systems or processes that are always close to their highest pressure ratings and are contaminated may fail in half that time.

Q2: How often should pressure-reducing valves receive inspection and maintenance?

Set up review times that are based on business hours instead of the calendar. Every 500 hours of operation, check the performance of the Canrig HYD valve H10252, writing down the pressure settings and looking for leaks. After every 2,000 hours of use, do thorough upkeep like changing the fluids and filters. Based on the results of contamination tracking, drilling activities in harsh settings may need more frequent attention.

Q3: What advantages do quality replacement valves offer compared to lower-cost alternatives?

Tight tolerances are needed for accurate pressure control and little internal leakage, which is why precision production is so important. Good materials can handle the changes in temperature and pressure that happen a lot during drilling. Standardized mounting connections will only work with parts that have the same size. Manufacturing methods that are ISO-certified provide excellent documentation and can be tracked back to ensure safety and compliance. When lower service life and more failures are taken into account, the difference in cost between high-quality and low-cost parts often goes away.

Partner with GMS for Reliable H10252 Valve Supply

The ISO 9001-certified HYD valve H10252 that GMS Supply keeps in stock are ready to help you with your hydraulic component buying needs. Our team knows how important it is for drilling equipment repair managers to get things done quickly so that equipment downtime is kept to a minimum. As a supplier of the Canrig HYD valve H10252 for a long time, we can offer reasonable prices, thorough technical specifications, and help with applications for both single units and large orders. Email our expert sales team at sales@gmssupply.com to talk about your unique application needs, make sure the products will work together, and get quotes. We offer fast shipping choices for international orders that get parts to you when and where you need them, so drilling activities can continue around the world.
