How 914-12-0 Guide Bushing Improves Rotary Manifold Efficiency

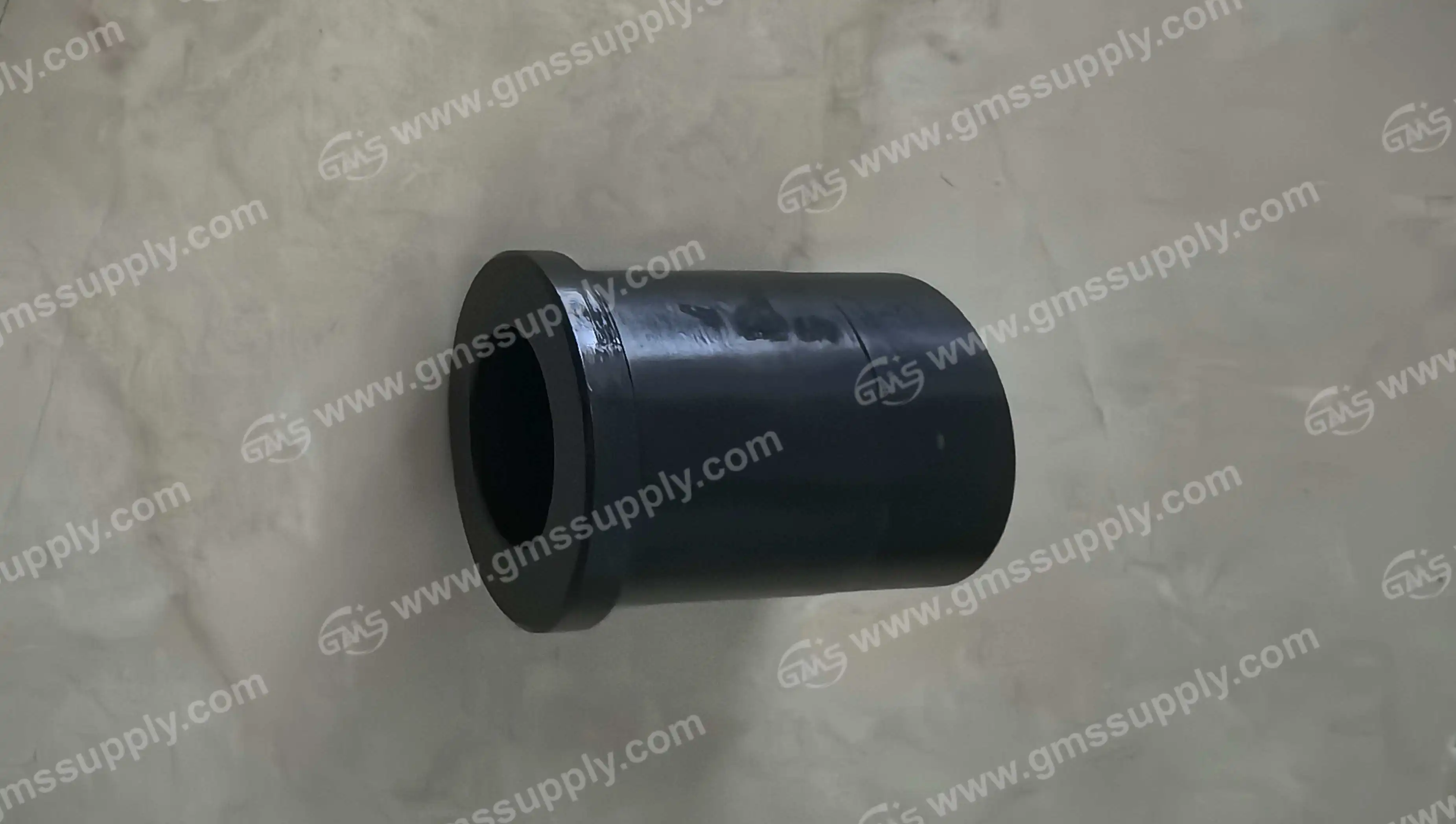

The 914-12-0 Guide Bushing Rotary Manifold is a well-thought-out option that improves the performance of rotary manifolds by making them more aligned and resistant to wear. This important part keeps the concentricity during high-pressure fluid transfer operations in Canrig top drive systems. This stops seal degradation and hydraulic bypass, the problems that often happen with regular rotor manifolds. By combining advanced tribological surfaces with tight-tolerance mechanical interfaces, this 914-12-0 Guide Bushing Rotary Manifold lowers friction, extends the life of seals, and keeps the hydraulic pressure consistent across multiple passages. This leads to measurable efficiency gains that directly affect oil and gas drilling operations by lowering downtime and maintenance costs.

​​

​

Understanding the Role of Guide Bushing Components in Rotary Manifold Systems

Modern top drive systems are powered by hydraulics, and rotary pipes handle the tricky job of moving high-pressure fluids between fixed and moving parts. The function of guide bushings in these pipes goes far beyond simple mechanical support. They set up the critical alignment contact that keeps the seal from failing catastrophically in tough working conditions. The 914-12-0 Guide Bushing Rotary Manifold works in Canrig Top Drive systems like the 8050, 8035, and 6027AC as both a bearing surface and an accurate adjustment tool. When drilling activities put axial loads, torsional stress, and thermal cycles on top drives, the guide bushing keeps the shaft concentricity within a few microns of what it should be. This level of accuracy has a direct effect on how well hydraulic seals can keep the pressure difference between the supply and return lines. Quality guide bushings are different from average ones because of the materials they are made of. The technical specs for this part usually call for materials that don't wear down easily and keep their shape over a wide range of temperatures that are common in drilling settings. These materials go through strict heat treatments and finishing processes on the outside that make them as smooth as needed for seal compatibility. The inside shape has lube lines placed in a way that makes hydraulic fluid spread across the bearing surfaces while the machine is turning. This self-lubricating feature gets rid of the stick-slip issues that wear out seals too quickly in fluid transfer situations. The design essentially makes a thin film of fluid between moving surfaces, which greatly lowers friction coefficients and stops metal-on-metal contact, which speeds up the wear and tear on parts. When made correctly according to ISO 9001 standards, these bushings offer alignment control that regular joint designs can't match. This sets the stage for long-term dependability in tough drilling situations.

Identifying and Overcoming Efficiency Bottlenecks in Rotary Manifold Operations

In oil and gas drills, top drive systems have to deal with constant operating problems that have a direct effect on how well they work. One of the most damaging problems that people often ignore is misalignment. When rotating shafts are off-center by even a few thousandths of a millimeter, the hydraulic seals are compressed unevenly, which causes pressure points in certain areas. These high pressures quickly break down seal materials, which causes internal leaks that lower system pressure and make hydraulic pumps work harder, which uses more energy and makes the system less effective. Fluid pollution speeds up wear cycles by a huge amount. When particles in hydraulic oil get stuck between guide surfaces and moving shafts, they wear down the parts, which lowers the power available to downhole tools and raises the temperature in the hydraulic system as a whole. The 914-12-0 Guide Bushing Rotary Manifold gets around these problems by using several combined design techniques. First, it keeps the shaft's position within strict physical limits, no matter what loads are applied from the outside. This precise alignment makes sure that the dynamic seals touch their mating surfaces evenly around the whole circle, which spreads the compression forces equally and stops the localized wear patterns that usually shorten the seals' service life. Secondly, the guide bushing greatly increases the time between service calls by halting the fast wear that comes from being out of line and being sensitive to contamination. Drilling operations usually plan upkeep on manifolds based on the state of the seals, and when seals last longer because they are properly aligned, repair processes can be lengthened. This cuts down on time spent not working and the costs that come with it. Precision guide bushings make the system more reliable and lower the chance of catastrophic seal failure, which keeps operations going during important drilling stages.

Practical Guidance for Procurement and Maintenance Excellence

To choose the right guide bushing specs, you need to make sure that the capabilities of the component match the needs of the application. During the design process, people who work in procurement should look at a number of important factors. The load capacity of a guide bushing tells you if it can handle the rotational forces that come from drilling. When drilling in a specific direction or when handling big drill strings, top drive methods put a lot of side loads on the drill. The 914-12-0 Guide Bushing Rotary Manifold component works with the load curves that are common for Canrig 8050, 8035, and 6027AC top drive models. Compatibility of materials goes beyond the guide bearing and includes how it works with hydraulic fluids, seal materials, and shaft surfaces that fit together. The materials used in the parts don't break down easily when exposed to hydraulic oils made from petroleum, and they stay the same size across the wide range of temperatures that are common in drilling operations. When different metals in manifold systems come into contact with each other, surface processes stop galvanic rusting. Some things to think about in an operational setting are being exposed to drilling mud, extreme temperatures, and the high amounts of shaking that come with rotary drilling. The strong design can handle being exposed to dirt and grime that would damage parts made for cleaner industrial settings. Stability at high temperatures guarantees steady performance, whether perform oil and gas drilling operations in the very cold environment of the Arctic or for geothermal purposes at super high temperatures.

Why Choose GMS as Your Trusted Guide Bushing Supplier

Periodic seal inspection on a regular basis during maintenance intervals lets wear patterns be found early, before they cause the seal to fail. When you look at the seal areas, you can see problems with alignment, contamination, or material wear that might need to be fixed. When problems are found early, they can be planned to be replaced instead of being fixed in an emergency. Proper installation procedures will make sure that the parts work the way they're supposed to. By following the torque specs, making sure the equipment is aligned correctly, and testing the pressure before putting it back into service, installation mistakes that could hurt the part's performance or cause it to break down early can be avoided. Strategic ties with suppliers make procurement more efficient. GMS keeps the 914-12-0 Guide Bushing Rotary Manifold in stock, so it can be delivered within two weeks of an order being placed. This responsiveness helps with planning maintenance by lowering the doubt about lead times that often drives operations to keep too much safety stock on hand. Our ISO 9001 certification guarantees stable manufacturing quality, cuts down on the need for new inspections, and makes the process of qualifying suppliers easier. Aftersales help availability makes checking specifications and fixing problems easier. Our team helps by comparing different part numbers, making sure they work with certain top drive setups, and giving fitting advice that keeps mistakes from costing a lot of money. This support system improves the quality of the product by making sure that parts are installed correctly and kept in good shape throughout their useful life.

Conclusion

For improving operating efficiency in top drive systems used in oil and gas drills, the 914-12-0 Guide Bushing Rotary Manifold has been shown to work. This part fixes the main problems that make rotating manifolds less reliable and less effective by precisely controlling alignment, being highly resistant to wear, and being built to last. Specifying this guide bushing setup will be very helpful for procurement professionals who want to cut down on repair costs, make parts last longer, and keep operations running smoothly. GMS is ready to help you improve the reliability of your tools by providing you with high-quality 914-12-0 Guide Bushing Rotary Manifold, fast delivery, and professional knowledge gained over many years of working in the field.

FAQ

Q1: What distinguishes the 914-12-0 from standard guide bushing designs?

The part is made with advanced material formulations and precise production methods that give it better consistency in size and quality of the finish on the outside. Compared to other designs, these features make it easier to control the position and last longer.

Q2: How often should guide bushings be inspected during routine maintenance?

Inspection times rely on how the machine is being used, but as part of regular top drive upkeep, seal surfaces are looked at and strange wear patterns are looked for every 2,000 to 3,000 hours of use. Fluid surroundings that are contaminated may need to be inspected more often.

Q3: Can this guide bushing replace similar components in other top drive models?

Canrig Top Drive types 8050, 8035, and 6027AC are the only ones that the 914-12-0 fits. Checking the specifications is needed to make sure that it works with other top drive setups.

Partner with GMS for Reliable Guide Bushing Supply

GMS offers 914-12-0 Guide Bushing Rotary Manifold options that are ISO-certified and designed to handle the most difficult drilling tasks. As a supplier, we can keep an inventory ready, offer wait times of two weeks, and provide full support throughout the entire purchase and implementation process. As a manufacturer with years of experience working with drilling operations around the world, we know how important it is for parts to be reliable and for service to be quick. You can email our team at sales@gmssupply.com to talk about your unique 914-12-0 Guide Bushing Rotary Manifold needs, get full specifications, or get quotes for your upcoming buying needs. We are ready to help your operations succeed by providing you with high-quality parts backed by ten years of experience in the field.
