How to Install XP Blender Pump Casing, 14X12X22?

If you install the XP Blender pump Casing, 14X12X22, properly, it will work better with fluids and last longer in high-pressure commercial settings. This replacement casing is made for Mission Magnum XP centrifugal pumps. Before it can be used, the 14-inch suction flange and 12-inch discharge flange must be carefully lined up with the existing mounting points. All fasteners must be tightened to the right torque, and the seals must be carefully checked. When done by experienced workers with the right tools, the installation process usually takes three to five hours. If done correctly, it avoids costly downtime in oil and gas drilling operations, where pump dependability directly affects project schedules and operational budgets.

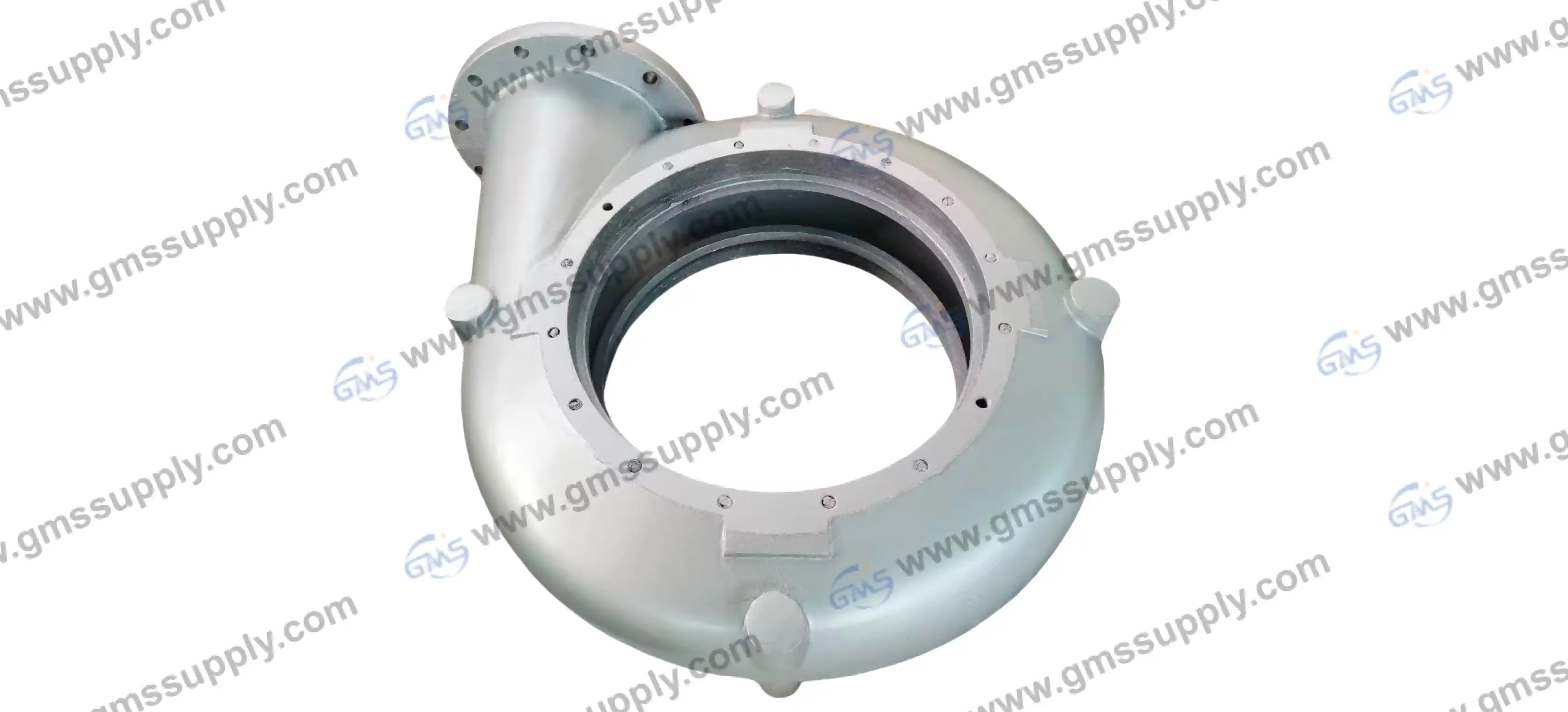

Understanding the XP Blender Pump Casing, 14X12X22

In centrifugal blender systems, the pump casing is the main pressure tank. These systems are widely used in hydraulic fracking and high-volume fluid transfer tasks. This GMS part can be used instead of Mission Magnum XP cases. It can handle flow rates of up to 7,500 gallons per minute and the rough slurries that are typical in drilling operations. The designation XP Blender pump Casing, 14X12X22, tells you important dimensions: a 14-inch suction opening, a 12-inch discharge outlet, and an internal volute shape that can fit a 22-inch impeller assembly.

How long something works and lasts depends a lot on what it's made of. The casing is made of a high-chromium metal with a chromium content of between 26-28%. This gives it great strength to erosion from fluids that contain sand. This choice of metal has a hardness value above 600 Brinell, making it much better than normal options in rough service conditions. The walls of the volute chamber are thicker and stronger in places where they are likely to wear down quickly, like around the cutwater area, where the flow rate is fastest, and the erosive forces are strongest.

This case (P/N 25XPH141222) is made by GMS to meet ISO 9001 standards, which guarantee accurate measurements and consistent materials. The design keeps full interchangeability with Mission Magnum XP and MCM XL pump types, so installation doesn't need to be changed. The flange surfaces meet the requirements of ASME B16.5, which means that when they are paired with standard pipe fittings, they will seal properly. It can handle up to 500 PSI of working pressure, making it good for hard blender unit uses where pressure spikes happen. Replace the MISSION MAGNUM XP Centrifugal Pump during operation.

Preparing for Installation: Tools, Safety, and Pre-Installation Checks

Preparing properly cuts down on installation time and keeps equipment from getting damaged. The work area should have enough space around the pump unit for the worker to move around and get to their tools. Check to see if there is lifting equipment that can handle the weight of the case. The XP Blender pump Casing, 14X12X22, can weigh anywhere from 800 to 1,200 pounds, based on how it is set up.

For flange fitting, precise torque wrenches with a 150-300 ft-lbs output, precision alignment bars for checking the position, and dial indicators for measuring shaft runout are all necessary tools. Impact-grade socket sets can remove fasteners with a lot of force, and brass drift punches can help with alignment without hurting machined surfaces. When installing a seal, you need to use oils that are compatible with gas exposure. Before you apply the seal, check the manufacturer's instructions.

Safety rules must cover a number of risks that come with maintaining pumps. When working with metal parts that have sharp edges, personal protective equipment like safety glasses with side guards, steel-toed boots, and cut-resistant gloves is needed. Remaining pressure in the pump system is dangerous; make sure that all the pressure has been released and that lockout/tagout steps have been followed before starting to disassemble. When removing a case, suspended loads need to be kept out of certain areas under the lifting points, and techs should never put themselves under weights that are being held up.

Step-by-Step Installation Process

After making sure the system is isolated, the first step in the installation process is to safely remove the old pump case. Disconnect the discharge pipes at the flange connection and support the weight of the pipes on their own to keep the pump system from being stressed. Take off the links to the suction pipes and make a note of any shim arrangements that were used for balance. To separate the case from the bearing frame, you'll need to take out 8–12 heavy-duty fasteners, based on the type of pump. To remove the old casing without damaging the shaft or bearing assembly, use lifting tools with properly rated slings placed at the right lift points.

Place the new XP Blender pump Casing, 14X12X22 (GMS P/N 25XPH141222), on the mounting surface, making sure that the directions of the suction and release lines match the design of the system pipes. Precision alignment keeps mechanical stress from building up and bearings from breaking down too soon. Place alignment bars through the bolt holes to keep the machine in place while you check that the case stuffing box bore and pump shaft are level. Acceptable runout is usually within 0.005 inches of the total number on the indicator. If the misalignment is too great, it needs to be fixed by shimming or changing the base.

Use grade 8 bolts with the right screws and lock washers to secure the case. Instead of tightening each fastener one at a time, use a star design. This keeps the casing lip from warping. Different sizes of fasteners need different amounts of torque. For example, 3/4-inch bolts need 180–200 ft-lbs of torque, while 1-inch bolts need 280–320 ft-lbs. Check the torque numbers against what the maker says is best for your installation. Do a second pass after the first tightening to make sure all the screws still have the right amount of preload. The first compression can make them look like they're letting up.

Common Issues During Installation and How to Avoid Them

When the case and drive parts are not lined up correctly, shaking, faster bearing wear, and early seal failure happen. Most of the time, this problem happens because the shaft isn't centred properly when the XP Blender pump Casing, 14X12X22, is being placed. To avoid imbalance, you need to use accurate measuring tools instead of guessing by looking. As the shaft turns, exact runout numbers are given by dial indicators on magnetic bases. Systematic shimming or pedestal adjustment can put parts into the right place when measures are off. By taking your time during this phase, you can avoid costly fixes and unplanned downtime after the system is fully operational.

Mistakes in installing seals are another common problem. Mechanical seals have precisely lapped sides that keep gaps measured in microns. If they get dirty or are handled incorrectly, they stop working right away. Technicians should use clean hands or gloves to handle seal parts and stay away from the sealing faces. When installing the seal, make sure it is facing the right way. If it isn't, the assembly will fail right away when pressure is applied. The compression of a spring must meet certain standards. Too much compression causes high face loads and heat production, while not enough compression lets air leak out. Thoroughly clean all the sides of the seal chamber, getting rid of any dirt or dust that could damage the seal faces while they are working.

Problems with fasteners can put people in danger and stop things from working. Under-torqued nuts let the joint separate under pressure, which could lead to a catastrophic release of fluid. When screws are over-torqued, the threads are stripped, or they break, which weakens the joint. Using calibrated torque tools takes the guessing out of the process and makes sure that all screws have the same preload. Lubricants for threads change the relationship between torque and stress. Dry assembly needs different torque values than assembly with threads that are oiled. Instead of assuming normal numbers, look at the engineering specs for your unique use.

Procuring High-Quality Replacement Casings

Choosing a dependable seller has a big effect on how well the equipment works and how much it costs to run. GMS Supply has been making industrial parts for over ten years and is proud to offer the XP Blender pump Casing, 14X12X22. The company keeps its ISO 9001 certification, which shows that it is committed to quality control methods that make sure products are always the same. This approval is important because it means that the processes used to choose the raw materials and do the final inspection have been checked by a third party. This lowers the chance that defective parts will get to your business.

Project planning and product control are both affected by lead times. GMS keeps a lot of popular sizes in stock, including the XP Blender pump Casing, 14X12X22 configuration, so normal orders can be delivered in one week. When you buy from other suppliers, you may have to wait longer for new parts because of production backlogs, which is different from this supplier's deep inventory. Supply lines that replace MISSION MAGNUM XP Centrifugal Pump are stable and reduce the risk of downtime are good for procurement managers who are in charge of keeping drilling operations going.

There are more than just unit costs that go into setting prices for industrial pump parts. The price you pay at first is important, but the total cost of ownership also includes the labour to install it, the costs of any downtime, and the amount of time it will last before it needs to be replaced. The high-chromium metal used to make GMS shells gives them longer wear life than regular materials, which means they need to be replaced less often. When looking at different suppliers, you should think about the total cost over the life of the contract instead of just the initial cost. Bulk buy agreements can save businesses even more money when they need to keep a lot of pump units.

In industrial markets where expert help is important for operational success, after-sales support sets different providers apart. Customers can get quick help from GMS through direct methods of contact, such as email at sales@gmssupply.com. Technical staff with knowledge in the field can help with questions about applications, installation, and fixing problems. This ease of access is helpful when problems appear during installation or use, as it lets experts weigh in and quickly solve the issue. When normal configurations don't meet the needs of an application, the company's method is flexible enough to meet those needs.

Conclusion

Installing the XP Blender pump Casing, 14X12X22, needs careful attention to alignment, using the right amount of pressure, and installing the seals in the right way. These steps have a direct effect on how reliable the system works. Before approval, the process includes a planned approach to getting ready, careful placement of parts, and a full check of everything. GMS offers high-quality replacement casings that are made to strict standards. This helps procurement workers who need reliable parts with regular wait times. The building of the high-chromium alloy gives it a long life in abrasive drilling tasks, and ISO 9001 certification ensures that the standard of the making is always good. Using high-quality parts and installing them correctly can cut down on downtime and overall costs in difficult industrial fluid handling operations.

FAQ

1. How long does installing this pump casing typically take?

In normal situations, it takes experienced workers three to five hours to finish the installation. This time frame could be pushed back by complicated cases requiring alignment fixes or unexpected component problems. Being well-prepared and having all of your tools on hand makes things go much more smoothly.

2. Can this casing handle acidic drilling fluids?

Hydrochloric acids are used in well stimulation activities, and the high-chromium metal does a good job of resisting corrosion. To get the best performance, you should check the material suitability data for your fluid chemistry against the pH limits and chemical amounts listed.

3. What causes premature casing wear in blender applications?

Over time, abrasive proppant particles mixed in with fast-moving fluids wear away at the inside of the volute. Working with fluids that have more solids than expected or going over the design flow rates both speed up wear. The reinforced shape of this XP Blender pump Casing, 14X12X22, makes it last longer in these tough circumstances.

4. Does the casing require special storage before installation?

The XP Blender pump Casing, 14X12X22, should be kept in a clean, dry place that is out of the weather. To stop rust, cover machined areas and flange faces. Before installing the gasket, check the surfaces and make sure they are clean by removing any protective coatings according to the manufacturer's directions.

Partner with GMS for Reliable XP Blender Pump Casing Solutions

GMS is ready to help you with your centrifugal pump component needs by providing high-quality goods that are made to strict standards. As a well-known company that makes XP Blender pump Casing, 14X12X22, we combine our knowledge of metals with our ability to make precise parts that work reliably in tough situations. Our large collection lets us ship quickly, and our ISO 9001 certification makes sure that the quality of every shipment is the same. You can talk to our expert team at sales@gmssupply.com about your unique pump casing needs, get full specs, or get cheap quotes for single units or large orders. We give you quick service and adaptable options that keep your oil and gas drilling activities running smoothly.
