How Does a 250 Centrifugal Pump Wear Pad/H2527-01-30A Extend Casing Life?

Protecting heavy-duty centrifugal pumps' casings against early failure is crucial in oil and gas exploration. 250 Centrifugal Pump Wear Pad/H2527-01-30A sacrificially separates the moving impeller and the stationary pump housing, enhancing casing life. This part absorbs friction, abrasion, and hydraulic forces that would harm the pricey case. The wear pad lowers internal recirculation, protects hydraulic efficiency, and lets maintenance teams replace simply the cheap liner instead of the pump body by preserving tight clearances and eliminating direct metal-to-metal contact. This method significantly reduces key drilling downtime and replacement expenses.

Understanding the Role of the 250 Centrifugal Pump Wear Pad / H2527-01-30A

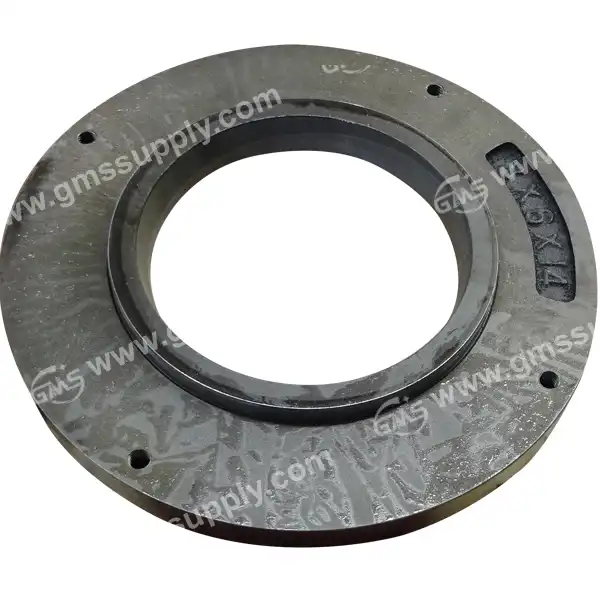

The 250 centrifugal pump wear pad functions as a renewable interface component installed within the pump's wet end assembly. Specifically designed for 250 Series centrifugal pumps used across MCM, Mission Magnum, Halco, Mattco, Harrisburg, and SPD Mud Hog equipment, this part shields the casing from abrasive slurries and drilling fluids common in oil drilling environments.

In pump operation, the high-velocity impeller causes mechanical stress and hydraulic pressure. Drilling mud and process fluid particles provide sliding friction and impact forces that the wear pad absorbs. As the first line of defence, this component protects the pump casing walls from abrasive slurry. Internal recirculation, which severely affects pump performance and increases wear, is minimised by the wear pad's tight clearance.

GMS sells wear pads made of erosion- and corrosion-resistant high-performance materials. These materials preserve dimensional stability in oil and gas drilling applications at high temperatures and pressures. Maintenance teams can trust ISO 9001-certified manufacturing, which assures material property consistency between batches. Hardness for abrasion resistance and toughness for solids impact loading in the pump system are balanced.

Common Problems Caused by Pump Wear and How the H2527-01-30A Resolves Them

Pump casings and Centrifugal Pump wear plates in industrial fluid handling systems face multiple wear mechanisms that compromise structural integrity and operational performance. Surface scoring, erosion grooves, and dimensional changes in the casing walls represent visible symptoms of advanced wear. These issues translate directly into increased maintenance budgets and unexpected equipment failures.

Primary Wear Causes in Centrifugal Pump Systems

Abrasive particles in drilling fluids scrape pump surfaces. Sand, rock cuttings, and other solids remove casing wall material like sandpaper. Corrosive compounds in process fluids pit metal surfaces, concentrating stress for erosion. Mechanical forces from hydraulic pressure changes and thermal cycling increase fatigue loading. These variables may cause casing failure quickly, especially when the pump works beyond its efficiency range.

Limitations of Traditional Protection Methods

Previous approaches to casing protection relied on thick-walled housings or protective coatings. Heavy castings increase equipment weight and material costs without addressing the root cause of wear. Coatings eventually fail at vulnerable points, allowing localized damage to spread. These methods also make repairs more complex and expensive, as the entire housing requires removal for servicing.

How the H2527-01-30A Provides Superior Protection

The 250 centrifugal pump wear pad's changeable design and optimised material choices eliminate these issues. Instead of the casing, abrasive particles hit the worn pad surface of the pump internals. The component's tailored thickness allows it to wear down slowly while preserving the shell. Simple inspections may help maintenance teams track worn pad condition and schedule replacements during specified maintenance periods. This method avoids emergency shutdowns and extends pump casing life by decades. GMS stocks worn pads with one-week lead periods to ensure fast replacements.

Wear Pad Solutions for 250 Centrifugal Pumps

Selecting appropriate wear protection for centrifugal pumps requires understanding the functional differences between available solutions and their economic implications over the equipment lifecycle.

Both seal rings and throatbushes have separate purposes in the pump assembly. Seal rings protect mechanical seals from external leakage, but wear pads handle impeller-casing wear. Some operators try to prolong seal ring life instead of wear pad maintenance; however, seal rings lack the thickness and material qualities essential for sacrificial wear protection. The worn pad's greater surface area and smart location distribute hydraulic stresses and absorb abrasive particle impacts better.

Metal and elastomer wear pads have different benefits depending on use. Metal components are heat-resistant and good for coarse particle applications. They retain dimensional stability at several temperatures. In applications with finer particles and mild temperatures, elastomer pads absorb impact energy and are flexible. H2527-01-30A balances these factors for common oil drilling operations with temperature extremes and mixed particle sizes. GMS technical support may assist procurement teams in choosing the best configuration (2500W4313, 2500W5414, 2500W6511, 2500W6514, 2500W8611) depending on operational factors.

Component quality directly impacts maintenance frequency and total operating costs. GMS manufactures MISSION SUPREME 2500 250 centrifugal pump wear pads meeting ISO 9001 quality standards, ensuring dimensional accuracy and material consistency. Our ten years of industry experience in oil and gas drilling equipment supply inform our manufacturing specifications and quality control procedures. This expertise translates into wear pads that install correctly on the first attempt and deliver predictable service life. Buyers working with reliable suppliers avoid the costs associated with premature part failure, including emergency shipping fees, rushed labor rates, and lost production time.

Best Practices for Installation and Maintenance to Maximize Casing Life

Proper installation and ongoing maintenance practices determine whether wear pads deliver their full protective potential or fail prematurely.

Before installing a replacement wear pad, thoroughly clean all mating surfaces on the pump casing to remove residual debris and old gasket material. Inspect the casing for any damage that occurred before the old wear pad was removed—scoring or gouging indicates the previous pad was left in service too long. Position the new wear pad carefully, ensuring alignment pins or locating features engage correctly. Tighten mounting bolts in a star pattern to avoid warping the pad surface, following torque specifications appropriate for the bolt size and material. After installation, manually rotate the impeller to verify proper clearance throughout the full rotation. Any binding or interference requires immediate correction before returning the pump to service.

Establishing routine inspection intervals prevents wear pads from failing catastrophically. Check clearances every 200 to 500 operating hours, depending on fluid abrasiveness. Measure the gap between the impeller face and wear pad surface using feeler gauges at multiple points around the circumference. Uneven wear patterns indicate operating problems such as misalignment or off-design flow conditions that require correction. Visual inspection should look for groove formation, surface discoloration from overheating, and any exposure of mounting hardware. Scheduling replacement when wear depth reaches 50 percent of the original pad thickness prevents casing damage while maximizing component utilization. GMS supplies wear pads with clear thickness specifications, making wear assessment straightforward for maintenance personnel.

Monitor pump discharge pressure and flow rate as indirect indicators of wear pad condition. Declining pressure at constant speed suggests increased internal clearances allowing recirculation. Rising power consumption at constant flow also signals efficiency losses from wear. Address these trends promptly rather than waiting for complete failure. Keeping detailed maintenance records helps identify optimal replacement intervals specific to your operating conditions, allowing procurement teams to maintain appropriate inventory levels and plan maintenance activities effectively.

Procurement Considerations: Sourcing the Right 250 Centrifugal Pump Wear Pad

Acquiring the correct wear pad model requires attention to compatibility, supplier capabilities, and total cost considerations beyond the initial purchase price.

The 250 Series centrifugal pump platform, including the 250 Centrifugal Pump Wear Pad/H2527-01-30A, includes multiple configurations, each requiring specific wear pad dimensions and mounting patterns. Cross-reference your pump model against the complete range of compatible part numbers: H2501-01-30A, H2502-01-30A, H2503-01-30A, H2504-01-30A, H2505-01-30A, H2506-01-30A, and H2527-01-30A. GMS provides detailed compatibility charts and technical drawings to assist procurement teams in confirming the correct specification. Our sales team can verify fitment based on your equipment serial numbers or existing part numbers. Ordering the wrong configuration leads to installation delays and wasted labor, making upfront verification essential.

Reliable suppliers demonstrate consistent product quality, responsive communication, and flexible solutions for both routine and emergency orders. GMS maintains a large inventory of 250 centrifugal pump wear pads manufactured to exacting standards in our ISO 9001-certified facilities. Our stock availability enables one-week lead times for standard configurations, critical for minimizing downtime during unplanned maintenance events. After-sales support includes technical consultation for installation questions and troubleshooting assistance if unexpected issues arise. These capabilities matter significantly when equipment failures threaten production schedules.

While unit price affects purchasing decisions, experienced procurement managers evaluate the complete cost picture. Lower-priced components that fail prematurely create hidden costs through repeated labor for replacement, additional equipment downtime, and potential secondary damage to pumps and casings. GMS supplies wear pads that deliver extended service life through superior material quality and dimensional precision. This reliability reduces maintenance frequency and labor costs over the equipment's operational life. Warranty coverage and technical support further reduce risk, particularly for facilities operating multiple pump installations where standardizing on reliable components simplifies inventory management and maintenance procedures.

Conclusion

To extend centrifugal pump casing life in oil and gas drilling, utilise wear pads as sacrificial protection. H2527-01-30 250 Centrifugal Pump Wear Pad absorbs abrasive wear, maintains hydraulic clearances, and prevents expensive casing damage. Selecting, installing, and maintaining these components reduces downtime, replacement costs, and operational dependability. GMS supports key fluid handling equipment maintenance and procurement teams with manufacturing, quality assurance, and responsive supply chain capabilities. Our ISO-certified manufacturing and decades of industry expertise guarantee reliable components for 250 Series centrifugal pumps in harsh settings.

FAQ

1. What is the typical service life of a 250 centrifugal pump wear pad in oil drilling applications?

Service life varies based on fluid abrasiveness, particle size, operating hours, and maintenance practices. Properly selected wear pads typically deliver 2,000 to 4,000 operating hours in standard drilling mud applications. More abrasive fluids with coarse solids reduce this interval, while clean process fluids extend it. Regular gap inspections allow maintenance teams to optimize replacement timing for their specific conditions.

2. Can the H2527-01-30A wear pad handle high-temperature drilling fluids?

This wear pad model handles the elevated temperatures encountered in typical oil drilling operations. The material specification maintains dimensional stability and mechanical properties across the temperature ranges these pumps experience during normal service. Applications with extreme thermal conditions may benefit from consultation with GMS technical support to verify suitability.

3. How do I know when to replace the wear pad before casing damage occurs?

Monitor the clearance gap between the impeller and wear pad surface during routine inspections. Replace the pad when wear depth reaches approximately 50 percent of the original thickness, or when the gap exceeds manufacturer specifications. Declining pump performance—reduced pressure or increased power consumption—also signals excessive wear requiring immediate attention.

Partner with GMS for Reliable 250 Centrifugal Pump Wear Pad Solutions

GMS serves as your experienced supplier for 250 Centrifugal Pump Wear Pad/H2527-01-30A, delivering quality components that protect your critical pumping equipment and reduce total operating costs. Our manufacturing capabilities, ISO 9001 certification, and extensive inventory position us to meet both planned maintenance and emergency replacement needs with one-week lead times. We stock the complete range of compatible part numbers, including the H2527-01-30A (P/N: 2500W8614) and related configurations for 250 Series centrifugal pumps used across oil and gas drilling operations. Contact our sales team at sales@gmssupply.com to discuss your specific application requirements, verify part compatibility, and receive a detailed quote. Our technical support specialists assist with installation guidance, maintenance planning, and troubleshooting to maximize equipment reliability and extend casing service life. Discover how GMS combines competitive pricing, short lead times, and comprehensive after-sales support to become your trusted partner for centrifugal pump components.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.

References

1. Karassik, I.J. et al. "Pump Handbook: Fourth Edition." McGraw-Hill Education, 2008.

2. McNally, K. "Centrifugal Pump Hydraulics and Wear: A Practical Guide." Industrial Press, 2015.

3. American Petroleum Institute. "API Standard 610: Centrifugal Pumps for Petroleum, Petrochemical and Natural Gas Industries." 11th Edition, 2010.

4. Volk, M. "Pump Characteristics and Applications: Third Edition." CRC Press, 2013.

5. Beddington, R. "Wear in Centrifugal Pumps: Mechanisms, Materials, and Maintenance Strategies." Journal of Industrial Equipment Maintenance, Vol. 28, 2019.

6. Wilson, J.T. "Optimizing Component Life in Abrasive Slurry Pumping Applications." Proceedings of the International Pump Users Symposium, 2017.
