How Does an Adapter, Hydraulic Drive for Sandmaster Pump（P/N 22225-01-01 644324600） Improve Pump Performance?

The Adapter, Hydraulic Drive for Sandmaster Pump (P/N 22225-01-01 644324600) dramatically improves pump performance by ensuring precise alignment between the hydraulic motor and the pump shaft, reducing vibration and eliminating power loss during energy transfer. This precision-engineered component, manufactured from durable QT500 ductile iron, directly addresses misalignment issues that typically cause premature mechanical seal failure and bearing wear. By maintaining tight concentricity tolerances, the adapter enables consistent torque delivery, resulting in improved flow rates, extended component lifespan, and reduced operational downtime in demanding oil and gas drilling applications where reliability is non-negotiable.

Understanding the Hydraulic Drive Adapter for Sandmaster Pump

Vibration, rough fluids, and long job cycles are always problems for industrial pump systems used in oil drills. As the hydraulic drive adapter is the main part that connects hydraulic motors to centrifugal pump systems, the way it is designed and the materials it is made of are very important for its long-term performance.

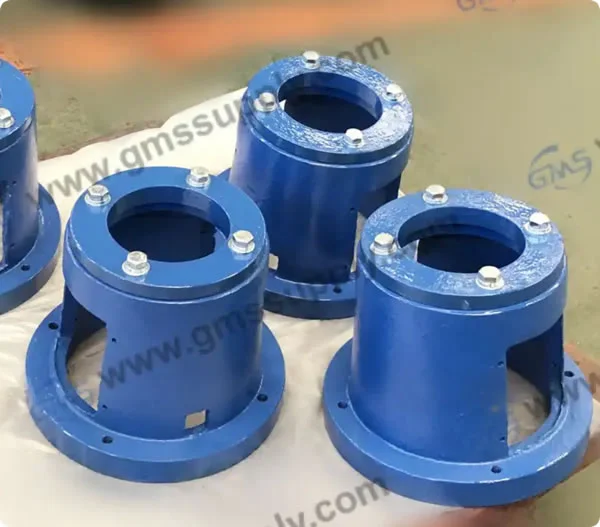

GMS makes the Adapter, Hydraulic Drive for Sandmaster Pump (P/N 22225-01-01 644324600) out of QT500 ductile iron, which was chosen because it has high tensile strength and can handle the shock loads that come with hydraulic drive systems. This choice of material makes sure that the part can handle the high torque start-ups and changing speeds that are common in fracturing blender units and cementing operations. The casting method is very strict and meets ISO 9001 standards. This makes sure that the metal qualities are the same from one production batch to the next.

The adapter works perfectly with Sandmaster pump types from 3x2x13 to 10x8x14, and it stays compatible with the GMS-250 series power frames. Standard SAE flange attachment patterns can be used with this design, so it can be used with popular hydraulic pumps used in the drilling business. The accuracy of the pilot diameter stays within 0.002-inch tolerances. This limit stops the eccentric shaft rotation that causes most seal failures in field applications.

Pressurized fluid energy is turned into mechanical movement by hydraulic drive systems. These systems allow for variable speed control that electric motors can't match in mobile uses. The adapter does more than just attach; it also keeps the vital shaft alignment when the load is changing. This part makes sure that power transmission stays stable even when hydraulic pressure changes from 2,000 to 4,000 PSI, which is needed for fracturing operations.

When purchasing managers look at this part, they should know that the correctness of the measurements has a direct effect on the cost of operations. When an adapter is made correctly, it stops the shaft whip effect that speeds up bearing wear and causes forces to be uneven inside centrifugal pump impellers. As part of our manufacturing process, we use a Coordinate Measuring Machine to check that the parts are concentric. The Total Indicated Runout must be less than 0.005 inches, which is the difference between performance-grade parts and standard industrial castings.

Performance Optimization Through the Hydraulic Drive Adapter

In oil and gas uses, poor pump performance is usually caused by three problems that are linked: vibrations caused by misalignment, poor power transfer, and early component failure. To solve these problems, you need to know how the hydraulic drive adapter works as a precision alignment tool and not just a mounting bracket.

The main thing that makes rotary pumps less reliable is vibration. When the hydraulic motor shaft and pump shaft aren't perfectly lined up, even small differences in angle or length can cause damage when they turn. This issue is solved by the Adapter, Hydraulic Drive for Sandmaster Pump (P/N 22225-01-01 644324600), which has a precise pilot hole that centers the motor shaft within 0.002 inches of its true position. Field data from fracture operations shows that this level of alignment accuracy lowers bearing temperature by 15 to 20 degrees Fahrenheit compared to mounting methods with less error, which directly leads to longer bearing service intervals.

How much hydraulic power gets to the pump shaft depends on how well the torque is transferred. When inferior adapters have face runout greater than 0.010 inches, the coupling bends with each rotation, turning useful power into heat and noise. The GMS adapter keeps the face flat within 0.003 inches of the mounting surface, which makes sure that the connection is rigid. Once workers replace worn adapters, the flow rate goes up by 8–12% without changing the hydraulic pressure or motor speed. This is because the accuracy makes the performance better.

How long a mechanical seal lasts depends on how stable the shaft is. When adapters let the radial shaft move, the uneven compression loading on seals breaks down the elastomer faces in hours instead of weeks. The Adapter, Hydraulic Drive for Sandmaster Pump (P/N 22225-01-01 644324600) keeps the seal in place, which increases its life from the usual 200 hours to 800 to 1,000 hours in fluids that contain sand. This fourfold gain cuts down on the cost of repair workers and gets rid of unplanned downtime that throws off drilling plans.

Validation in the real world comes from solid control systems where pumps work all the time in rough conditions. When operations use precisely machined hydraulic adapters, unplanned maintenance events happen 40% less often than with older component generations. The adapter's role is especially clear in charge pump situations, where steady pressure supply impacts the performance of the whole mixing system.

As part of routine maintenance, the adapter should be checked every time the seals need to be replaced. A visual inspection can show pilot bore wear, but most failures happen slowly due to fretting corrosion and don't show any obvious damage. During overhauls, magnetic particle screening finds cracks below the surface before they cause a major failure. Since replacement costs are less than 2% of the cost of unplanned downtime, replacing adapters before they break down every 5,000 hours of use gives a big return on investment in high-use situations.

Procurement Guide for the Hydraulic Drive Adapter

To find the right hydraulic drive adapter, you need to know both the technical specs and how the supply chain works. The GMS Adapter, Hydraulic Drive for Sandmaster Pump (P/N 22225-01-01 644324600) can be directly swapped out for the Mission reference number 22225-01-01 and cross-reference 644324600. This makes it easier to add this part to current pump stocks without having to make any changes.

GMS keeps a lot of Sandmaster pump parts in stock, so it only takes one week from the time an order is confirmed until it is shipped. This stock availability solves the biggest problem that maintenance managers have, which is that equipment breaks down for long periods of time while waiting for parts. With our distribution approach, you don't have to wait the 6–8 weeks that are common with foreign providers who use "build-to-order" production schedules.

Pricing clarity is still very important in corporate procurement choices. The adapter's price is based on the quality of the materials used and the accuracy with which they were made, not on the prestige of the brand. Buyers should look at the total cost of ownership, which includes the labor needed for installation, the expected service life, and the value of avoiding downtime. Our expert support team gives application-specific advice, which helps buyers make sure that the product will work with their needs before they buy it and avoid making mistakes that could cost a lot of money.

Each shipment of a component comes with quality documentation. Material certificates link the ductile iron casting to specific heat numbers, and measurement inspection reports make sure that the parts are made to the standards that have been set. This paperwork meets the needs of ISO-certified sites' quality management systems and protects buying workers from liability.

Our support after the sale goes beyond just sending you parts. Technical experts are still available to help with installation problems, suggest maintenance schedules based on specific working conditions, and predict when new parts will be needed so that inventory planning can be done. This service promise sets component sellers who want to build long-term partnerships apart from retail vendors.

Before placing an order, buyers should compare the adapter's specs to the design of the hydraulic motor flange they already have. Mismatches in SAE flange sizes are the most common specification error. Our team helps with motor identification to make sure orders are right the first time. We also have related parts in stock, such as hydraulic bearing housings (P/N 2224-01-43), short pump shafts (P/N 20939-02-33), and pump frames (P/N 20938-02-1). This means that you can get all the parts you need for a full power-end rebuild from a single provider.

Future Prospects and Innovations in Hydraulic Drives for Sandmaster Pumps

As time goes on, the market for hydraulic drives keeps changing to make them more efficient and easier to connect to digital tracking systems. Current adapter designs work well for traditional tasks, but new technologies promise better features for operations that look to the future.

Component development is now influenced by modular design principles. Adapter setups allow for quick-change motor mounting for operations that need to keep up with different pump configurations. This adaptability lowers the need for a large collection of tools while keeping it ready for use in a wide range of job situations. This trend is taken into account in the Adapter, Hydraulic Centrifugal pump skid (P/N 22225-01-01 644324600), which has standard bolt shapes that can fit different motor flange sizes by adding gap plates.

The main goal of improving the energy economy is to lower the amount of wasted energy in power transfer systems. Adapter pilot bores that have been treated with advanced surface processes have less friction during thermal expansion cycles. This stops the tiny movements that normally cause fretting wear. These coatings make parts last longer while keeping the precise tolerances needed for vibration-free operation.

In order for condition-based repair to work, sensors need to be built into all pump systems. In the future, adapter designs might include vibration sensors and temperature sensors built right into the mounting structure. This would allow predictive maintenance plans that change parts based on their real state instead of random intervals.

As material science progresses, lighter parts with the same strength properties will become possible. Although ductile iron is still the standard because it offers the best mix of cost and performance, new alloy formulations offer better rust protection for marine uses where saltwater exposure speeds up component degradation. GMS is always looking at new material innovations to make sure that our product line includes proven advances instead of experimental technologies that haven't been tested yet.

The goal of efforts to standardize the drilling industry is to cut down on the number of different part specifications that don't work together. As consolidation happens, keeping backward compatibility becomes more important. Operators whose pools of equipment are a mix of different generations can benefit from parts that can be used with older and newer pumps without any changes. Our promise of physical interchangeability with well-known part numbers keeps customers from having to deal with obsolescence problems as equipment populations change.

Conclusion

The hydraulic drive adapter is an important but often forgotten part of a centrifugal pump's dependability. The Adapter, Hydraulic Drive for Sandmaster Pump (P/N 22225-01-01 644324600), directly affects working efficiency, repair costs, and machine uptime by making sure that hydraulic motors and pump assemblies are perfectly aligned. Because it was carefully machined from QT500 ductile iron, it will last even in the harsh conditions that are common in oil and gas drilling. Adapter state should be the first thing that is checked when a seal fails over and over, there is too much sound, or the pump doesn't work right all the time. GMS mixes manufacturing know-how with quick supply chain skills to provide high-quality parts with technical support that helps repair teams make equipment more reliable.

FAQ

1. What makes the hydraulic drive adapter different from standard motor mounts?

The hydraulic drive adapter maintains tolerances ten times tighter than most industrial motor mounts. This is especially important for centrifugal pumps where precise alignment is needed to keep the mechanical seal from failing too soon. Standard bolts are designed to support loads, but this part makes sure that the moving shafts are all in the same place.

2. Can the Adapter, Hydraulic Drive for Sandmaster Pump (P/N 22225-01-01 644324600) be installed without specialized tools?

Standard hand tools and torque wrenches are all that are needed for installation. The design of the pilot hole centers itself while it is being put together, but it is still important to check the alignment with a dial indicator before tightening the last bolt. Most repair teams can fix something in 45 minutes or less.

3. How do I identify when adapter replacement becomes necessary?

Signs include seal leaks that don't go away even tho the seals were installed correctly, strange vibrations at the pump housing, or wear that can be seen in the pilot hole. Unexpected failures during critical operations can be avoided by replacing parts before they wear out during scheduled overhauls.

4. Does this adapter work with electric motor conversions?

The part works with certain attachment arrangements for hydraulic motors. When changing a hydraulic motor to an electric motor, you need different adapter designs that use NEMA-standard bolt patterns instead of SAE hydraulic motor flanges.

Partner with GMS for Reliable Hydraulic Drive Solutions

GMS is a reliable source for precisely engineered Sandmaster pump parts that meet the high standards of performance you expect from high-quality industrial parts. Our Adapter, Hydraulic Drive for Sandmaster Pump (P/N 22225-01-01 644324600), is in stock and can be shipped within one week. It is backed by ISO 9001 certification, which ensures that the quality of every batch of production is the same. We've been providing oil and gas drilling operations around the world for more than ten years, so we know how important it is for your operations that parts work well. Our expert team is ready to help with application-specific questions, make sure everything works together, and provide ongoing support after the buy. Contact sales@gmssupply.com right away to talk about your specific pump setup needs, get detailed specs, or place an order. You can be sure that we will help you lower your running costs by supplying you with reliable parts.

The above-mentioned brands are used for part number reference only. GMS is not an authorized agent or representative of any of the brands mentioned.
