How Does the 110703 Cylinder Assembly Counterbalance Work?

When managing top drive hydraulic systems in oil and gas drilling operations, one question keeps coming up: how exactly does the 110703 Cylinder Assembly, Counterbalance work to keep the system stable? The clever way it's made controls hydraulic pressure, stops load drift, and makes sure operations are safe during important drilling phases is the answer. This counterbalance cylinder assembly has a special valve mechanism that controls fluid flow on the fly. This keeps heavy loads from falling off without being controlled and keeps the precise position. Knowing how this mechanism works helps purchasing managers and technical teams choose parts that will cut down on downtime and make drilling more efficient.

Introduction

Top drive units are powered by hydraulic systems that need parts that work precisely and reliably, even in harsh conditions. The 110703 Cylinder Assembly, Counterbalance (GMS Part No.: 11S00252) is an important part of the counterbalance package for NOV Varco top drive systems, and it was designed to work with TDS-11 and TDS-9SA models.

For procurement managers who are in charge of drilling operations, knowing how this cylinder assembly works directly leads to better equipment performance, shorter maintenance intervals, and higher safety margins. This part doesn't just move loads; it also handles hydraulic pressure cleverly to avoid sudden drops or unstable placement that could stop drilling and make the area dangerous.

In this guide, we'll look at how this cylinder system works technically, how it's used in real life for drilling, and how to install, maintain, and buy it. This article gives you the information you need to make smart choices about counterbalance cylinder assemblies, whether you're in charge of finding replacement parts, keeping an eye on fleet uptime, or weighing your supplier options.

Understanding the 110703 Cylinder Assembly Counterbalance

The 110703 Cylinder Assembly, Counterbalance is different from other hydraulic cylinders because it has a load-holding system built right in. Normal cylinders only move forward and backward based on hydraulic pressure. This system works in a counterbalance package that keeps loads from "running away" or moving when hydraulic pressure drops or stops working altogether.

Controlled fluid discharge is at the heart of how it works. The counterbalance valve needs enough pilot pressure to open when the cylinder needs to retract under load. With this valve setting, the load can't be pulled down faster than the hydraulic pump can send fluid to the other side of the piston. The result is a controlled, smooth lowering that gets rid of jerky movements and sudden drops.

Here are the core advantages this design delivers to drilling operations:

• Enhanced Load Control: The built-in counterbalance mechanism keeps the top drive system in the exact same place even when the pressure changes for the NOV TDS11SA cylinder assembly. This stability is very important for placing drill strings or keeping the bit's weight steady during complicated drilling procedures. Operator Safety Improvements: If a hydraulic line breaks or pressure drops, the counterbalance valve closes itself, stopping the heavy equipment from falling without being controlled. This fail-safe feature keeps both people and machines from having terrible accidents.
• Extended Equipment Lifespan: The assembly makes mounting points, seals, and connecting hardware last longer by getting rid of shock loads and sudden movements. When drilling contractors use counterbalance systems that work properly, they report longer service intervals and fewer emergency repairs.
• Energy Efficiency Gains: The controlled fall lets the system store potential energy instead of losing it as heat through the release valves. This economy lowers the temperature of the hydraulic fluid and makes cooling systems work less hard.

These benefits work together to solve important problems in drilling operations where equipment uptime has a direct effect on project profits. Global Machinery Supply Co., Ltd. makes 110703 Cylinder Assembly, Counterbalance that meets ISO 9001 approval standards. This makes sure that the quality is the same from one production batch to the next. This assembly works well in the tough conditions that are common on oil and gas drilling sites because it is well-built and has precisely engineered parts.

Key Applications and Industry Use Cases

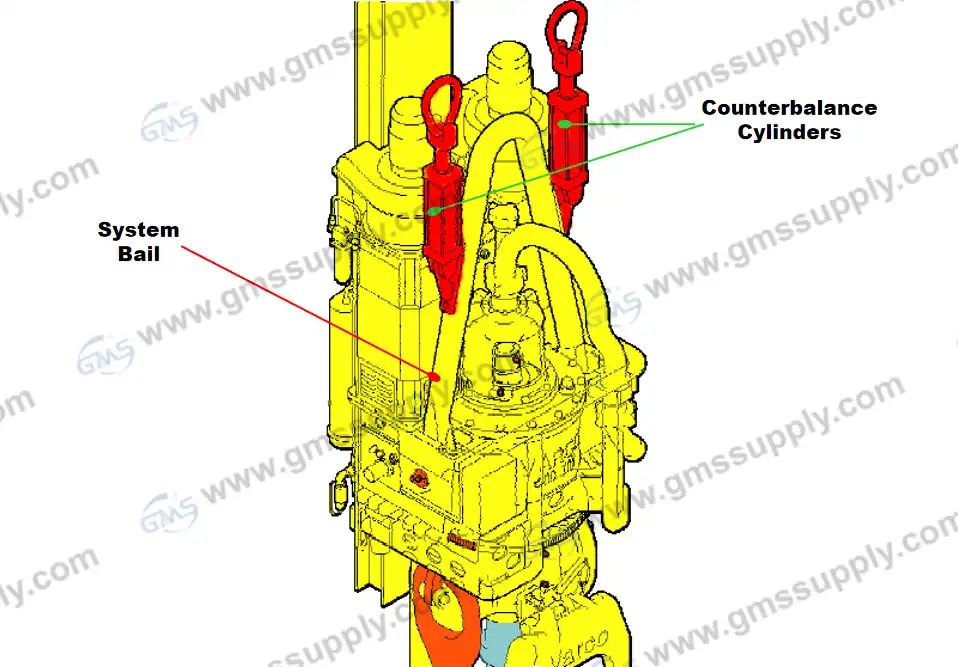

There are many industries that need the 110703 Cylinder Assembly, Counterbalance because they need to be able to control vertical movement while under load. This part is directly attached to the balancing package (Assembly No. 112190) of NOV Varco top drive systems in oil and gas drilling. It controls the complex forces needed to raise and lower drill strings that weigh tens of thousands of pounds.

In top drive hydraulics, the cylinder system works with other hydraulic parts to keep the handling of pipes stable while they are being tripped. The counterbalance system keeps the rig floor safe when drill crews need to add or remove pipe sections. Sudden movements could damage equipment or put people in danger. The fact that the unit can stay in place without the pump running all the time also saves energy during these regular, short stops.

Manufacturers of construction equipment use similar counterbalance cylinder assemblies in cranes and lifting platforms where the stability of the load cannot be compromised. The technology works well in any situation where controlled lowering of suspended loads is needed, from forestry equipment to vertical conveyor belts in food processing plants that move heavy loads of product.

Think about a common drilling situation that shows how useful a top drive unit with the 110703 Cylinder Assembly, Counterbalance part is. In order to connect two pieces of drill pipe, the driller must stop the travelling block exactly at the level of the rig floor. The 110703 Cylinder Assembly, Counterbalance stays in place, even when the hydraulic demand changes to do other things, like turning the pipe or moving the iron roughneck. The load-holding valve makes this multitasking possible, so one hydraulic power unit can do more than one thing at once without losing its position.

Contractors who work in drilling see improvements in performance, such as smoother pipe handling, less damage to rig floor equipment from sudden impacts, and more confidence among crew members working near heavy loads in the air. When you look at this combined counterbalance method next to systems that use different load-holding valves or rely only on pump pressure to keep the position, the benefits are clear: fewer parts are needed, and hydraulic circuits are easier to understand.

Installation, Maintenance, and Troubleshooting Tips

The 110703 Cylinder Assembly, Counterbalance, needs to be put together correctly before any wrenches are used. Before adding new parts to systems that are already in place, technical teams should make sure that the cleanliness of the hydraulic fluid meets ISO 4406 standards. Fluid that is contaminated is still the main reason why valves and seals fail early. Filtration before installation is a good idea because it protects the whole hydraulic system.

When installing the hardware, pay close attention to how the ports are oriented and how the pilot lines are connected. For the counterbalance valve to work right, the pilot pressure must be just right, and connections that are backwards can lead to dangerous working conditions for Varco top drive overhaul cylinders. The orientation of the mounting should match the manufacturer's instructions so that the cylinder works within the angle limits that were designed for it. It is important to follow the torque specs for port fittings and mounting hardware exactly. If you tighten them too much, the ports can bend and leak, and if you don't tighten them enough, the fittings can come away when the system shakes.

Regular maintenance greatly increases the life of a system and keeps it working reliably. Setting up a regular inspection procedure helps repair teams find problems early on, before they become so bad that they stop working. Visual checks should be done once a month to look for hydraulic fluid leaks around rod seals, scoring on chrome rod surfaces that are exposed, and tight mounting hardware. Rod scoring shows problems with contamination that need to be fixed right away to keep the seal from getting damaged.

Taking samples of the fluid every six months on time lets you know right away if there are problems with contamination or component wear. Particle counts higher than what the system allows suggest that the filter isn't working right or that a component is breaking down somewhere in the circuit. If you take care of fluid quality problems right away, you can stop the cascade effect, which happens when a failed part contaminates and destroys other parts of the system.

Load drift or erratic lowering speeds are common signs of performance problems. When the suspended load slowly falls even though the control valves are closed, it's usually because of worn-out interior seals or dust that stops the valves from closing all the way. As part of the diagnostic process, the suspect cylinder must be isolated, the system must be under pressure, and position changes must be tracked for ten minutes. If you can measure drift, it means there is an internal leak that needs to be fixed by replacing the seal or, if barrel scoring has happened, the whole cylinder.

If there is chattering or jerky motion during controlled lowering, it's likely because the counterbalance valve settings are off or there is air in the hydraulic fluid. Calibrated pressure gauges at pilot ports can be used by technical teams to check that the valve crack pressure is correct. Air problems usually go away after the right bleeding steps are taken, but if they don't go away, it could mean that the pump is cavitating or there isn't enough fluid, which needs separate attention.

The Repair Kit Cylinder 110687-SK makes it possible for repair teams to change seals without having to find separate parts. This repair kit has seals that are perfectly matched and made for the shape of the cylinder. This makes sure that the kit fits correctly and restores performance. Having these kits on hand cuts down on downtime when fixes need to be done for planned maintenance or at the last minute.

Procurement Guide for the Counterbalance Cylinder Assembly

To find the right 110703 Cylinder Assembly, Counterbalance part for TDS-11 and TDS-9SA top drive systems, you need to pay attention to the specs for compatibility and the dependability of the provider. The 110703 Cylinder Assembly, Counterbalance (GMS Part No.: 11S00252) works perfectly with the counterbalance package 112190, so it's important to check the assembly numbers before you buy. Cross-referencing the part number of the component with the assembly it fits into stops costly mistakes in ordering that cause maintenance schedules to be pushed back.

When planning for procurement, lead times have a big effect. This cylinder assembly is kept in stock by Global Machinery Supply, and most orders are delivered within four weeks. This lets maintenance planners weigh the cost of just-in-time buying against the cost of keeping extras on-site. Suppliers who keep common parts in stock and can speed up shipments when replacements are needed quickly are especially helpful for drilling operations that are in remote areas or don't have a lot of storage space.

When looking at possible suppliers, true value is determined by more than just the unit price. If a supplier has ISO 9001 certification, it means they have quality control methods in place that make sure manufacturing standards are always met. When buying parts for safety-critical systems like top drive hydraulics, where a broken part can cause major operational and safety problems, this certification becomes even more important.

After-sales support is what sets partners who care about the success of their customers apart from suppliers who just sell parts. Technical support teams that know about top drive hydraulics can help with questions about installation, fixing, and making sure that the systems will work together. Having access to knowledgeable support lowers the chance of making mistakes during installation and helps maintenance teams fix problems quickly when they happen.

Buying in bulk and having a long-term connection with a seller can often give you benefits beyond price. If you are a preferred customer, you may get special treatment when supplies are low, have flexible payment terms that make managing your cash flow easier, and be ready to stock unique things based on how you have used them in the past. Your supply chain will be more stable if you build relationships with dependable 110703 Cylinder Assembly, Counterbalance suppliers.

The parts you buy should come with paperwork that lists their measurements, the types of hydraulic fluid that are suggested, the torque values needed for fitting, and upkeep tips. Good providers give detailed technical instructions to help with installation and ongoing upkeep. This makes it less likely that things will break early because they were not handled properly.

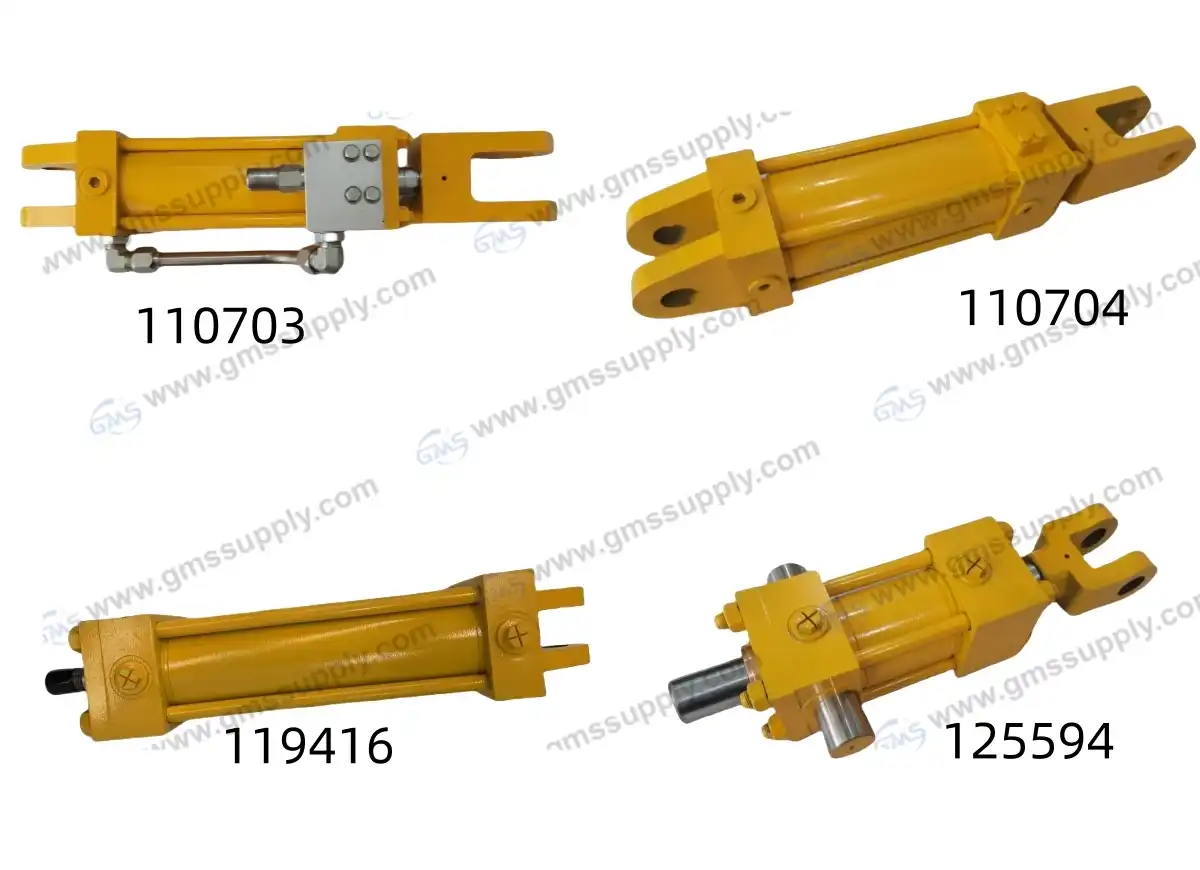

GMS has many related products, such as Cylinder Assy, Hyd, IBOP Actuator 125594 (GMS: 11S00719), Cylinder, Doublerod 120557 (GMS: 11S00929), and Cylinder Assembly, Counter Balance 110704 (GMS: 11S00253). This lets procurement managers combine suppliers and make logistics easier. This wide range of products is helpful when making plans for complete maintenance programs or keeping track of parts inventory at multiple rig sites.

When a seller is being evaluated, the warranty terms should be carefully reviewed. Clear warranty coverage against manufacturing defects gives you options if parts break too soon, but knowing what operational conditions make warranty coverage null and void helps avoid disputes. Reputable suppliers stand behind the quality of their products, but they don't cover damage that happens because of bad installation, contaminated hydraulic fluid, or using the product outside of its intended use.

Conclusion

The 110703 Cylinder Assembly, Counterbalance is more than just a new part; it is an important part of top drive hydraulic systems for safety and performance. Procurement teams and maintenance managers can make better buying choices when they know how the integrated counterbalance valve manages load movement, stops drift, and prevents pressure loss. The system will last longer and work better if it is installed correctly according to the manufacturer's instructions, and is maintained regularly, and the quality of the hydraulic fluid is checked. When looking for these parts, it's best to choose providers that are ISO certified, offer expert support, and have a history of having the parts in stock. This will help your operations keep the uptime and safety margins that drilling operations need.

FAQ

1. What makes the 110703 counterbalance cylinder different from standard hydraulic cylinders?

This 110703 Cylinder Assembly, Counterbalance is different from regular cylinders, it stops the load from falling without being controlled when the pilot pressure is low. If the hydraulic pressure drops suddenly, the load is locked in place. Standard cylinders can't hold this much weight; instead, they rely on constant hydraulic pressure to stay in place.

2. Can the 110703 Cylinder Assembly be rebuilt instead of replaced?

It is still possible to rebuild if the barrel surfaces are still in good shape and only the seals need to be replaced. The Repair Kit Cylinder 110687-SK has all the seals you need to repair. But if the cylinder barrel gets scored or the counterbalance valve cartridge gets broken, the whole 110703 Cylinder Assembly, Counterbalance needs to be replaced to make sure it stays reliable and meets safety standards for the top drive system.

3. How frequently should maintenance teams inspect this cylinder assembly?

Visual checks every month to see if there are any fluid leaks, check the state of the rod's surface, and make sure it is securely mounted are enough for most drilling jobs. Every six months or as often as the maker suggests, more thorough care should be done, such as checking the seals and taking samples of the fluid. More regular, thorough checks may be helpful for operations that are in harsh settings or that have a lot of cycles.

4. What symptoms indicate the counterbalance valve requires attention?

Gradual load shift when the controls are in the neutral position means that the valve isn't closing all the way because of worn seals or contamination. If the controlled downward motion is jerky or rattling, it means that the valve settings are wrong or there is air in the hydraulic system. Either symptom should lead to a diagnosis before the condition gets worse and stops working properly.

Partner with GMS for Reliable Counterbalance Cylinder Solutions

Maintaining the dependability of a top drive system requires working with providers who know how important each part is. Global Machinery Supply has been providing high-quality hydraulic parts to the oil and gas drilling industry for more than ten years. Our production is ISO 9001-certified, which means that the 110703 Cylinder Assembly, Counterbalance (P/N 110703, GMS Part No. 11S00252) meets international quality standards. We also keep a lot of stock on hand, and our four-week lead times keep your operations running smoothly.

We do more than just sell parts; procurement managers and maintenance teams value our technical support and adaptable solutions. Our team responds quickly to your needs, whether you need a single emergency replacement or help setting up inventory programs for several drilling sites. We keep a large inventory of related hydraulic parts, such as different cylinder assemblies, repair kits, and top drive parts that work with TDS-11 and TDS-9SA models.

To talk about your specific needs for 110703 Cylinder Assembly, Counterbalance parts, please contact our technical sales team at sales@gmssupply.com. We'll provide detailed specifications, verify compatibility with your equipment, and develop supply solutions that align with your operational needs and budget considerations. As an experienced supplier of 110703 Cylinder Assembly, Counterbalance components, we want to help you succeed by giving you reliable products and quick service.
