How to Install Washpipe Assembly AY10031 Step by Step

It is very important to fit the Washpipe Assembly AY10031 correctly, as this part is the main part that spins between the set gooseneck and the drill string. The right way to install this part cuts down on downtime, stops costly leaks, and makes them last longer. Maintenance teams can make sure that models like the Canrig 8035, 8050, and 6027 can connect and work with this Washpipe Assembly AY10031 by following set procedures for installation.

​​

​

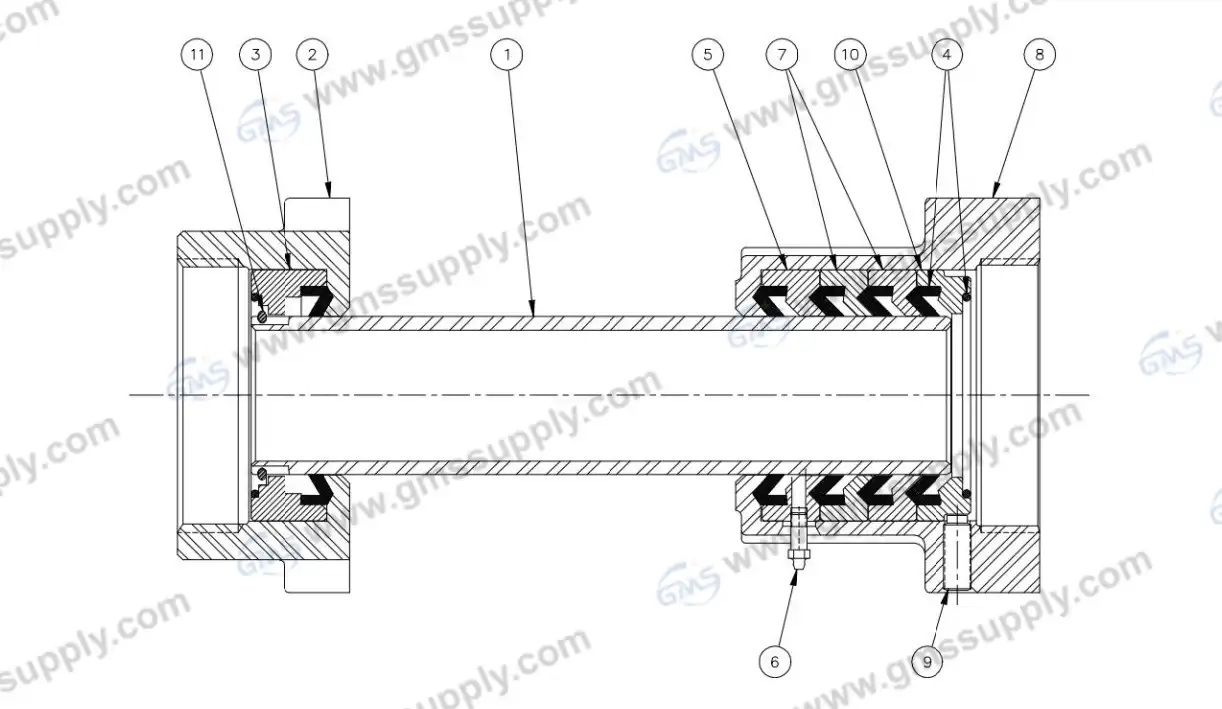

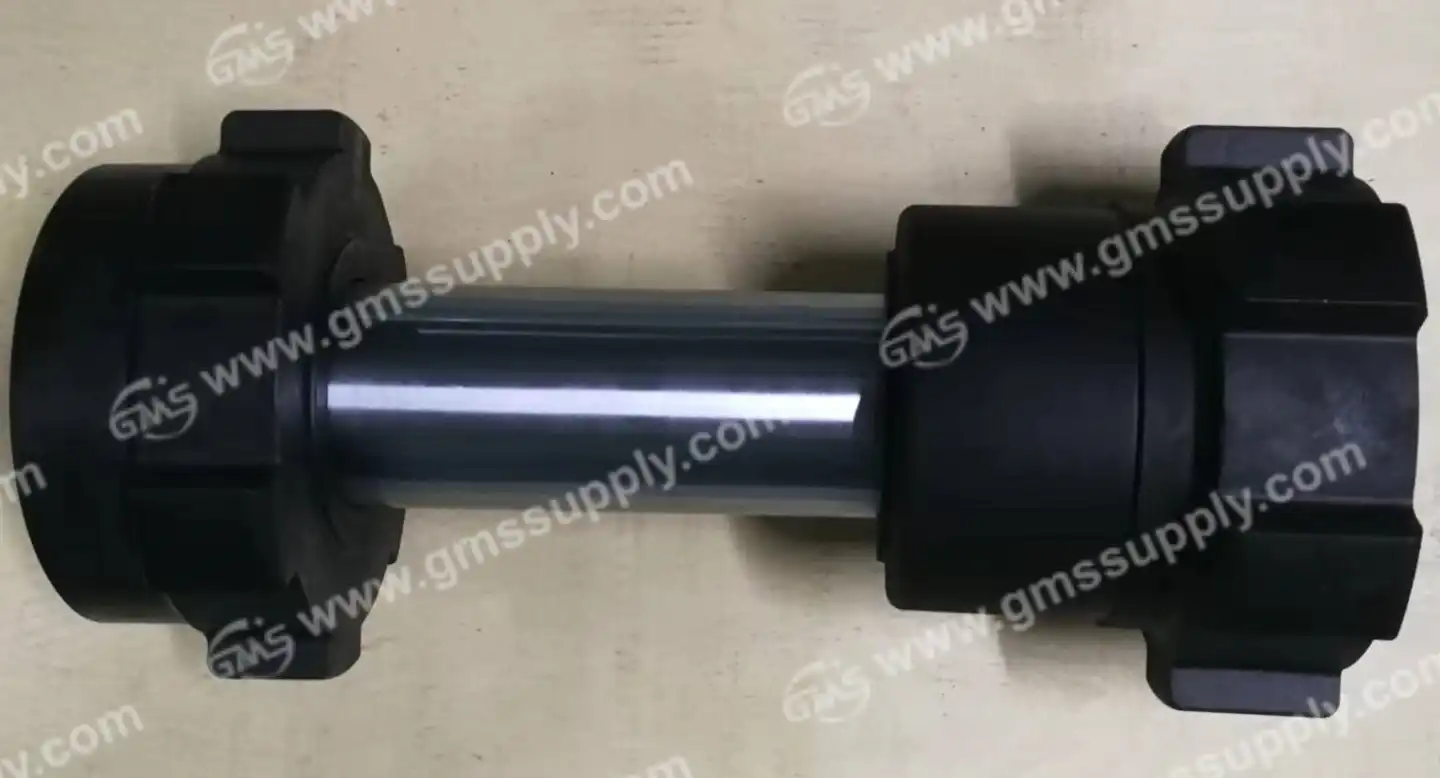

Understanding the Washpipe Assembly AY10031

Before installing Washpipe Assembly AY10031, it necessary for workers to understand this critical component, which is made to work with Canrig top drive systems, where it leads drilling fluid from supply lines that stay in one place and turn with the drill pipe all the time. Trusted suppliers like GMS Supply provides this part by using high-quality alloy steel that has been treated in special ways to prevent it not rust or wearing down easily, which is important to keep the oil and gas drilling projects running smoothly.

A normal range of pressure for drilling is acceptabel for the system, and it can handle the hydraulic loads that come up during both oil and gas drilling. The surface on the outside is made to work best with fabric-and-rubber or advances combination packing materials, which makes the part last longer by reducing friction. Buyers should make sure that this Washpipe Assembly AY10031 works with the current types of top drive models and it meets the needs of their tools. This careful planning before buying keeps the setup from taking too long to put together and makes sure it works well with your oil and gas drilling system.

Preparing for Installation: Essential Tools and Checks

The Washpipe Assembly AY10031 will work well with the Canrig top drive systems if workers get the right tools and check it carefully before start. It's important to set the torque wrenches according to the directions while also need alignment gauges to make sure the holes are straight, cleaning solutions that can get rid of drilling mud. These essential steps will benefit a lot for the coming installation process.

Buyers should make sure the Washpipe Assembly AY10031 is in good shape, check to see if the covered surface has any flaws, scratches, or gouges that could impact how well it packs. Make sure the unit meets the standards for the existing top drive model, and check to see if the part has any damage from being shipped. Finding problems before installation helps a lot for companies and contractors in charge of important drilling projects. Secondly, check that the part number on the piece and the number on the order form are the same. Before buying, make sure it works with the different models of Canrig top drive such as the 8035, 8050, or 6027.

​​

​

Maintenance and Troubleshooting Tips for Longevity

If drilling workers want the Washpipe Assembly AY10031 to last longer, they need to find and fix possible problems in daily checks. Repairs that are done before they break keep high-quality drilling parts safe and cut down on unnecessary equipment downtime. Plan to check in at regular times that take into account how much work is being done, incluidng check the packing seals often for signs of wear. Write down important signs that was found during checks in the repair logs, which will help workers see patterns and figure out when to replace the parts.

If mud is leaking around the packing area, it could be because the packing seals are worn out, the pipe isn't lined up correctly, or the Washpipe Assembly AY10031's sealing surface is broken, then it should be replaced with new one. If the leak stays even after the packing is changed, check the washpipe surface for signs of wear. If the parts are out of line, you may need to replace them right away. Excessive heat generation during operation suggests high friction between the washpipe and packing, potentially caused by inadequate lubrication from drilling fluid or improper packing installation.

Why Choose the Washpipe Assembly AY10031 from GMS

Picking quality components from a trusty source has a direct impact on how well the projects run and how costs are cut. There is no doubt that the Washpipe Assembly AY10031 meets the needs of oil and gas drills and has clear benefits for procurement managers. The part's strong construction can handle the mechanical loads of spinning all the time, and the special surface treatment can handle the solids that are scoured off by drilling fluid. As a result, there will be fewer unexpected repair jobs and more steady oil and gas drilling progress.

With the ISO 9001 certificate, GMS Supply is in charge of the whole manufacturing process, from selecting the materials to making the last check. We can be sure that every Washpipe Assembly AY10031 you get works as it should and fits with your existing Carig top drive systems, thus buyers can be sure that our parts will meet strict standards that keep workers safe and make sure the equipment works well. What's more, we understand that oil and gas drilling can't be put on hold for long periods of time while they wait for important repair parts, and critical drilling components are generally kept in stock to quickly fill requests. We have short lead times usually from stock to two weeks, which means that maintenance teams can quickly fix parts that break without warning. This keeps expensive rig downtime to a minimum.

Conclusion

The Washpipe Assembly AY10031 makes sure that drilling fluid goes to the right spot and that the seals in top drive systems stay in place when it is installed correctly. GMS offers quality Washpipe Assemblies AY10031 that are built to last and are ISO certified, which means they work reliably in tough oil and gas drilling environments. With comprehensive aftersales services, GMS can respond quickly, and promise short lead time with enough product stock, by which procurement specialists will be able to meet their production goals and keep total costs down for their projects.

Partner with GMS for Your Top Drive Component Needs

For over ten years, GMS has helped oil and gas drilling operations all over the world by providing tough top drive parts including the Washpipe Assembly AY10031 that can handle the rough conditions in oil and gas drilling. With ISO-9001 certificate, we keep most of the top drive spare parts in stock so that drilling companies or contractors are able to get critical components while in need or for daily maintenance requirements. We understand how important it is for drilling tools to perform well in demanding drilling projects, and we work hard to make sure our top drive parts work reliably. Contact us by emailing our team at sales@gmssupply.com with your specific needs to find out more about the Washpipe Assembly AY10031.
