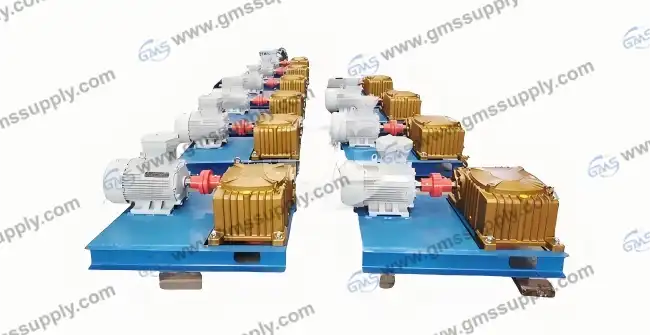

Mud agitator,drilling mud tank agitator

Mud agitators and drilling mud tank agitators serve as critical components in maintaining drilling fluid uniformity and preventing solid particle settlement in mud tanks. These specialized mixing devices are fundamental to successful drilling operations across the oil and gas industry, ensuring optimal performance of solid control and cementing systems. With their compact structure, small footprint, and excellent mixing capabilities, modern mud agitators have become indispensable equipment for tank-type solids control systems. Global Machinery Supply Co., Ltd. recognizes the importance of reliable agitation equipment and offers high-quality replacement parts that deliver exceptional performance while maintaining cost-effectiveness for solid control and cementing operations.

​

Understanding Mud Agitator Functionality in Drilling Operations

The primary function of Mud Agitator is to maintain mud uniformity and solid suspension by agitating drilling fluid consecutively and reliably, ensuring that cuttings, silt, and sand pass through the solids control system without precipitating onto the tank bottom. These sophisticated machines operate through precision-engineered gear reduction systems that convert high-speed motor rotation into optimal impeller speeds for effective fluid mixing. The agitation process prevents stratification of drilling mud components, maintaining consistent density and viscosity throughout the entire mud system. This continuous mixing action is particularly crucial in Mud Agitator operations where maintaining fluid properties directly impacts drilling efficiency and wellbore stability. Modern Mud Agitators incorporate advanced engineering principles to maximize mixing effectiveness while minimizing power consumption. The impeller design features strategically angled blades that create optimal flow patterns within the mud tank, ensuring complete circulation of drilling fluids. The preference for helical bevel geared agitators has increased significantly due to their superior stability and reliability compared to alternative gear configurations. These units provide consistent torque transmission and reduced maintenance requirements, making them ideal for continuous operation in demanding drilling environments. Global Machinery Supply Co., Ltd. offers replacement components that match OEM specifications while providing cost advantages for operators seeking reliable Solid Control and Cementing solutions. The integration of IECEX Certificate motor technology ensures compliance with international safety standards while delivering dependable performance in hazardous drilling environments.

Types and Configurations of Drilling Mud Tank Agitators

Drilling mud agitators, also called mud tank agitators, are widely used in mud solids control systems and are available in various power configurations ranging from 7.5KW to 22KW, or 10hp to 30hp, designed for different mud tank applications. The two primary configurations include horizontal and vertical mounting options, each offering specific advantages depending on tank geometry and operational requirements. Horizontal agitators typically mount on the side of mud tanks, providing efficient mixing action through side-entry impeller systems that create comprehensive circulation patterns throughout the tank volume. Vertical agitators mount from the top of mud tanks and utilize downward-directed mixing action to achieve thorough fluid agitation. This configuration proves particularly effective in deeper tanks where vertical circulation patterns enhance solid suspension and prevent settling. Advanced agitator systems like the MAX2000® offer both vertical and horizontal configurations to accommodate different tank setups, with various impeller options including canted blade designs for optimized mixing performance. The selection between horizontal and vertical configurations depends on factors including tank dimensions, available mounting space, maintenance accessibility, and specific mixing requirements for Mud Agitator operations. The motor selection for mud agitators requires careful consideration of operational demands and environmental conditions. IECEX Certificate motor systems provide intrinsically safe operation in potentially explosive atmospheres common in drilling operations. These specialized motors incorporate explosion-proof construction and comply with international safety standards for hazardous location equipment. Global Machinery Supply Co., Ltd. maintains extensive inventory of agitator components including motors, gear boxes, impellers, and mounting hardware to support various agitator configurations. The availability of replacement parts ensures minimal downtime and continued operational efficiency for solid control and cementing systems across diverse drilling applications.

Critical Components and Maintenance Requirements

Professional mud agitators incorporate explosion-proof, "C" faced motors combined with reduction gearboxes utilizing helical-bevel gears for horizontal agitator applications. The gear reduction system serves as the heart of the agitator, transforming high-speed motor rotation into appropriate impeller speeds for effective mud mixing. These precision-engineered gearboxes must withstand continuous operation under varying load conditions while maintaining consistent performance throughout extended drilling campaigns. The helical-bevel gear configuration provides superior load distribution and reduced noise levels compared to alternative gear arrangements. Bearing systems represent another critical component requiring regular attention and proper maintenance procedures. Modern mud agitators utilize heavy-duty bearings, solid shafts, and keyless couplings to ensure reliable operation in harsh drilling environments. The bearing selection must accommodate both radial and axial loads generated during agitator operation while providing extended service life under continuous duty conditions. Proper lubrication schedules and bearing condition monitoring prevent premature failures and ensure consistent agitator performance throughout the drilling operation. Impeller design and condition directly impact mixing effectiveness and power consumption characteristics. The impeller geometry creates specific flow patterns that determine circulation efficiency and solid suspension capabilities. Regular inspection of impeller blades for wear, corrosion, or damage ensures optimal mixing performance and prevents reduced agitation effectiveness. Global Machinery Supply Co., Ltd. provides high-quality replacement impellers manufactured to precise specifications, ensuring compatibility with existing agitator systems while delivering cost-effective solutions for solid control and cementing operations. The availability of IECEX Certificate motor components and associated hardware supports comprehensive maintenance programs that maximize equipment reliability and operational efficiency. None of the replacement components compromise safety or performance standards while providing significant cost advantages over OEM alternatives.

Optimizing Performance in Solids Control Systems

Mud Agitator prevents settlement of solid phase particles in tank recycling systems through continuous mixing and agitation of drilling fluid, making them essential components for maintaining optimal solids control performance. The integration of agitators within comprehensive solids control systems requires careful consideration of mixing patterns, power requirements, and operational parameters to achieve maximum effectiveness. Proper agitator placement and operation directly influence the performance of downstream solids control equipment including shale shakers, desanders, desilters, and centrifuges. The relationship between agitator performance and overall system efficiency becomes particularly critical in challenging drilling conditions where maintaining proper mud properties directly impacts drilling success. Effective agitation ensures consistent mud density throughout the tank system, preventing density variations that could compromise wellbore stability or drilling efficiency. The continuous mixing action also facilitates proper chemical treatment distribution, ensuring that additives maintain uniform concentration throughout the mud system for optimal solid control and cementing performance. Power optimization represents a significant consideration in agitator selection and operation. Modern variable frequency drive systems allow operators to adjust agitator speed based on mud properties and operational requirements, optimizing power consumption while maintaining effective mixing. This flexibility proves particularly valuable during different phases of drilling operations where mud properties and mixing requirements may vary significantly. Global Machinery Supply Co., Ltd. supports power optimization initiatives through the supply of compatible VFD systems and control components that integrate seamlessly with existing agitator installations. The combination of efficient IECEX Certificate motor technology and advanced control systems delivers superior performance while reducing operational costs for solid control and cementing applications. None of the performance optimization measures compromise safety or reliability standards while providing tangible operational benefits.

Conclusion

Mud agitators and drilling mud tank agitators represent essential equipment for successful drilling operations, providing critical mixing capabilities that maintain drilling fluid uniformity and prevent solid settlement in Solid Control and Cementing systems. The selection of appropriate agitator configurations, combined with proper maintenance procedures and performance optimization strategies, ensures reliable operation throughout demanding drilling campaigns. Modern agitator technology, incorporating IECEX Certificate motor systems and advanced gear reduction components, delivers superior performance while maintaining safety compliance in hazardous drilling environments.

Global Machinery Supply Co., Ltd. stands ready to support your drilling operations with high-quality replacement components and professional service that matches OEM performance while providing significant cost advantages. As a leading China Mud Agitator factory and supplier, we offer comprehensive solutions for mud agitator maintenance and replacement needs. Our role as a trusted China Mud Agitator manufacturer extends to providing China Mud Agitator wholesale services that ensure ready availability of critical components when you need them most. Whether you require Solid Control, Cementing for sale or competitive Mud Agitator price options, our extensive inventory and flexible solutions meet diverse operational requirements.

Contact Global Machinery Supply Co., Ltd. today at sales@gmssupply.com to discuss your specific mud agitator requirements and discover how our cost-effective replacement solutions can enhance your drilling operations while reducing overall equipment costs. Our experienced team provides personalized consultation and rapid response to ensure your projects maintain optimal performance and efficiency.
